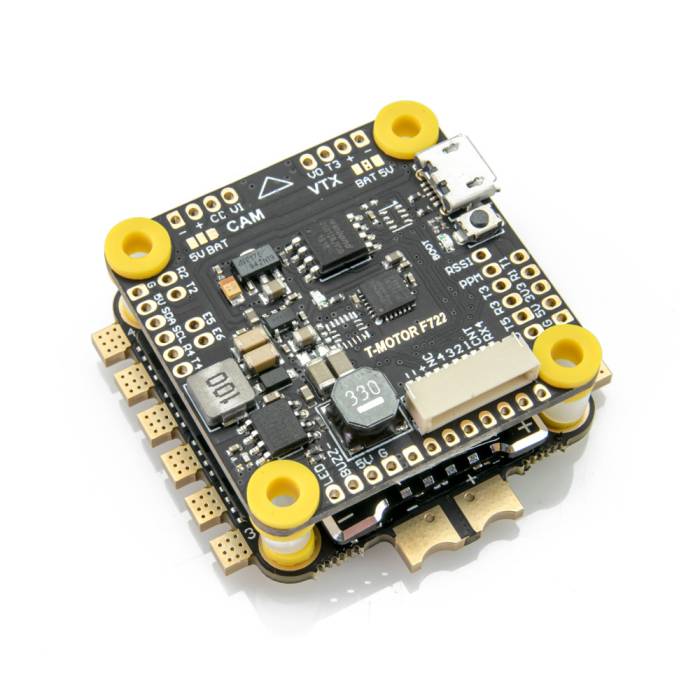

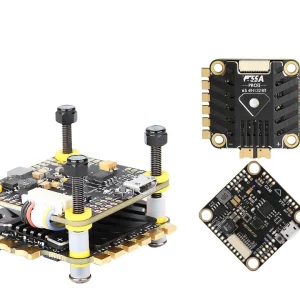

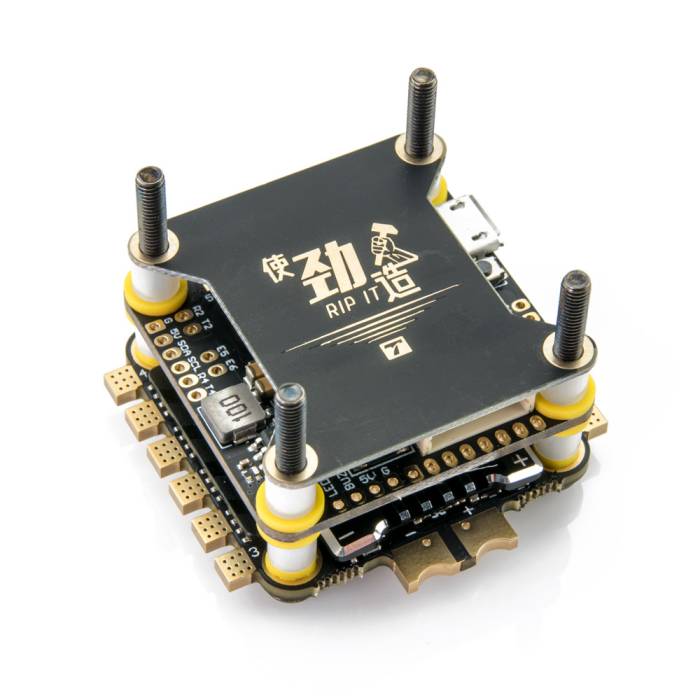

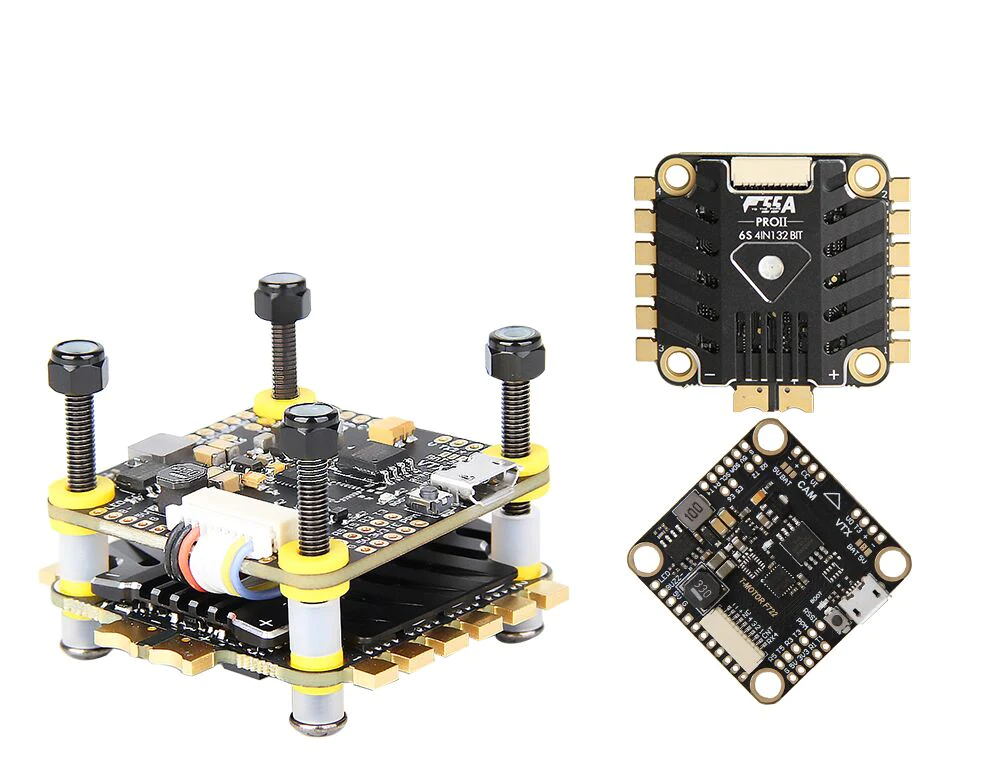

T-Motor F7 + F55A Pro II Stack 30×30 MPU6000 3-6s
Check out all of our T-Motor products, and all of our Stacks!

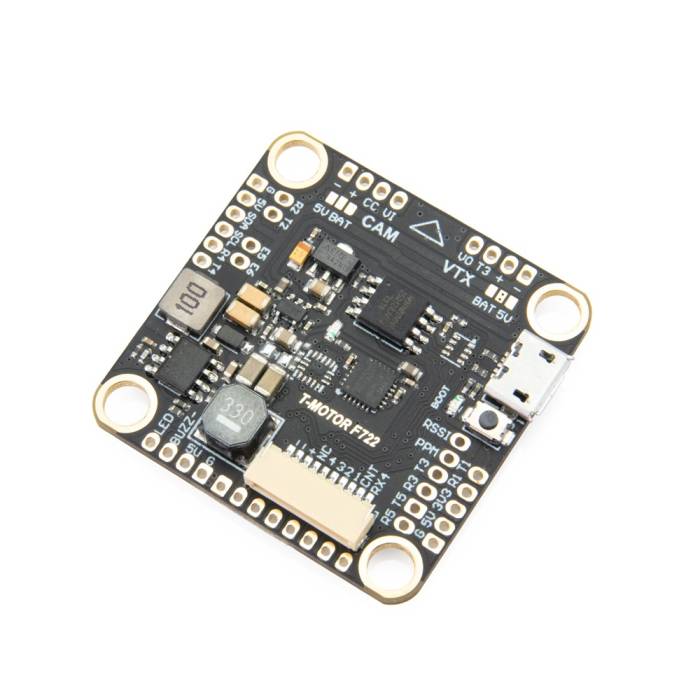

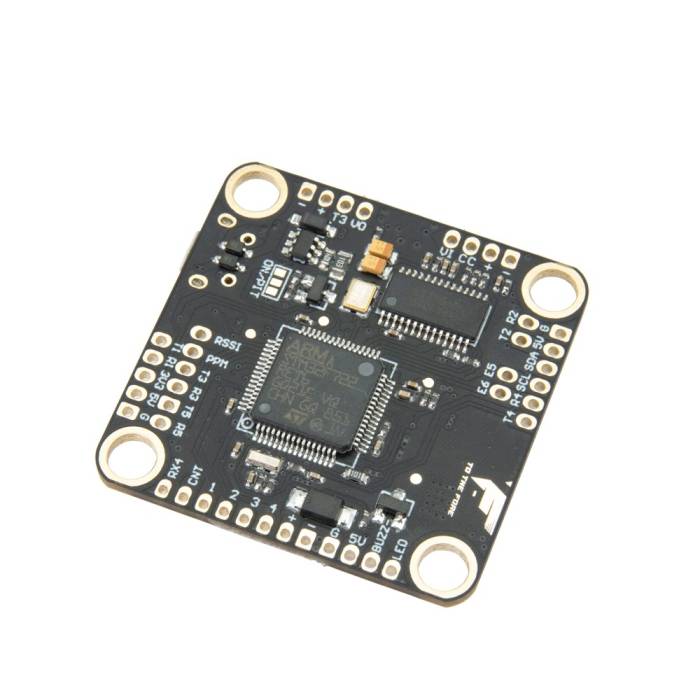

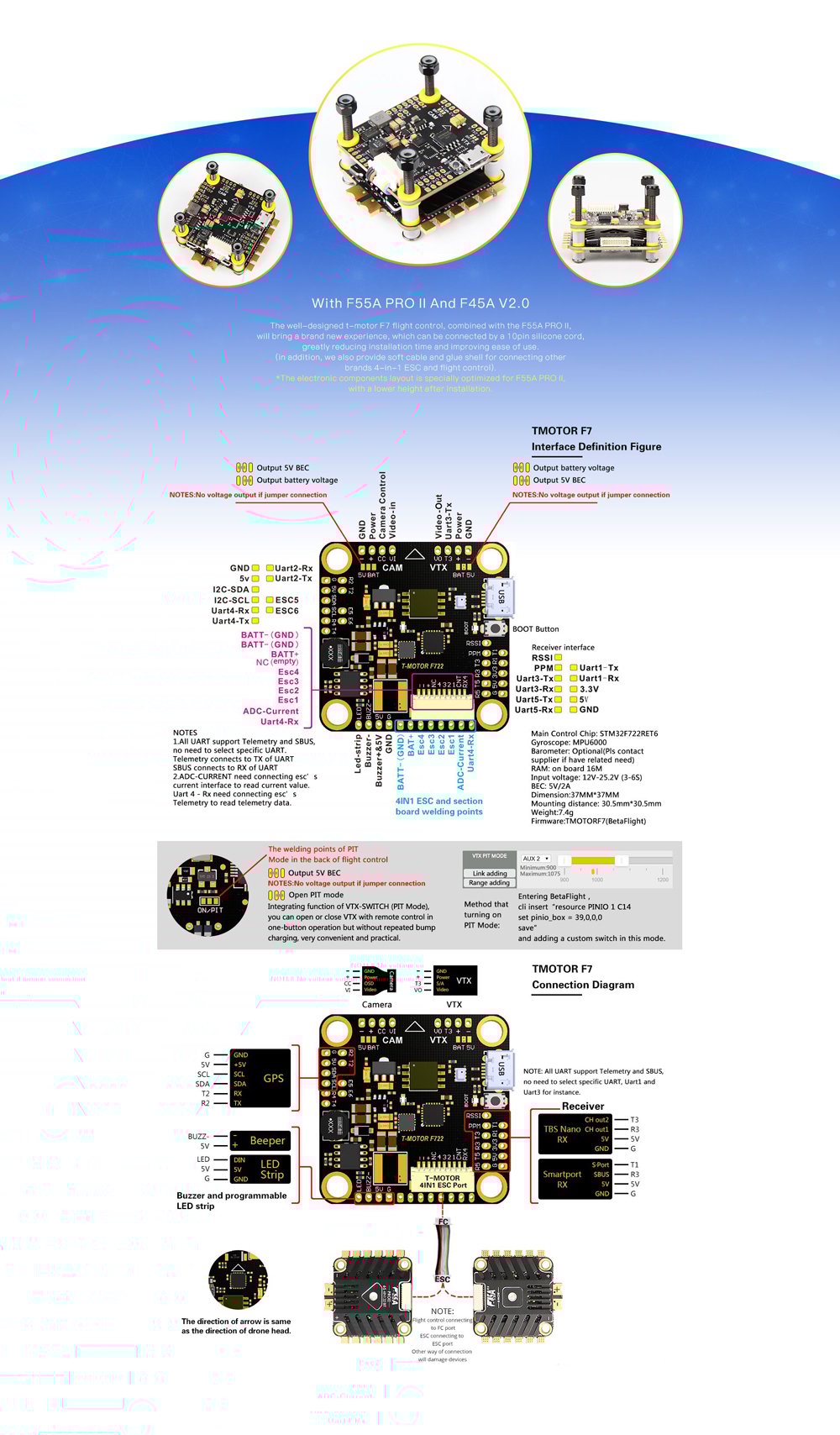

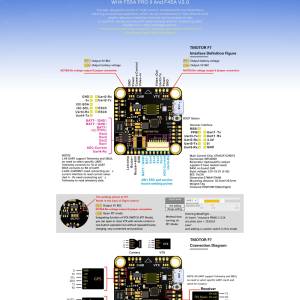

Specifications:
- MCU: STMF722RET6
- Gyro: MPU6000
- Memory: 16M
- Input Voltage: 12V-25.2V (3-6S)
- BEC: 5V/2A
- Dimensions: 37mm x 37mm
- Mounting Holes: 30.5mm x 30.5mm
- Weight: 7.4g
- Firmware Target: TMOTORF7 (Betaflight)

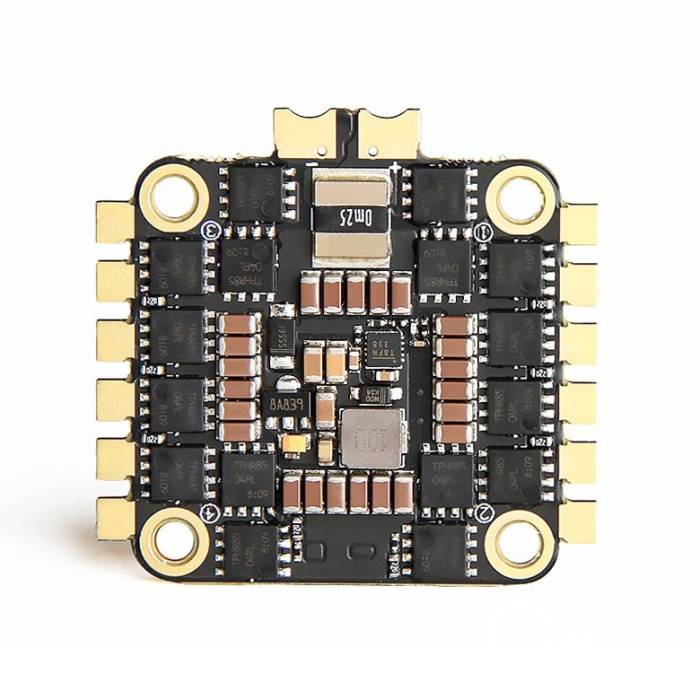

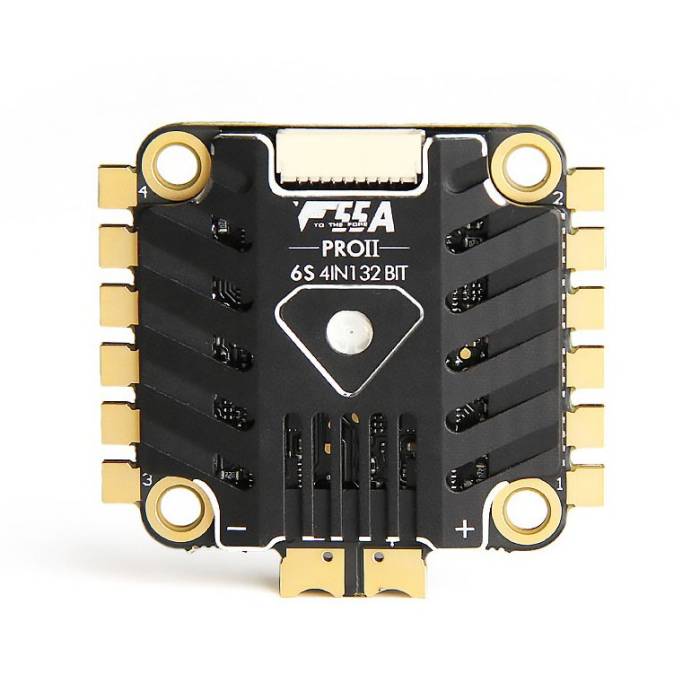

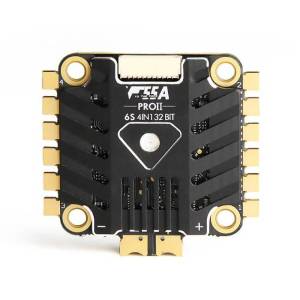

T-Motor F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC with BEC:
- Upgraded design with a new heatsink, LED, and increased BEC current to 10V@2A.
- Capable of handling 6S power with a burst current of 75A and sustained current draw of 55A.
- Features 32-bit capability and BLHeli32 firmware for improved performance.
Additional ESC Details:
- Continuous current: 4*55A
- BLHeli_32 32bit
- Burst current: 4*75A
- BEC Output: 10V @2.0A
- Size: 45x41x7.3mm
- Weight: 17.5g (Including Heatsink)
- Supports DSHOT150/300/600/1200

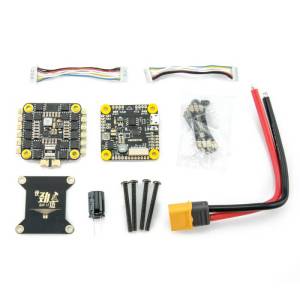

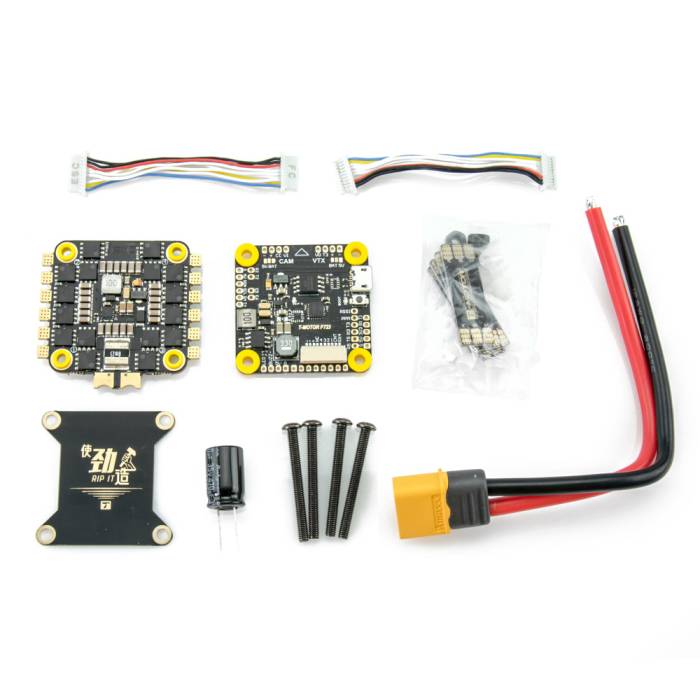

Package Includes:
- 1x T-Motor F7 Flight Controller
- 1x T-Motor F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC with BEC
- 1x XT-60 Pigtail
- 1x Insulation Board
- 4x Link Board
- 4x M3x30 Screw
- 2x FC to ESC Cable
- 4x Non-Slip Nut
- 16x Spacers
- 1x Capacitor
