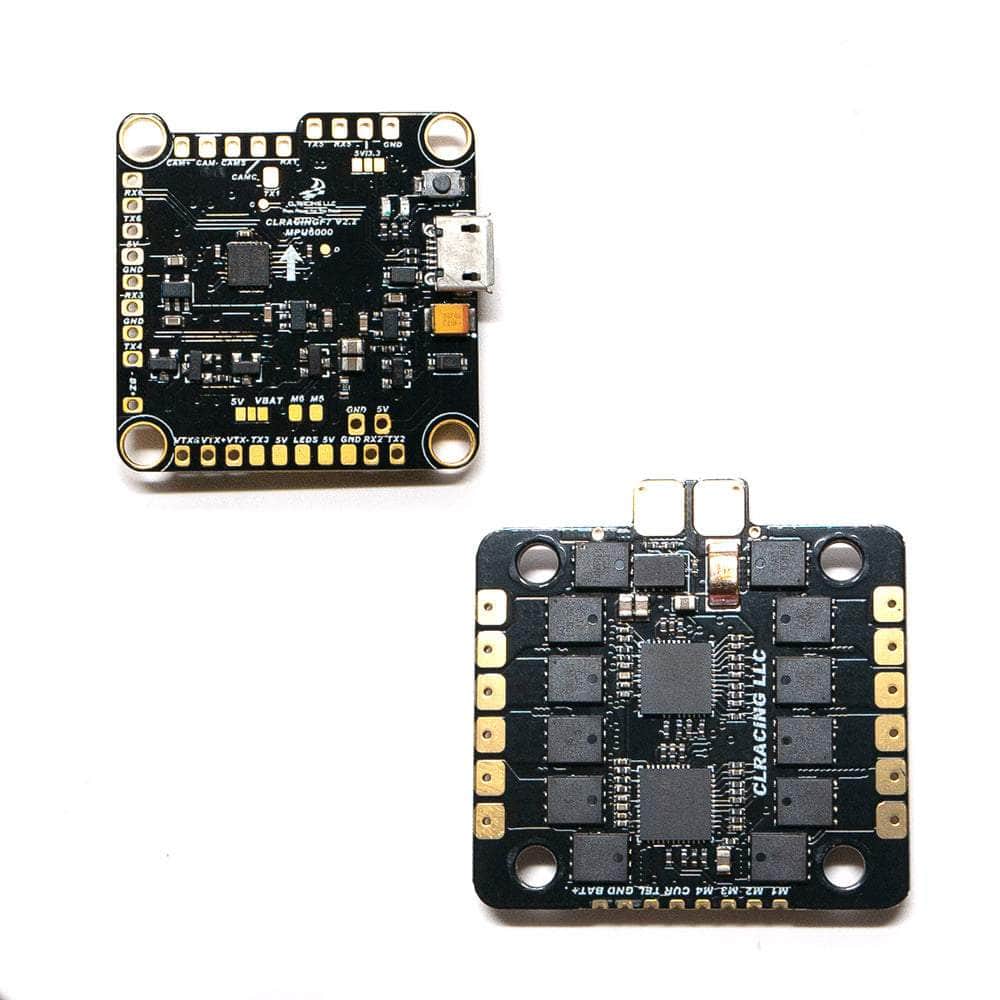

CL RACING F7 MPU6000 & ESC COMBO

This new stack is very similar with the previous with the exception of a single MPU6000 Gyro instead of dual to make the stack less sensitive to vibrations and noisy builds.

Main FC Features

1. MCU: STM32F722RET6 216MHz
2. MPU6000 Single Gyro
3. Build in Beta flight OSD
4. Up to 8S(36V) direct battery power
5. Build in Voltage monitoring resistor
6. Build in 5V/3A BEC and 3.3V/250mA for system
7. Led strip share 5V with 5V/3.0A BEC
8. 5V OR VBAT, camera and VTX POWER VIA Pit Switch
9. 6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6
10. Build in Camera Control pin with necessary resistor and capacitor near camera connection
11. Buzzer pads for external buzzer
12. VBAT Polarity protection
13. Build in 32MB Blackbox flash chip
14. M4 Can be selected either led strip signal or M4 signal for RPM filtering

Main ESC Features

LIPO: 2-6S LIPO
Weight:13.5g
Firmware: Blheli_32
Size : 43.5mm x 46.5mm
Mounting : 30.5mm x 30.5mm / ID 4mm
Con.Current:45A, Peak 55A @10s
Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
Connection: PNP with CLRACING F7 FC, with JST1.0 8 pin connector or soldering pads
Current scale: 250

Accessories:

10 x M3*5mm nylon thread through spacers
5 x M3*25mm nylon screws
5 x M3 nylon nuts
5 x Yellow Grummits
2 x 14 AWG 80mm Silicone wires
1 x connection cable
1 x Amass XT60
1 x Rubycon 1000uf 35v ZLH capacitor
