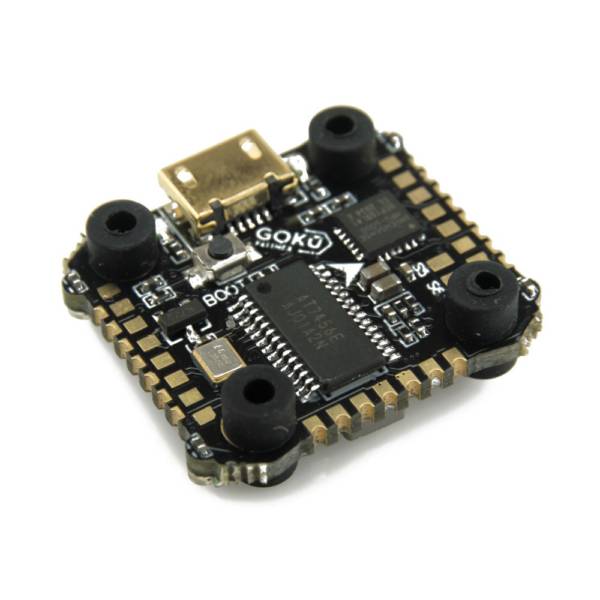

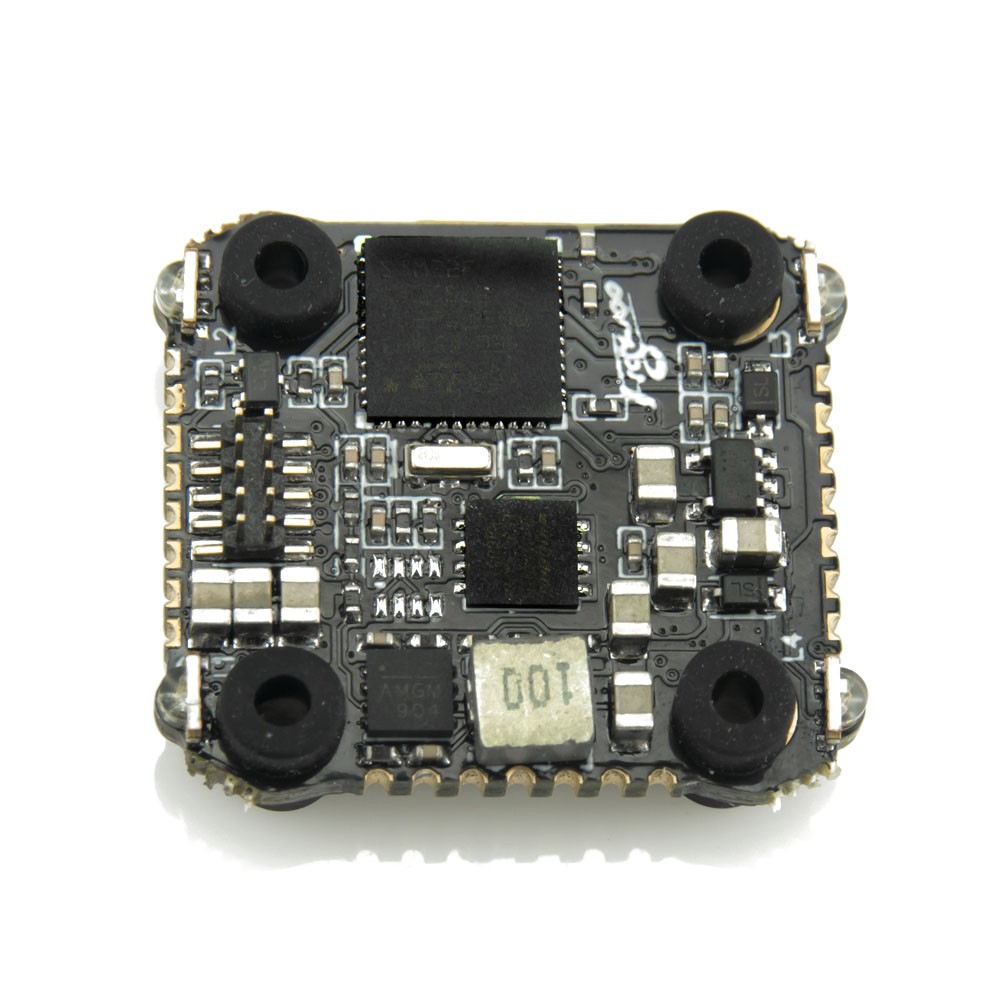

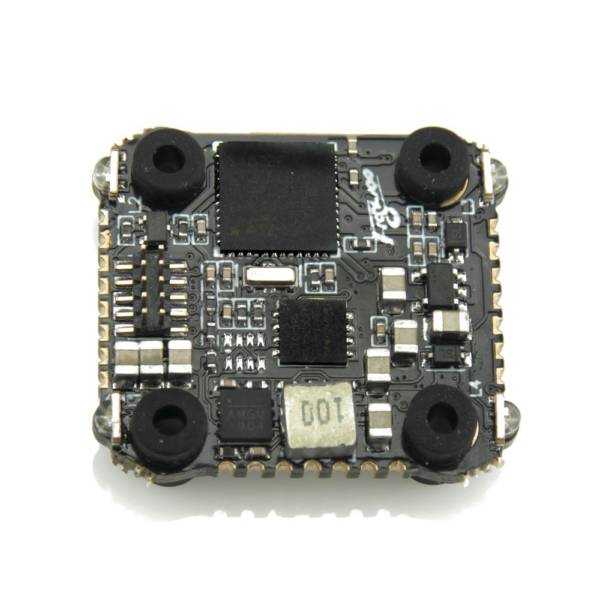

Flywoo GOKU HEX F411 16×16 FC For Hexacopter w/ LEDs
Build the micro hexacopter of your dreams with the Flywoo GOKU HEX F411, a highly specialized flight controller purpose-built for 6-motor FPV drones. This FC packs a ton of features into an ultra-compact 16x16mm mounting pattern, making it the perfect brain for your custom nano or micro hexacopter project. It combines a reliable processor and gyro with thoughtful features like integrated LEDs for a clean and capable build.
IMPORTANT NOTE
This flight controller is specifically designed and configured for hexacopter (6-motor) drones only. The firmware and motor outputs are not compatible with standard quadcopters.
The GOKU HEX F411 is built on a proven combination of an STM32F411 MCU and the classic MPU6000 gyro, known for its smooth, noise-resistant performance. It features two dedicated hardware UARTs for your essential peripherals, 8MB of onboard blackbox flash for tuning, and a powerful 5V/2A BEC to provide clean power to your receiver, VTX, and camera. As a stylish touch, four integrated WS2812 LEDs light up your stack, making your custom build look as good as it flies.
KEY FEATURES
- Hexacopter Specific Design: Purpose-built firmware and motor outputs for 6-motor FPV drones.
- Ultra-Compact 16x16mm Size: Perfect for building micro and nano hexacopters where space is critical.
- Reliable F411 & MPU6000:** A proven processor and gyro combination for smooth, stable flight.
- Integrated Stack LEDs: Four onboard WS2812 LEDs add a custom look to your build.
- 2-4S LiPo Compatibility: Versatile power input for a range of small hexacopter setups.
- Onboard Blackbox: 8MB of flash memory for logging flights and tuning performance.
SPECIFICATIONS
- MCU: STM32F411
- Gyro: MPU6000
- Firmware: FLYWOOF411HEX
- Input Voltage: 2-4S LiPo
- BEC: 5V/2A
- Blackbox: 8M Flash Memory
- UARTS: 2 Hardware, 2 Software
- Mounting: 16x16mm (M3 hole, M2 with included grommets)
- Dimensions: 22x23mm
INCLUDES
- 1x Flywoo Goku Hex F411 16×16 Flight Controller
- 1x Wiring and Grommet Kit
