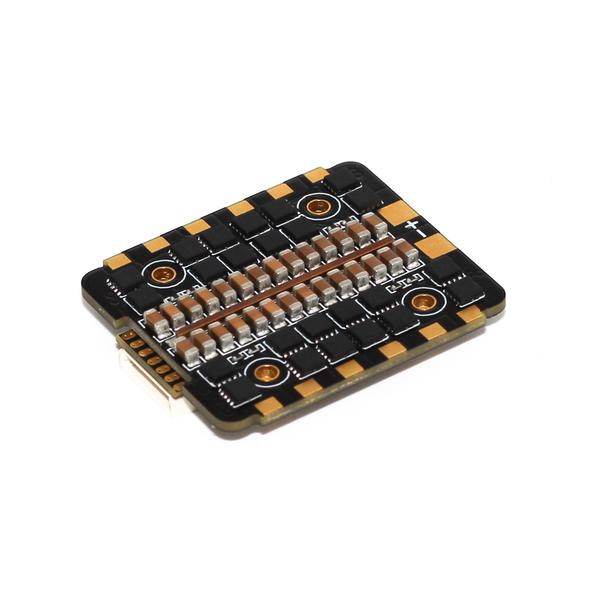

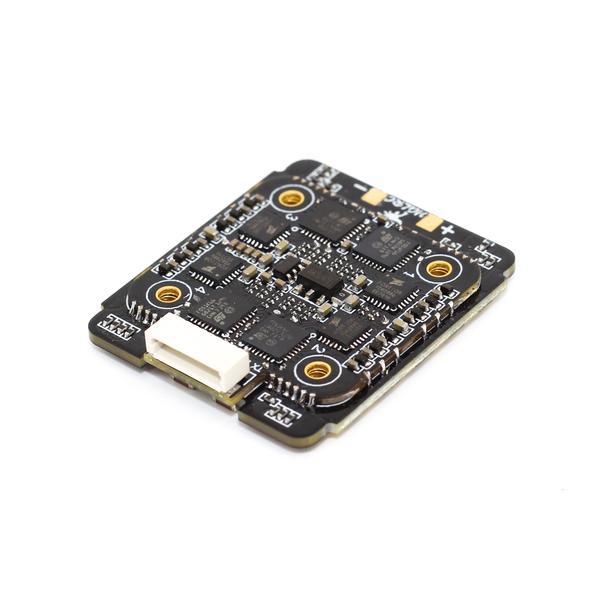

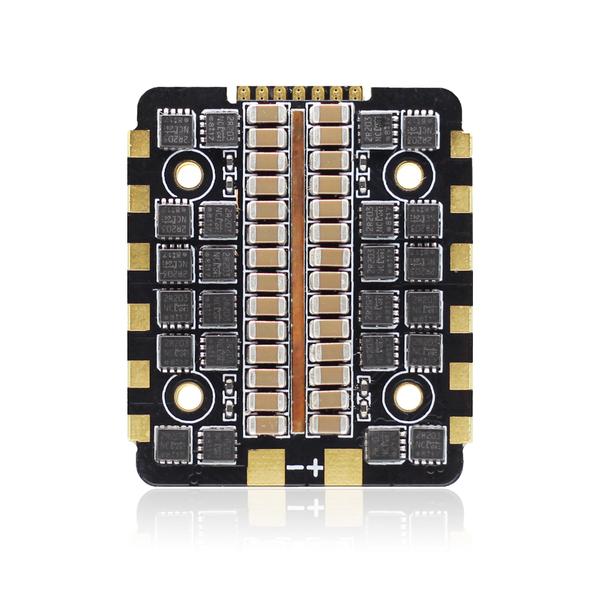

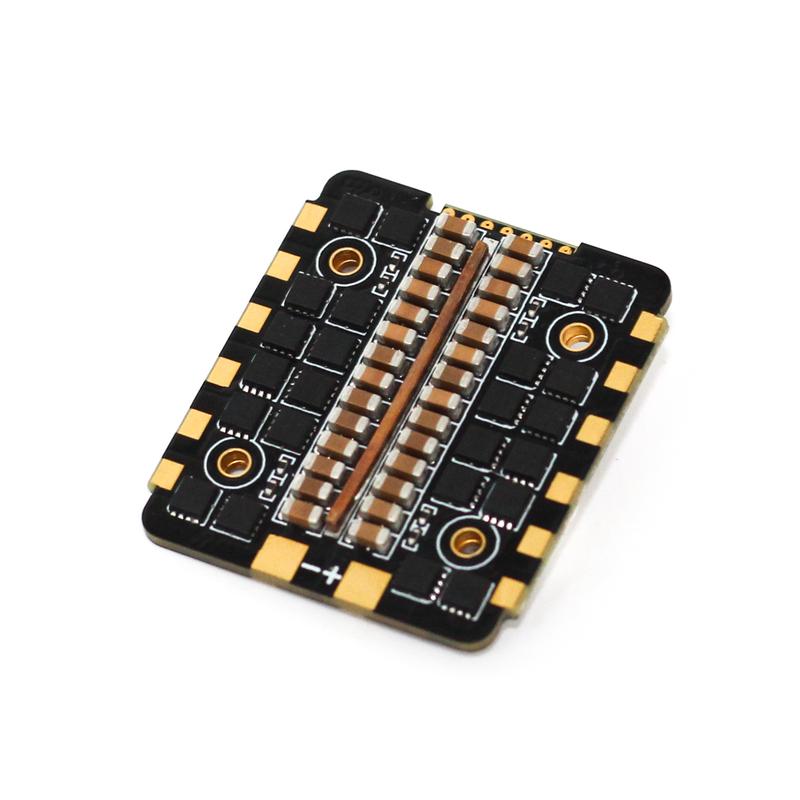

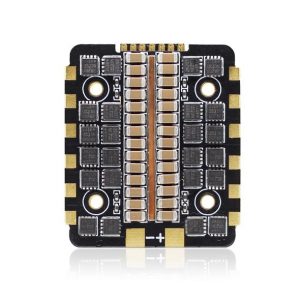

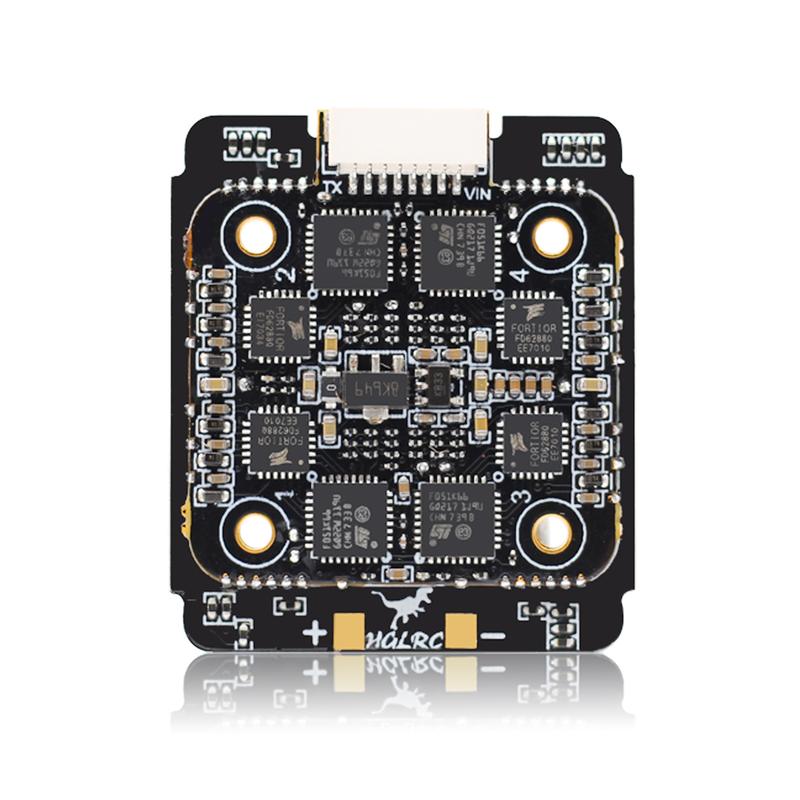

45A 4in1 Mini ESC 20x20mm BLHeli_32 2-6S
Check out all of our HGLRC Products!
Deliver smooth, reliable power to your motors with the HGLRC Forward 45A 4-in-1 Mini ESC. Designed to be the perfect companion to a 20x20mm flight controller, this ESC packs high-end features and robust power handling into a compact form factor, making it ideal for modern freestyle and long-range FPV drones.
At its core, the Forward 45A runs on advanced BLHeli_32 firmware. This 32-bit platform offers superior performance over older 8-bit ESCs, resulting in smoother motor response, higher resolution control, and a more locked-in flight feel. BLHeli_32 also unlocks powerful features like bidirectional Dshot for RPM filtering, extended telemetry, and a host of configurable parameters to fine-tune your quad’s performance.
With the flexibility to run on 2S to 6S LiPo batteries, this ESC can handle a wide variety of builds. It provides a powerful 45A of continuous current on a 4S setup and a solid 35A on 6S, with a burst rating of up to 55A to handle demanding maneuvers. The package includes a full installation kit, providing an XT60 pigtail, power cables, a capacitor, and an 8-pin cable for a clean, simple connection to your flight controller.
Key Features:
- Advanced BLHeli_32 Firmware: Delivers the smoothest motor performance and supports features like bidirectional Dshot, extended telemetry, and custom startup tones.
- High-Current Handling: Capable of a powerful 45A continuous current on 4S and 35A on 6S, providing plenty of headroom for aggressive flying.
- Wide 2-6S Voltage Range: Offers maximum flexibility, allowing you to use this single ESC for a huge range of FPV drone builds.
- Compact 20x20mm Mounting: Perfect for building a clean, lightweight, and compact electronics stack.
- Complete Installation Kit: Comes with an XT60 connector, capacitor, power wires, and an 8-pin FC cable to get you started right out of the box.
Please Note: The continuous current rating is dependent on battery voltage: 45A on a 4S LiPo and 35A on a 6S LiPo.
Specifications:
- Model: Forward 45A 4in1 Mini ESC
- CPU: STM32F051
- Input Voltage: 2-6S Lipo battery
- Constant Current: 45A (4S) / 35A (6S)
- Peak Current: 55A (5 seconds)
- BEC Output: No
- Firmware: BLHELI_32
- Mounting Hole: 20x20mm, M2
- Size: 31.7×36.5mm
- Weight: 10.8g
Package Includes:
- 1x HGLRC Forward 45A 4in1 MINI ESC
- 1x XT60 Power Connector
- 1x Capacitor
- 2x 100mm 14 AWG Power Cable
- 1x 8-pin Cable
