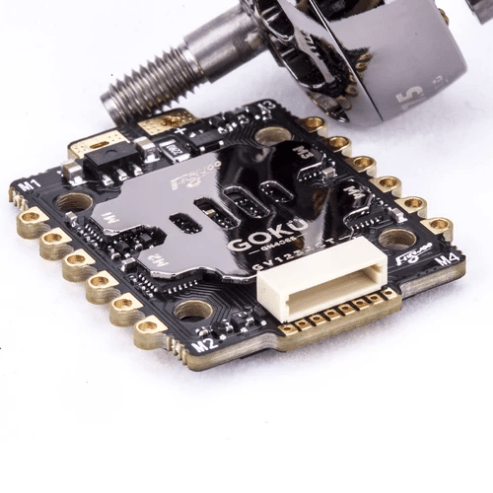

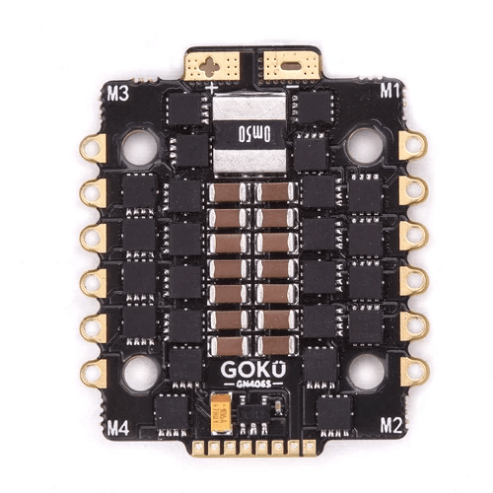

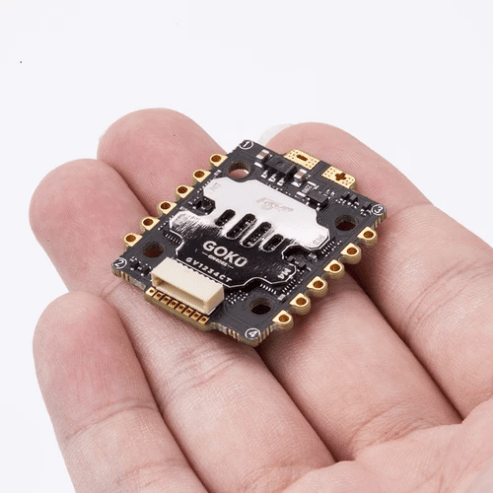

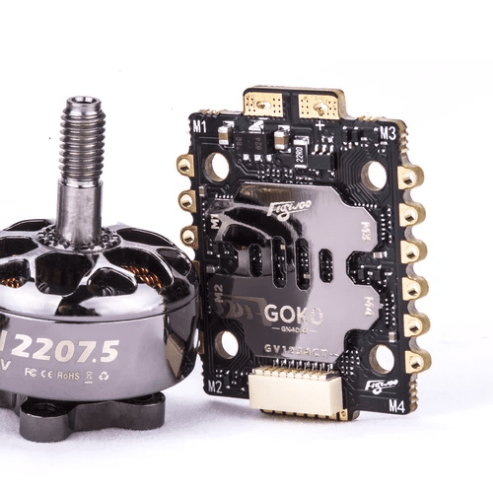

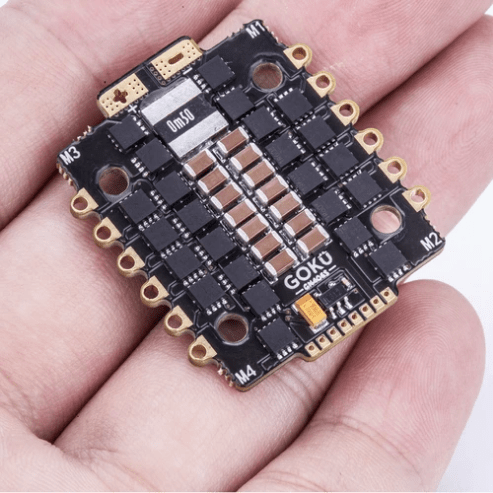

FLYWOO GOKU 406S 40A BLheli_32 2-6S 4in1 Brushless ESC

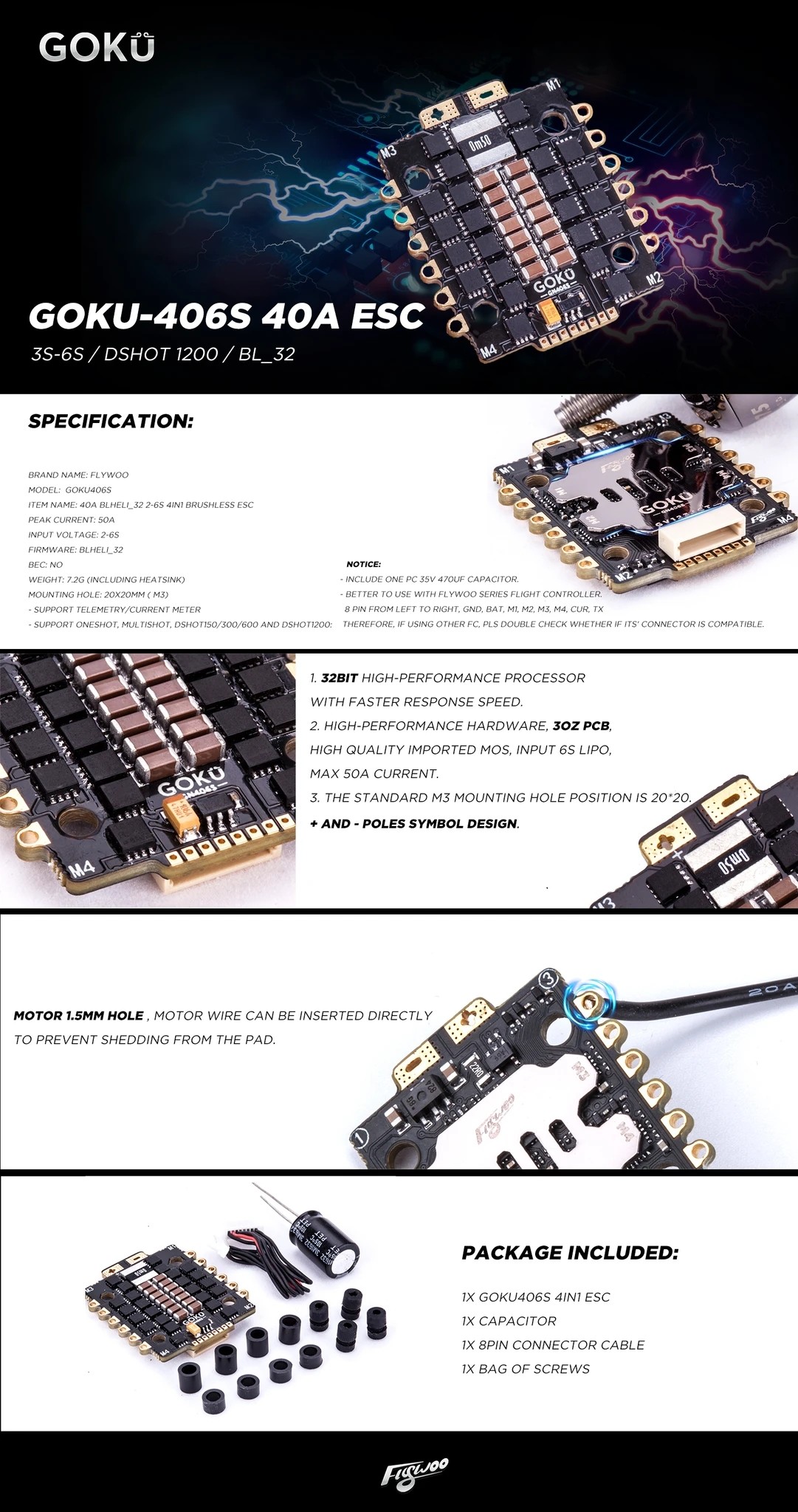

Specifications:

Item Name: 40A BLheli_32 2-6S 4in1 Brushless ESC
Peak Current: 50A
Input Voltage: 2-6S
Firmware: BLheli_32
BEC: NO
Weight: 7.2g (including heatsink)
Mounting Hole: 20x20mm ( M3)
– Support Telemetry/Current Meter
– Support Oneshot, Multishot, DShot150/300/600 and DShot1200

Notice:
– Includes one pc 35V 470uf Capacitor.
– Better to use with a Flywoo series Flight Controller.

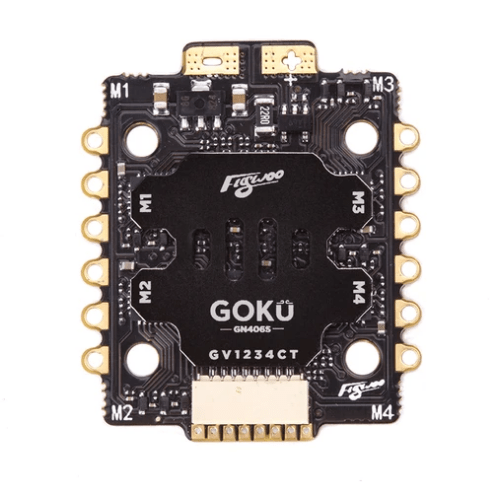

8 Pin from left to right, GND, BAT, M1, M2, M3, M4, CUR, TX
Therefore, if using other another brand FC, please double check whether if its’ connector is compatible.

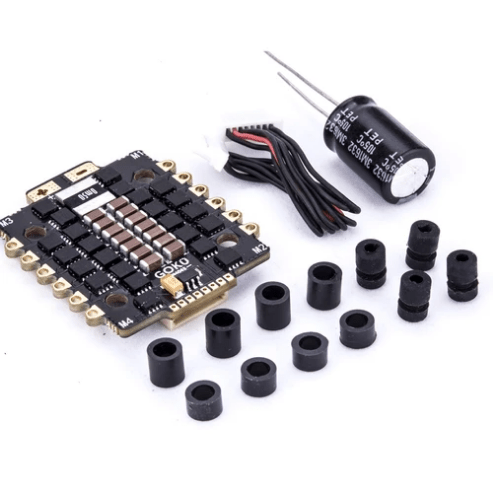

Package Includes:

1x GOKU406S 4in1 ESC
1x Capacitor
1x 8pin Connector Cable
1x bag of Screws
