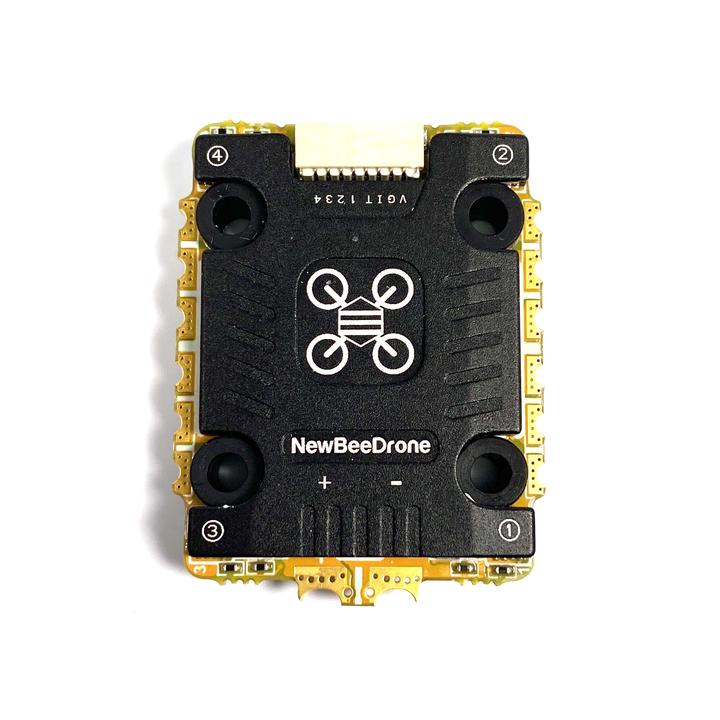

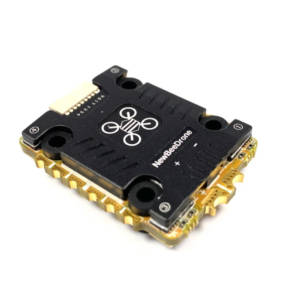

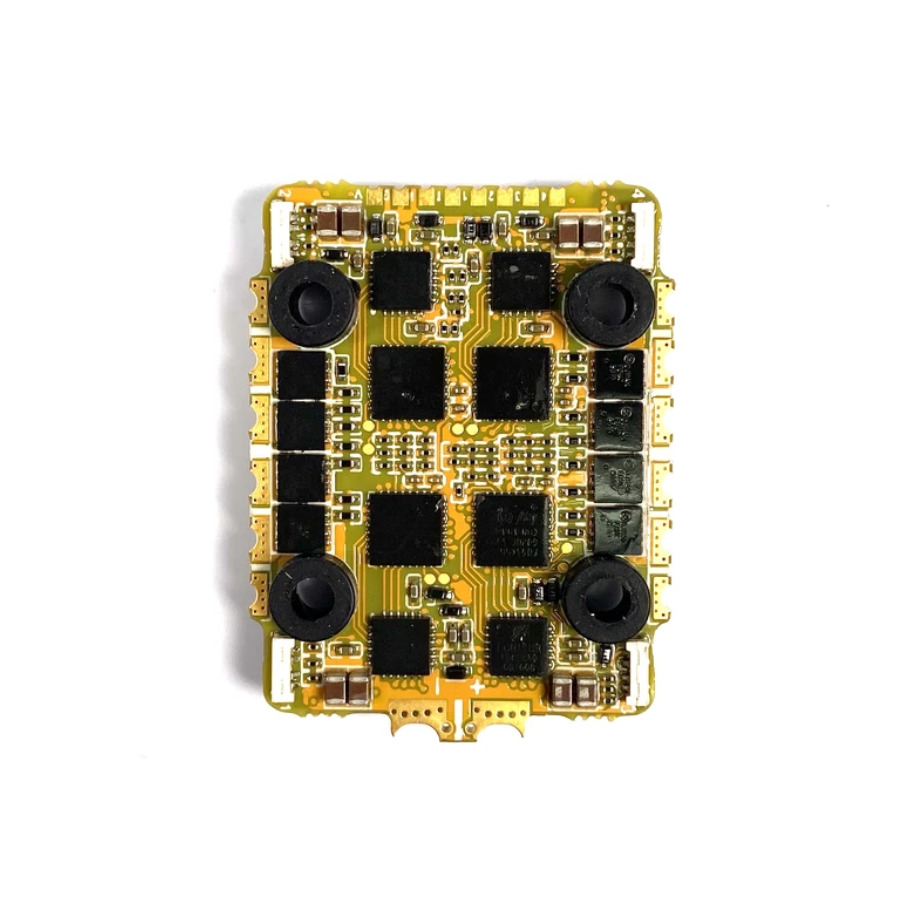

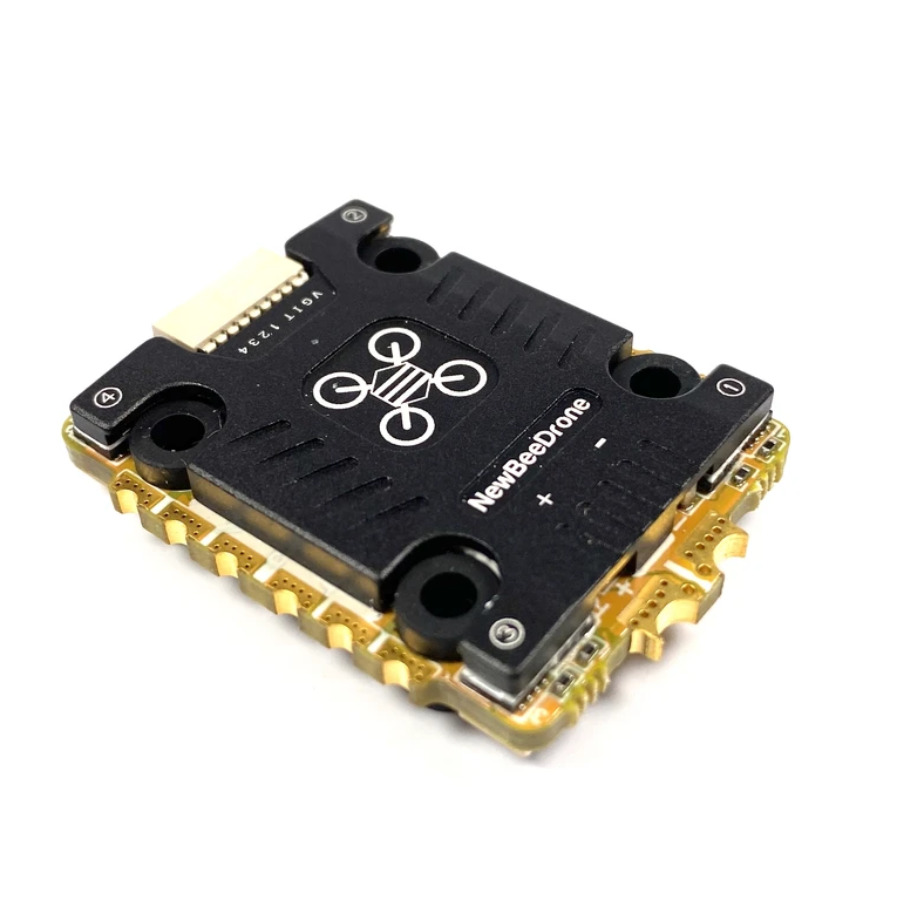

NewBeeDrone Infinity200 3-6s 4n1 ESC (45A + 55A Burst)
Check out all of our NewBeeDrone Products!
Pair this with the Infinity200 Flight Controller to create the market’s smallest most powerful Stack!
This ESC is part of the NewBeeDrone Infinity200 Stack that is plug-and-play with the DJI Digital FPV System!
Infinity200 ESC Spec:
- LiPo Power input: 3S-6S
- ESC Programming: BLHeli32
- Cont.Current: 45Ax4
- Burst Current: 55Ax4
- Weight / Size: 13.0g / 39×29.5x8mm
- Mounting holes: 20x20mm
- Signal plug JST1.0 8pin plug with NBD Infinity200FC
- Solder pad ready for signal and power
- Heatsink design
- 8Â Layer PCB with 2Oz Copper
- BLHeli32 Programable Sided RGB LED x4
- Smoov performance design by Team NBD
Includes:
- 1x Infinity200 4 in 1 ESC BLHeli32
- 4x Grommets short 4x Grommets Long
- 5x Steel Screw 25mm
- 13x Nylon Lock nut
- 1x Infinity20 FC to Infinity20 ESC cable 30mm
- 1x Infinity20 FC to Infinity20 ESC cable 50mm
- 1x Infinity20 FC to Infinity20 ESC cable 85mm
- 470uf 35v Electrolytic capacitor
