Diatone MAMBA 5 Reactor 66 ESC BLHeli32 4IN1 ESC 66A 6S
Check out all of our Diatone Products!

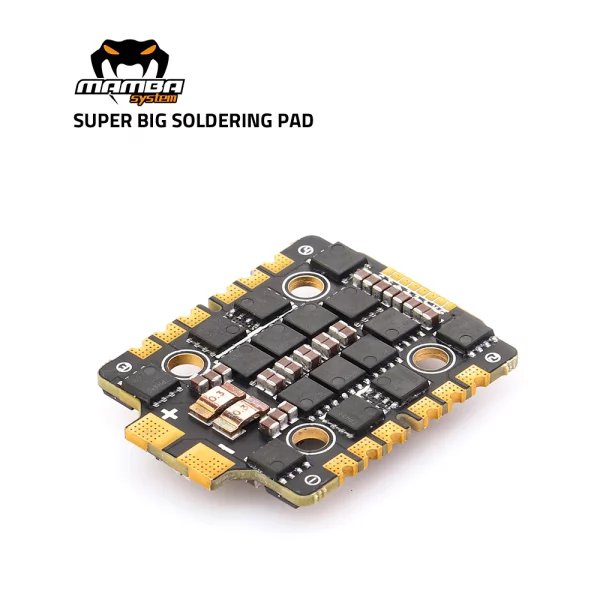

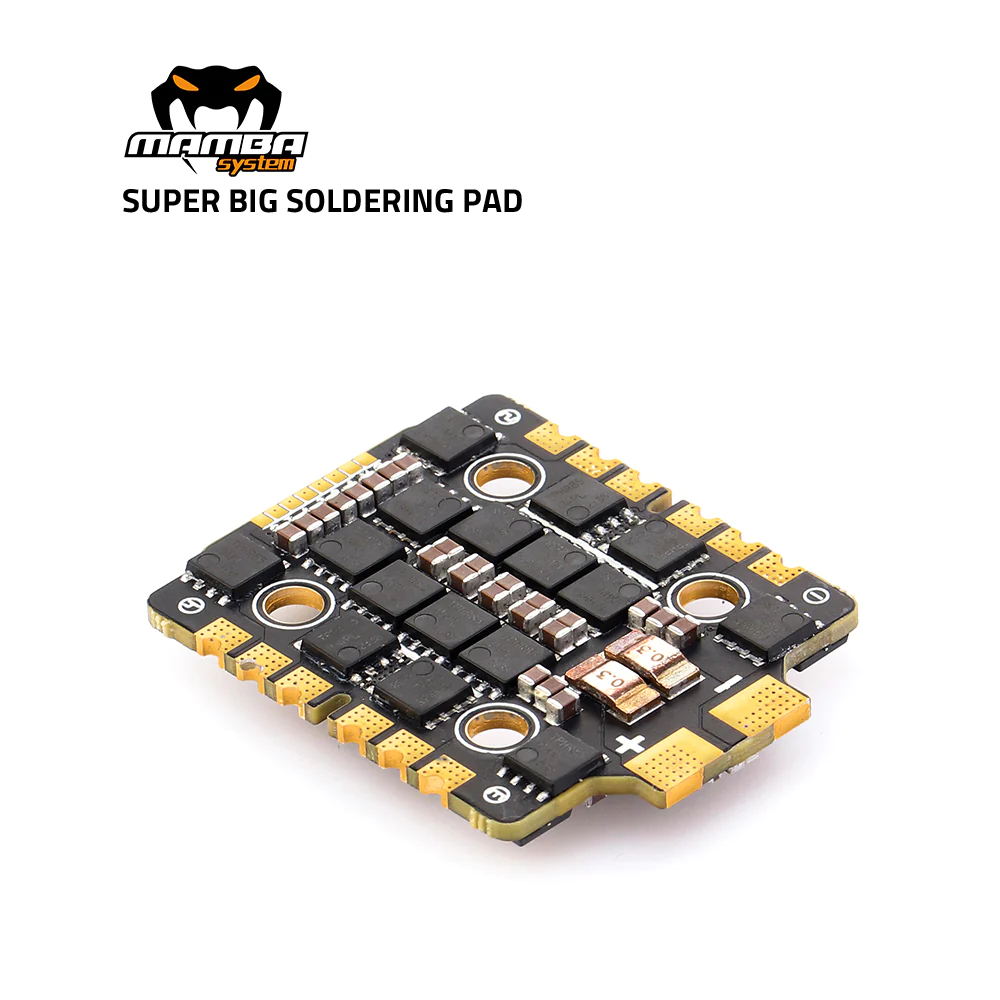

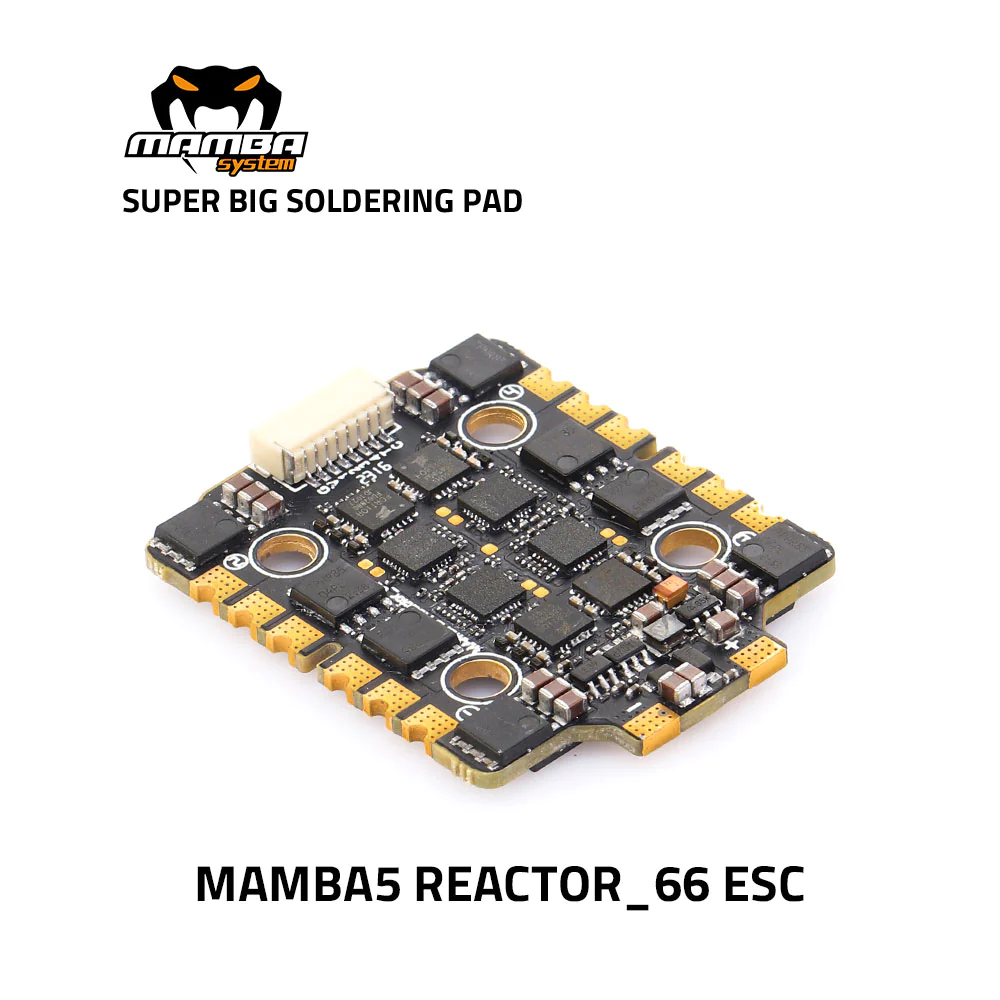

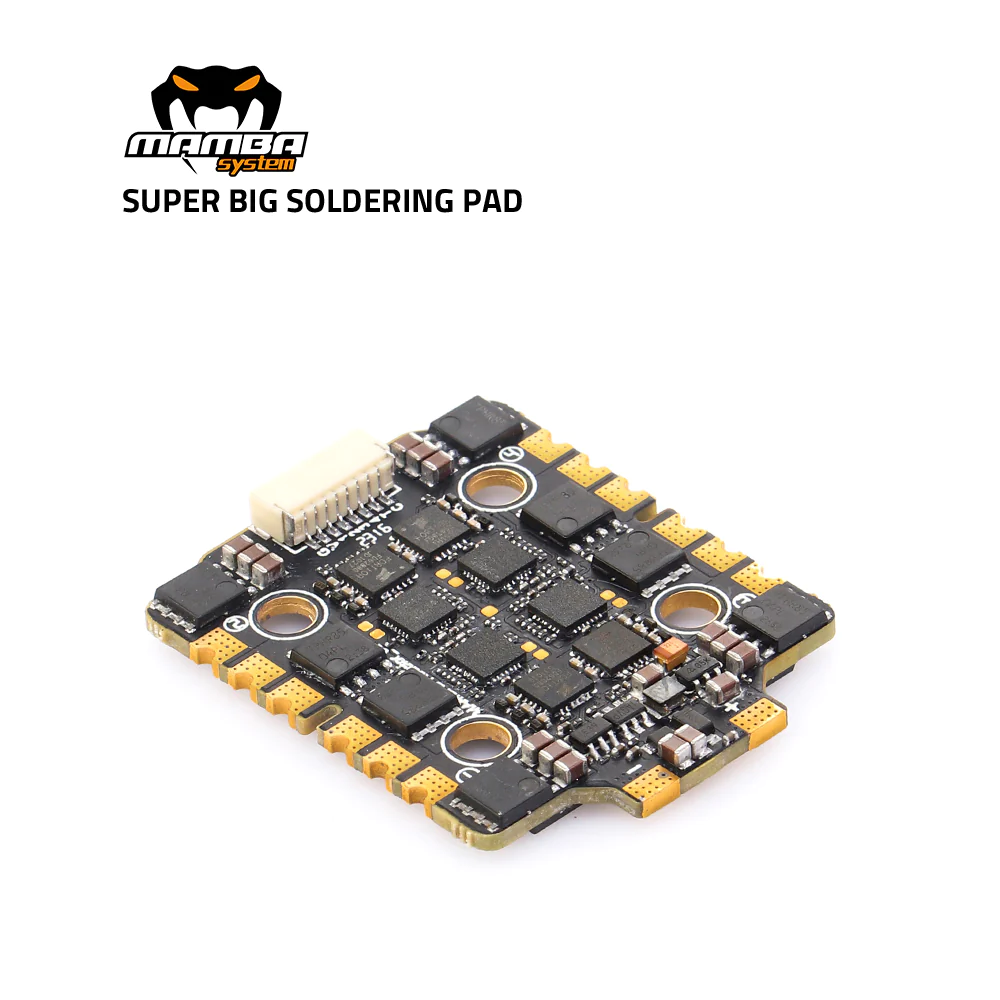

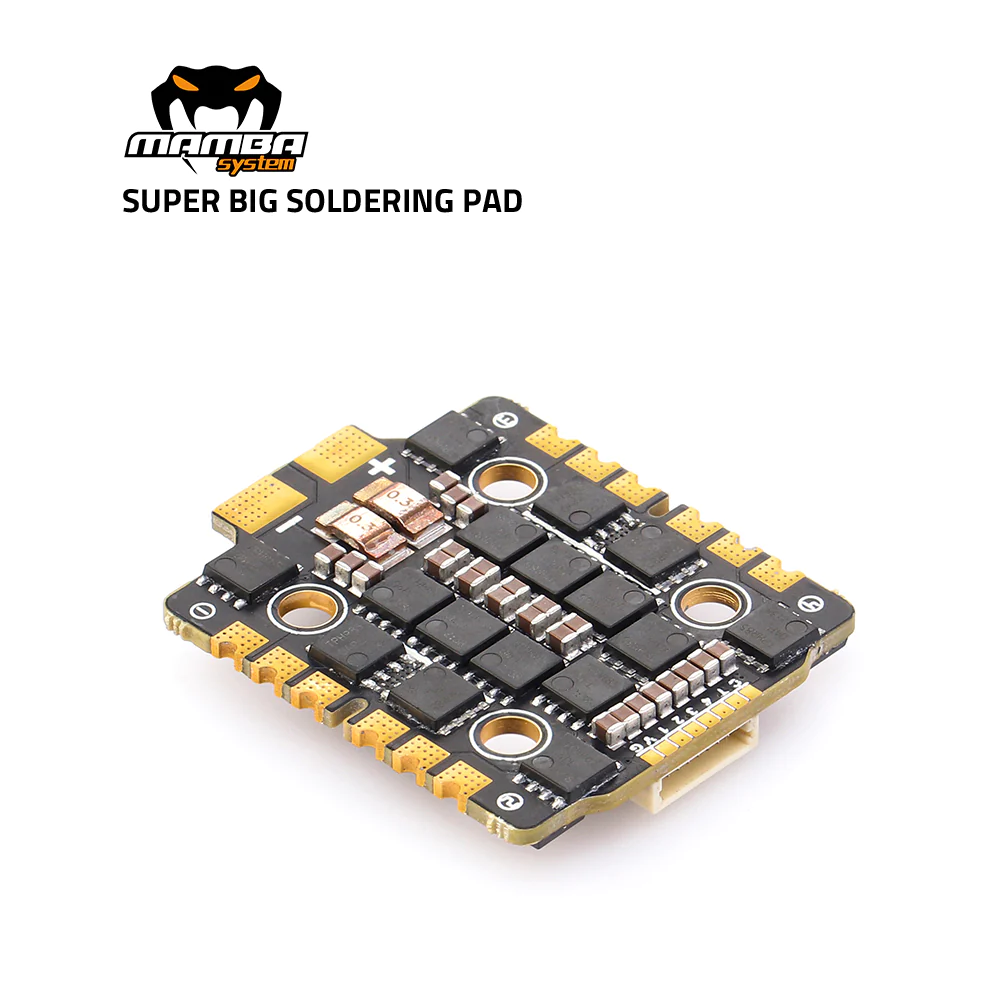

Redefine what’s possible in a compact FPV build with the Diatone Mamba 5 Reactor 66, an ESC that packs unprecedented power into a 20x20mm form factor. Engineered for pilots who refuse to compromise, this ESC delivers a staggering 66A continuous current, making it one of the most powerful “mini” ESCs on the market. It’s the ultimate choice for building top-tier racing or freestyle drones where both space and power are paramount.
The Mamba Reactor 66 features the advanced BLHeli_32 firmware platform. Its 32-bit processor unlocks a full suite of high-performance features, including support for Dshot1200 protocols and variable PWM frequencies up to 128K. For the pilot, this translates into unparalleled smoothness, lightning-fast motor response, and optimized efficiency, giving you the control needed for the most demanding maneuvers.
This ESC is built to handle extreme power demands. The 66A continuous current rating is backed by a massive 105A burst capability, giving you complete confidence when running aggressive motors on 4S to 6S LiPo batteries. The versatile 20mm mounting pattern is compatible with both M2 and M3 hardware, ensuring a secure fit in a wide range of modern frames. Paired with the included high-frequency 1000uF capacitor, this ESC provides an incredibly stable and robust power solution for your build.
KEY FEATURES
- Massive 66A Current Rating: A huge 66A continuous current (105A burst) in a compact form factor.
- Compact 20x20mm Mounting: Delivers top-tier power while saving space and weight, compatible with M2 and M3 hardware.
- Advanced 32-Bit BLHeli_32 Firmware: Provides exceptionally smooth performance, ESC telemetry, and PWM frequencies up to 128K.
- 4-6S LiPo Compatibility: Versatile power input for a wide range of high-performance builds.
- High-Speed Protocols: Supports Dshot300/600/1200 for lightning-fast and precise motor control.
SPECIFICATIONS
- Input Voltage: 4-6S Lipo (16.8V – 25.2V)
- Continuous Current: 66A × 4
- Burst Current: 105A (10S)
- BEC: None
- Firmware Target: BLHeli_32 MAMBA5_Reactor_66
- Protocol: Dshot300/600/1200
- PWM Frequency: 24K – 128K
- Mounting: 20mm x 20mm (M2/M3 compatible)
INCLUDES
- 2x 8pin sh1.0 Cables
- 2x AMASS Original XT60 Connectors
- 1x High-Frequency 1000uF/35V Capacitor
