Flywoo GM8 Mini V2.0 GPS Module

Check out all of our Flywoo products!

Get precise location data for your drone with the Flywoo GM8 V2.0 GPS Module.

Specifications

• Brand: FLYWOO
• Model: GM8 MINI V2.0 GPS

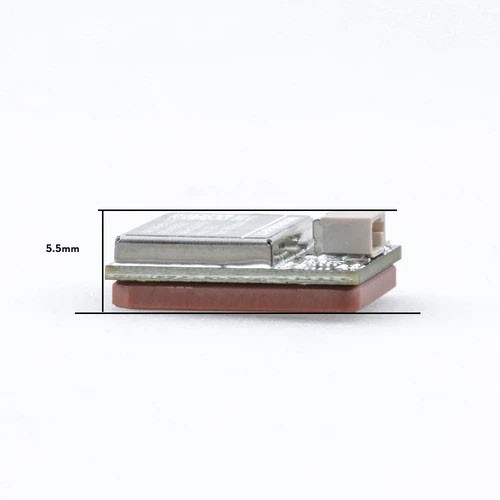

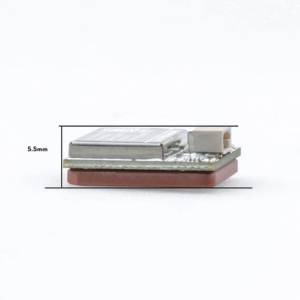

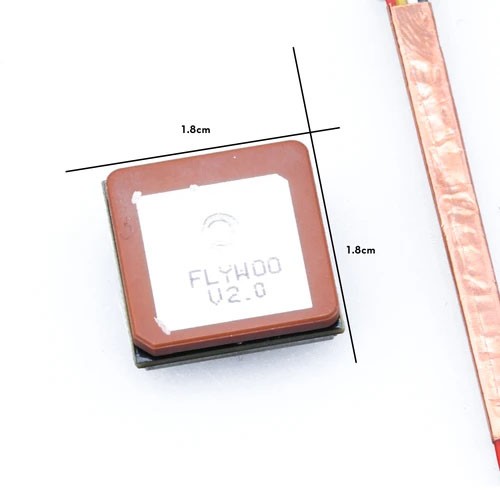

• Dimension:　18mm*18mm*6mm
• Weight: 4.6g
• Connector: 1.00mm spacing between the 4pins patch seat

Electrical Characteristics

• Chipset: M8030-KT
• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
• Channels: 72 Searching Channel

Sensitivity

• Tracking: -167dBm
• Reacquisition: -160dBm
• Cold start: -148dBm
• Hot start: -156dBm

Accuracy

• Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
• Velocity: 0.1m/sec 95% (SA off)
• Timing: 1us synchronized to GPS time

Acquisition Time

• Cold Start: 26s
• Warm start: 25s
• Hot start: 1s

Data and Update Rate

• Support Rate : 4800bps to 921600bps,Default 9600bps
• Data Level: TTL or RS-232, Default TTL level
• Data Protocol: NMEA-0183 or UBX, Default NMEA-0183
• Single GNSS: 1Hz-18Hz
• Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits

• Altitude: 50,000m Max
• Velocity: 515m/s Max
• Acceleration: Less than 4g

Power consumption

• VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
• Current: Capture 50mA/5.0V
• Operating temp:　-40 °C ~ +85°C
• Storage Temp : -40°C ~ +105°C

Indicator

• TX LED: RED. The data output, TX LED flashing
• PPS LED:red.PPS LED is not bright when GPS not fixed, flashing when fixed

Wiring

• GND, TX output, RX input, VCC(3.0v-5.5v)

Includes

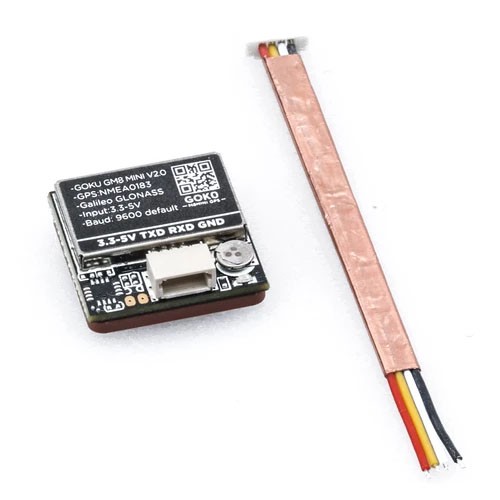

• 1 x GM8 MINI V2.0 GPS Module
• 1x Copper Foil
• 1 x 10cm Cable
