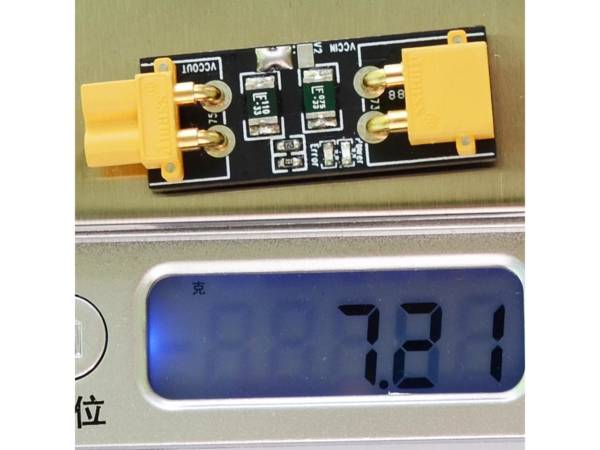

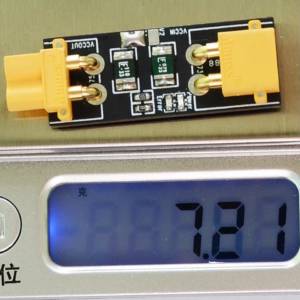

XT30 Smoke Stopper
See all of our Stores’ useful products! We also have a 2-in-1 Smoke Stopper

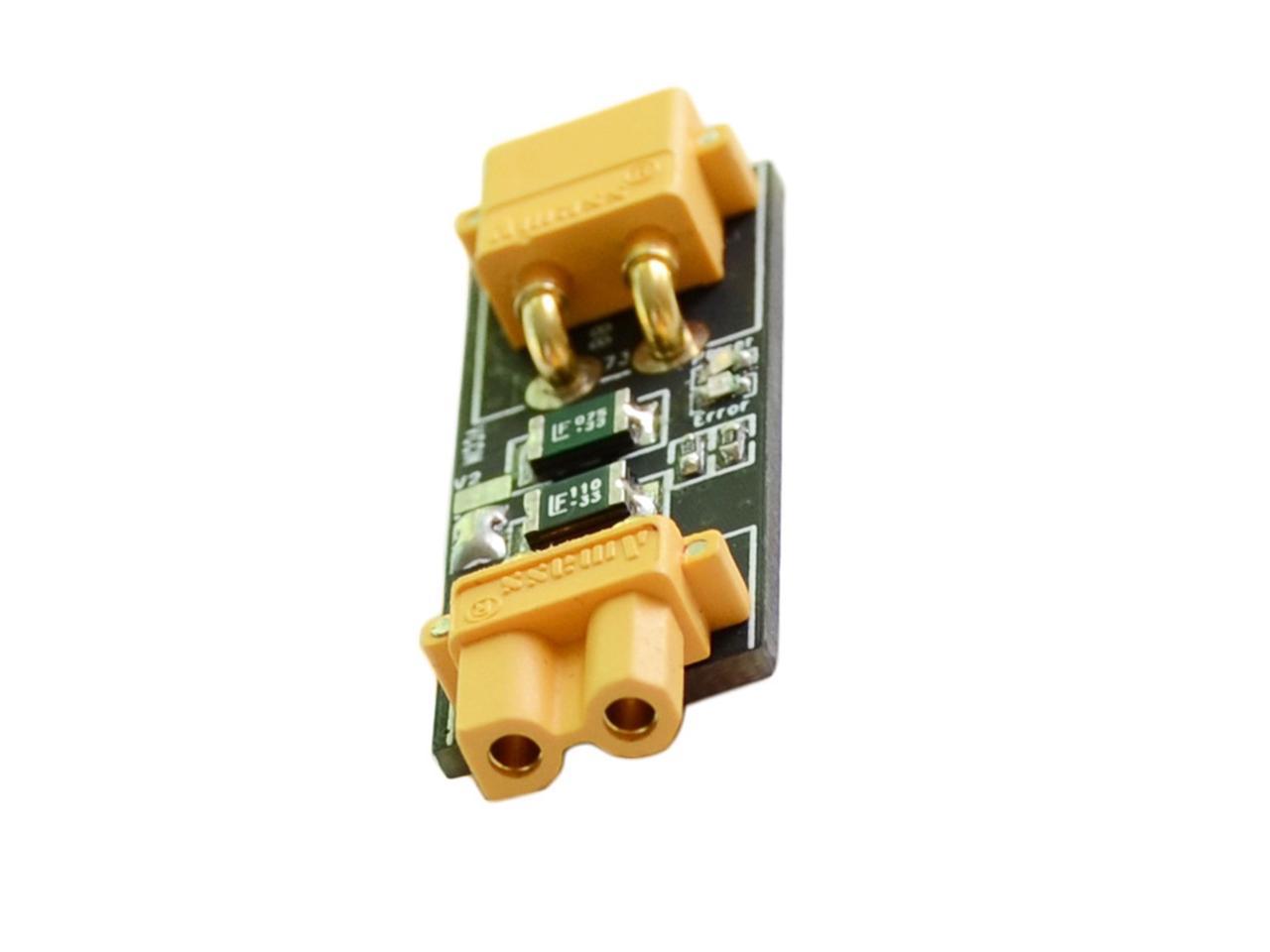

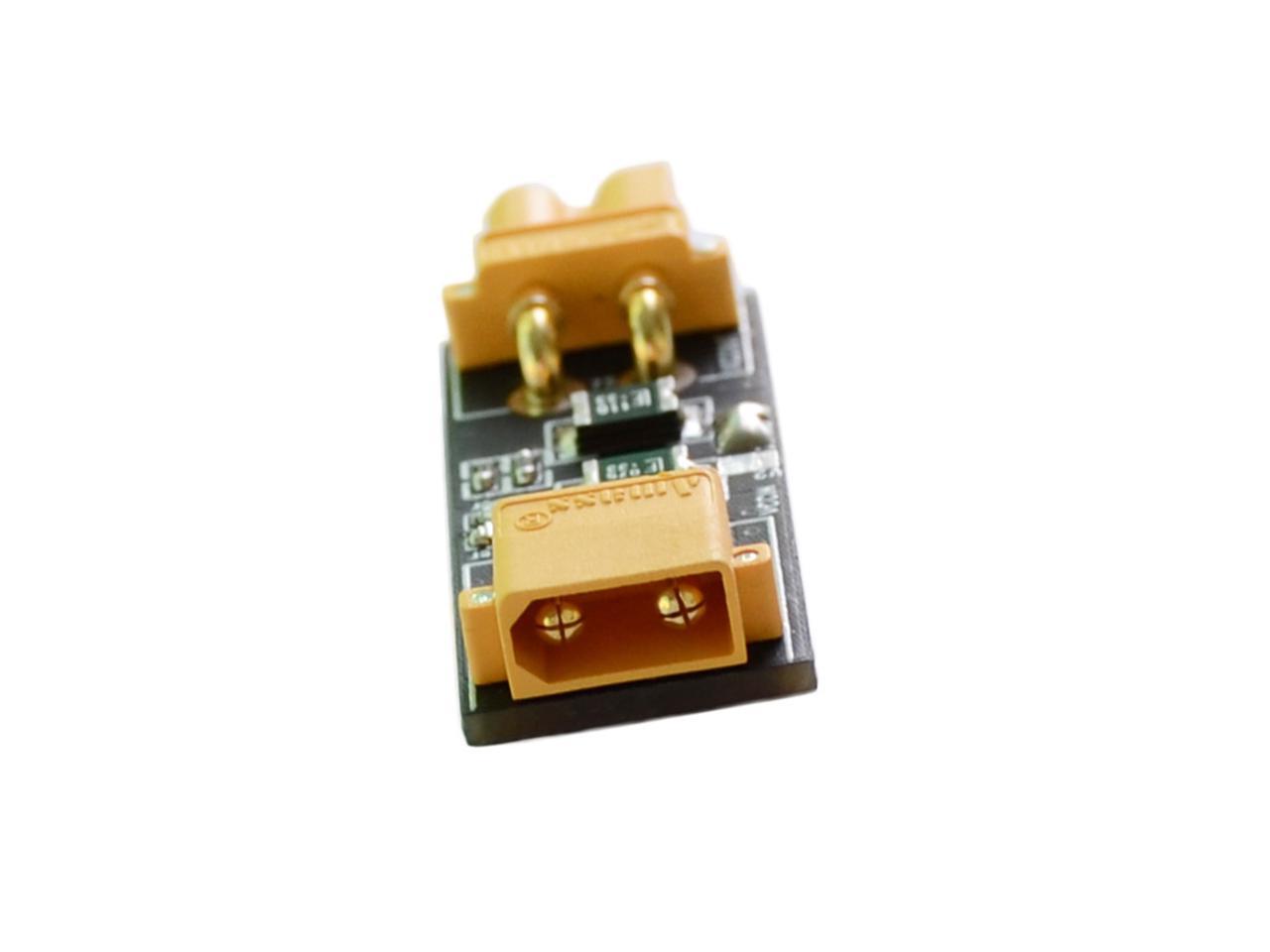

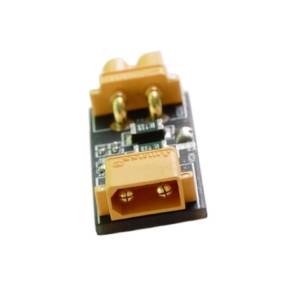

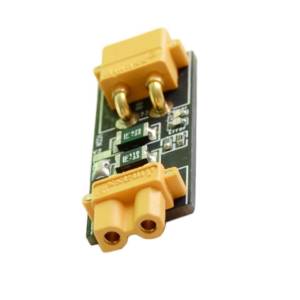

Eliminate the fear of the “smoke test” with the Hobbyfly XT30 Smoke Stopper. Every FPV drone builder knows the nervous feeling of plugging in a battery for the first time on a new build or after a repair. This essential workbench tool acts as a resettable fuse, providing a crucial layer of protection against short circuits that could instantly destroy your electronics. It’s the ultimate peace of mind in a tiny package.
Save Your FPV Drone from Magic Smoke
A simple wiring mistake can lead to a catastrophic failure, burning out your flight controller, ESC, or other expensive drone parts. The Smoke Stopper prevents this by sitting between your battery and your FPV drone. If it detects a dangerous short circuit that draws too much current, it instantly trips, cutting power and saving your components from letting out the magic smoke. While using a multimeter is always best practice, this tool is your best friend for a quick confidence check.
Resettable Fuse with Selectable Current

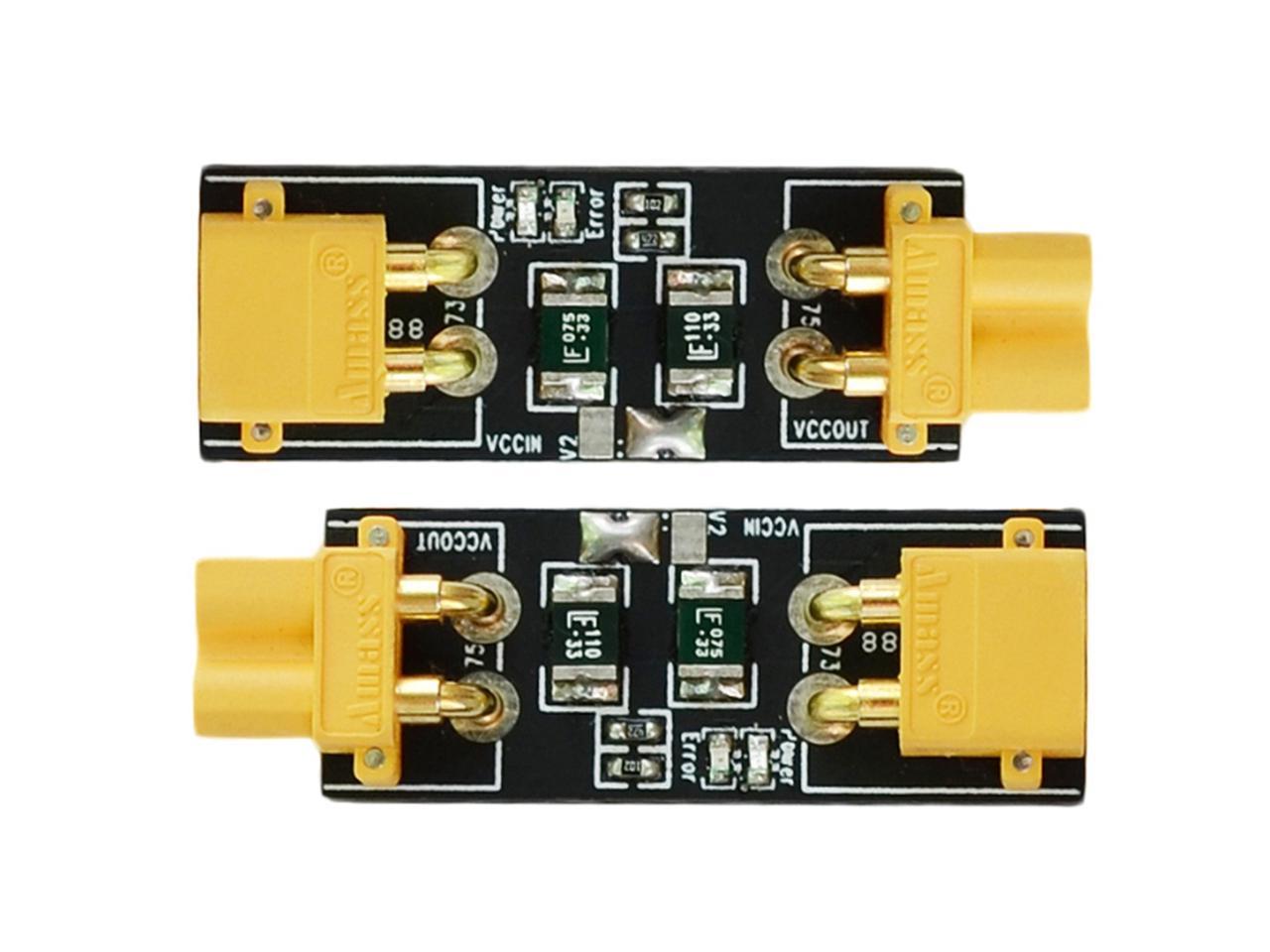

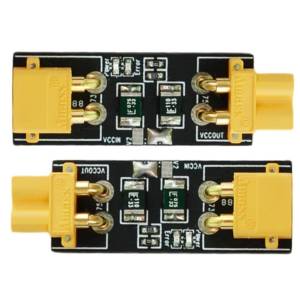

Unlike old-school, one-time-use smoke stoppers, this is a modern solid-state device. If it trips, there’s no need to replace a fuse; simply unplug it for 10 seconds to reset. For advanced users, it features selectable trip currents (1A or 2.2A Trip) via a solder bridge, allowing you to tailor the protection level to the needs of your specific FPV drone.
Easy to Use with Clear LED Indicators

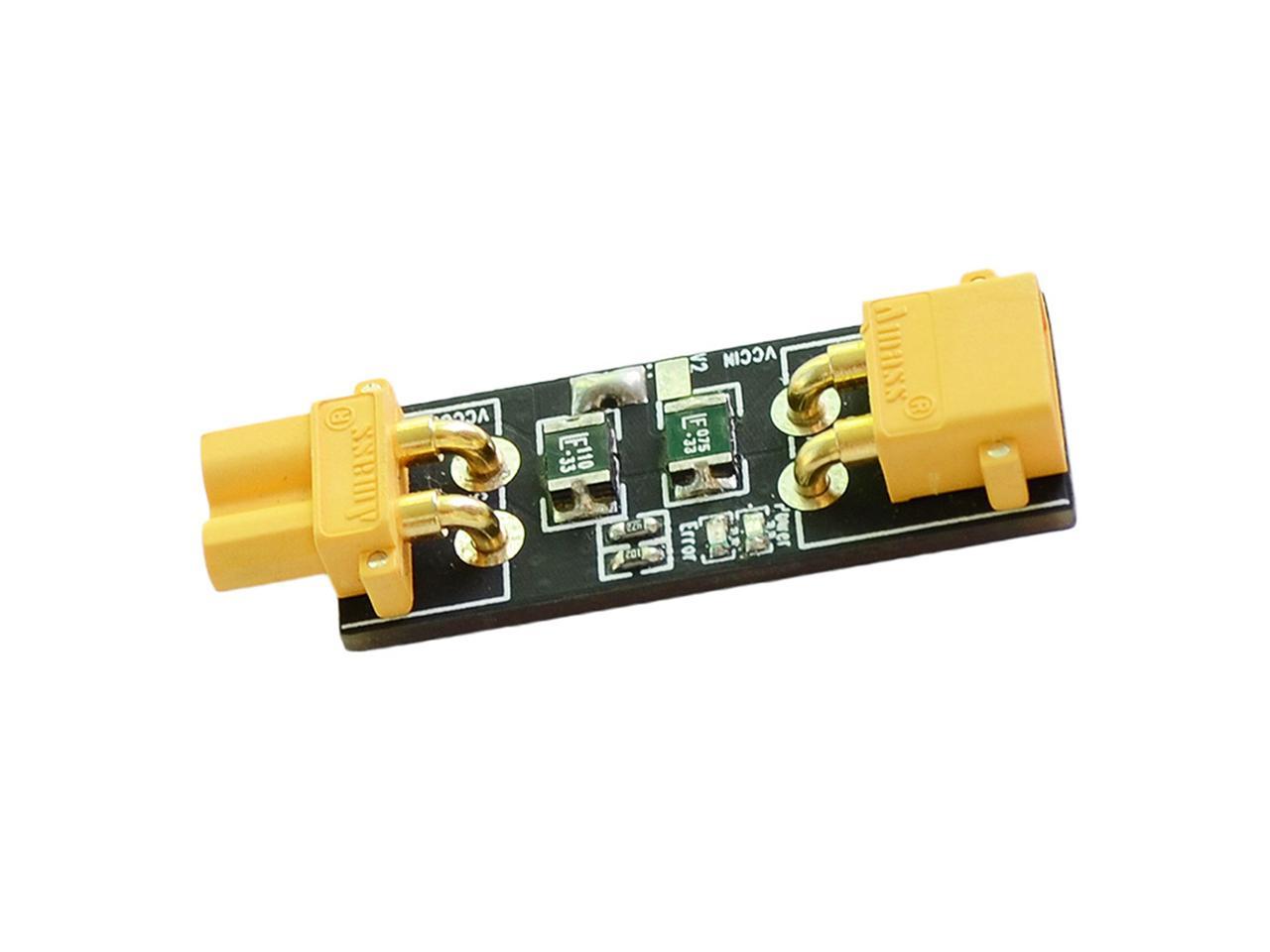

The status of your build is immediately clear thanks to the onboard LED indicators. A green light means the connection is safe and there are no shorts. A red light indicates a wiring error, telling you to unplug immediately and check your work. This simple, instant feedback makes diagnosing problems safe and straightforward.
Specifications
- Connector Type: XT30
- Input Voltage: 1-6S (up to 33V max)
- Trip Time: 0.5 Seconds
- Selectable Hold Current: 0.5A or 1.1A
- Selectable Trip Current: 1.0A or 2.2A
- Features: Resettable Solid-State Fuse, LED Status Indicator
What’s in the Box?
- 1x Hobbyfly XT30 Smoke Stopper
*Disclaimer: This tool significantly reduces the risk of damage from short circuits but cannot prevent all possible types of damage. Always double-check your work. We do not warrant any damages caused even when the smoke stopper is in use.
