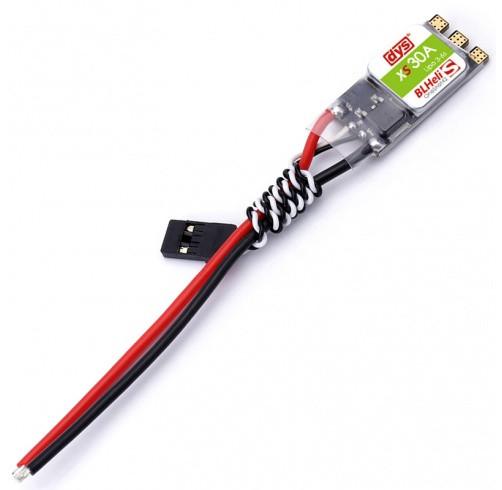

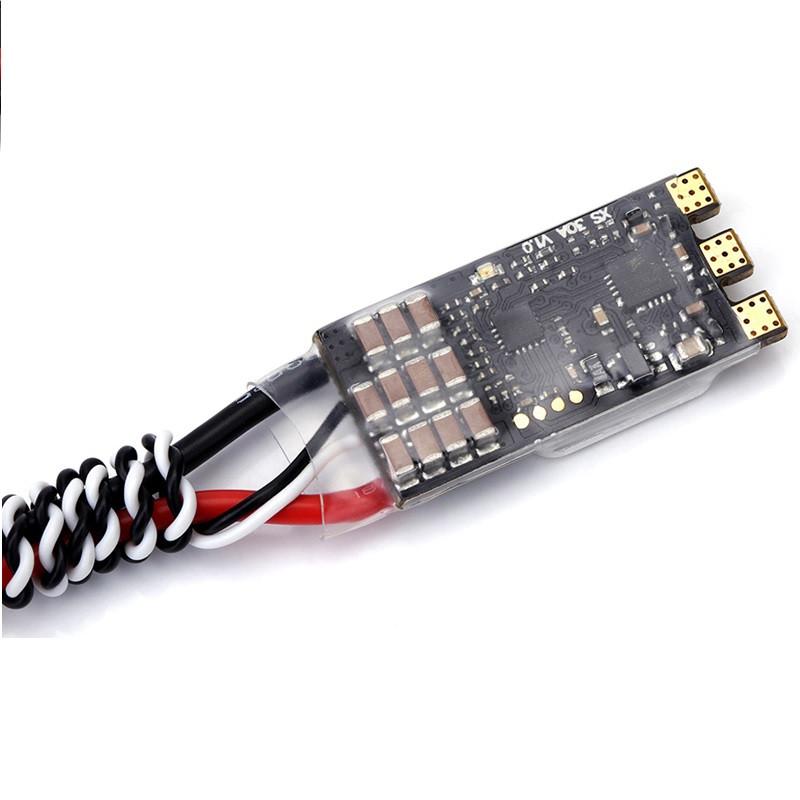

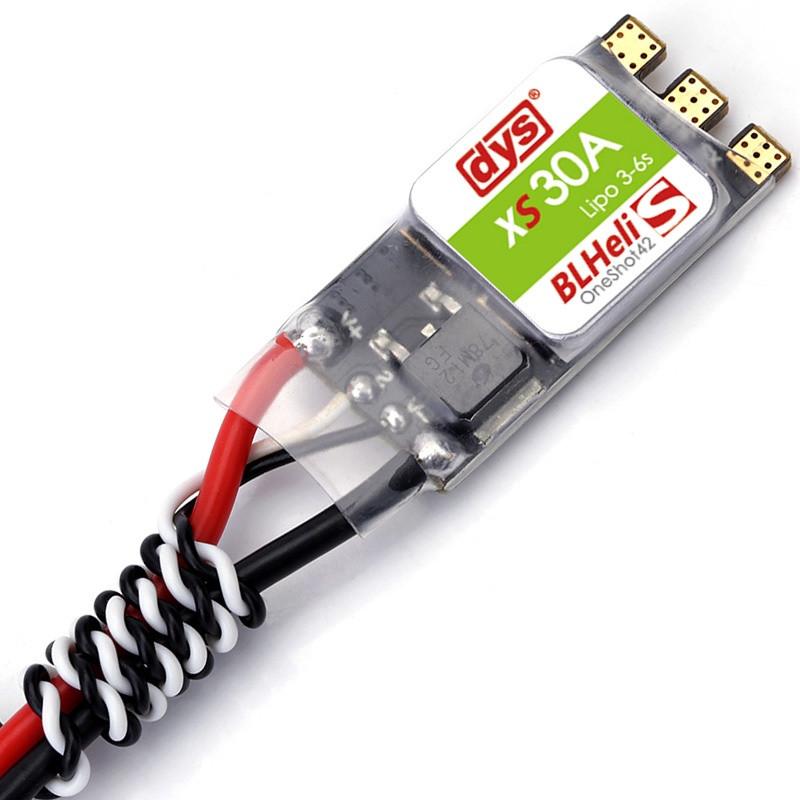

DYS XS30A 3-6s BLHeli_S ESC

DYS XS30A 3-6s  BLHeli_S ESC

Check out all of our DYS Products. Take a look at all of our Single ECS too!

BLHeli_S ESC has hardware-generated PWM synchronous to MCU yields ultra-quiet motor performance.  Utilizes the high-performance EFM8BB2 50MHz MCU.  These are fantastic performing ESCs, essential to a high-performance build.

Specifications:

• Weight: 8.65g
•  Size(mm)L*W: 45*16.5*5.8
•  BLHeli_S does Damped Light only
•  Firmware upgradable via signal wire (works with USB Linker for XM series)
•  Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)
•  Supports 1-2ms signal, Oneshot125, Oneshot42 and Multishot.
•  High-current burst rating
•  High-Resolution Throttle steps
• Feature: Silabs EFM8BB2 BusyBee2

ATTENTION

**DYS XS30A uses A-H-70 firwmware, please don’t change the original firmware by yourself.**

Includes:

1x DYS XS30A BLHeli_S ESC

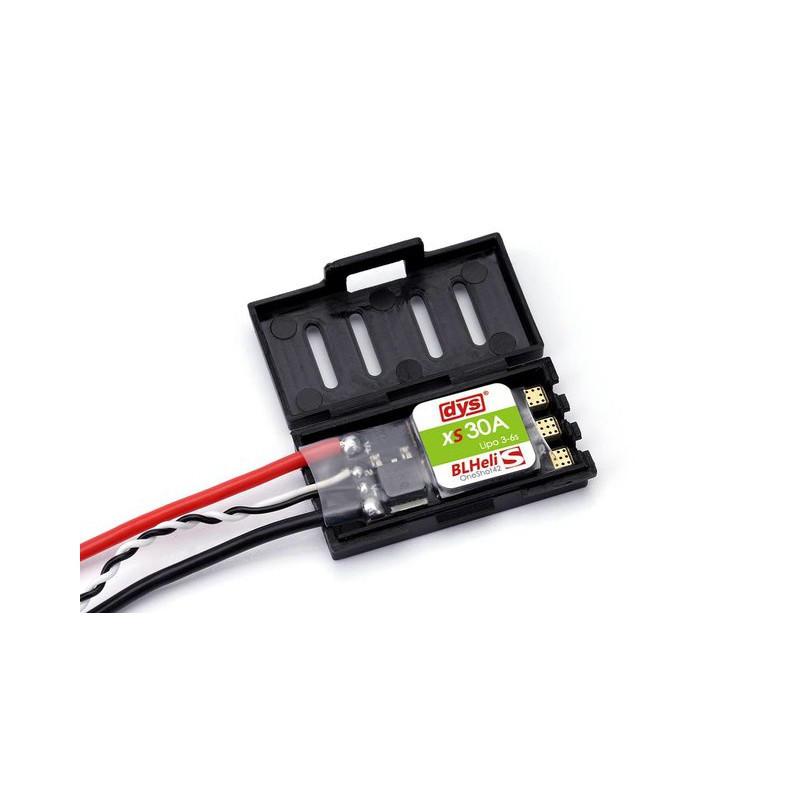

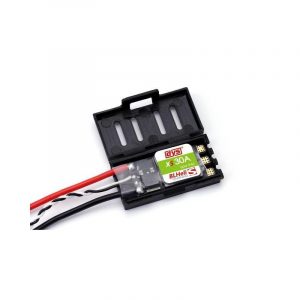

1x ESC Protective case
