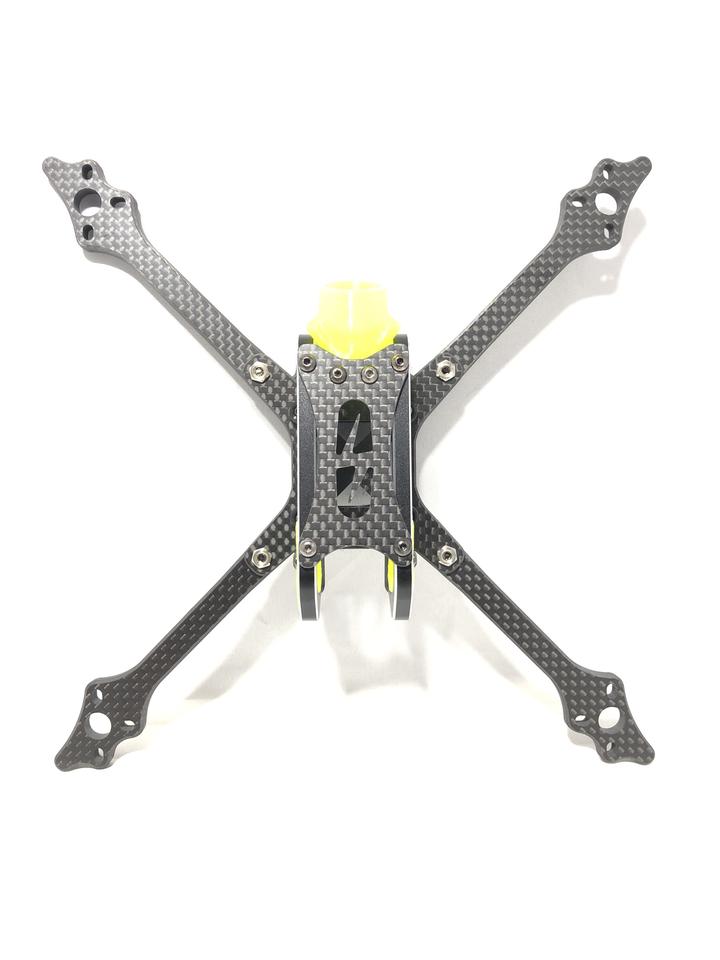

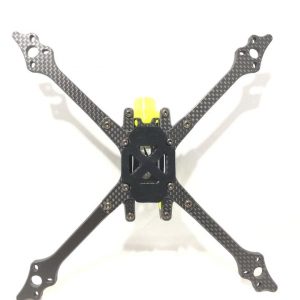

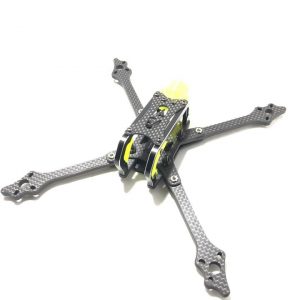

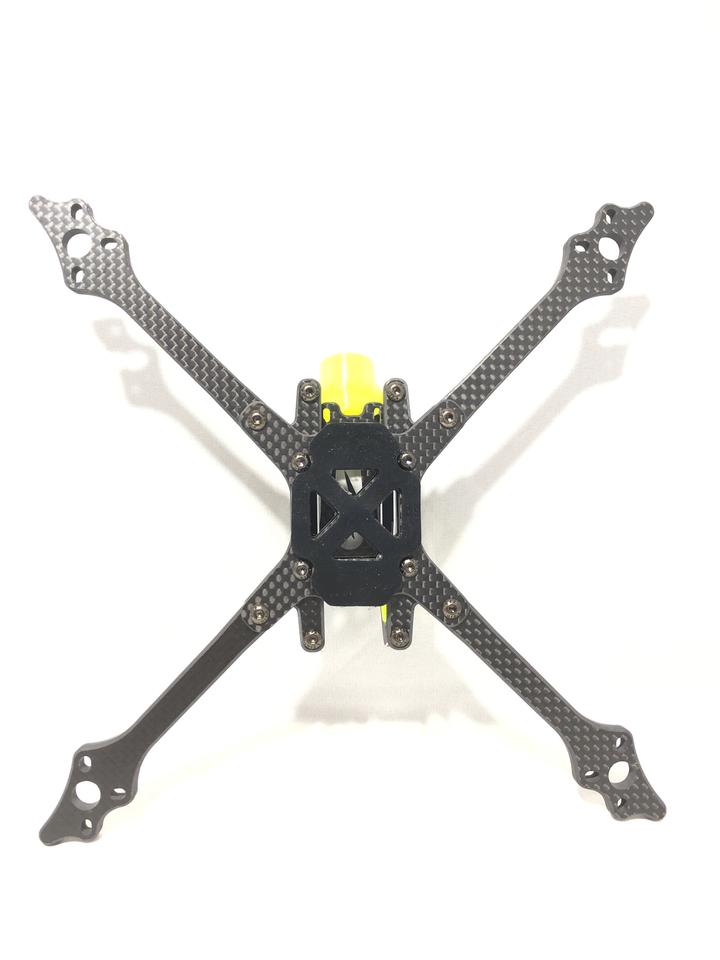

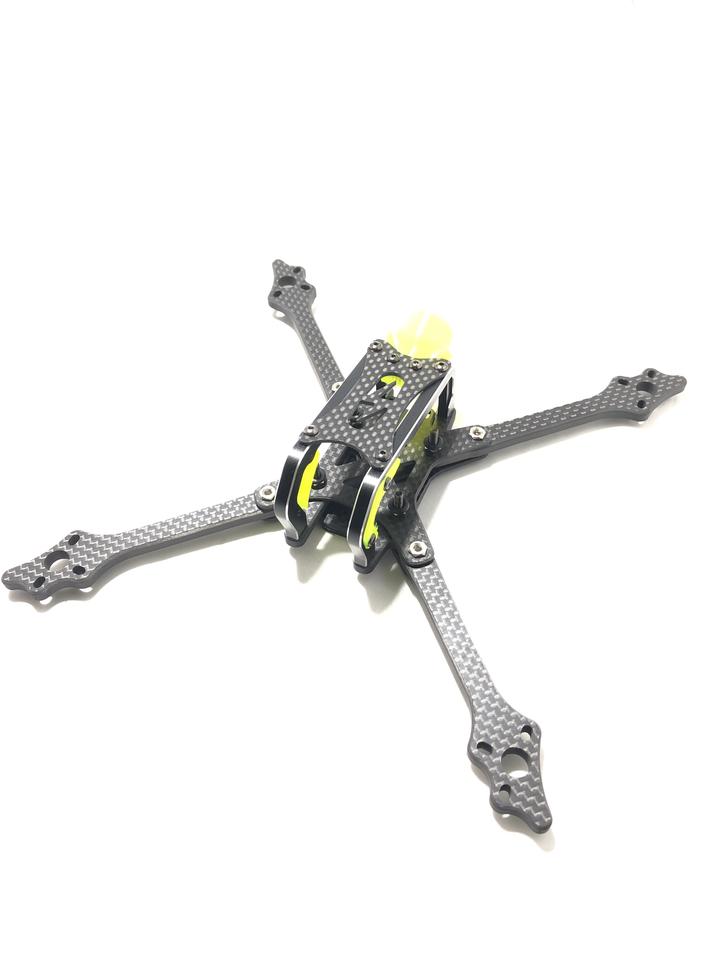

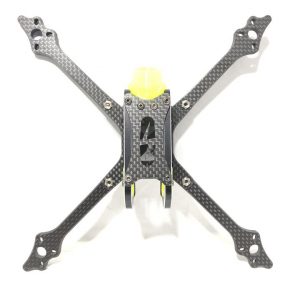

TransTEC Lightning Real X V2 FPV Frame

TransTEC Lightning Real X V2 FPV Frame

Check out all of our TransTec products!

Build a perfectly balanced and incredibly durable FPV drone with the TransTEC Lightning V2 Real X frame. This premium frame is engineered for pilots who value symmetrical flight characteristics and robust construction. Featuring a classic “True X” geometry and high-quality materials throughout, the Lightning V2 is the ideal foundation for a high-performance freestyle or racing FPV drone.

Perfectly Balanced True X Design The “Real X” or “True X” layout means the distance between motors is identical on both the roll and pitch axes. This symmetry provides exceptionally balanced and predictable handling, giving your FPV drone a locked-in feel with no unusual flight tendencies. It’s a favorite configuration among freestyle pilots and technical racers for its pure flight characteristics.

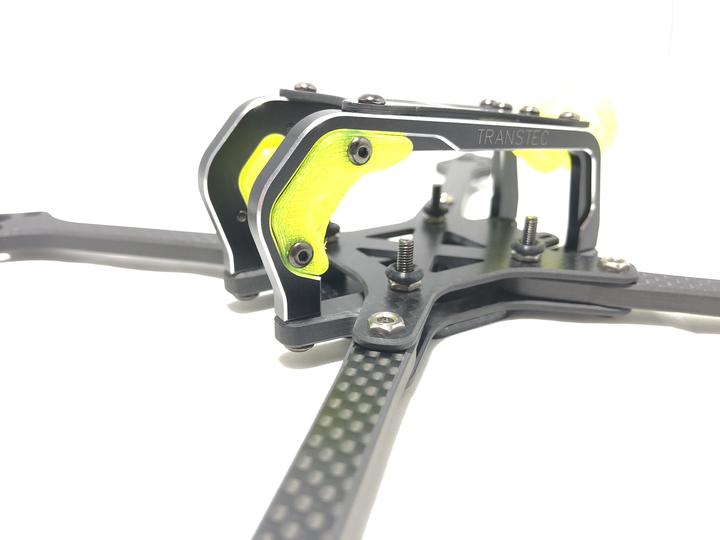

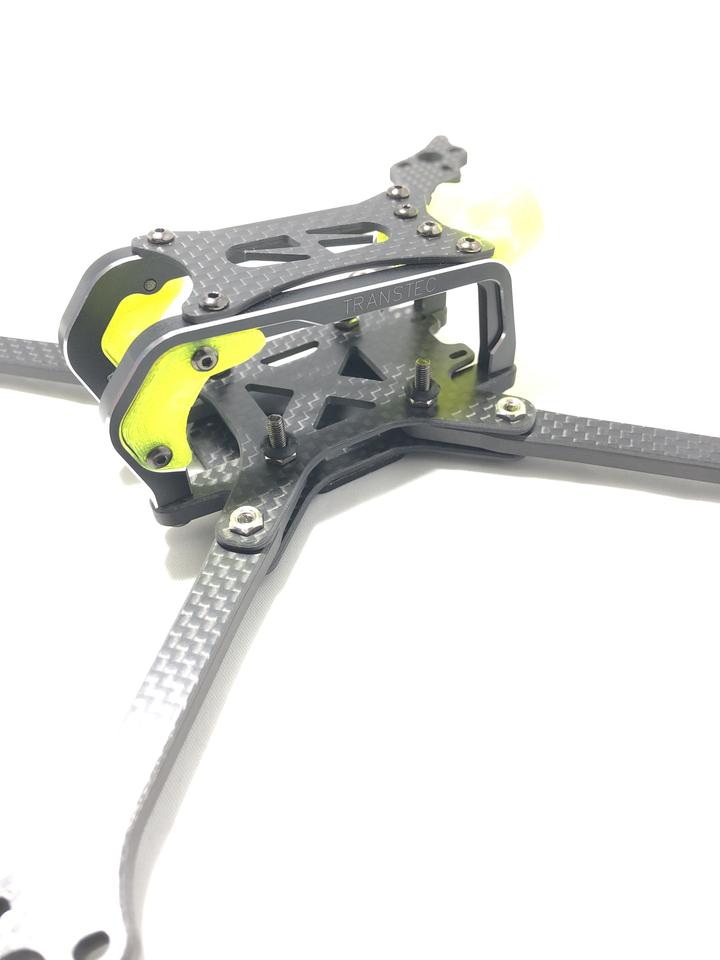

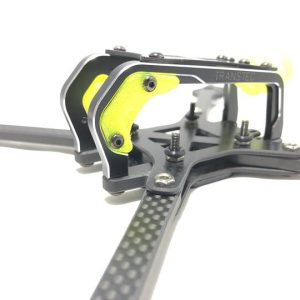

Premium Materials & Craftsmanship TransTEC is known for quality, and this frame is no exception. It’s built from full 3K carbon fiber with smooth, chamfered edges to prevent wire damage. The structure is reinforced with strong, aerospace-grade 7075 aluminum “backbones,” and held together with high-tensile 12.9 grade YFS screws. These premium drone parts create a structurally rigid and resilient airframe ready for demanding flights.

Key Features:

• True-X Geometry: Provides a perfectly balanced and symmetrical flight characteristic for predictable, responsive handling.
• Premium Materials: Full 3K chamfered carbon fiber, 7075 aluminum reinforcements, and 12.9 grade YFS screws ensure maximum durability.
• 5mm Quick-Release Arms: Durable arms that can be easily replaced in the field for quick repairs.
• Versatile Component Mounting: Supports both $30.5\text{x}30.5\text{mm}$ and $20\text{x}20\text{mm}$ electronics stacks.
• Spacious Design: A large interior accommodates up to a 3-board stack and makes building and maintenance easy.

Specifications

• Model: TransTEC Lightning Real X V2
• Wheelbase: $215\text{mm}$
• Frame Type: True X
• Material: 3K Carbon Fiber, 7075 Aluminum
• Arm Thickness: $5\text{mm}$
• Bottom Plate Thickness: $2\text{mm}$
• Top Plate Thickness: $1.5\text{mm}$
• FC Mounting: $30.5\text{x}30.5\text{mm}$ & $20\text{x}20\text{mm}$
• Weight: $87\text{g}$

What’s in the Box?

• 1x 2mm Bottom Plate
• 1x 2mm Base Plate
• 1x 1.5mm Top Plate
• 4x 5mm Arms
• 2x 7075 Aluminum Side Backbones
• 1x Set of YFS 12.9 Grade Screws (M2.5 & M3)
• 1x Set of M3x19 Standoffs
• 1x Set of TPU Parts (Yellow)
• 1x Battery Strap
• 1x Battery Pad
