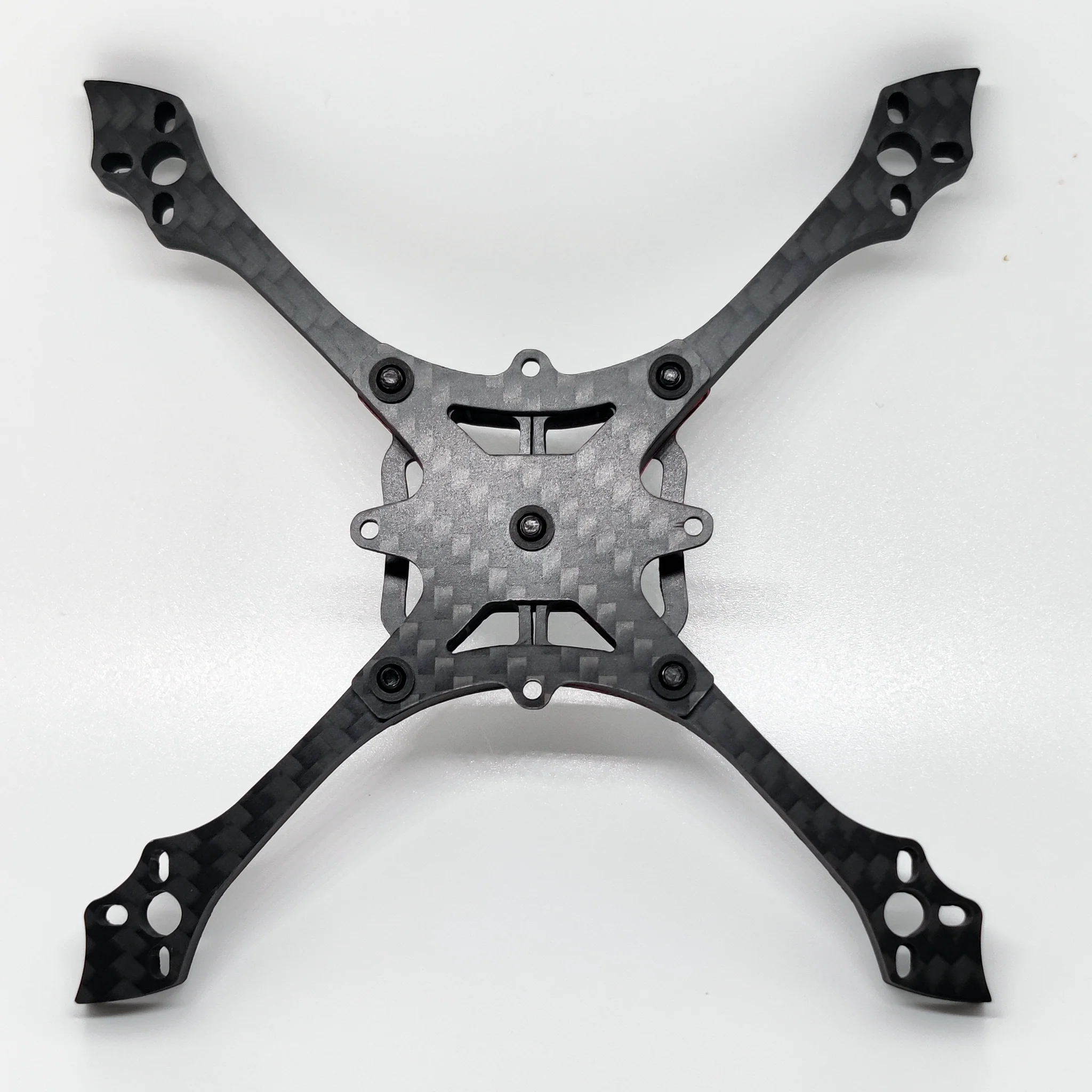

DLQFPV Asbo XR 3″ Freestyle/Racing Frame (Pick your Canopy)

Check out all of DLQFPV’s Products! Grab some replacement arms too!

Introducing the ASBO XR, the newest evolution in the ASBO series of “bando basher” frames from DLQFPV. This 3-inch FPV frame is crafted for the pilot who pushes their limits, combining extreme durability with innovative features that make repairs faster than ever. If you’re looking for a freestyle or racing frame that can withstand the most intense conditions, the ASBO XR is built to be a beast.

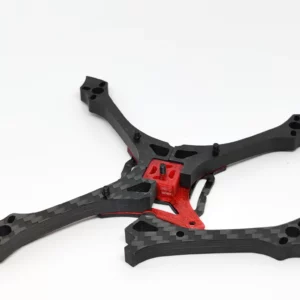

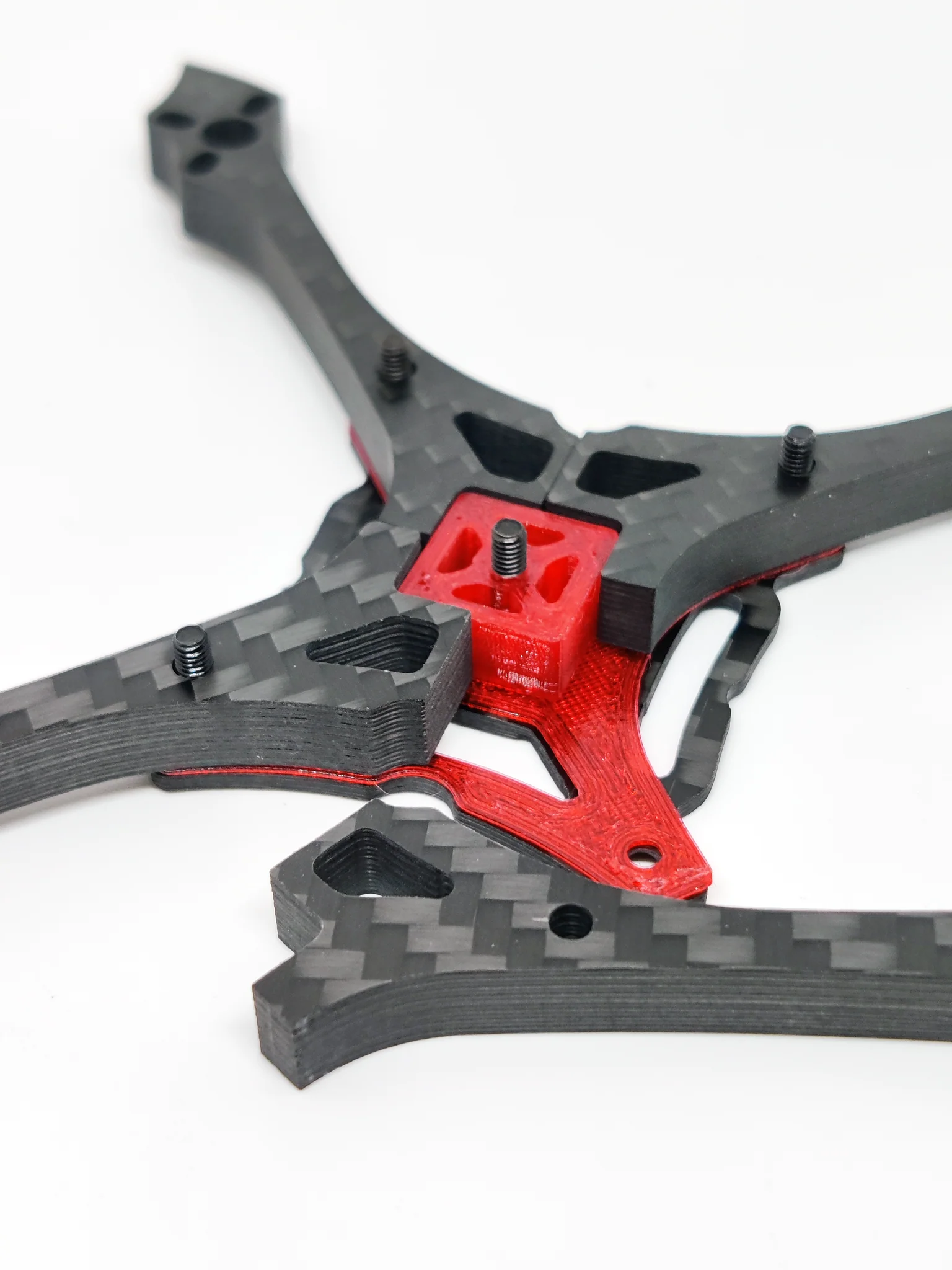

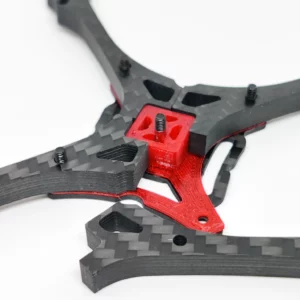

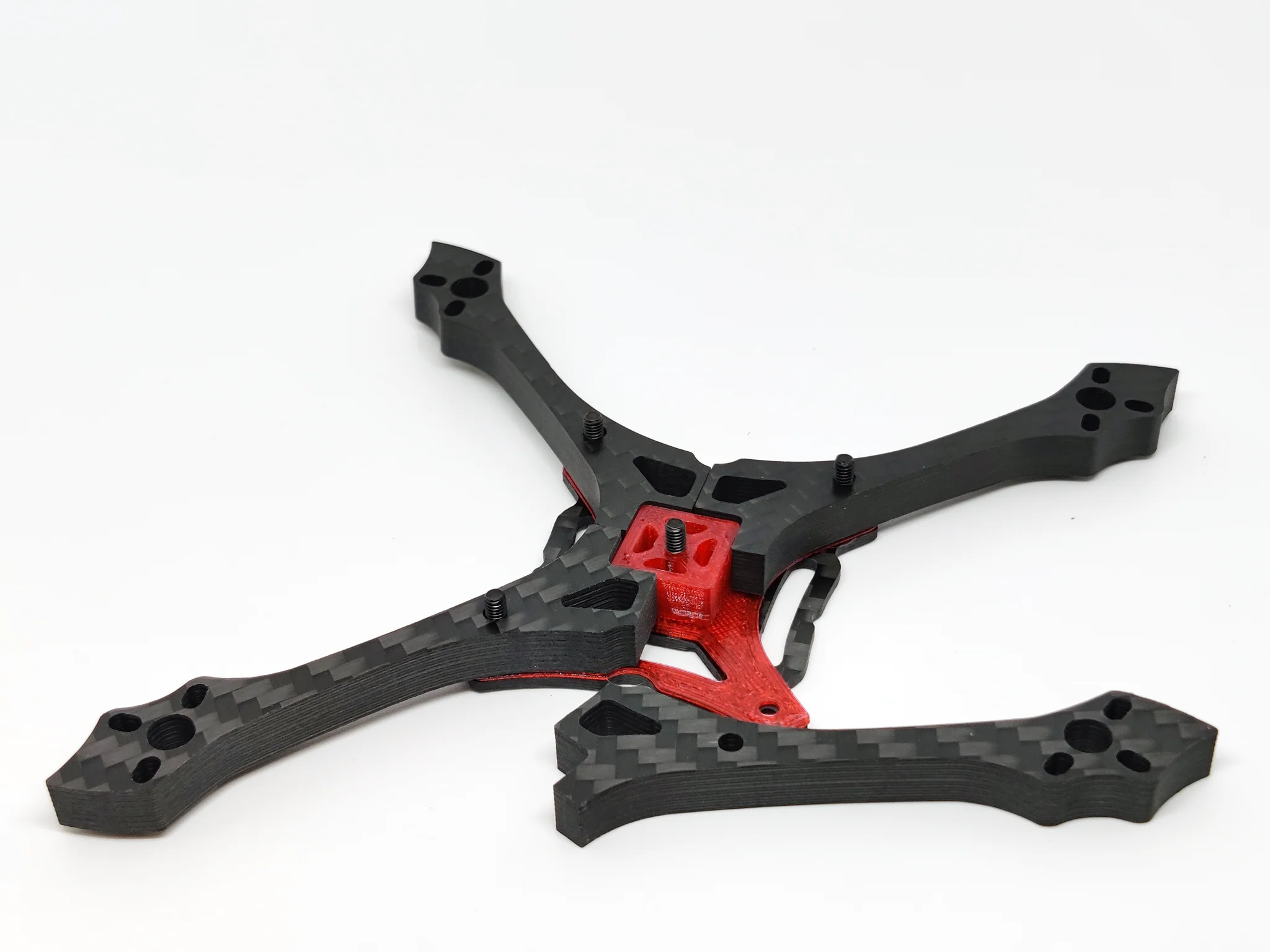

Built Like a Tank . The core of the ASBO XR is its incredible durability. It features massive, 6mm thick 3K carbon fiber arms, making it one of the toughest frames in its class. The design is further enhanced by an innovative TPU keyway and squish plate system, which increases the overall rigidity and stability of the frame, ensuring it can handle hard crashes in tough environments like concrete jungles and abandoned buildings.

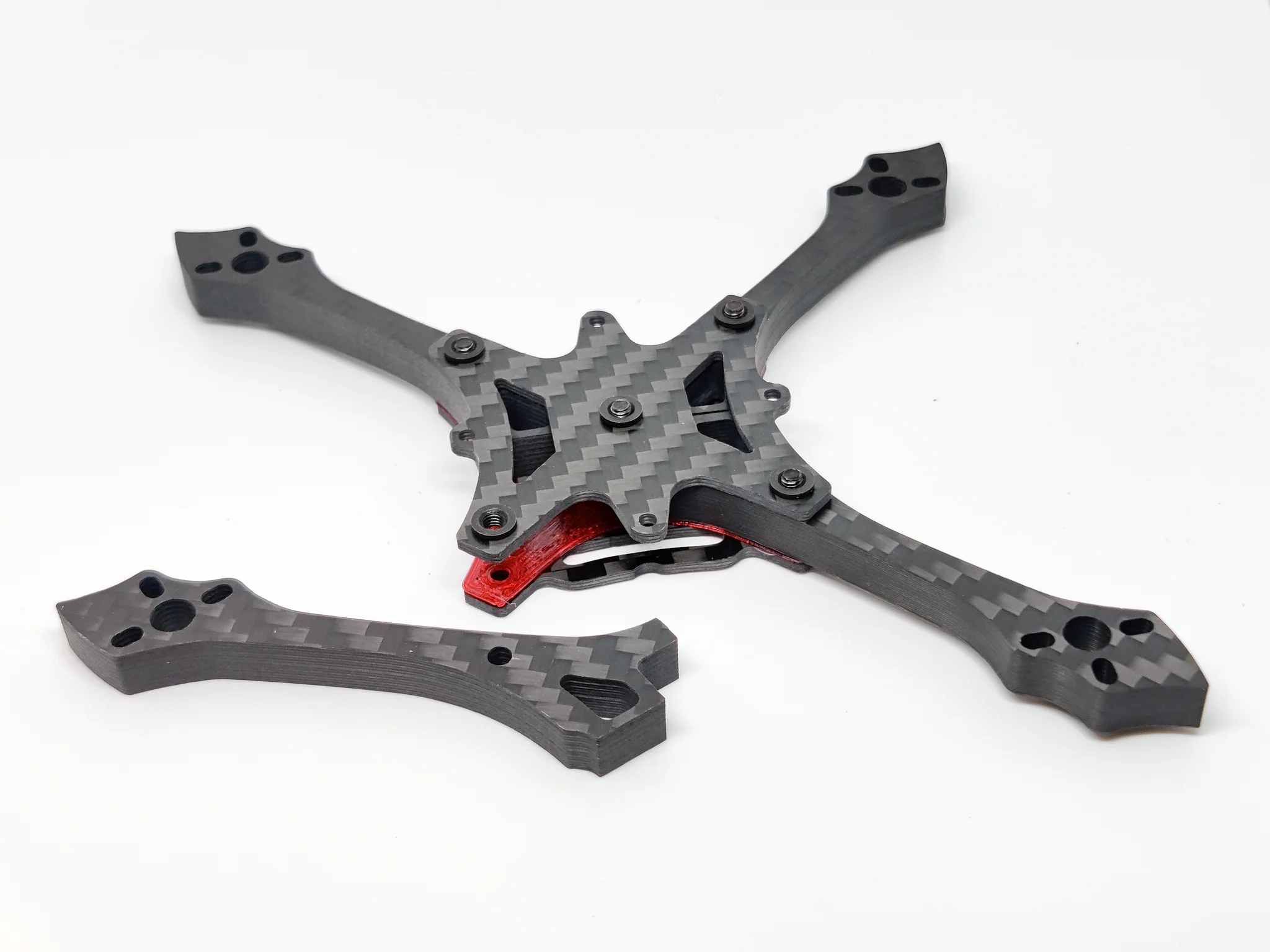

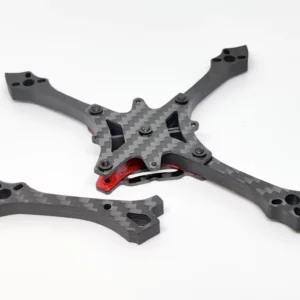

Fast & Easy Field Repairs A standout feature of the ASBO XR is its focus on easy maintenance. The arms are designed for rapid replacement with just a single screw, allowing you to get your FPV drone airborne again in minutes after a crash. This means less time on the workbench and more time flying.

Key Features:

• Extreme Durability: Massive 6mm thick replaceable arms and an innovative TPU keyway system create an incredibly tough airframe.
• Single-Screw Arm Swaps: Get back in the air in minutes with a fast and simple arm replacement system.
• Analog & Digital Ready: Choose between a canopy for a traditional analog setup or one for the Caddx Vista/RunCam Link digital HD system.
• Versatile Motor Mounting: The base plate supports both $9\text{x}9\text{mm}$ and $12\text{x}12\text{mm}$ motor patterns.
• Full Protection: Includes a durable TPU canopy and arm guards for an extra layer of impact protection.

Choose Your FPV System The ASBO XR is ready for your preferred FPV system. It is available with different TPU canopy options to provide a perfect, protected fit for your gear:

• Analog Canopy: Sized for a traditional nano FPV camera and VTX setup.
• Vista Canopy: A slightly larger canopy designed to perfectly house a Caddx Vista or RunCam Link digital HD FPV system.

Specifications

• Brand: DLQFPV
• Model: Asbo XR
• Wheelbase: $\sim 138\text{mm}$
• Propeller Size: 3 inch
• Arm Thickness: $6\text{mm}$
• Base Plate Thickness: $1.5\text{mm}$
• Top Plate Thickness: $1.5\text{mm}$
• FC Mounting: $25.5\text{x}25.5\text{mm}$ (Whoop/AIO style)
• Motor Mounting: $9\text{x}9\text{mm}$ or $12\text{x}12\text{mm}$ (M2)
• Weight: $\sim 62\text{g}$

What’s in the Box?

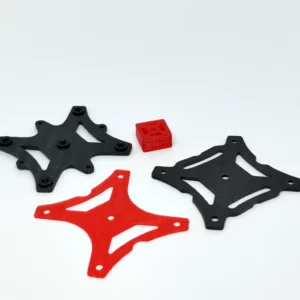

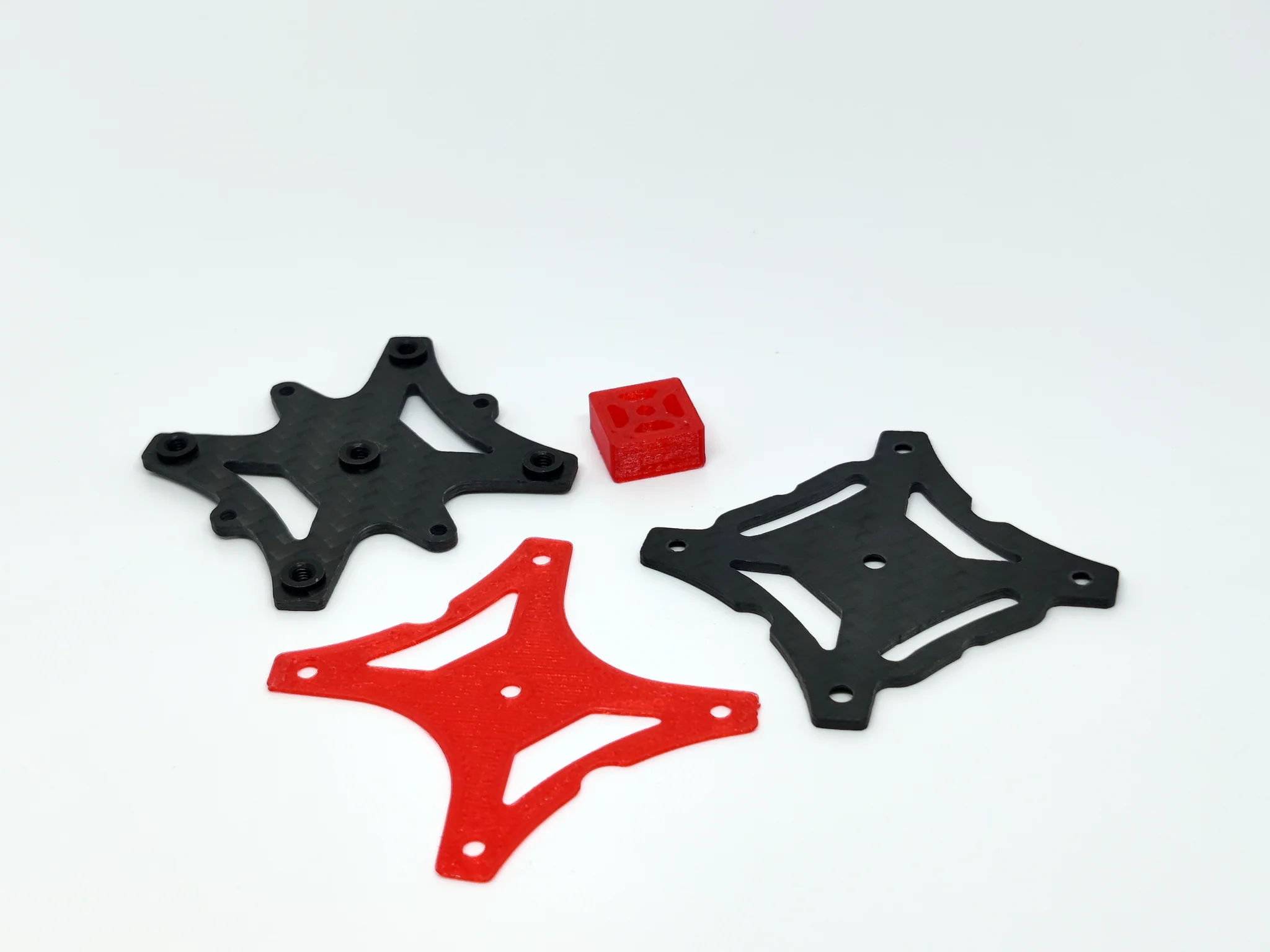

• Carbon Fiber:
  • 1x 1.5mm Base Plate
  • 1x 1.5mm Top Plate

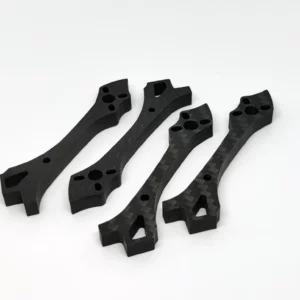

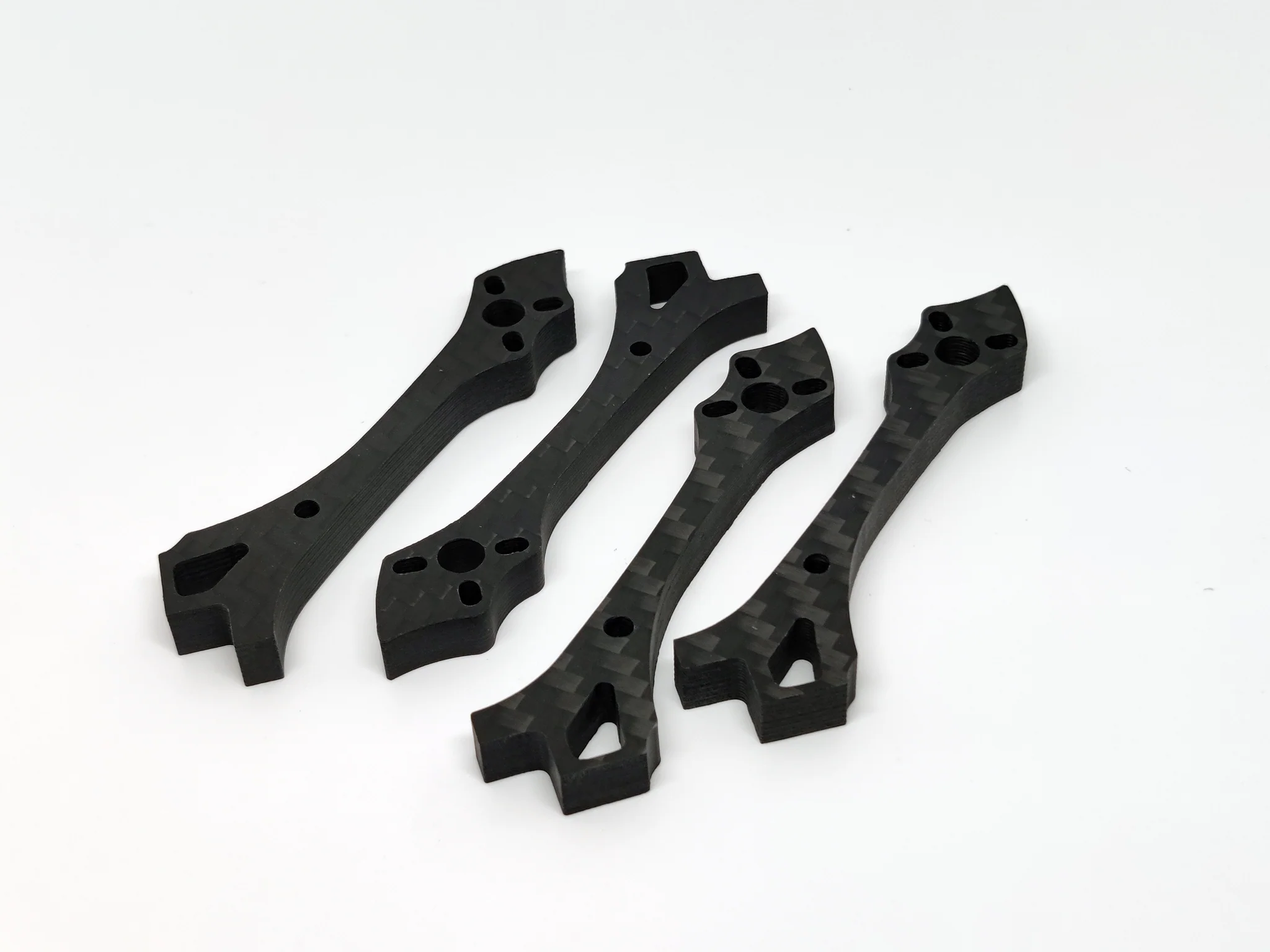

  • 4x 6mm Arms
• Hardware:
  • 1x Full Set of M2 and M2.5 Screws
  • 4x M2 Steel Nylon Lock Nuts
• TPU Parts:
  • 1x Canopy (Analog or Vista compatible, as selected)
  • 1x Camera Mount
  • 1x VTX & Receiver Antenna Mounts
  • 4x Arm Guards
  • 1x Squish Plate & 1x Keyway

MyFPVStore Recommended Build Specs

• Speedybee F745 AIO
• Speedybee 4500kv 1404 Motors
• Caddx Vista / Analog VTX
• Nebula Pro / DJI Camera / RunCam Nano Race
• HQ3x3x3 Propellers (T-Style Prop Mounting)

*Comes in Blue TPU*

TPU Replacement Parts:

• Canopy
• Arm Guards
• DJI Canopies
