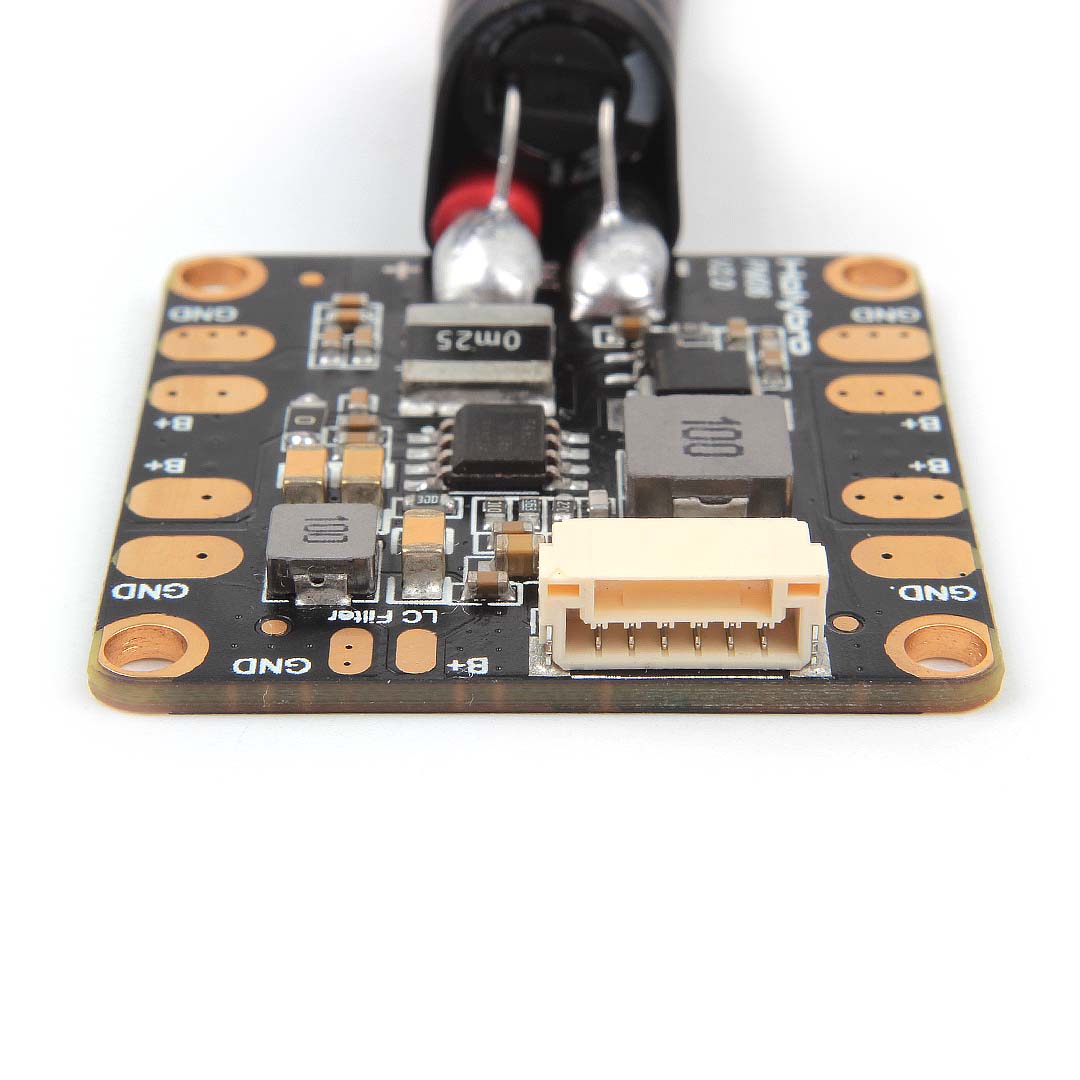

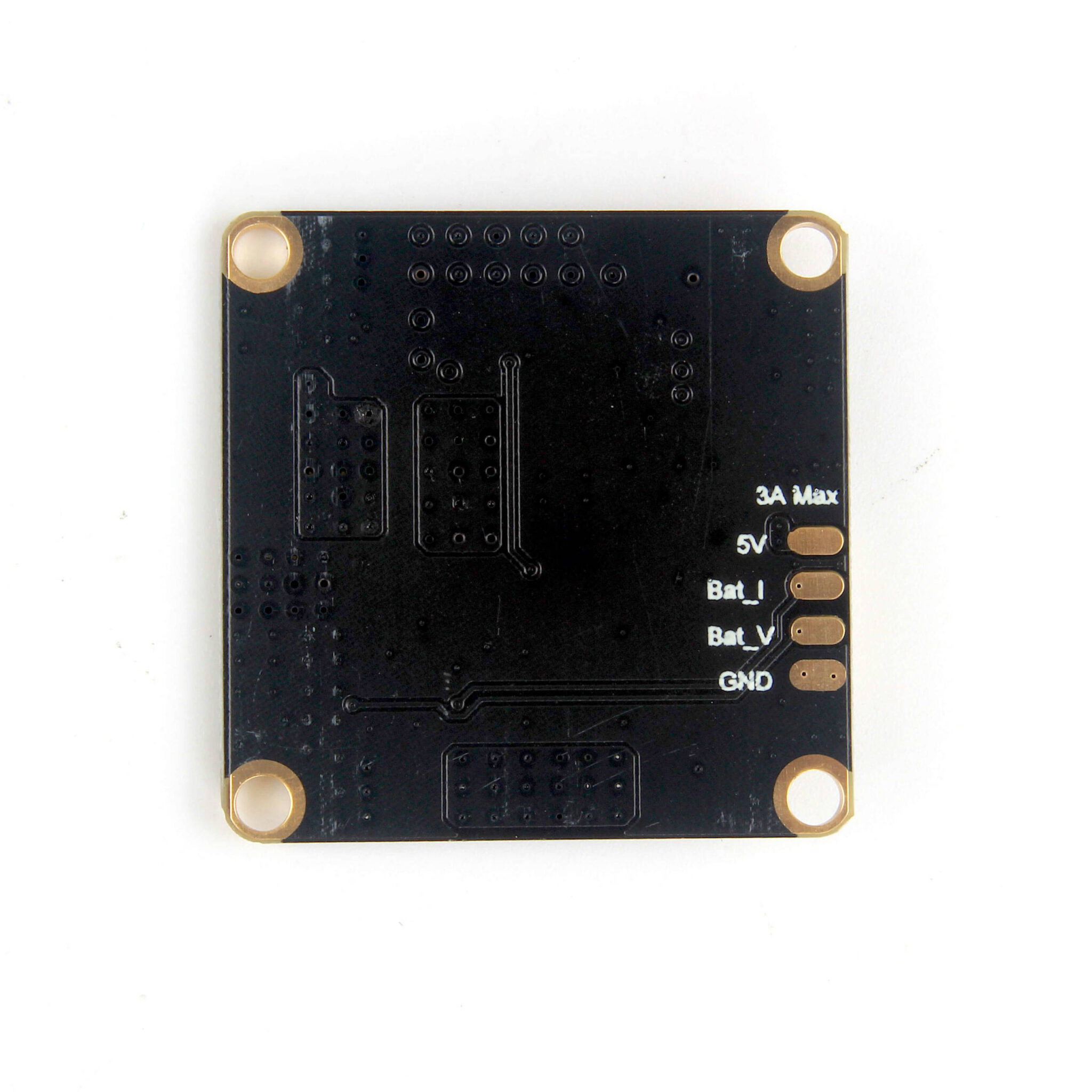

Holybro 10S Lipo Micro Power Module PM06 v2 With UBEC VI Sensor

Check out our entire Holybro line of products.

Specifications：

PCB Current: 120A continued
UBEC Current: 3A Max
Power input: DC 7V~42V(2S~10S)
Power output: DC 5.1V~5.3V
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 7g

Make the PM06 show the quantity of electric charge of your battery
Mission Planner setup:

1. Connect PM06 to the battery, also connect it to Mission Planner via USB.
2. Click “INITIAL SETUP” and come to the menu “Battery Monitor”.
3. Make “Monito” into “Voltage and Current”.
4. Make “Sensor” into “Other”.
5. Make “APM Ver” into “The Cube or Pixhawk”.
6. Input “18.1” into the Voltage divider (Calced).
7. Input “36” into “Amperes per volt”.
8. Disconnect and reconnect it to finish the set up.（“Measured battery voltage” shows the current quantity of electric charge of the battery.）

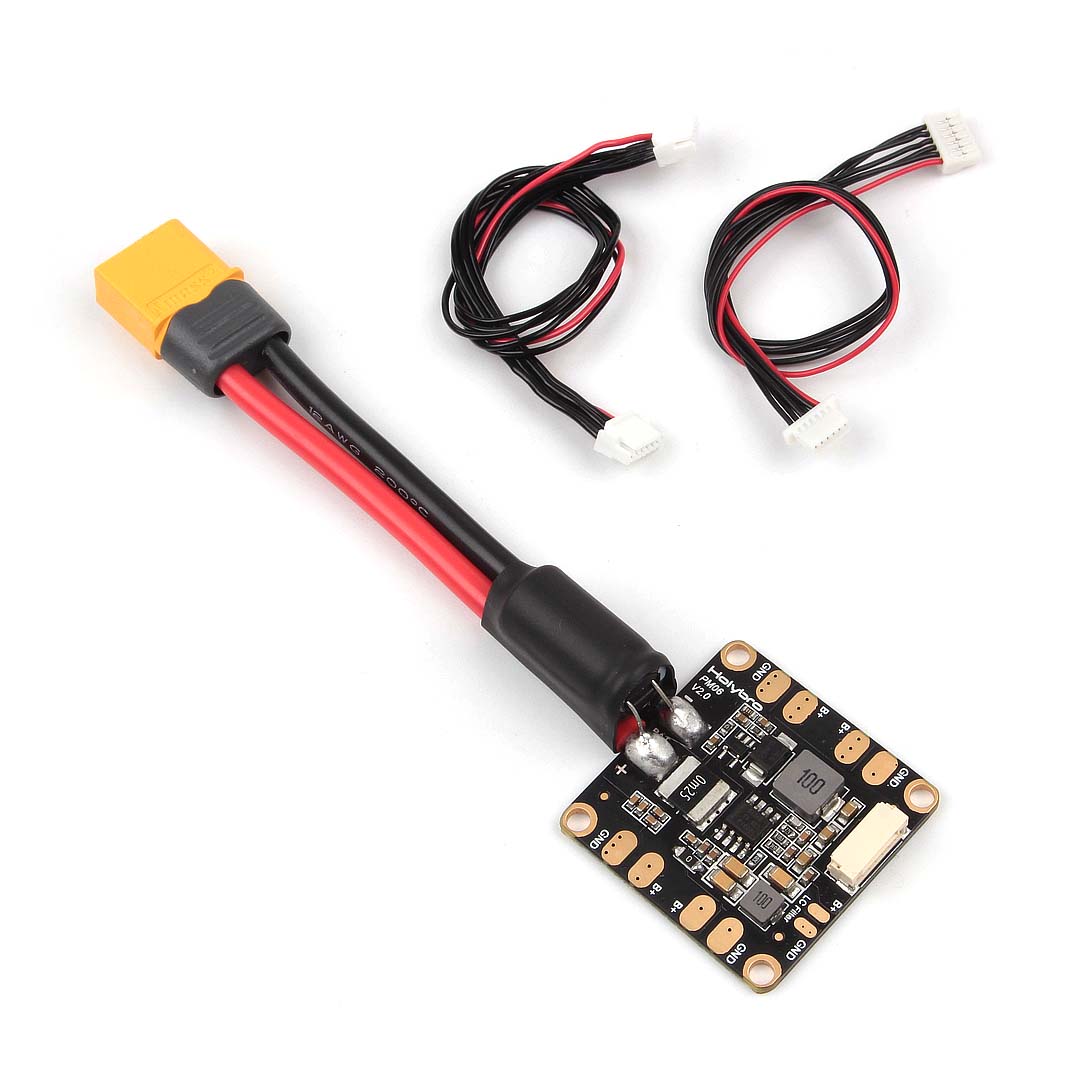

Package Includes：

PM06 board*1
80mm XT60 connector wire*1
6pin GH cable *1
6pin JST cable *1
