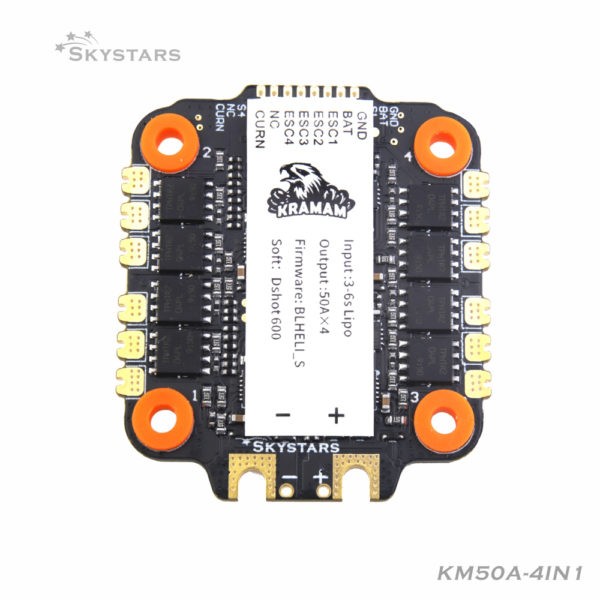

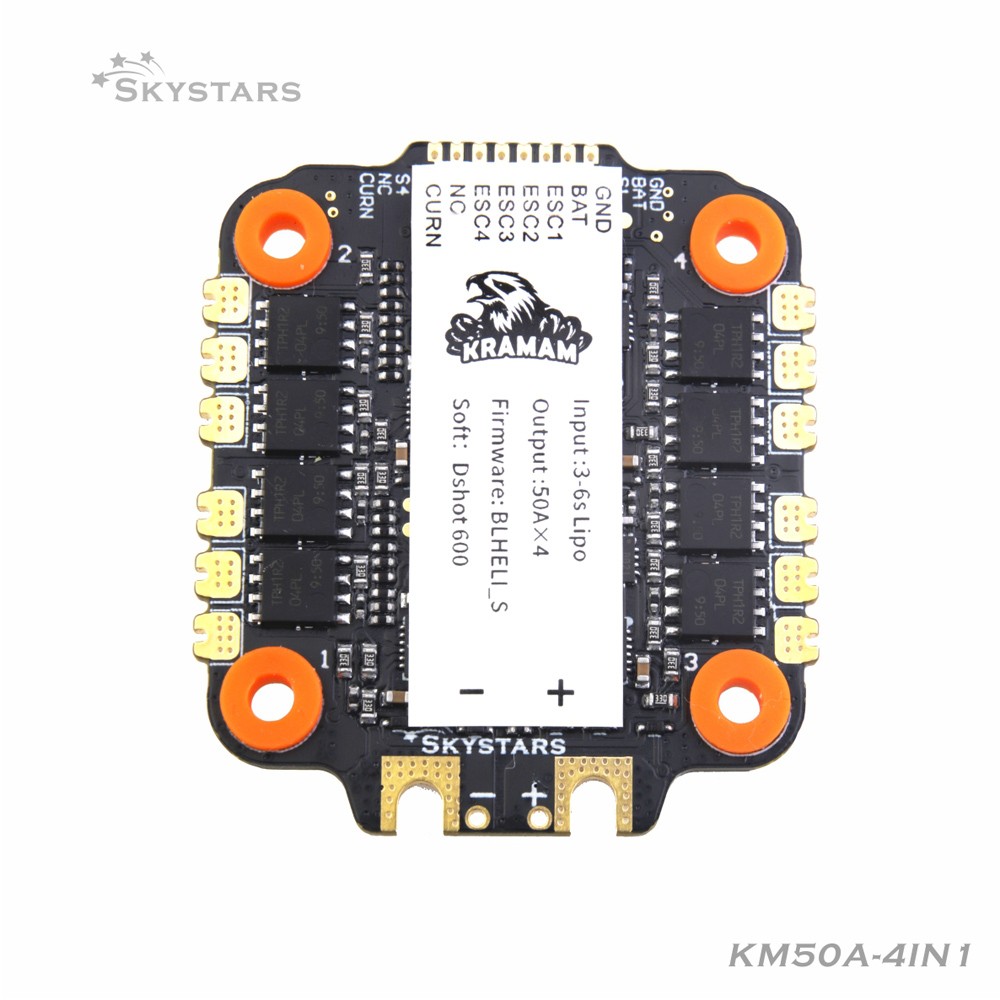

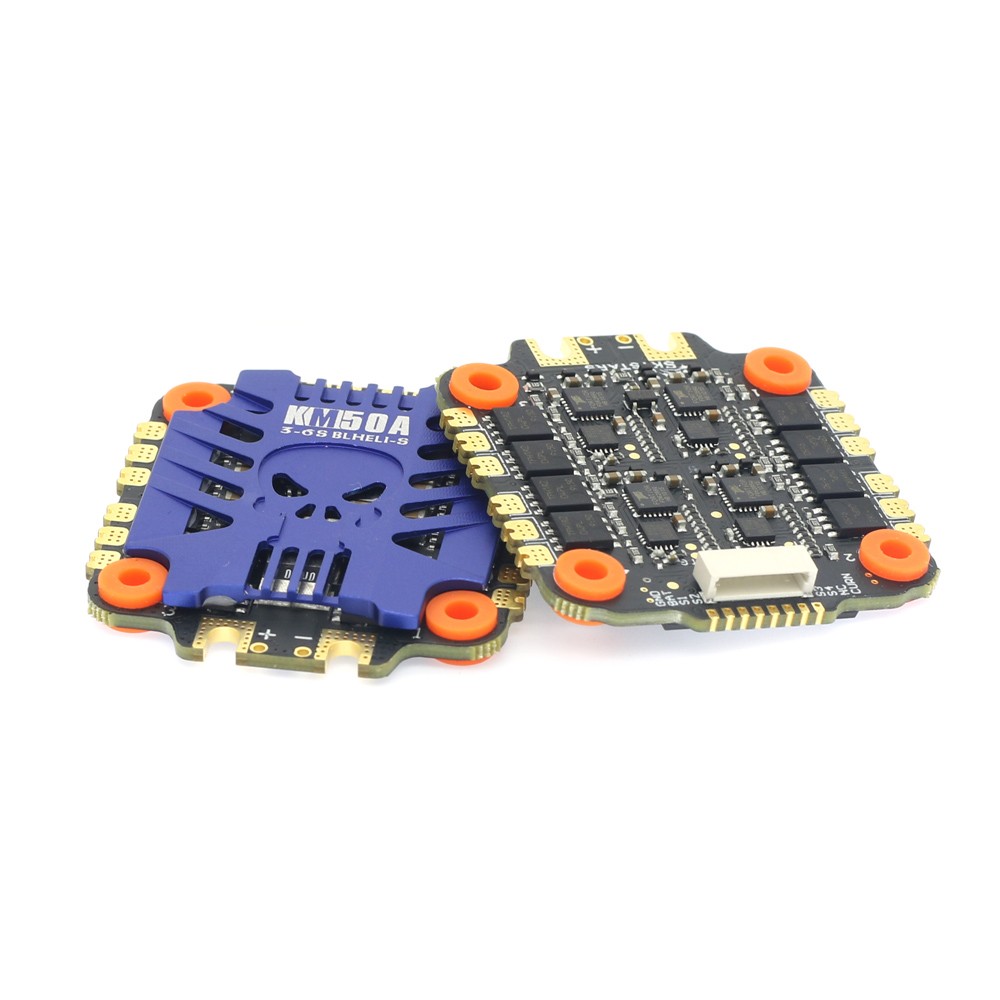

Skystars Kramam 50A 4-in-1 ESC
Check out all of our Skystars products!
Excellent over-current capability
They’ve adopted the best PCB material and PCB production processes, such as the application of high TG materials, 3oz copper PCB, and 2μm gold deposition process on the PCB. Together with the 6-layer layout design of the board, compared with other common 4 layers, it can withstand a bigger current.
Extreme stable while supporting 6S LiPo batteries

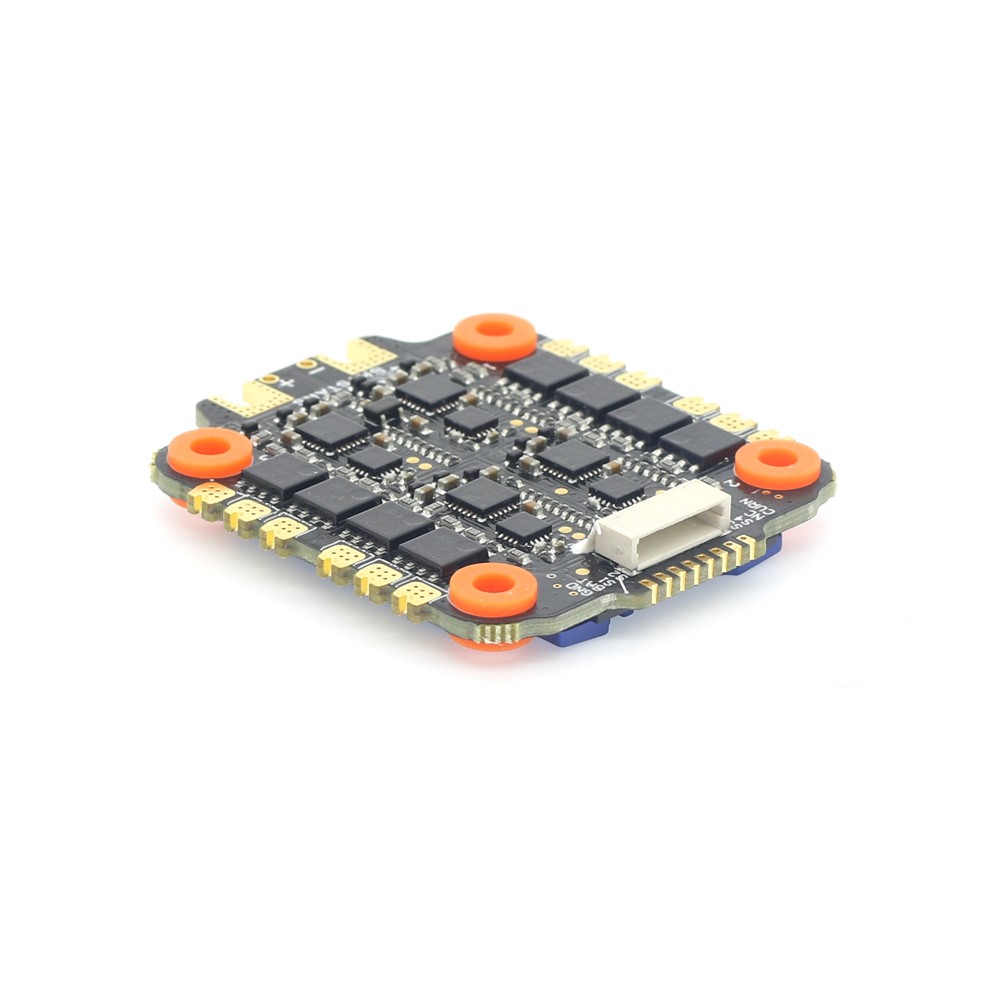

Uses 24 pieces of the new Toshiba standard 40V 5×6 Mosfet, plus advanced lead-free SMT Processing technology. That makes it so the ESC can fully support 6s battery and get better performance.
Excellent heat dissipation performance

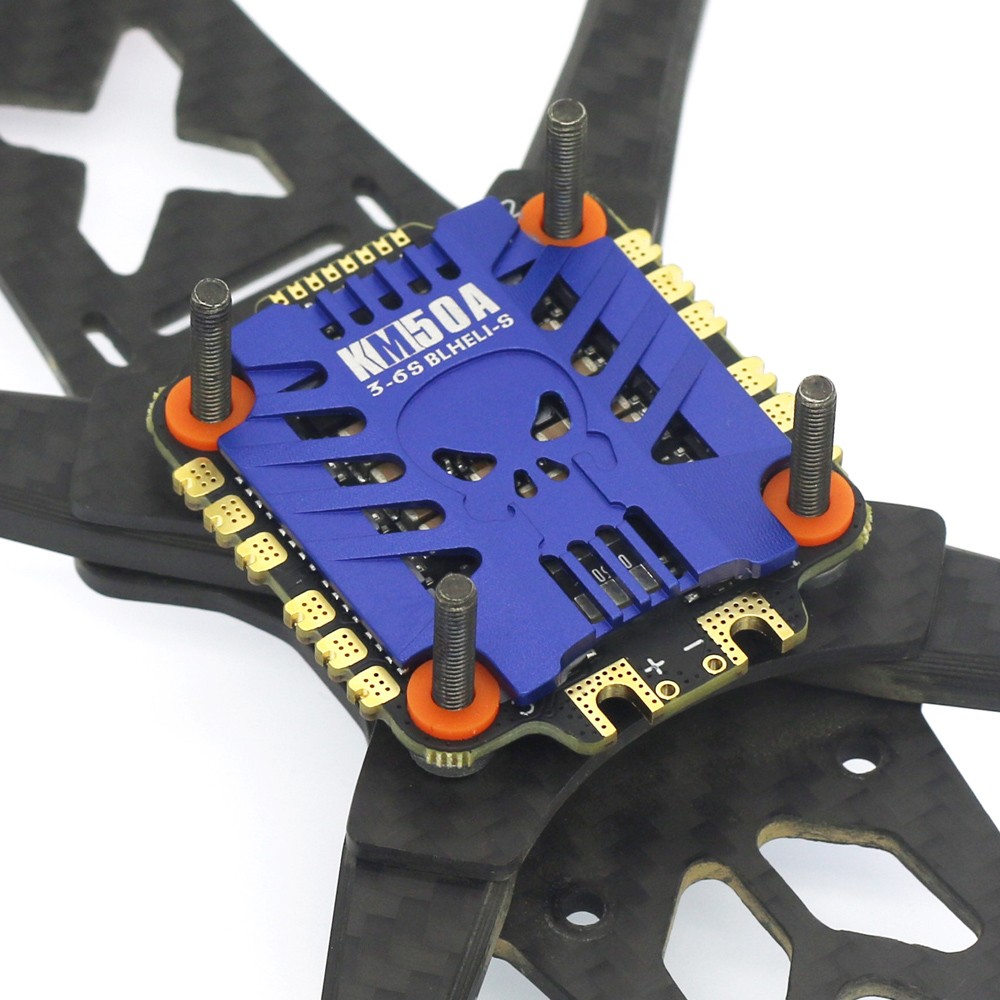

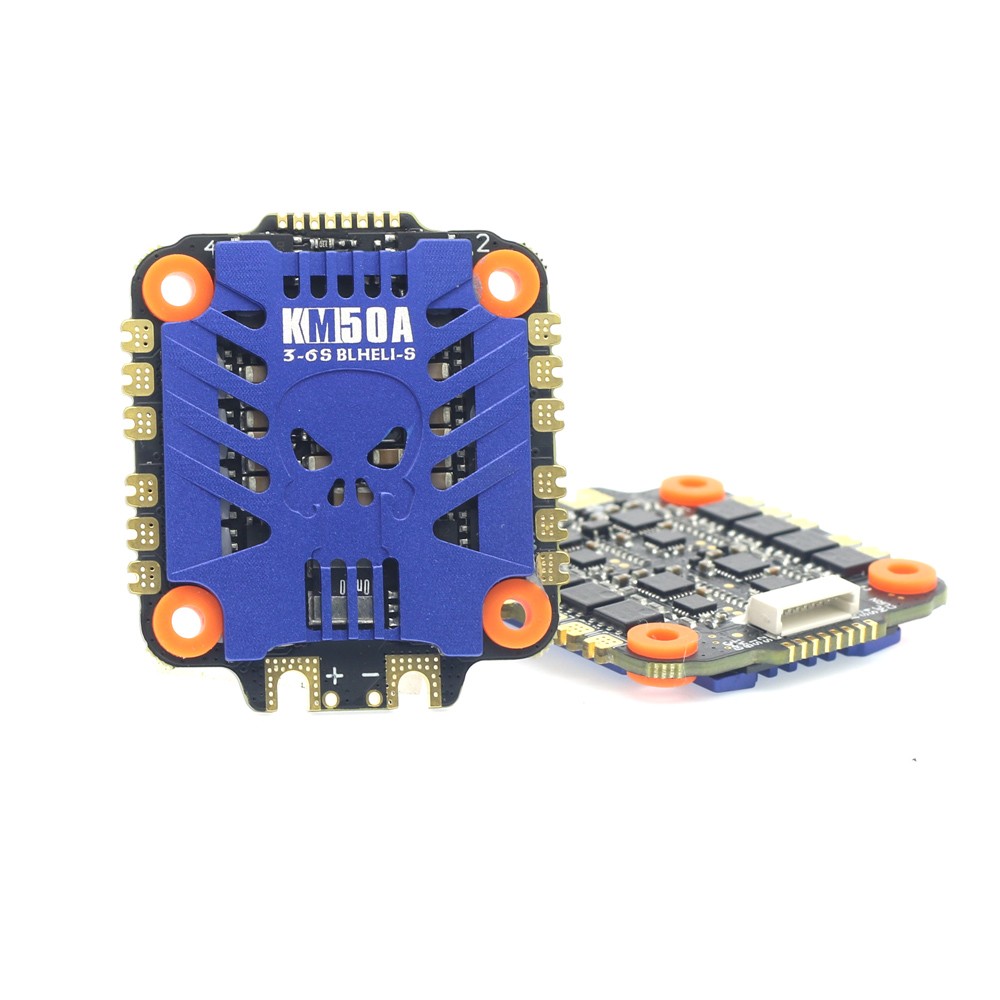

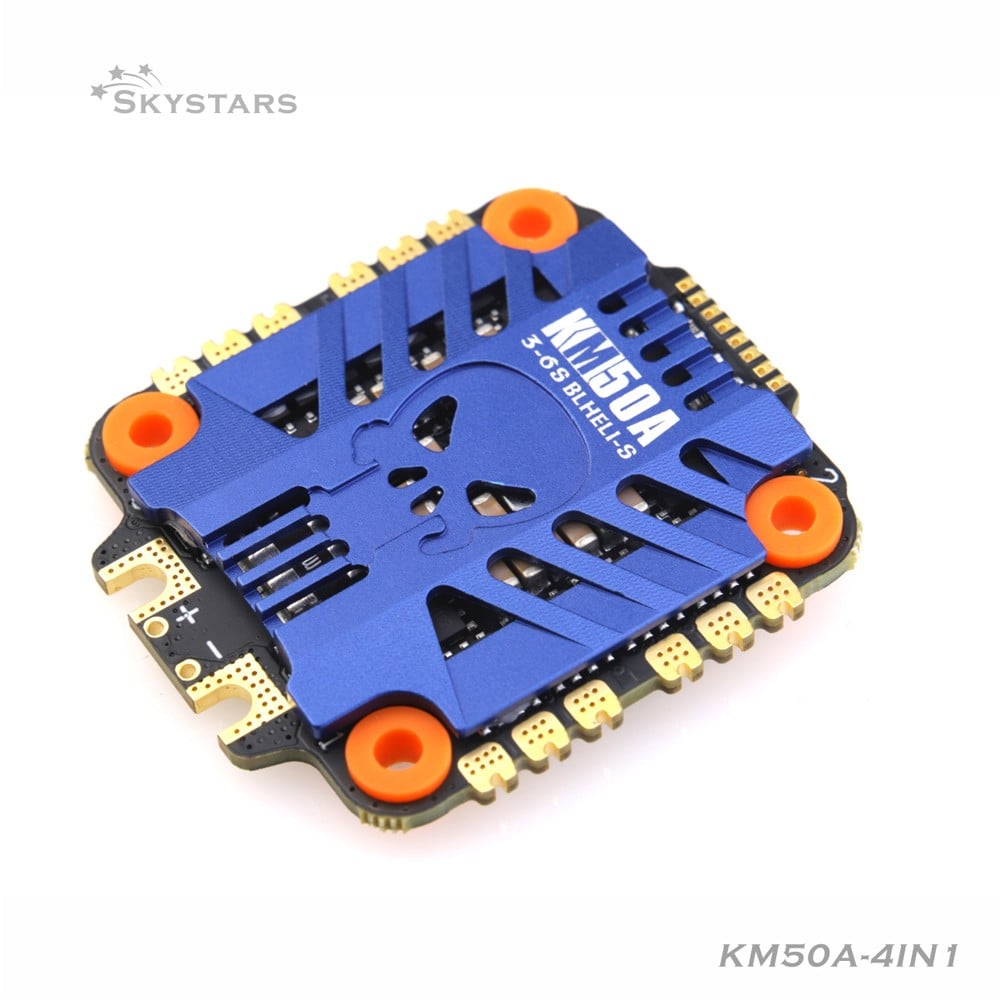

This Skystars ESC uses a CNC hollow aluminum alloy shell thats not only good for heat dissipation, but also has a beautiful appearance.
Better control performance
Flashed with Blheli_S 16.72 firmware in the factory, supports reversed Dshot 300/600 for better feel and performance.
Input voltage: 3-6S LiPo
Peak Current: 60A≥ 10S
Support : Reversed Dshot 300/600
Mounting hole : 30.5mm/M3
Product size: 41*46*7.6mm
1 x Skystar Kramam 50A 3-6S 4 in 1 ESC
4 x Damping Rubbers (M3x8mm)
4 x Damping Rubbers (M3x3.5mm)
1 x XT60 lead
1 x 8pin wiring harness (1x 70mm,1x 50mm)
1 x 35v 560uf Capacitor
