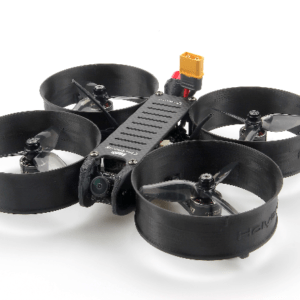

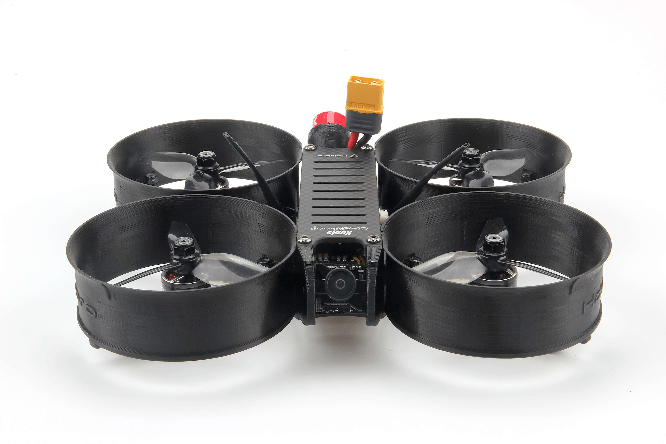

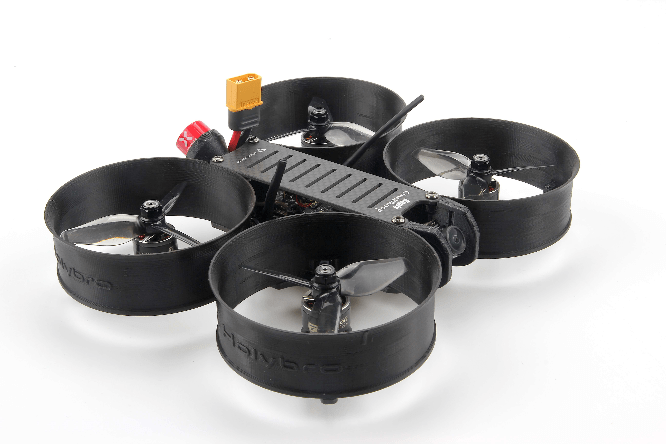

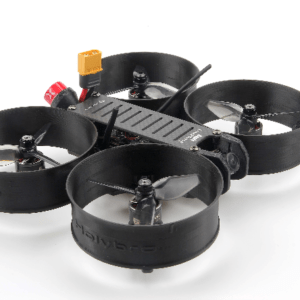

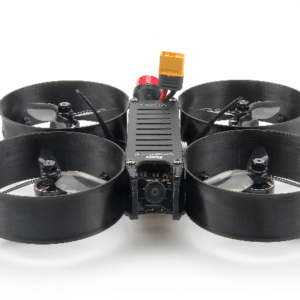

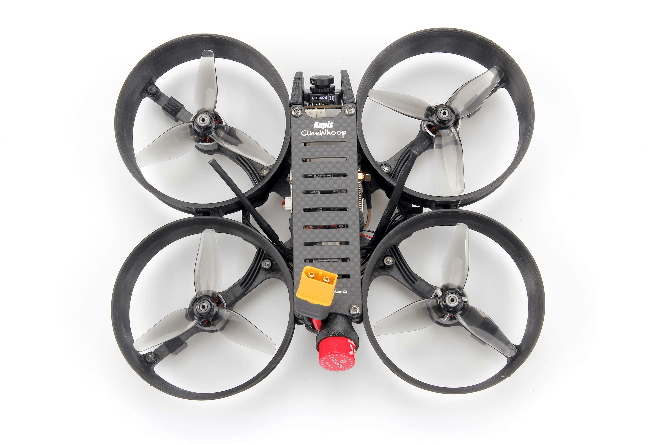

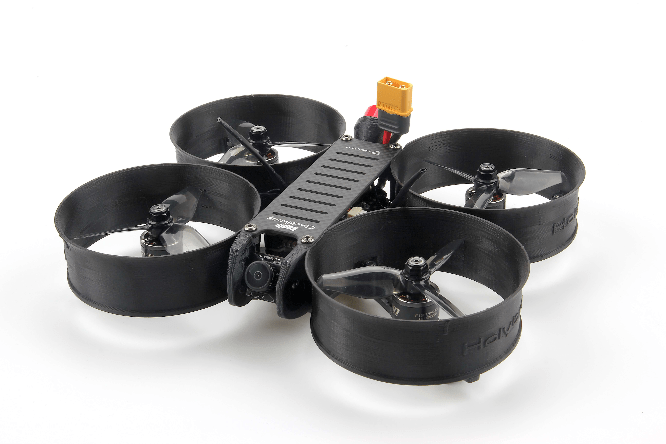

Kopis CineWhoop (Analog VTx version)

Take a look at all of our HolyBro products, and all of our ready-to-fly drones!

The HolyBro Kopis Cinewhoop’s propeller ducts have been upgraded from 3D printing PLA to Plastic Injection Molding. The new ducts are a great shape and more convenient for you to mount on the frame.

Features

• Frame:3mm 3k carbon fiber
• Flight Controller:Kakute F7 V1.5
• ESC:Tekko32 F3 4in1 45A mini ESC
• VTx: Atlatl HV V2
• Motor: F1507 KV3800
• Propeller: T3140
• FPV camera:1200TVL Foxeer Micro Razer FPV Camera
• Adjustable camera uptilt from 0 degrees to 90 degrees
• Buzzer included.

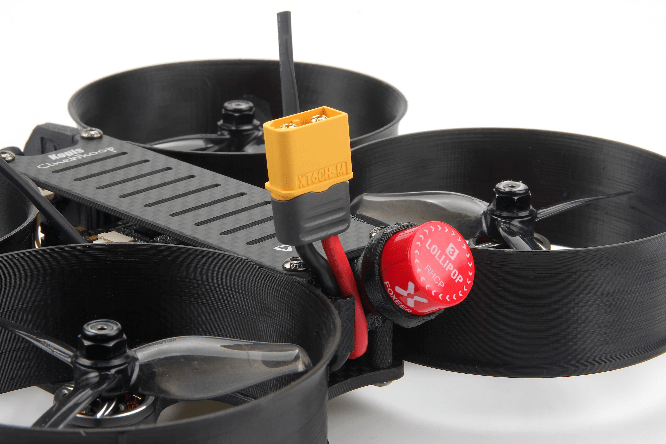

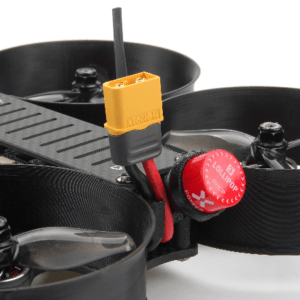

• Battery plug: XT60
• Dimensions:178*205*40mm
• Wheelbase: 148.6mm
• Weight:237g
• Recommend battery: 650mah~1300mah 4s

Specifications

• MCU: STM32F745 32-bit processor
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 6 hardware UARTS (UART1,2,3,4,6,7)
• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
• TF card for Blackbox logging

Includes:

• 1x Kopis CineWhoop FPV racing drone
• 4x T3140 Propeller
• 1x Protective Case Mount for GoPro Hero5
• 1x Carying case
• 1x Battery strap(installed)

Manual:

Settings:

cinewhoop DJI version_Joshua Bardwell setting

3D Print:

Kopis CineWhoop-3D_Print(DJI FPV version).rar
GoPro_HERO5_TPU_3D_Print.stl
