NewBeeDrone X FETTec InfinityAIO G4 AIO Flight Controller MPU6000 45A 3-6S
Check out all of our NewBeeDrone Products!

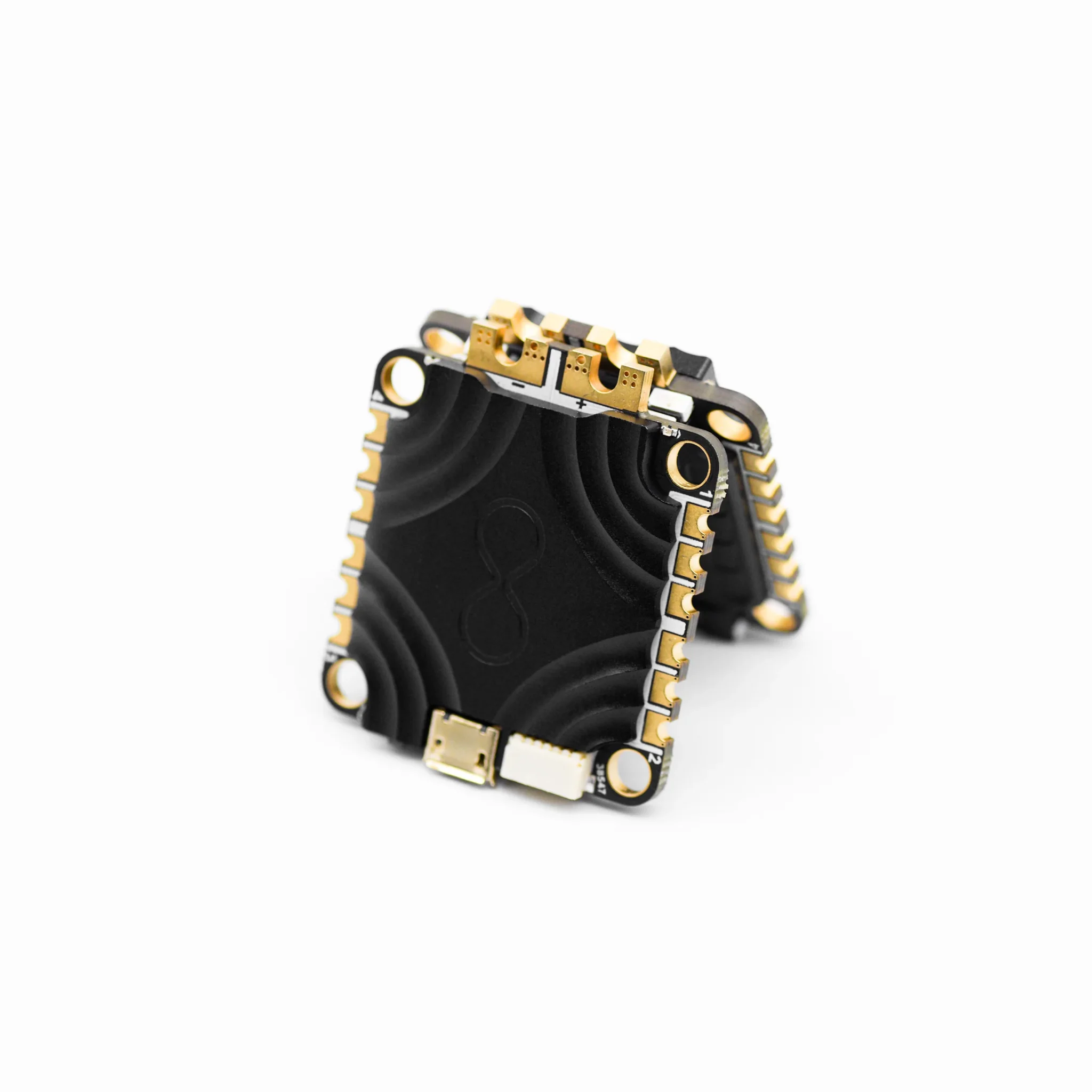

Explore the realms of advanced drone technology with the NewBeeDrone X FETTec InfinityAIO G4 Flight Controller, a state-of-the-art solution designed for exceptional performance in diverse flying conditions. This All-In-One (AIO) controller integrates robustness and innovative features to enhance the reliability and efficiency of your drone setup, making it ideal for racing, freestyle, or cinematic applications.
Key Features and Innovations:

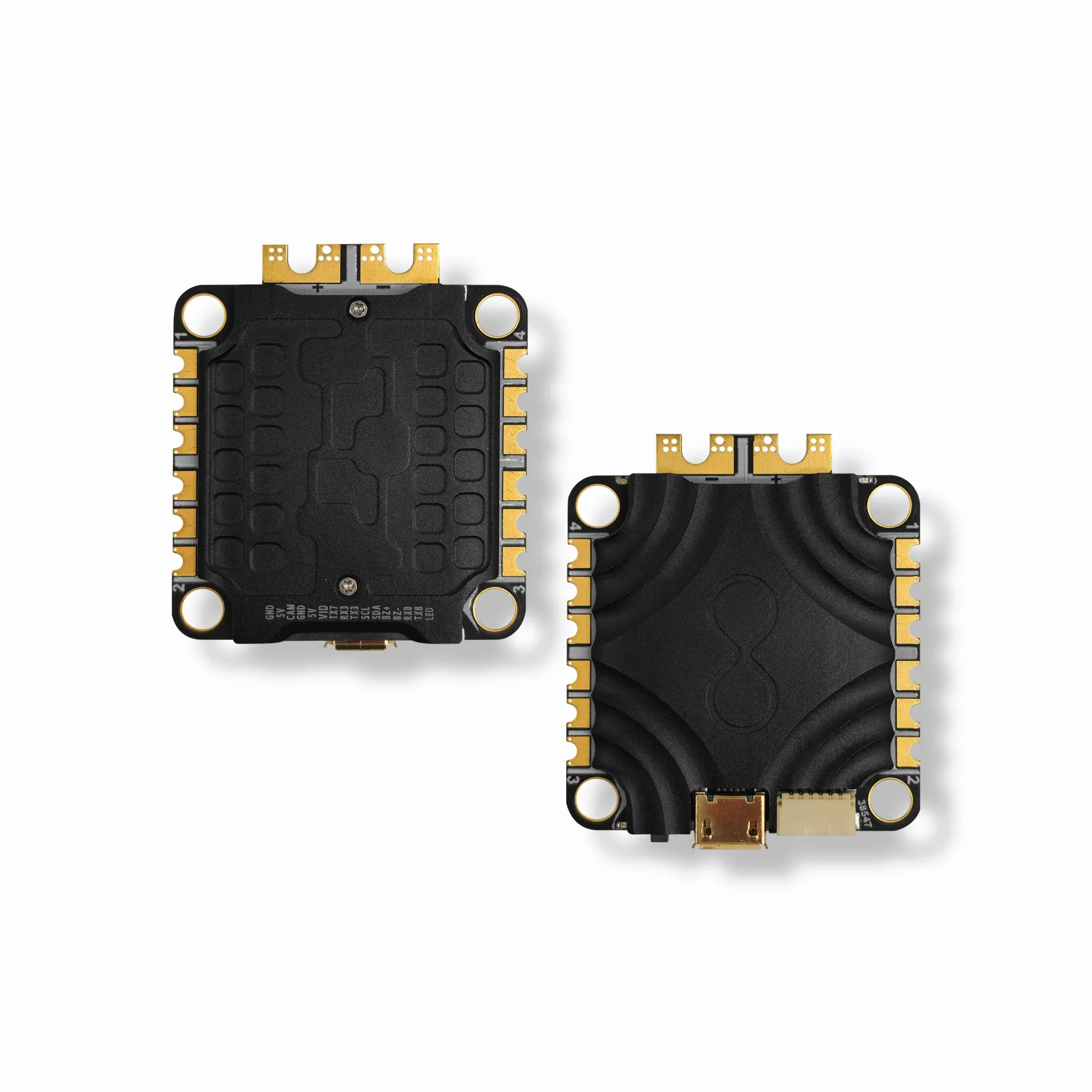

- Robust Environmental Protection: The InfinityAIO design includes two CNC aluminum heatsinks that not only facilitate effective heat dissipation but also protect internal electronics from dust, moisture, and other environmental elements that could potentially cause damage.

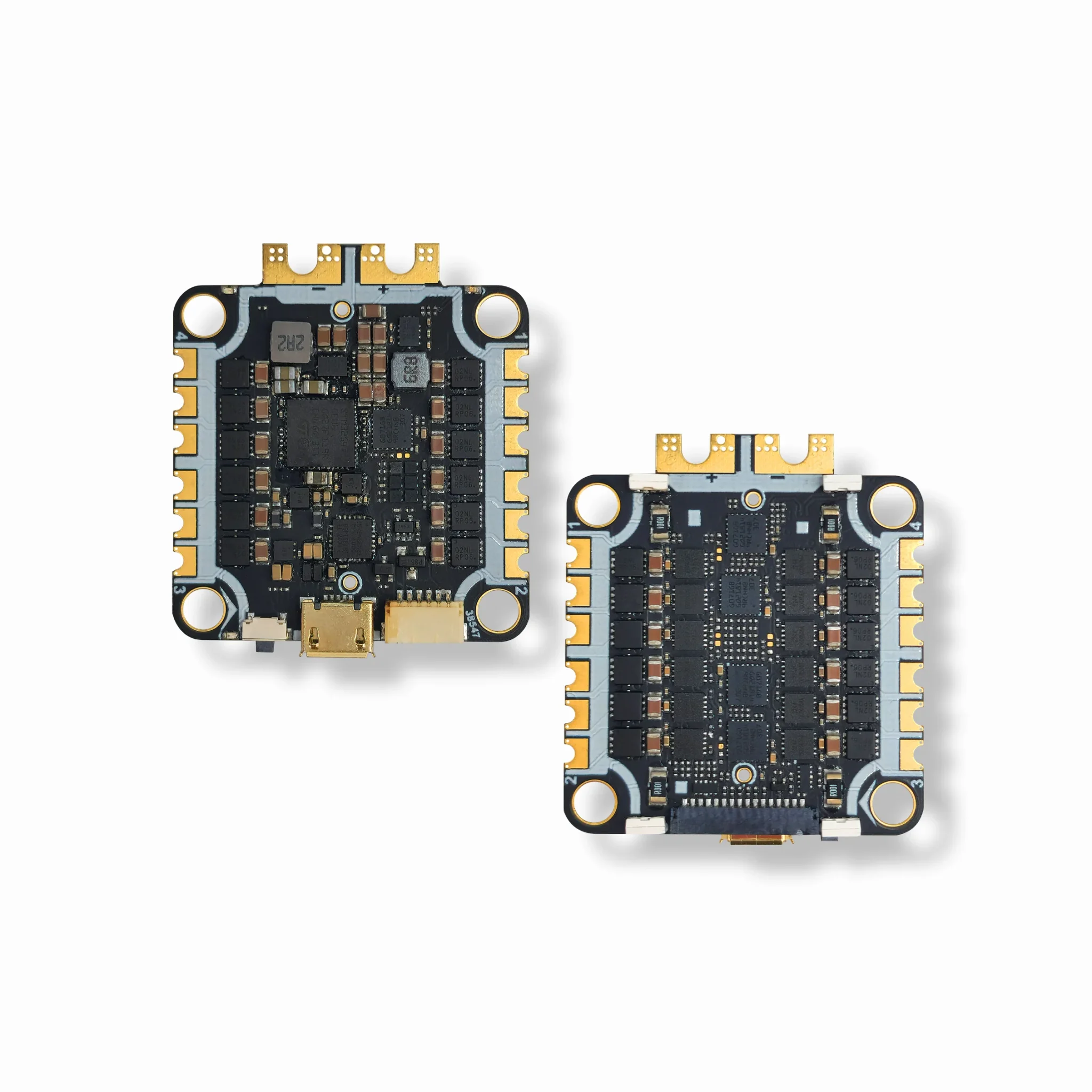

- High-Performance Electronics: Powered by the STM32G474 MCU and equipped with an MPU6000 gyro, the flight controller ensures rapid processing and stable flight dynamics. It also features dedicated SMT32G071 MCUs for ESCs, supporting continuous currents of 45A and bursts up to 55A.
- Advanced Connectivity: Offers a 6-pin DJI FPV Air Unit connector, multiple UART ports for extensive peripheral connectivity, and a Micro USB connector for easy configuration.
Specifications:
- MCU: STM32G474 running FETTec Alpha Firmware
- Gyro: MPU6000 for reliable flight data
- ESC MCUs: Four STM32G071 running FETTec ESC Firmware, capable of handling sophisticated motor control
- Power Handling: Supports 3-6S battery inputs and includes a 12V 2A output specifically for DJI FPV Air Units and a 5V 3A output for external accessories like LEDs or GPS modules.
Connectivity Details:
- DJI FPV Air Unit Connection: Seamless integration with DJI systems for enhanced visual capabilities
- UART Ports: Multiple UARTs for various uses including receiver connections, free ports for additional peripherals, and ESC telemetry
- OneWire BUS: Enables up to 8kHz looptime for efficient motor signal and telemetry management
Physical Characteristics:
- Dimensions: 41x37x7.6mm, with standard 30.5×30.5mm mounting holes
- Weight: 19.4 grams with grommets, ensuring a lightweight addition to any drone build
Additional Features:
- Supports both analog and digital setups with FETTEC OSD for analog configurations
- Buzzer ready and includes LED outputs for visibility and customization
- Package includes various cables, mounting hardware, and a capacitor for optimal setup and performance
Package Contents:
- Infinity FETTec AIO Flight Controller + ESC
- DJI O3 Cable and additional wiring
- Mounting hardware including nylon lock nuts, screws, and grommets
- 470uf 35v Electrolytic Capacitor
- XT60 Cable
This flight controller is designed to push the boundaries of what is possible with modern drone technology, providing enthusiasts and professionals alike with a reliable, high-performance platform for any type of drone flying activity. Whether you’re building a new drone or upgrading an existing setup, the NewBeeDrone X FETTec InfinityAIO G4 offers a comprehensive solution that blends innovation with robust performance.
