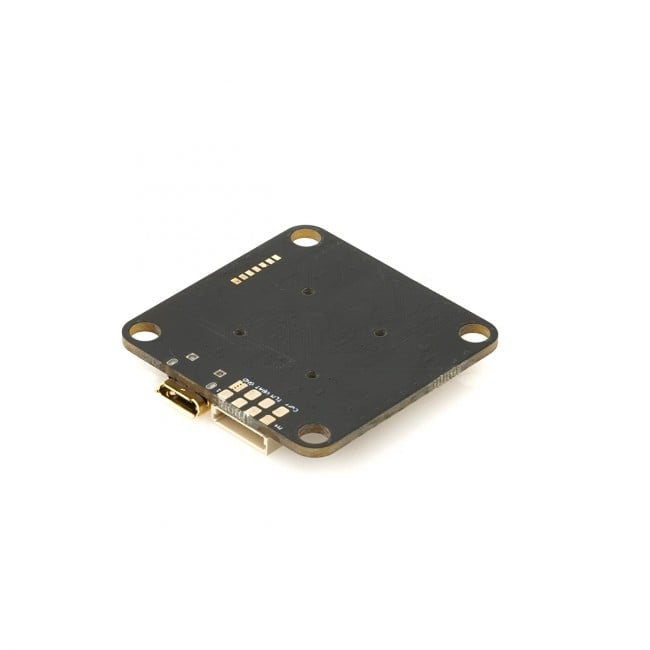

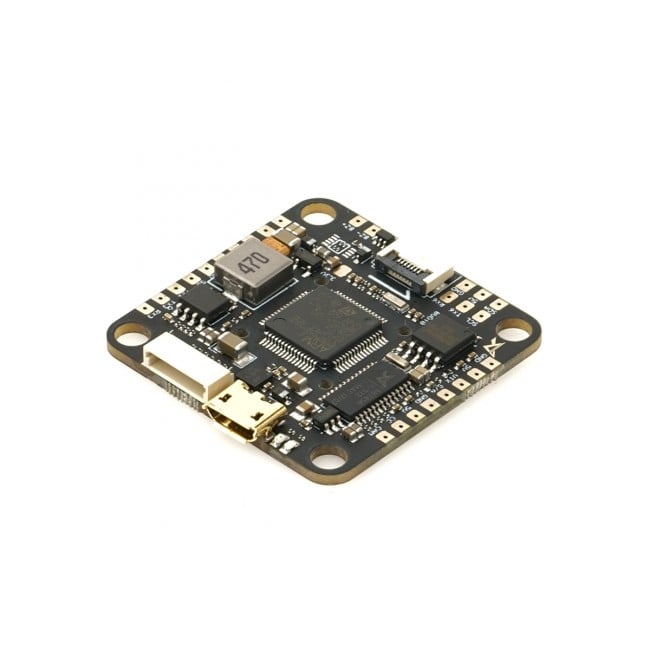

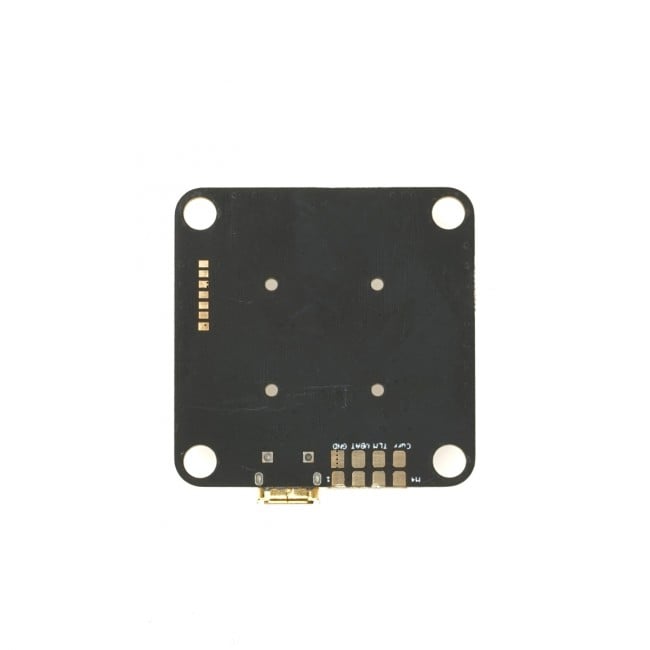

Airbot F7 Flight Controller

Check out all of our Airbot products, and all of our FCs!

Build a powerful and feature-rich FPV drone with the Airbot F7 Flight Controller. This FC is a builder’s dream, known for its reliability and exceptional connectivity, making it the perfect brain for your next freestyle, long-range, or cinematic FPV drone. Powered by a potent F7 processor and loaded with ports, it provides a stable and versatile platform for all your electronic components.

Powerful F7 Processing & Smooth Gyro

The Airbot F7 utilizes a high-performance STM32F722 MCU, which effortlessly handles modern Betaflight features and complex filtering, ensuring a smooth and locked-in flight experience. It’s paired with the proven ICM20602 gyro over a fast SPI bus, providing the precise flight data needed for crisp and responsive control of your FPV drone.

Unmatched Connectivity with 6 UARTs

Never run out of ports again. This flight controller boasts an incredible six dedicated hardware UARTs, allowing you to easily connect all your peripherals without compromise. Connect your receiver, VTX for SmartAudio/Tramp control, GPS module, and other devices simultaneously. With additional external I2C and SPI pads, the expansion possibilities for your FPV drone are nearly limitless.

Key Features:

• Powerful F722 Processor: Effortlessly handles all modern Betaflight features, including complex filtering, for a smooth and locked-in flight experience.
• Full 6 Hardware UARTs: Unmatched connectivity for a flight controller, allowing you to connect all your peripherals without compromise.
• 16MB Onboard Blackbox: Provides ample high-speed data logging for professional-level tuning without needing an SD card.
• Robust 5V/2A BEC: Delivers plenty of clean, reliable power for your receiver, camera, and other 5V components.
• Builder-Friendly Layout: Features dedicated connectors for a 4-in-1 ESC and a micro receiver, simplifying the wiring process for a clean build.
• Direct 3-6S Input: A wide voltage range makes it compatible with a huge variety of FPV drone builds.

Specifications

• MCU: STM32 F722
• Gyro: ICM20602 over SPI Bus
• Input Voltage: 3-6S LiPo Direct
• BEC: $5\text{V}/2\text{A}$ (Buck)
• UARTs: 6 Hardware UARTs
• Blackbox: 16MB (128Mbit) Onboard Flash
• OSD: Integrated Betaflight OSD (AB7456 Chip)
• Mounting Holes: $30.5\text{mm}\times 30.5\text{mm}$
• Weight: $\sim 6.5\text{g}$

What’s in the Box?

• 1x Airbot F7 Flight Controller
• 1x Set of Mounting Grommets
