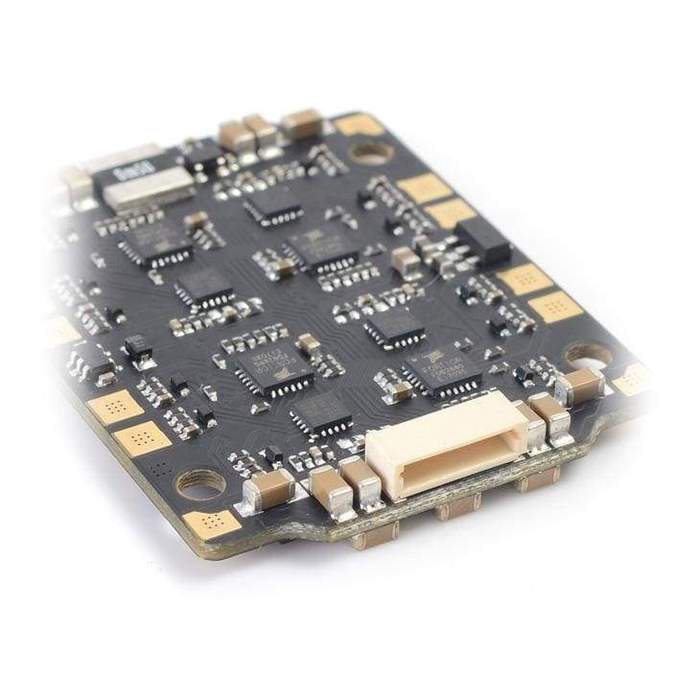

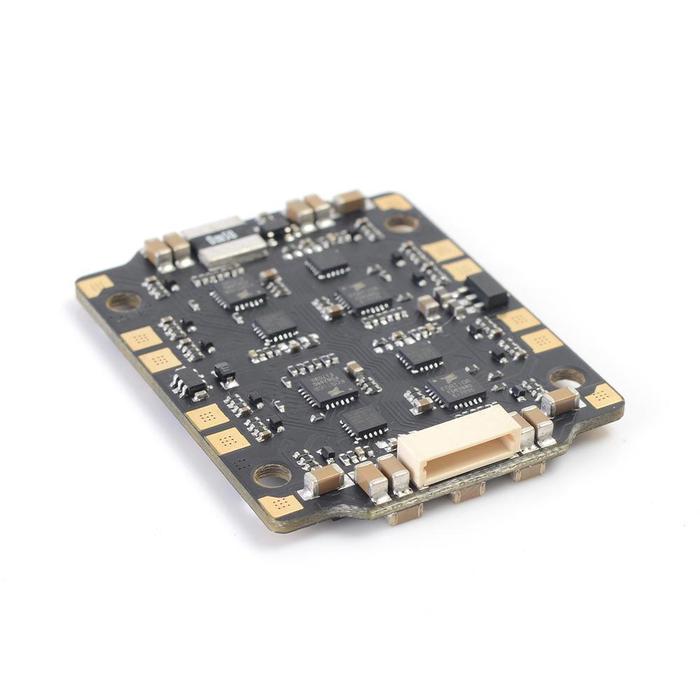

Mamba F40 MK2 4-in-1 40A ESC Dshot600 4-6S
Check Out All Of Our Diatone Mamba Products!
Build your next FPV drone on a foundation of reliable, proven power with the Diatone Mamba F40 MK2 4-in-1 ESC. This workhorse ESC from Diatone’s highly regarded Mamba series is engineered to deliver consistent and stable power for the most popular FPV setups. With its standard 30.5×30.5mm mounting pattern and robust 40A current rating, it’s the perfect choice for any 5-inch freestyle or racing build.
The Mamba F40 MK2 provides the performance you need to fly with confidence. It handles a continuous 40A current with a generous 50A burst capability, giving you plenty of overhead for aggressive maneuvers on 4S, 5S, or even 6S LiPo batteries. Paired with the responsive Dshot600 protocol, this ESC ensures a locked-in and connected feel between your flight controller and motors.

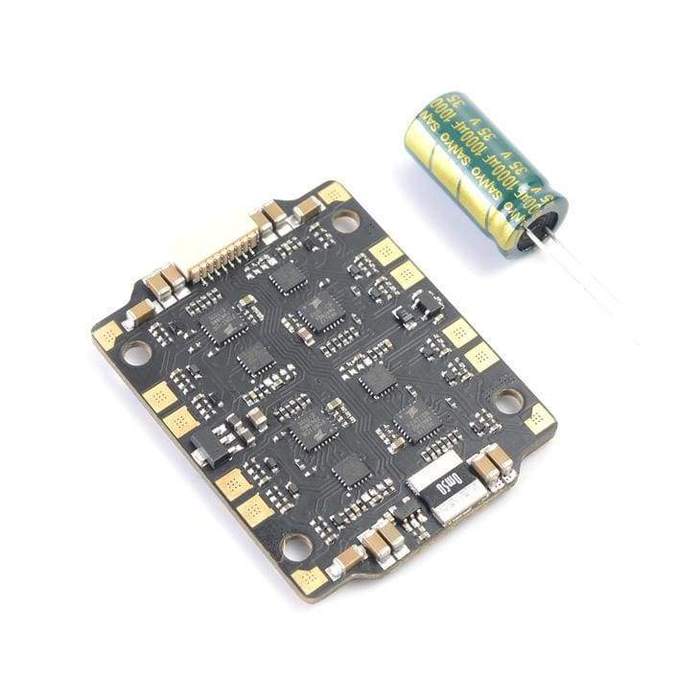

Diatone has designed this board with quality components to ensure smooth performance. It features an array of 12 individual capacitors, totaling 564UF, to effectively filter electrical noise from the power system. This leads to cleaner operation for both your motors and other sensitive electronics. If you’re looking for a no-frills, dependable, and powerful ESC for your standard FPV stack, the Mamba F40 MK2 is the smart choice.
KEY FEATURES
- 40A Continuous Current: Robust power delivery with a 50A burst capability for demanding flights.
- Standard 30.5×30.5mm Mounting: Fits perfectly in the majority of 5-inch and larger FPV frames.
- 3-6S LiPo Compatibility: Versatile power input for a wide range of builds and battery choices.
- Reliable Dshot600 Performance: Utilizes the proven Dshot600 protocol for a responsive connection.
- Generous Onboard Capacitance: Features 564UF of capacitance for clean and stable power delivery to your motors.
SPECIFICATIONS
- Input Voltage: 3-6S Lipo (12.6V – 25V)
- Continuous Current: 40A × 4
- Burst Current: 50A (10S)
- BEC: None
- Mounting: 30.5mm x 30.5mm, M3
- Current Sensor Scale: 169
- Capacitance: 564UF
