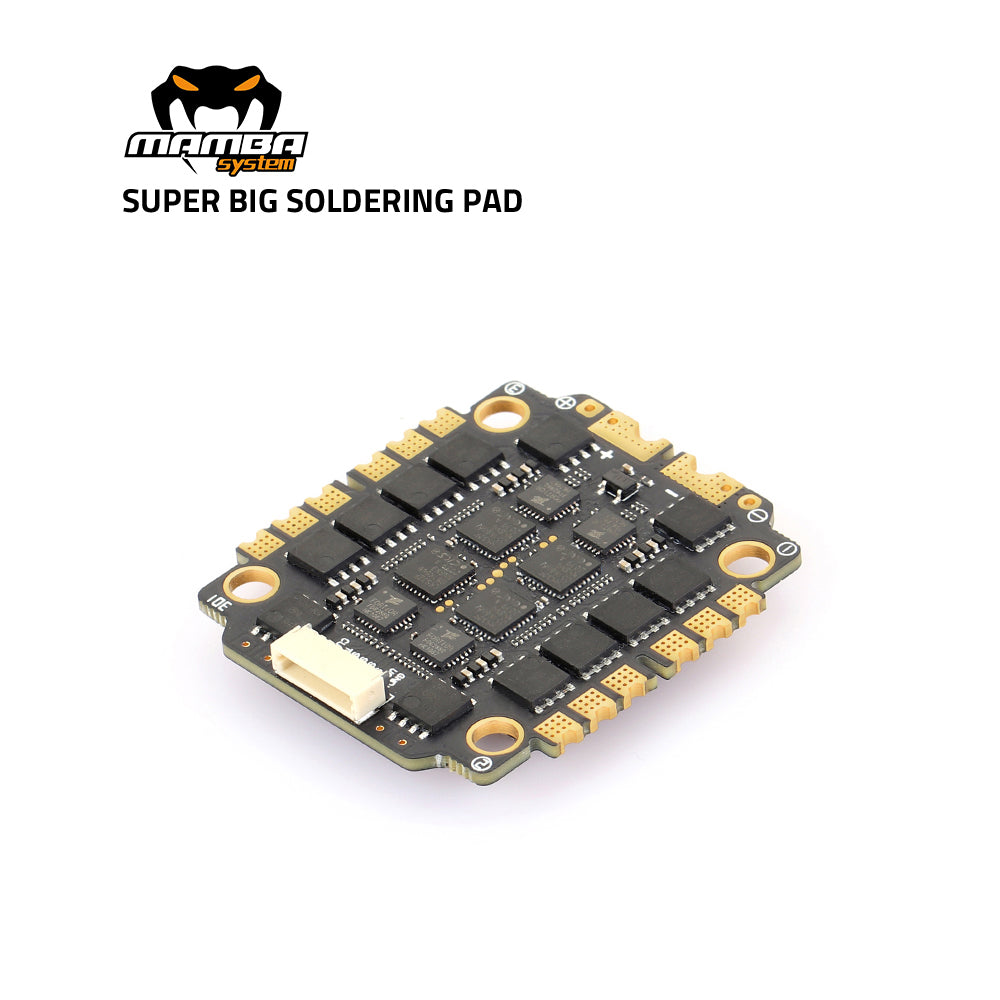

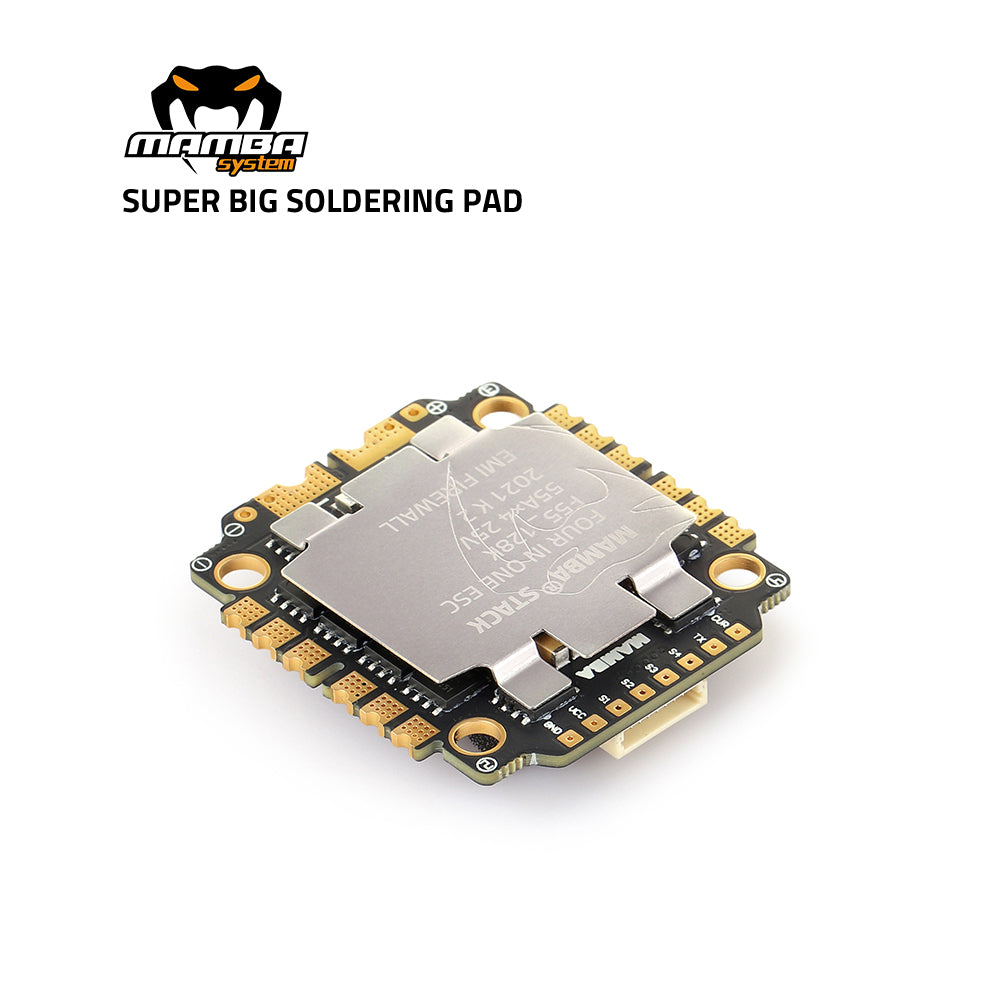

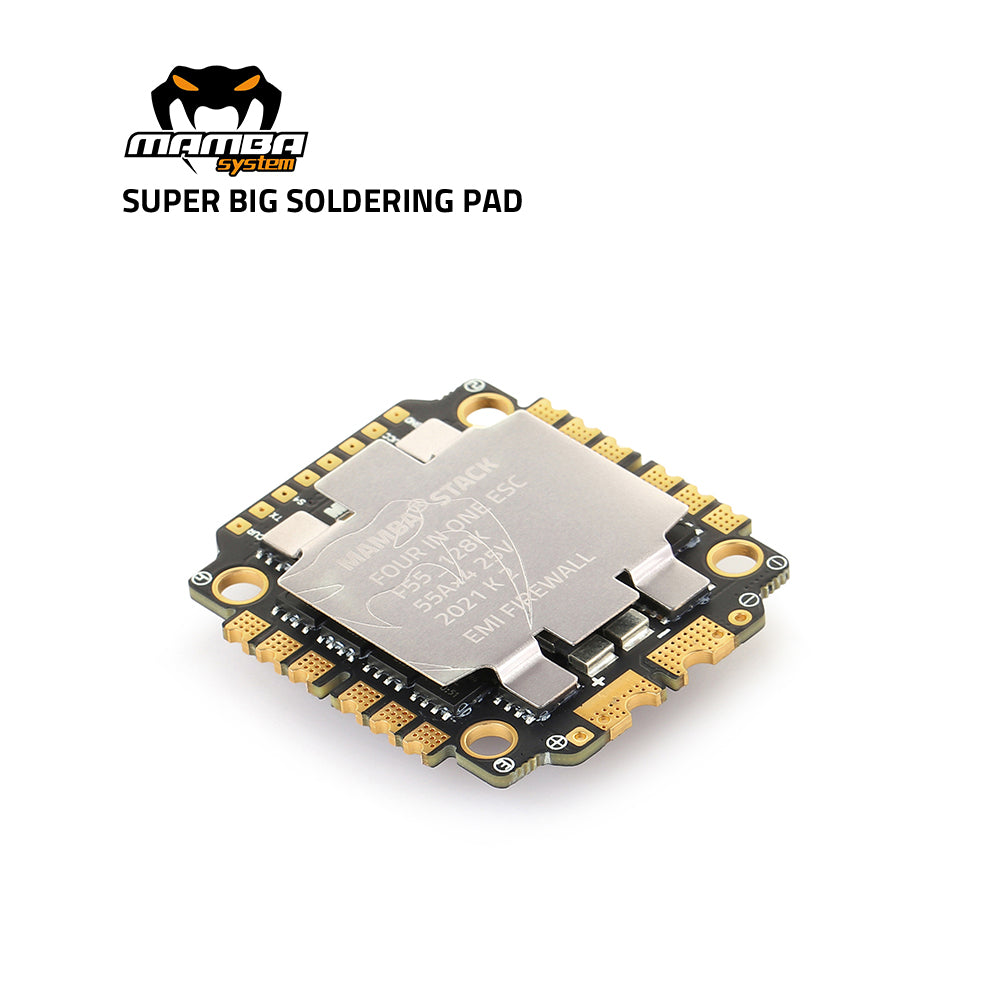

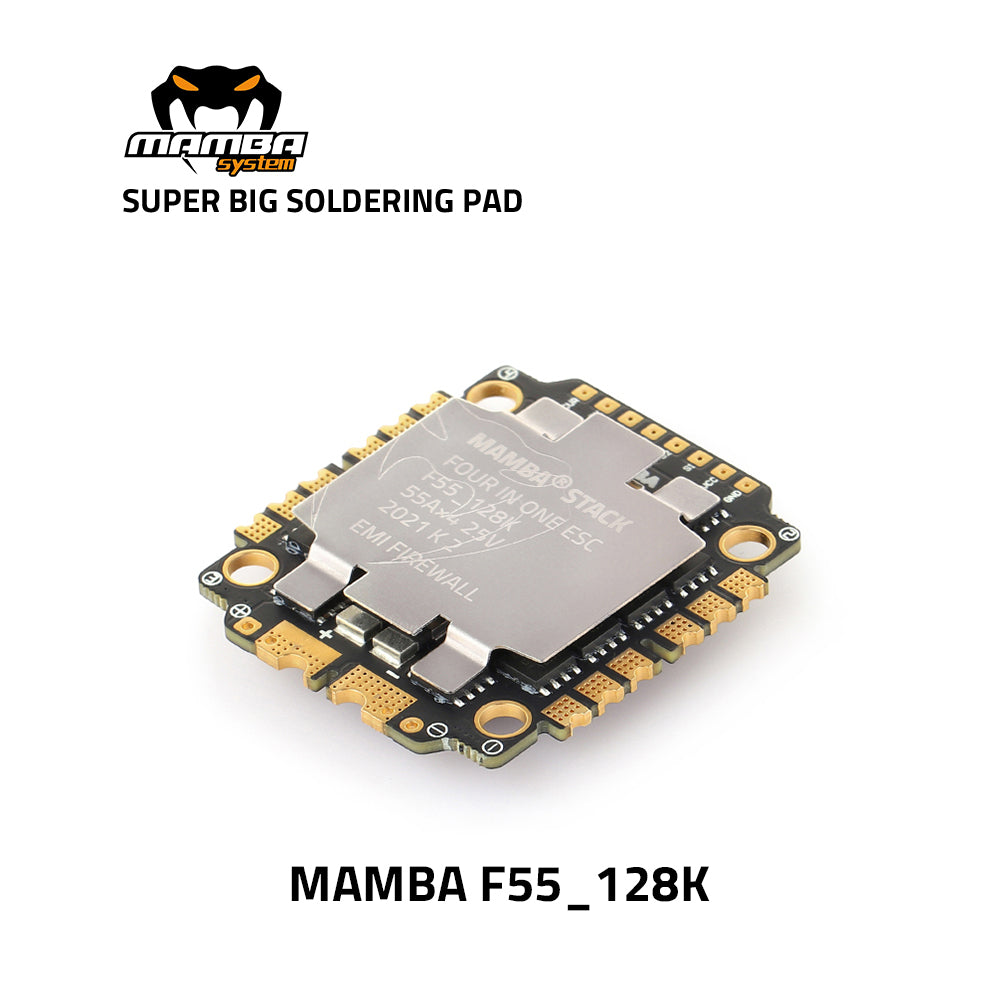

Diatone MAMBA F55_128K BL32 4IN1 ESC 55A 6S
Check out all of our Diatone Products!
Unleash the full potential of your FPV drone with the Diatone Mamba F55 128K, a high-performance 4-in-1 ESC featuring advanced 32-bit technology. This ESC is engineered for pilots who demand the absolute best in power delivery and smooth performance, making it the perfect core for any top-tier 5-inch or 6-inch freestyle or racing quad.
The Mamba F55 is built on the powerful BLHeli_32 firmware platform. This 32-bit architecture unlocks a suite of advanced features, including variable PWM frequencies up to 128K, ESC telemetry, and high-speed Dshot protocols. For the pilot, this translates into an incredibly smooth and responsive flight experience, with higher efficiency and a more connected, locked-in feel.
Designed to handle extreme power, this ESC boasts a massive 55A continuous current rating with a 65A burst capability, giving you the confidence to run the most power-hungry motors on up to 6S LiPo. To ensure long-term reliability, the board includes crucial TVS (Transient Voltage Suppression) protection, which safeguards the electronics against damaging voltage spikes common in aggressive flying. With a standard 30.5×30.5mm mounting pattern, the Mamba F55 is the ultimate power solution for your high-performance FPV stack.
KEY FEATURES
- Advanced 32-Bit BLHeli_32 Firmware: Provides exceptionally smooth performance, ESC telemetry, and PWM frequencies up to 128K.
- Massive 55A Continuous Current: A huge 55A rating with a 65A burst, ready for the most demanding FPV motors.
- 3-6S LiPo Compatibility: Versatile power input for a wide range of high-performance builds.
- Onboard TVS Protection: A crucial feature that protects the ESC from damaging voltage spikes for enhanced durability.
- Standard 30.5×30.5mm Mounting: Fits perfectly in the majority of 5-inch and larger FPV frames.
SPECIFICATIONS
- Input Voltage: 3-6S Lipo (12.6V – 25.2V)
- Continuous Current: 55A × 4
- Burst Current: 65A (10S)
- BEC: None
- Firmware Target: BLHeli_32 MAMBA F55_128K
- Protocol: Dshot300/600/1200
- PWM Frequency: 24K – 128K
- Protection: TVS Protection
- Mounting: 30.5mm x 30.5mm, M3
INCLUDES
- 2x 8pin sh1.0 Cables
- 1x AMASS Original XT60 Connector
- 1x High-Frequency 470uF/35V Capacitor
