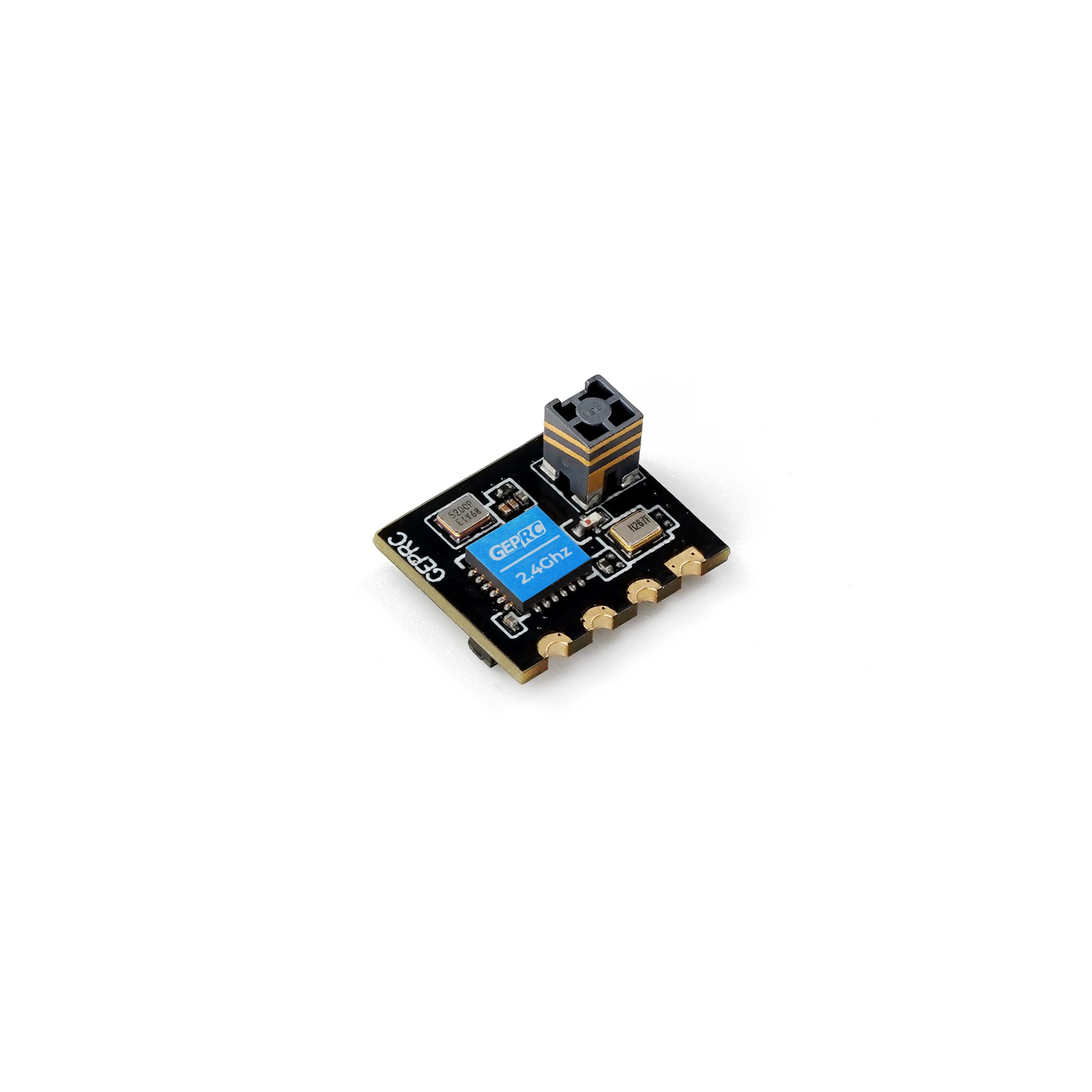

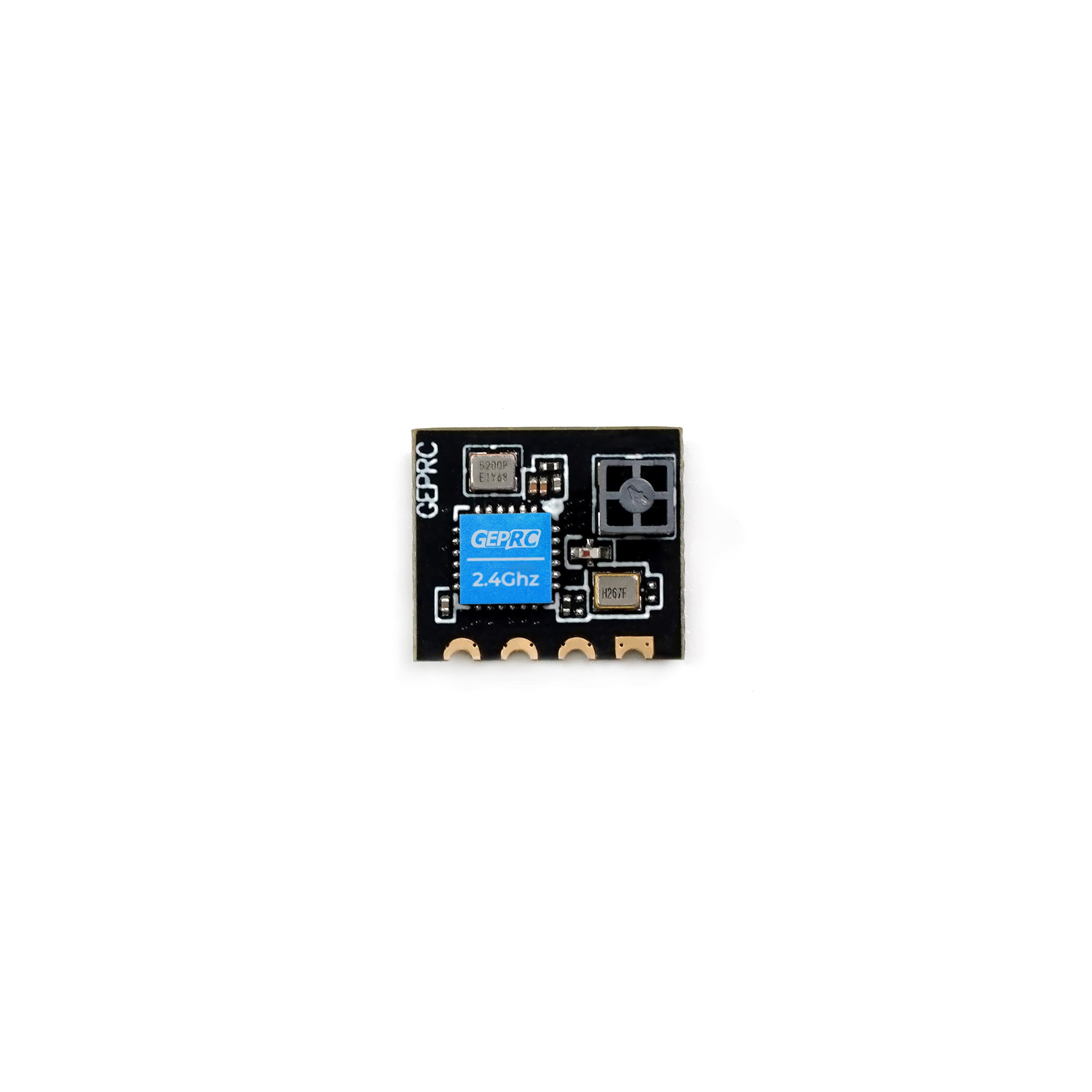

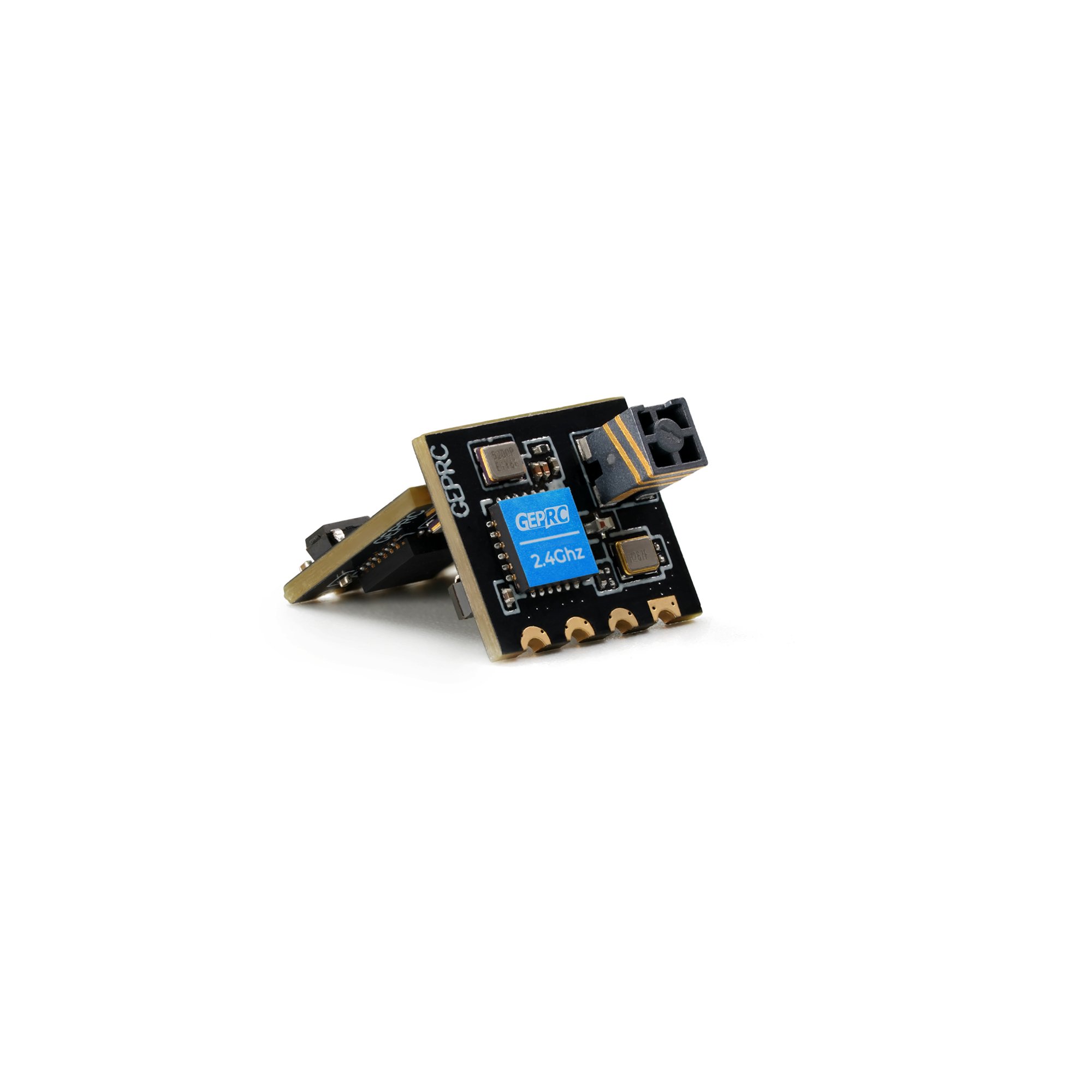

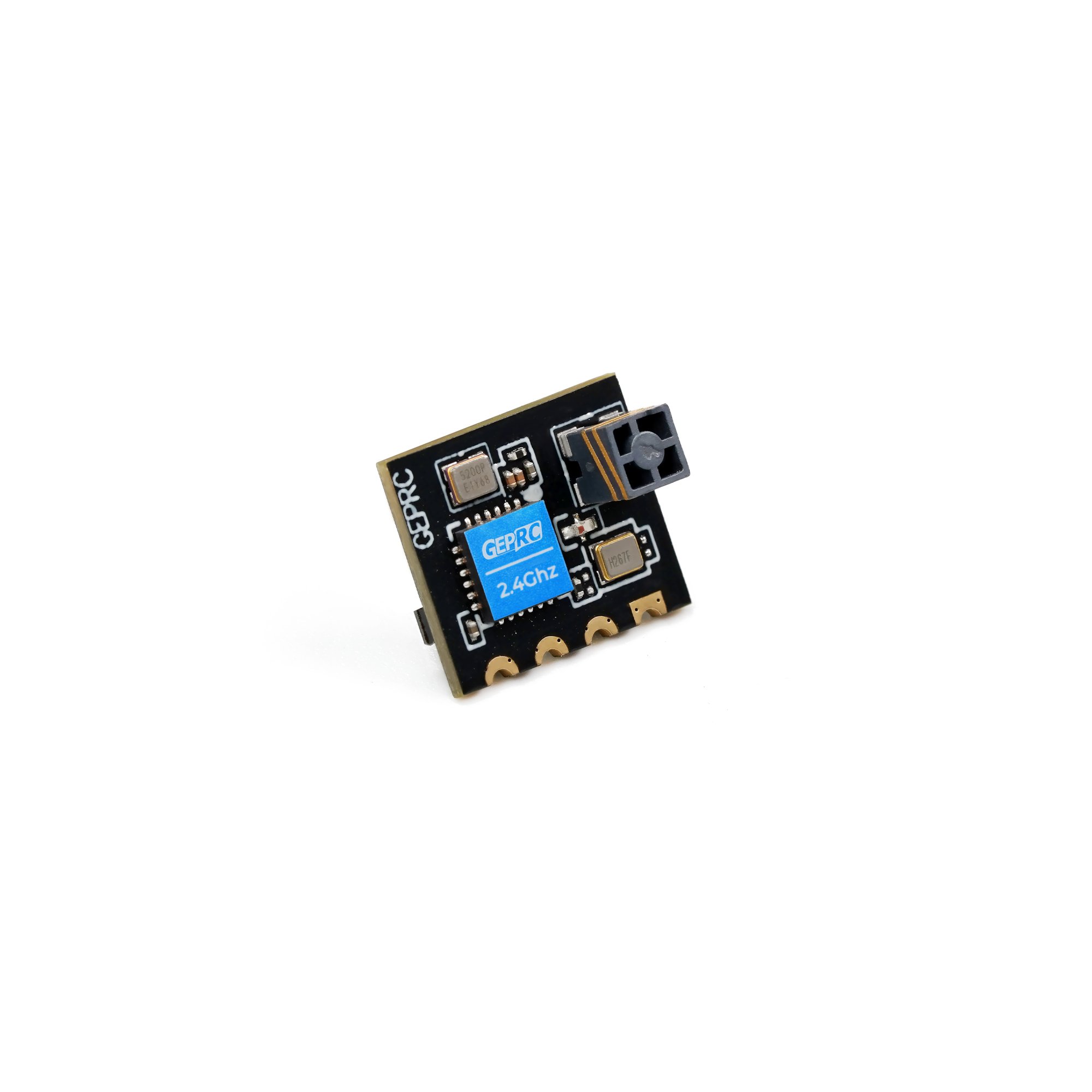

GEPRC ELRS NanoSE Receiver
GEPRC ELRS NanoSE receiver operates at a frequency of 2.4 GHz. Compared with Nano receiver, NanoSE receiver uses an Integrated SMD ceramic antenna, which further reduces its size while ensuring signal reception, making it more suitable for use on drones with limited space and light weight.
Note:ELRS products now shipping have been pre-flashed with 2.x firmware. 2.x is not compatible with version 1.x, so you need to upgrade the transmitter to 2.x for proper frequency matching.
Specifications
Size:12.1mm*10.4mm
Weight:0.4g
Chips:ESP8285,SX1281
Frequency band:2.4GHz ISM
Refresh rate:25Hz-500Hz
Input voltage:5V
Antenna:Integrated SMD Ceramic Antenna
Feature
- Small size
- 0.4g weight
- WIFI Upgrade firmware
- ELRS open source project, remote control
- Integrated SMD Ceramic Antenna
- Maximum refresh rate of 500Hz
- The operation is simple
Package Includes
1 x NanoSE receiver
2 x Heat shrink tube
4 x Silicone cable(black, red, yellow, green)
1 x Pin (4pin)
1 x Instruction manual
1 x Sticker
