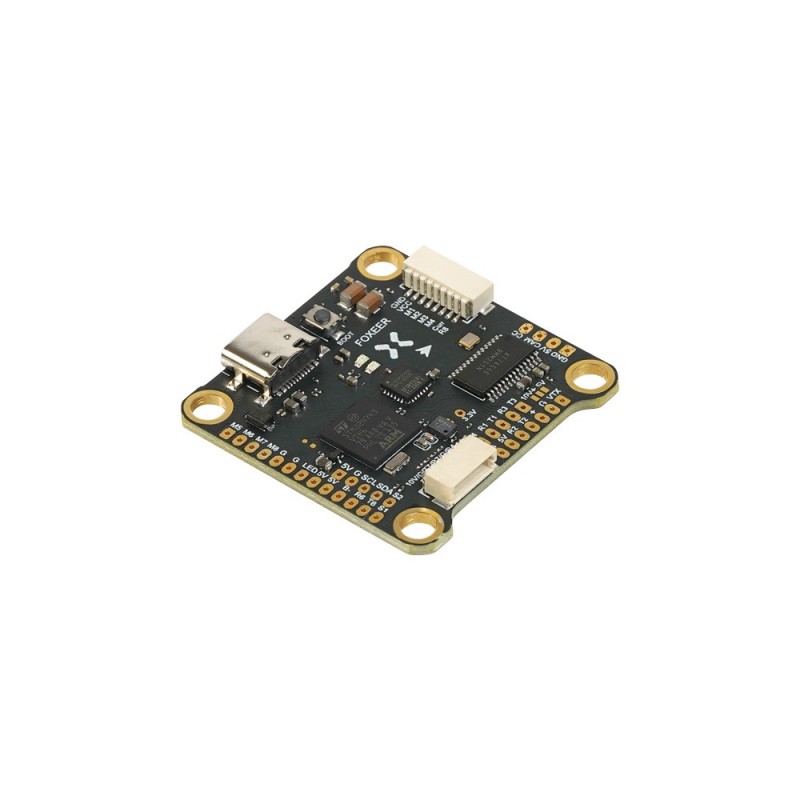

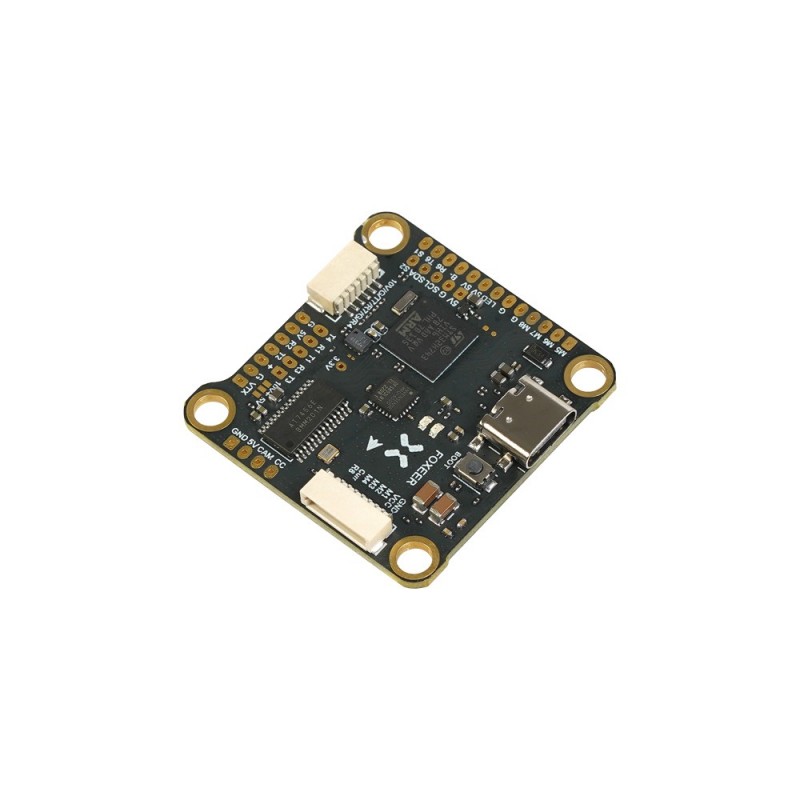

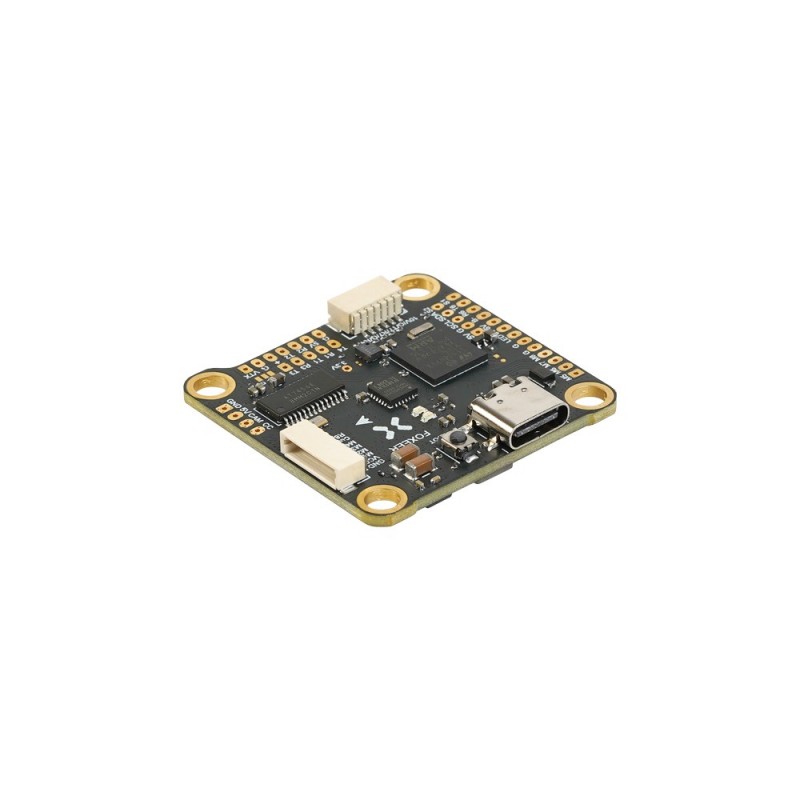

Foxeer H7 MPU6000 8S Dual BEC Barometer X8 Flight Controller
Check out all of our Foxeer Products!
Master your aerial adventures with the Foxeer H7 MPU6000 FC 8S Dual BEC Barometer X8. Designed for a 4~8S Lipo power supply, the Foxeer H7 is built for endurance. Its diverse BEC Output options (3.3V/0.5A, DC5V/2A, DC10V/2A) cater to various drone requirements. The onboard DPS310 Barometer aids in maintaining steady flights even under dynamic conditions.
The BF OSD and 16M Flash Memory Black Box provide essential data in real-time and store your flight information respectively. This controller features an impressive 6 sets of UART + Rx8 and supports ESC telemetry on RX8, ensuring comprehensive data coverage. It’s equipped with a DJI/HDZero connector and supports Smart Audio for a rich piloting experience.
The Foxeer H7 comes with 1 set of 2812 LED for personalized lighting and a Type-C USB for quick and easy data transfer. The inclusion of S1, S2 Servos and support for X8 further enhance its versatility.
Specifications
| Model | Foxeer H7 |
| CPU | FOXEERH743 |
| Gyro | MPU6000 |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | 3.3V/0.5A;DC5V/2A;DC10V/2A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 6 Sets+Rx8 |
| ESC Telemetry | RX8 |
| Buzzer | YES |
| Connector | DJI/HDZero |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| Servo | S1,S2 |
| X8 | Supported |
| Firmware | BetaFlight: FOXEERH743 |
| Size | 37X37mm |
| Mounting Hole | 30.5X30.5mm,Φ4mm |
| Weight(g) | 7.8g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns, 1*Cable |
