iFlight BLITZ F7 Stack (F7 V1.1 + 45A 4in1 ESC)
Build your next FPV drone with the iFlight BLITZ F7 Stack, a powerful and feature-packed electronics solution designed for performance and convenience. This 30.5×30.5mm stack combines the advanced BLITZ F7 V1.1 Flight Controller with a robust 45A 4-in-1 ESC. Featuring a logical layout, improved components, and plug-and-play support for digital FPV systems, it’s the perfect core for your next 5-inch freestyle or racing FPV drone kit.
Powerful F7 Flight Control

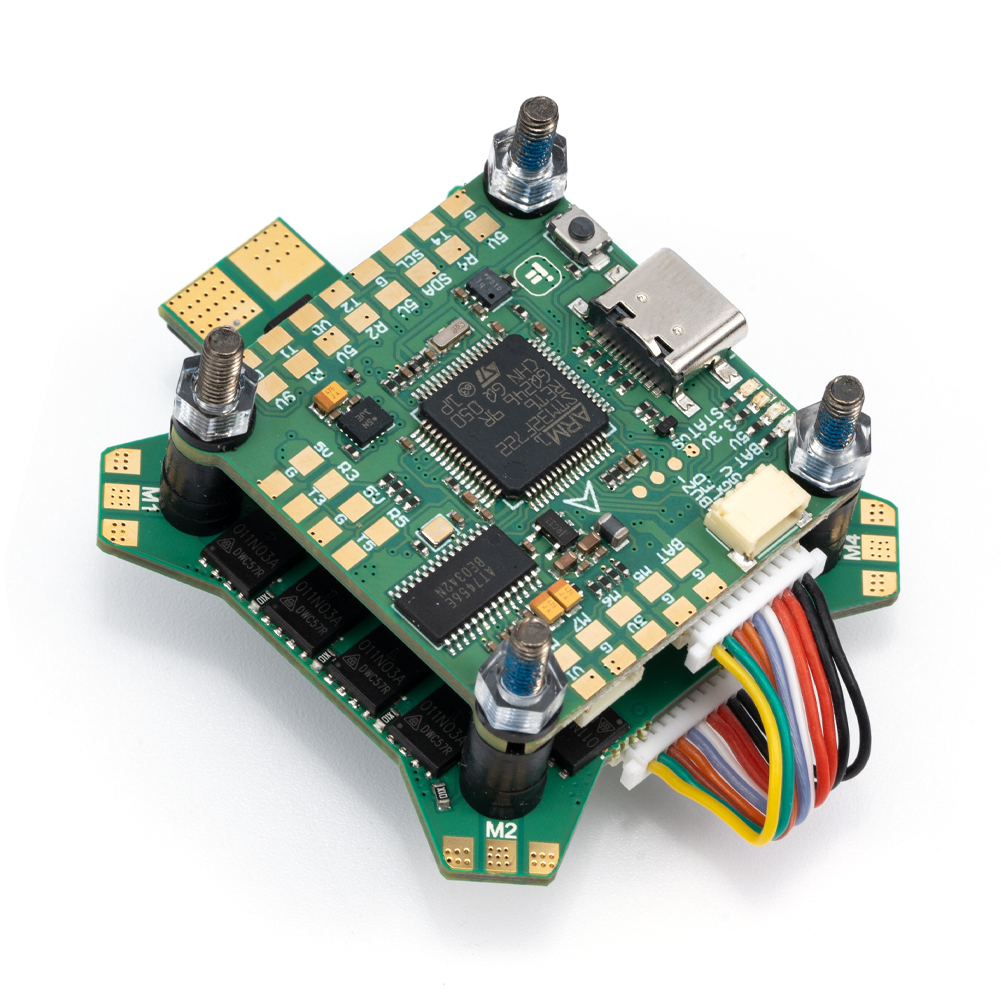

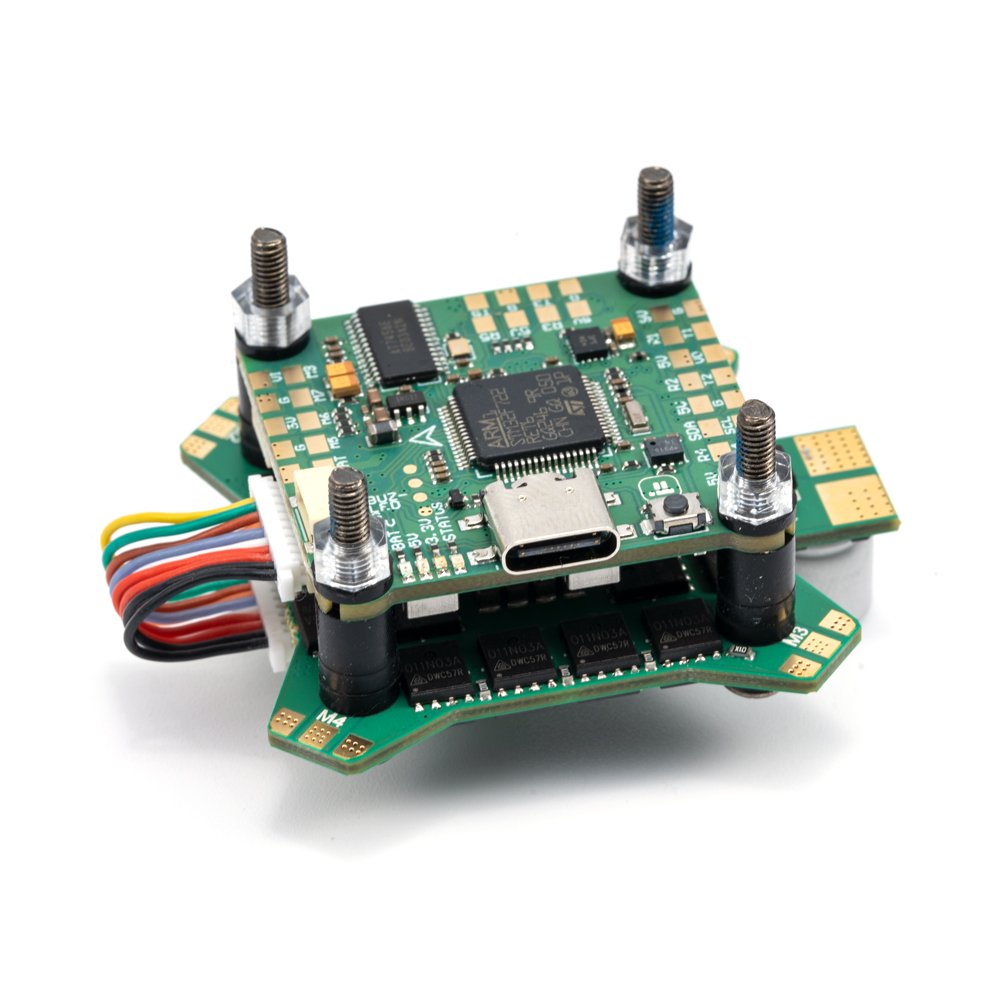

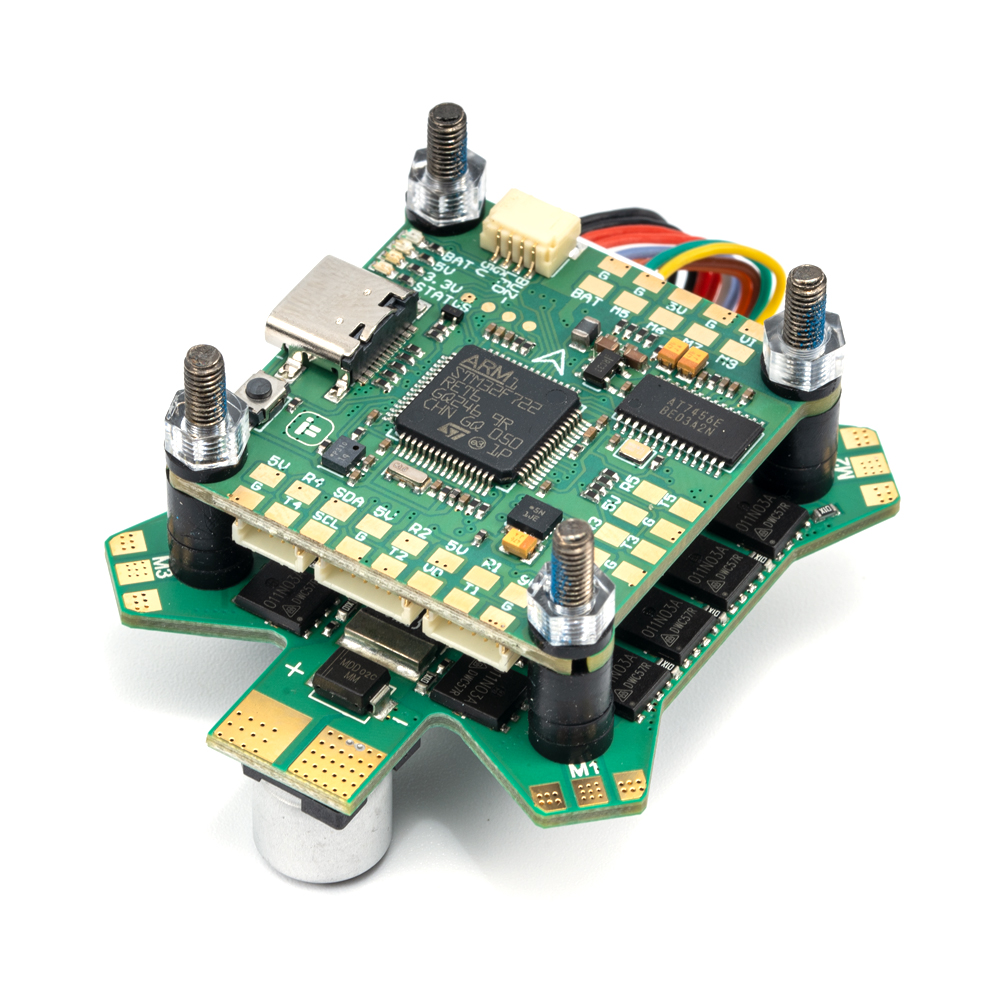

The BLITZ F7 V1.1 is built around a high-performance STM32F722 MCU and the modern BMI270 gyro. This combination provides the processing power and clean gyro data needed for a smooth, responsive, and locked-in flight experience with Betaflight. With a generous 32MB of onboard blackbox flash and 6 available UARTs, you have all the tools you need for professional-level tuning and connecting all your peripherals.
Effortless HD FPV Integration
This flight controller is designed for seamless integration with modern digital FPV systems. It features a dedicated DJI HD VTX connector for a solder-free, plug-and-play installation of a DJI Air Unit or Caddx Vista. The powerful onboard 9V @ 2A BEC provides clean and stable power to your digital system, ensuring a flawless HD video feed.
Reliable 45A 6S Power

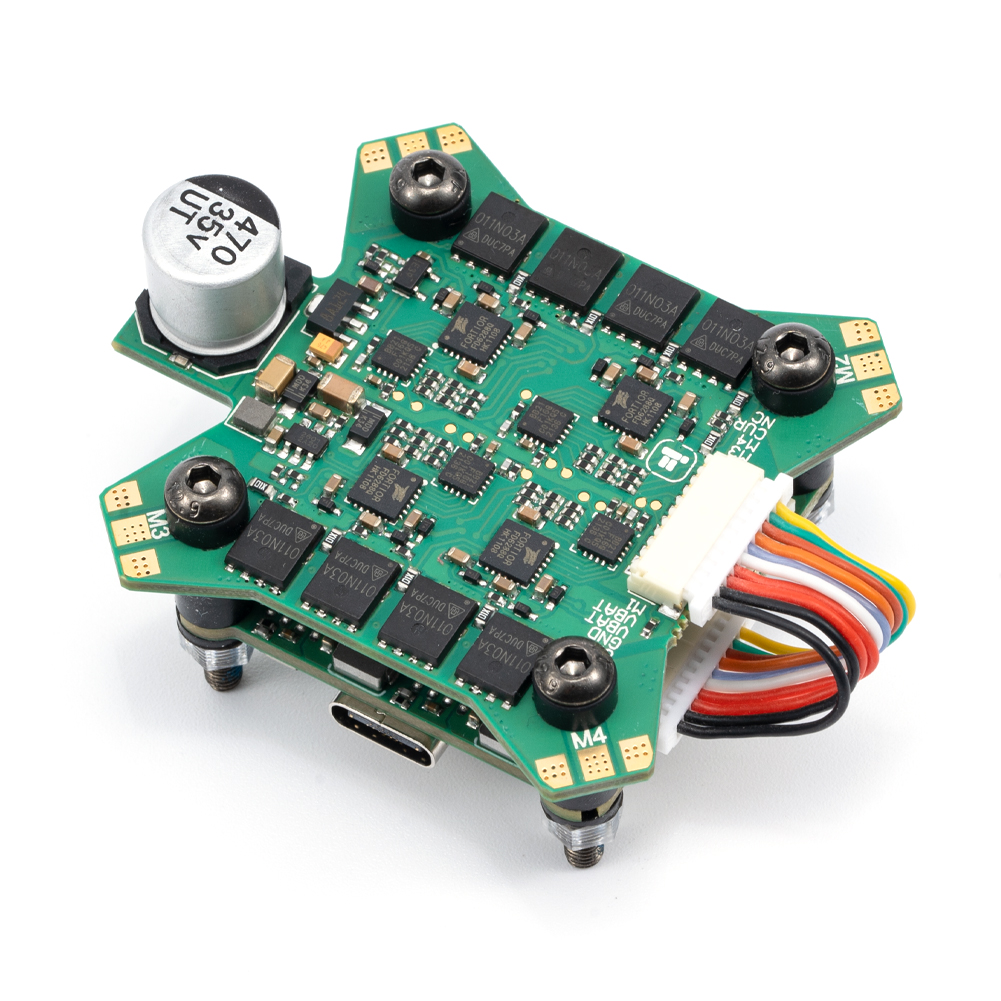

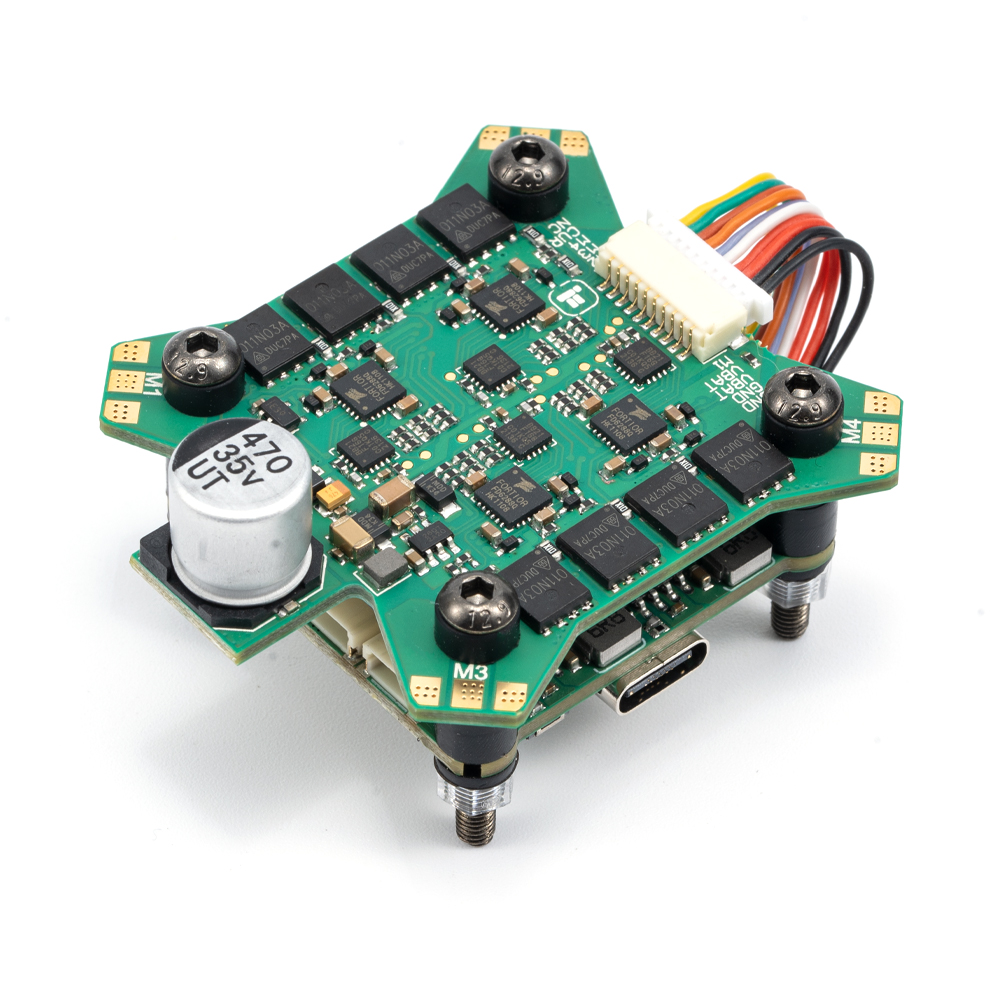

The included BLITZ E45 4-in-1 ESC delivers a consistent 45A of continuous current per motor (55A burst) and can handle up to 6S LiPo power. This is plenty of power for nearly any 5-inch motor and propeller combination. It runs on reliable BLHeli_S firmware and supports modern DShot protocols for precise digital motor control, while an onboard current sensor allows for accurate power monitoring.
Specifications
BLITZ F7 V1.1 Flight Controller:
- MCU: STM32F722
- Gyro: BMI270
- Barometer: DPS310
- Blackbox: 32MB Onboard Flash
- BEC Outputs: 5V @ 2.5A & 9V @ 2A
- UARTS: 6
- Mounting: 30.5mm x 30.5mm
BLITZ E45S 4-in-1 ESC:
- Input Voltage: 2-6S LiPo
- Continuous Current: 45A x 4
- Burst Current: 55A
- Firmware: BLHeli_S
- Current Sensor: Yes
- Mounting: 30.5mm x 30.5mm
What’s in the Box?
- 1x iFlight BLITZ F7 V1.1 Flight Controller
- 1x iFlight BLITZ E45S 4-in-1 ESC
- 1x Set of Silicon Mounting Grommets
- 1x Wiring Harness for FC to ESC
- 1x Power Cable & XT60 Connector
