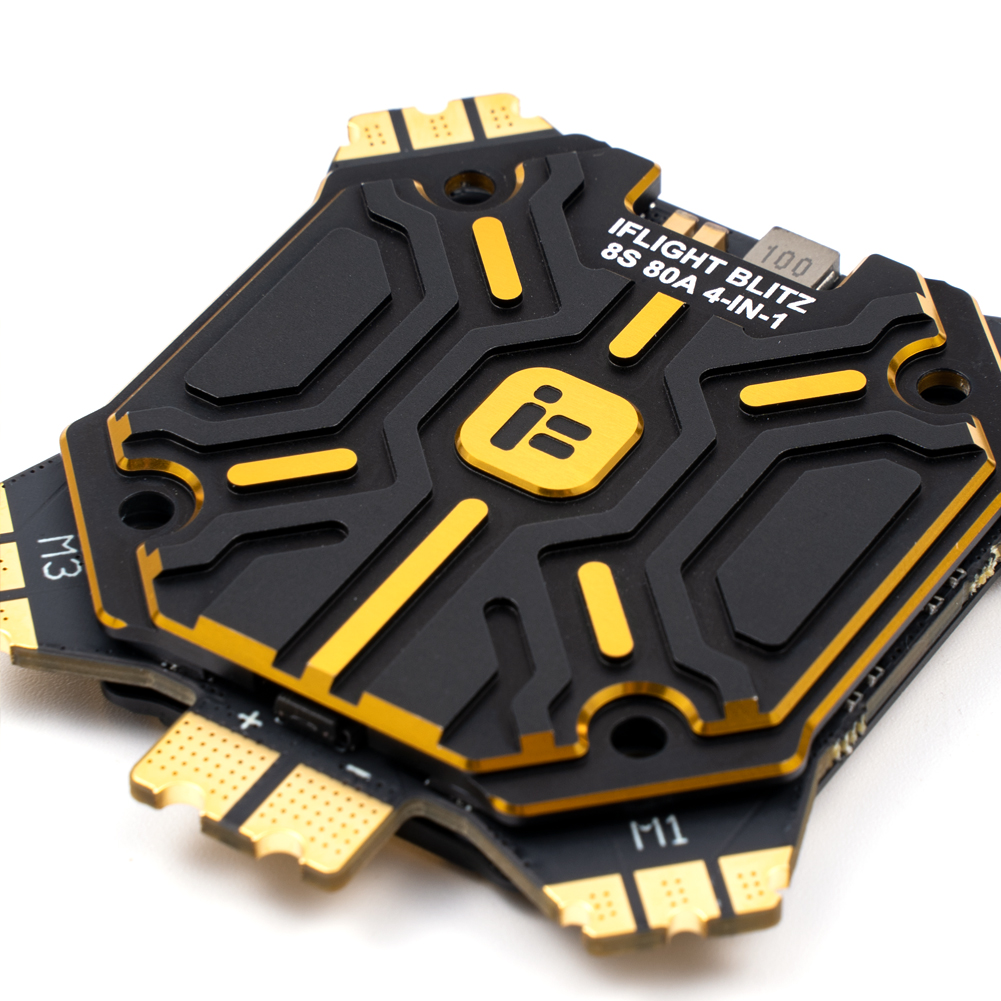

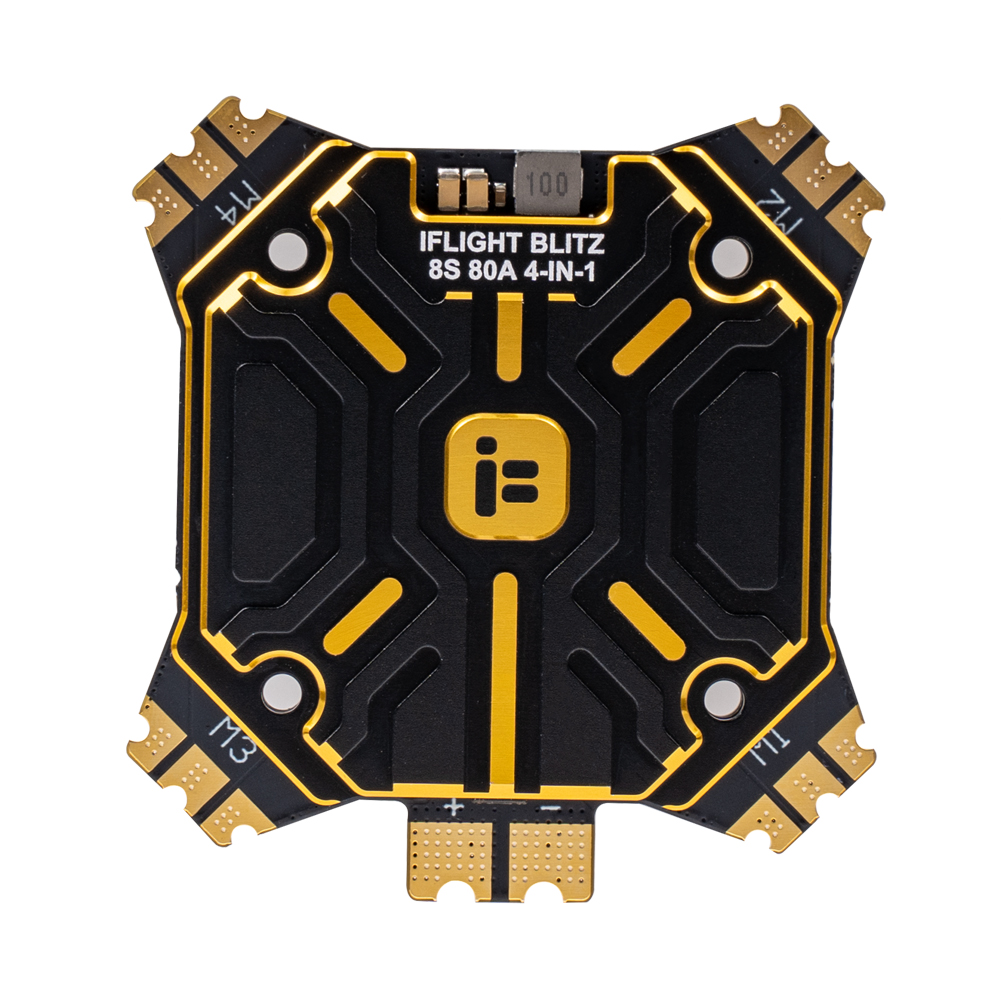

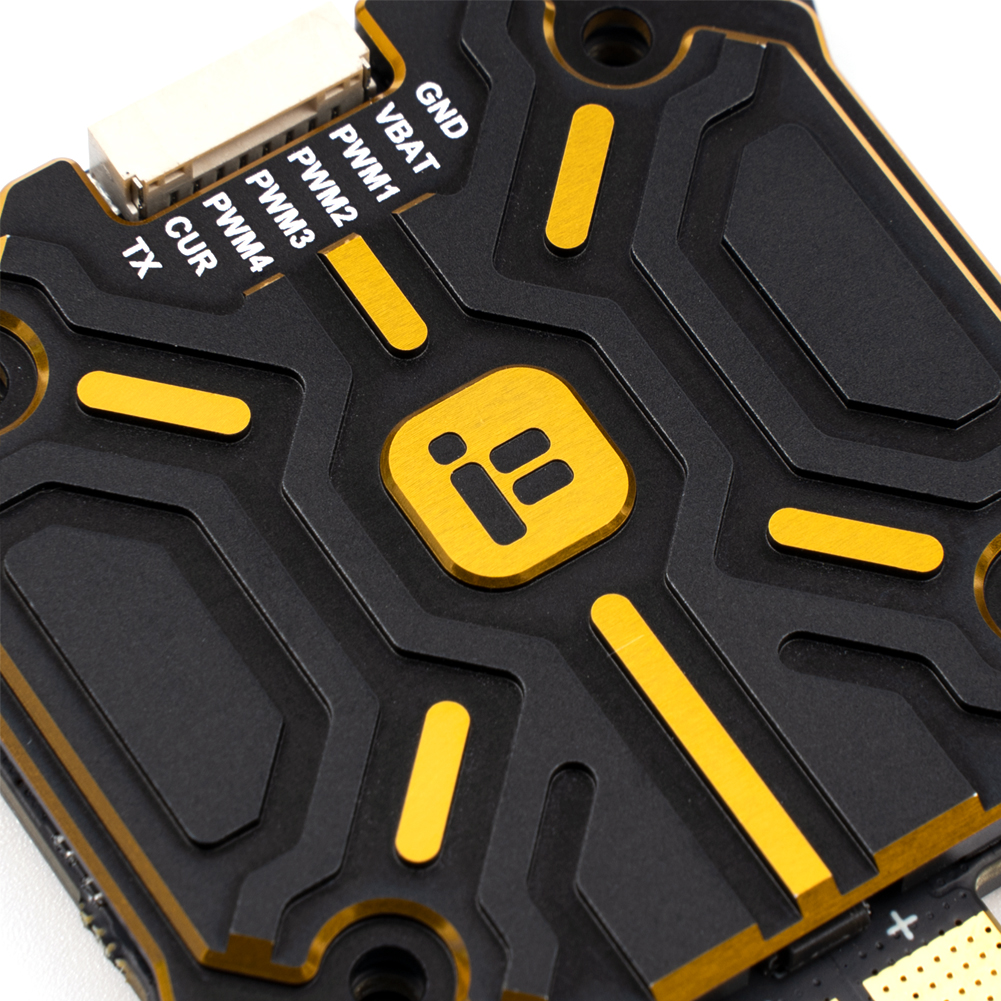

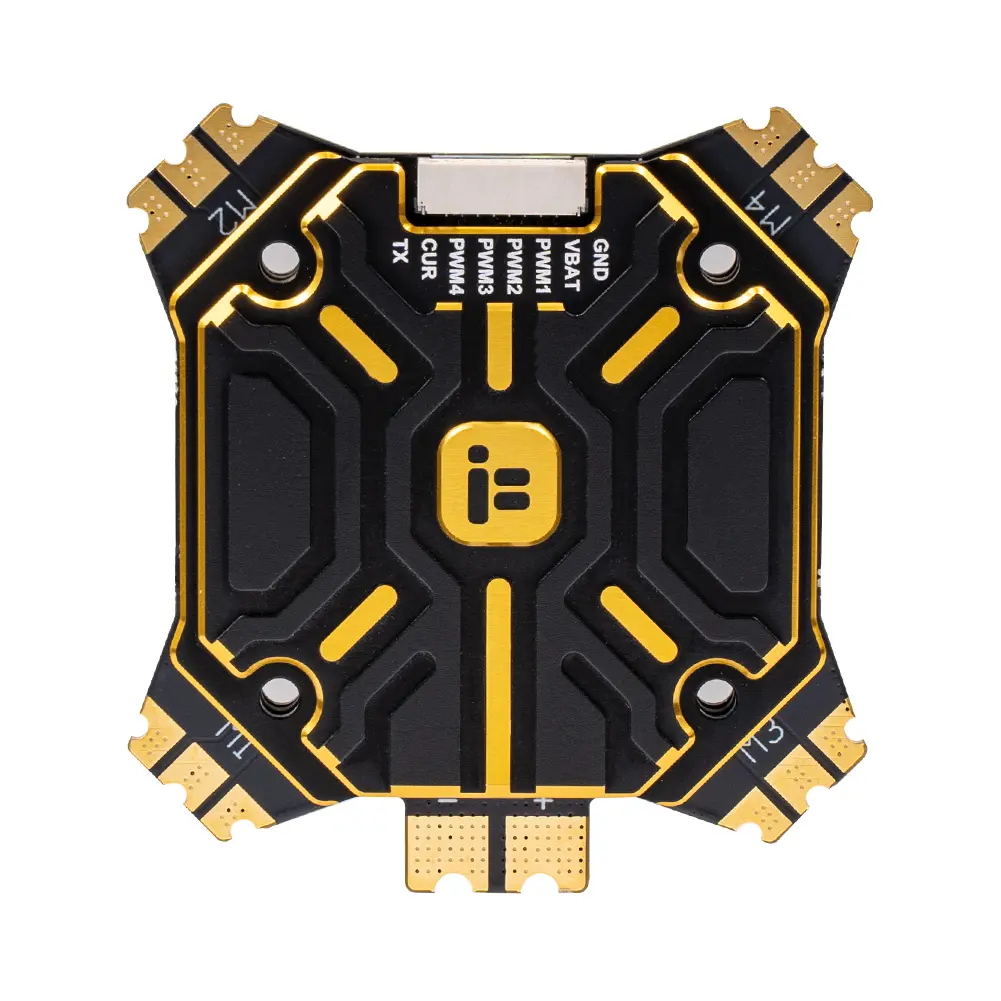

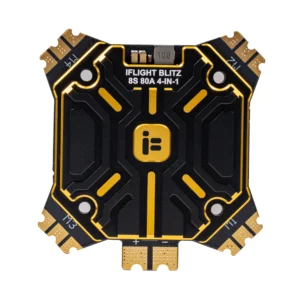

iFlight BLITZ E80 4-IN-1 Pro 80A ESC (G2)

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Features:

– Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

– G071 MCU, 48mHz maximum clock speed;

– TDK MLCC Low ESR ceramic capacitors;

– Top grade PSMN1R0-40YLD MOSFET;

– 8 layers double-sided PCB board

Specifications:

– BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

– Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

– Constant current：80A，100A（Burst）

– Mounting Holes: 35*35mm/Φ3mm

– Current sensor: Yes, scale 200

– Firmware: IFLIGHT_BLITZ_G2

– Telemetry: Supported

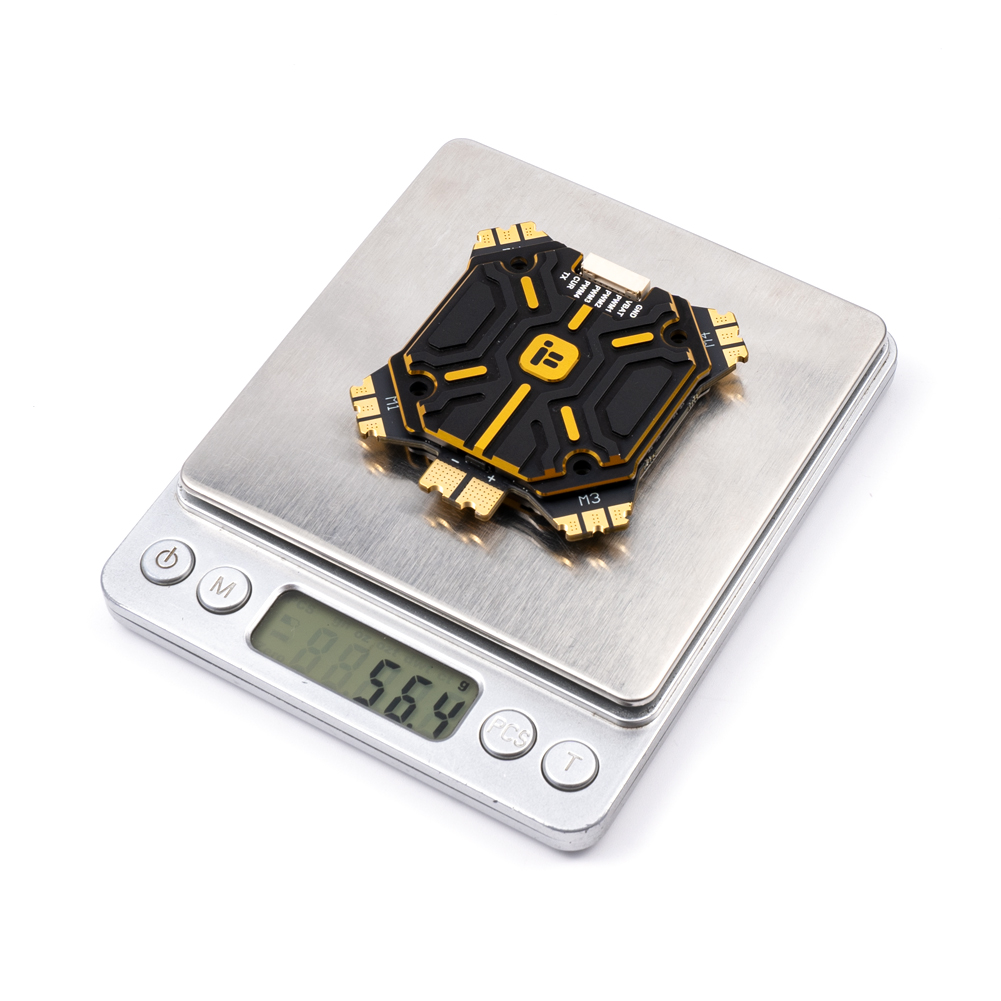

– Weight:65g(±10)

– Volts input: 2-8S

– BEC: No

Package includes:

– 1 x BLITZ E80 4-IN-1 Pro ESC (G2
