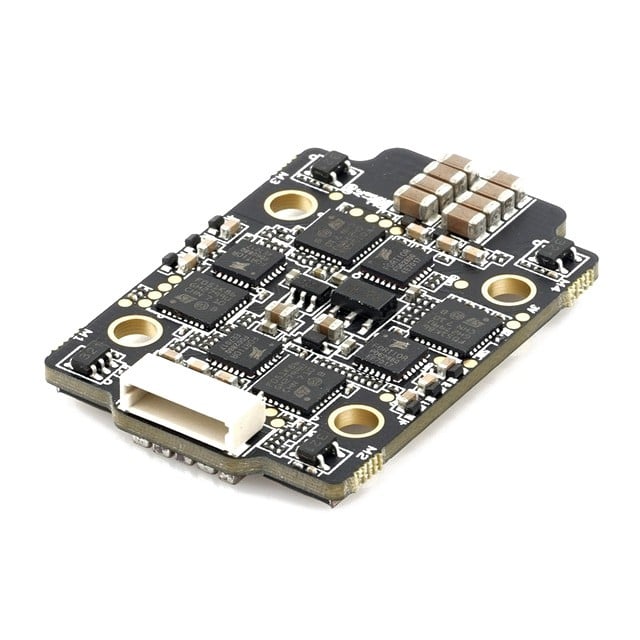

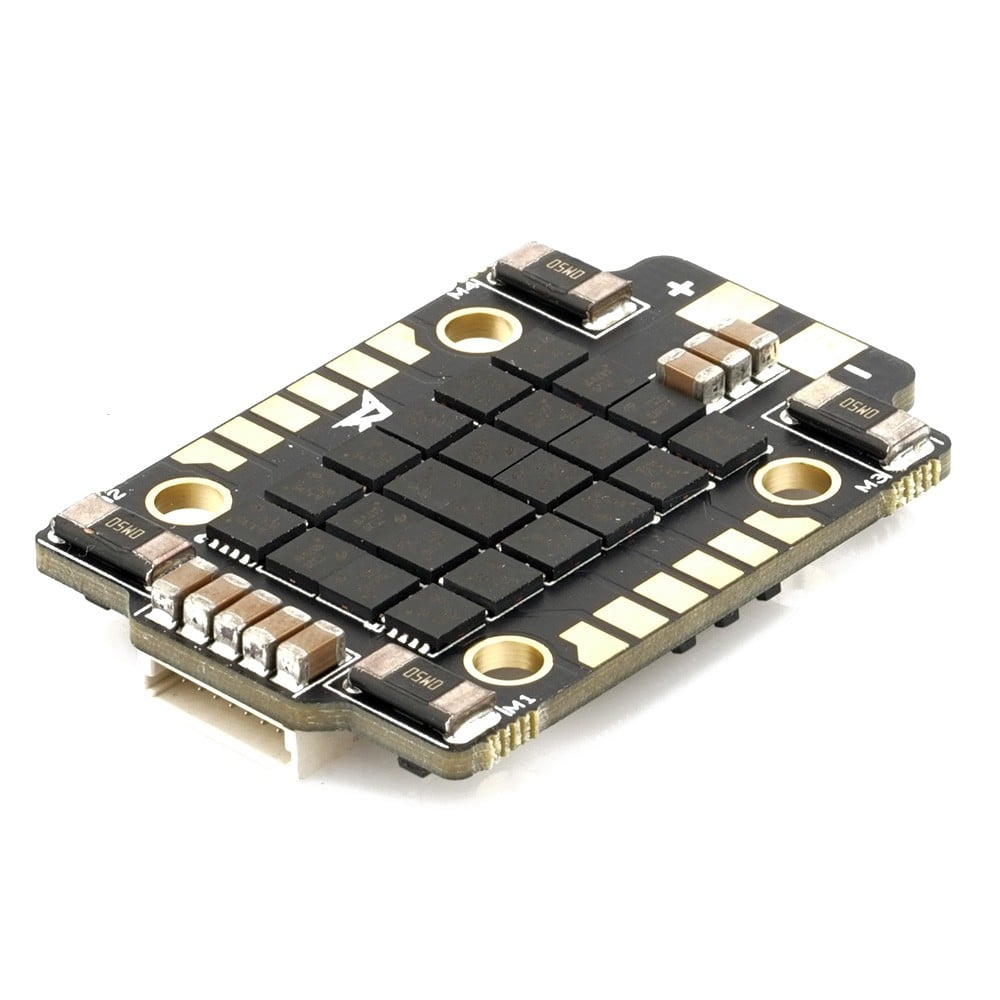

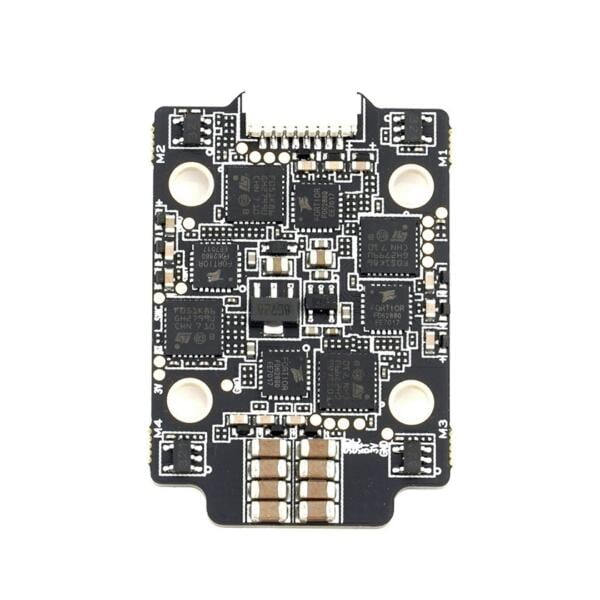

Airbot Ori32 BLHeli32 25A 4-in-1 ESC
The Ori32 is a 4-in-1 25A ESC with 20×20 mounting holes. This tiny ESC comes equipped with serious power, supporting Dshot 1200 and BLHeli32 firmware. Solder pads are large, but the size and weight are small, only weighing 7.9g!
Works perfectly with the Omnibus F4 Nano FC and 2-3″ quads, or a larger quad with 20×20 mounting support.
- 32bit ESC with BLHELI32 firmware
- Supports 3-4S Lipo input
- 4PWM input
- Voltage output (VBAT)
- NO BEC
- Supports Oneshot / Multishot / Dshot PWM
- Mount holes 20x20mm
- Supports damped light
- * External capacitors needed
- 1x Ori32 ESC

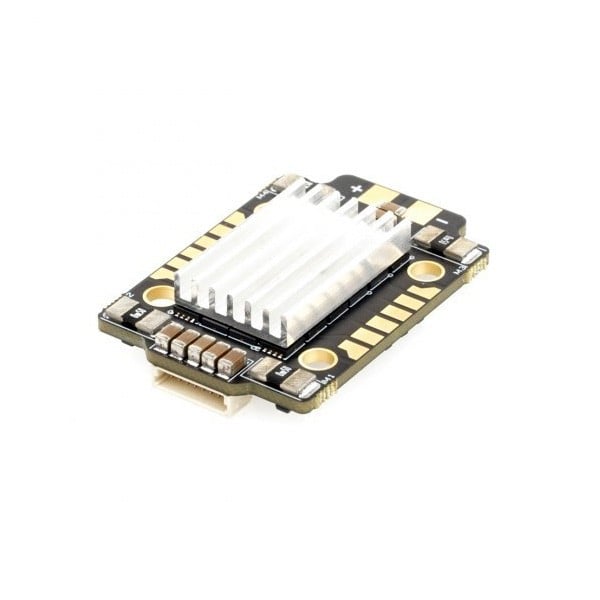

- 1x Heatsink
