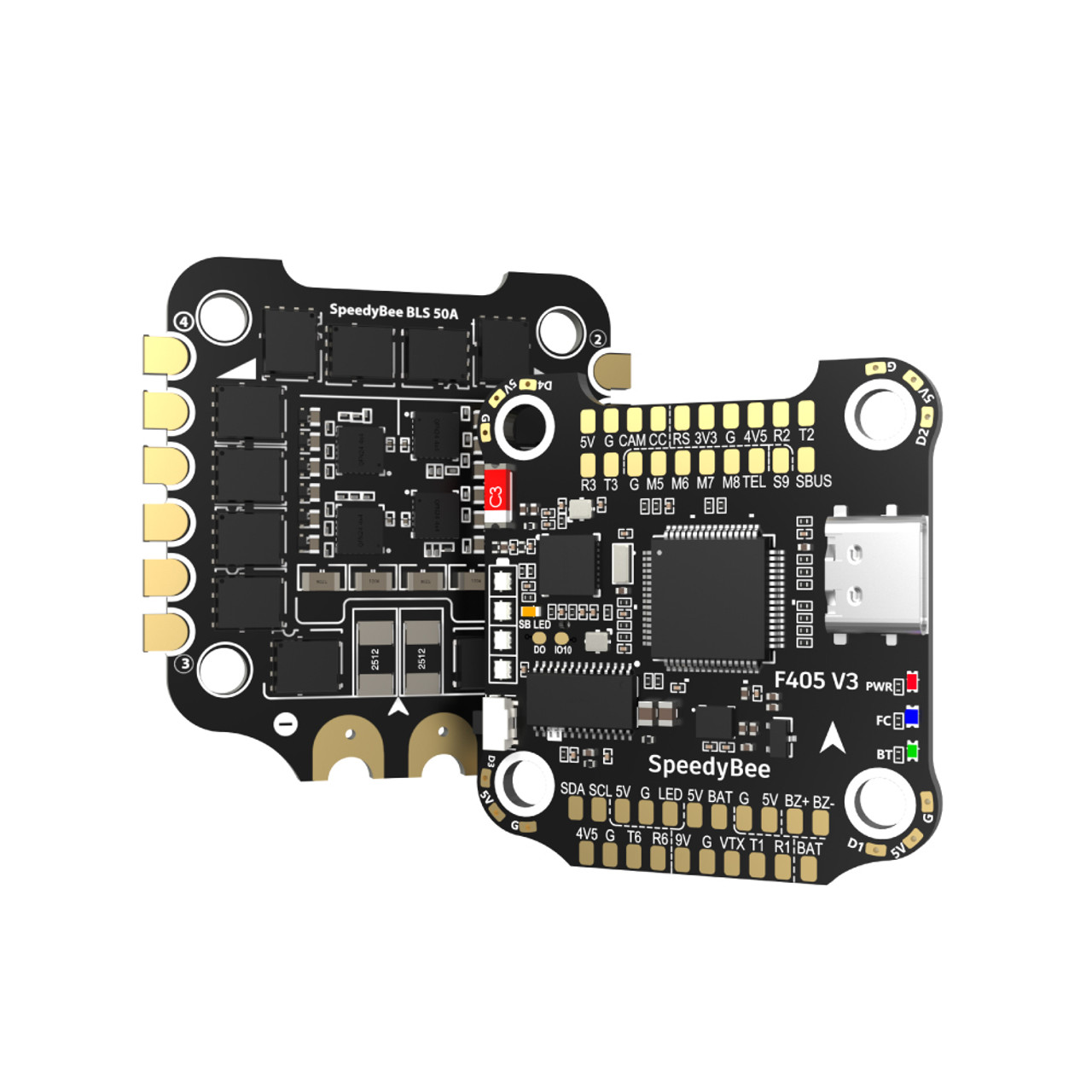

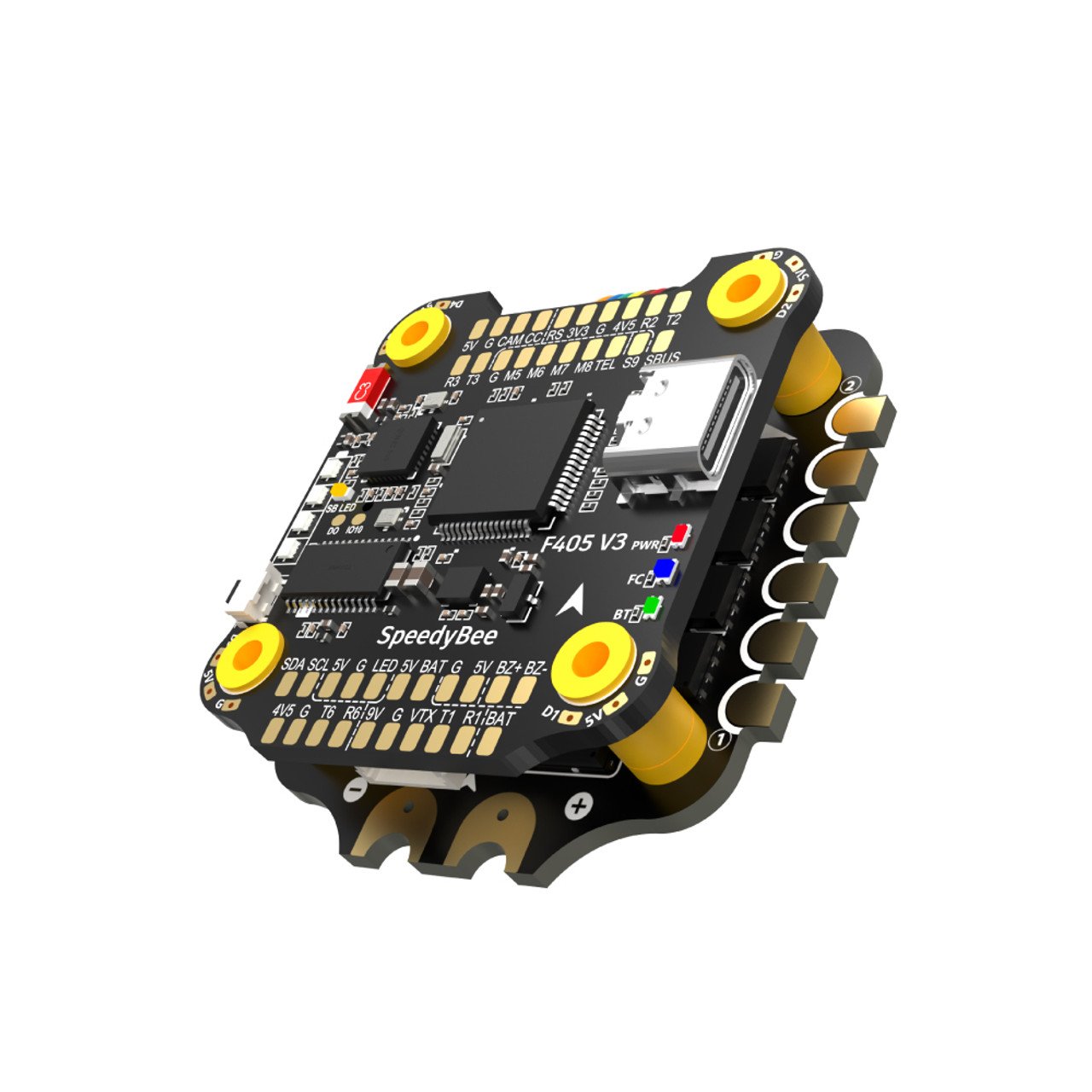

SpeedyBee F405 V3 BLS 50A 30×30 FC&ESC Stack
● Built-in barometer for accurate height calculation
● SD Card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 9V 2A + 5V 2A individual BECs

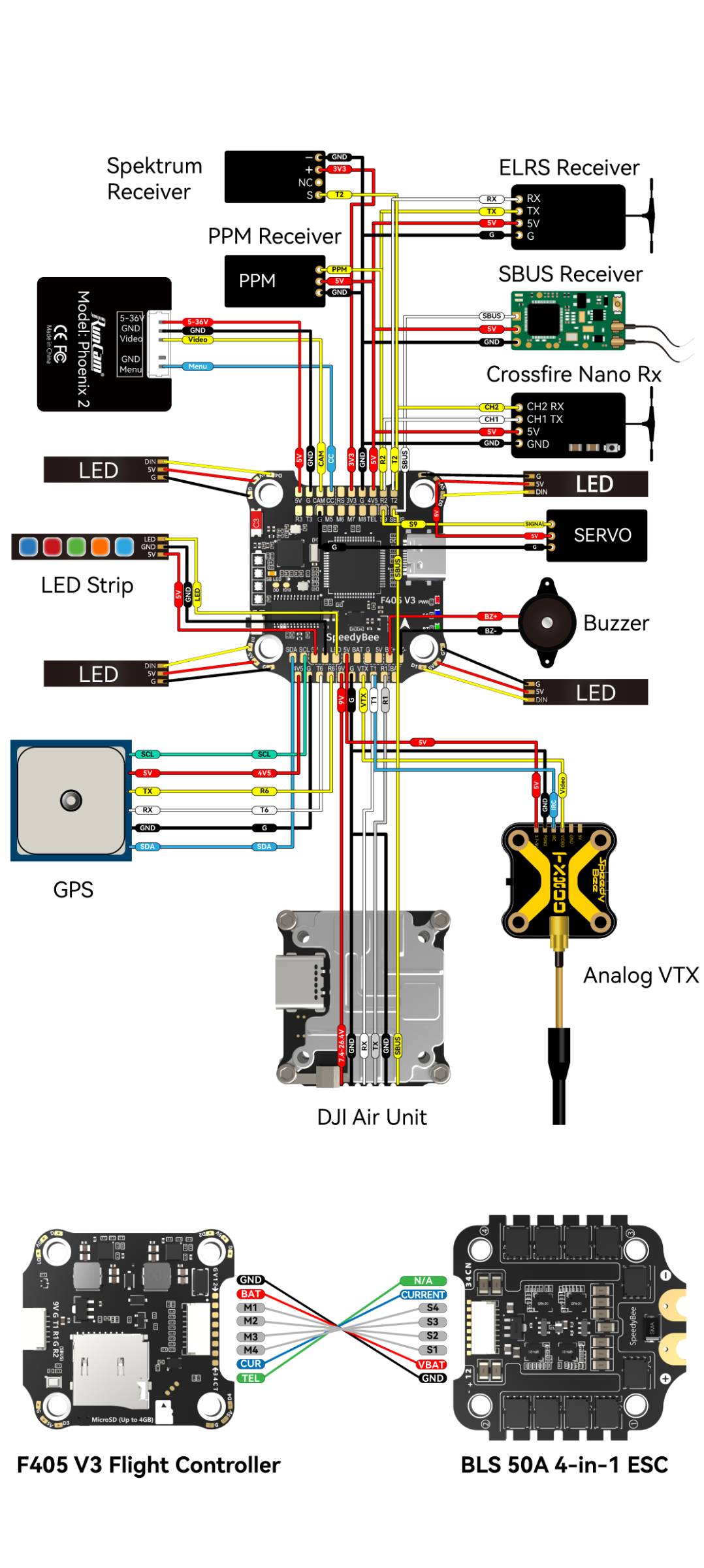

● 4 x UARTs for your receiver + VTX + camera + GPS.
● Power your GPS with a USB cable – no battery needed.
No extra heat, no worries.
● 22mm cutouts for FPV camera in your tight build
Forgot your LiPo checker? Just look at the FC!
Built with a 4-level LED battery indicator, now you can fly anywhere worry-free – even without your lipo checker!

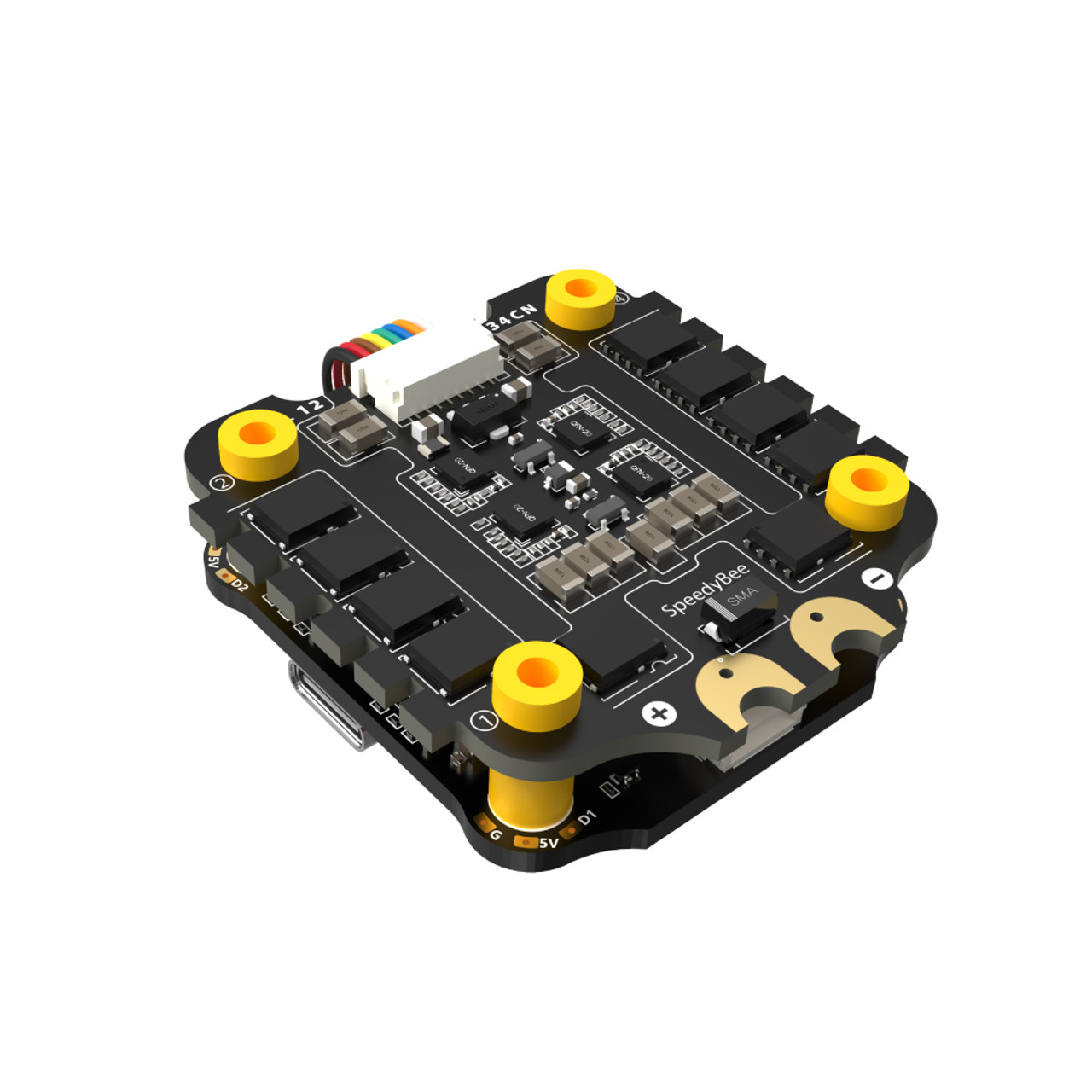

Powerful Real 50A 4-in-1 ESC!
Built with the robust BB21 MCU and large motor pads for easy soldering. Built with Japan made TDK filtering SMT capacitors + onboard TVS protective diode, brings smooth flight experience.

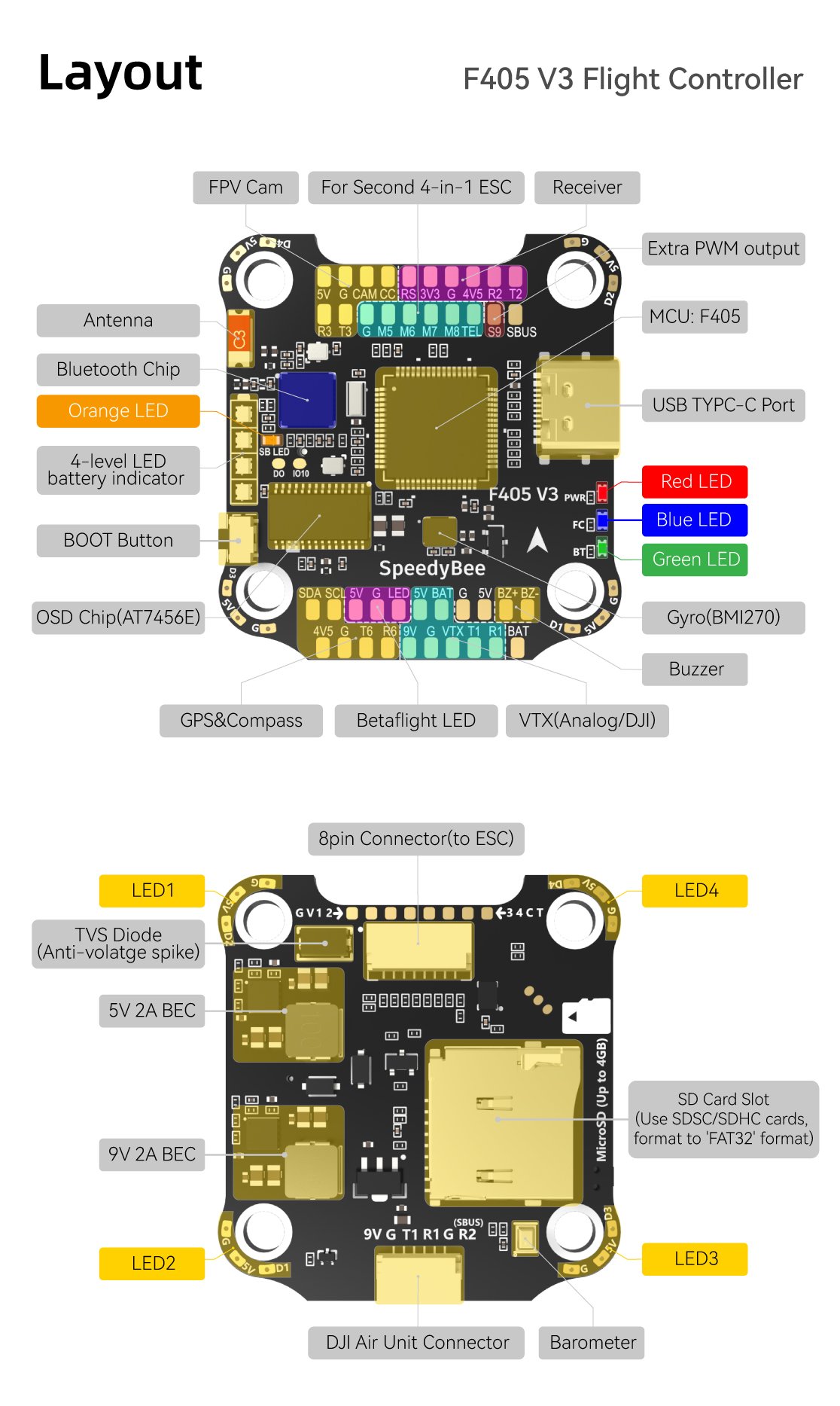

|Product Name||SpeedyBee F405 V3 30×30 Flight Controller|
|USB Port Type||Type-C|
|OSD Chip||AT7456E chip|
|BLE Bluetooth||Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)|

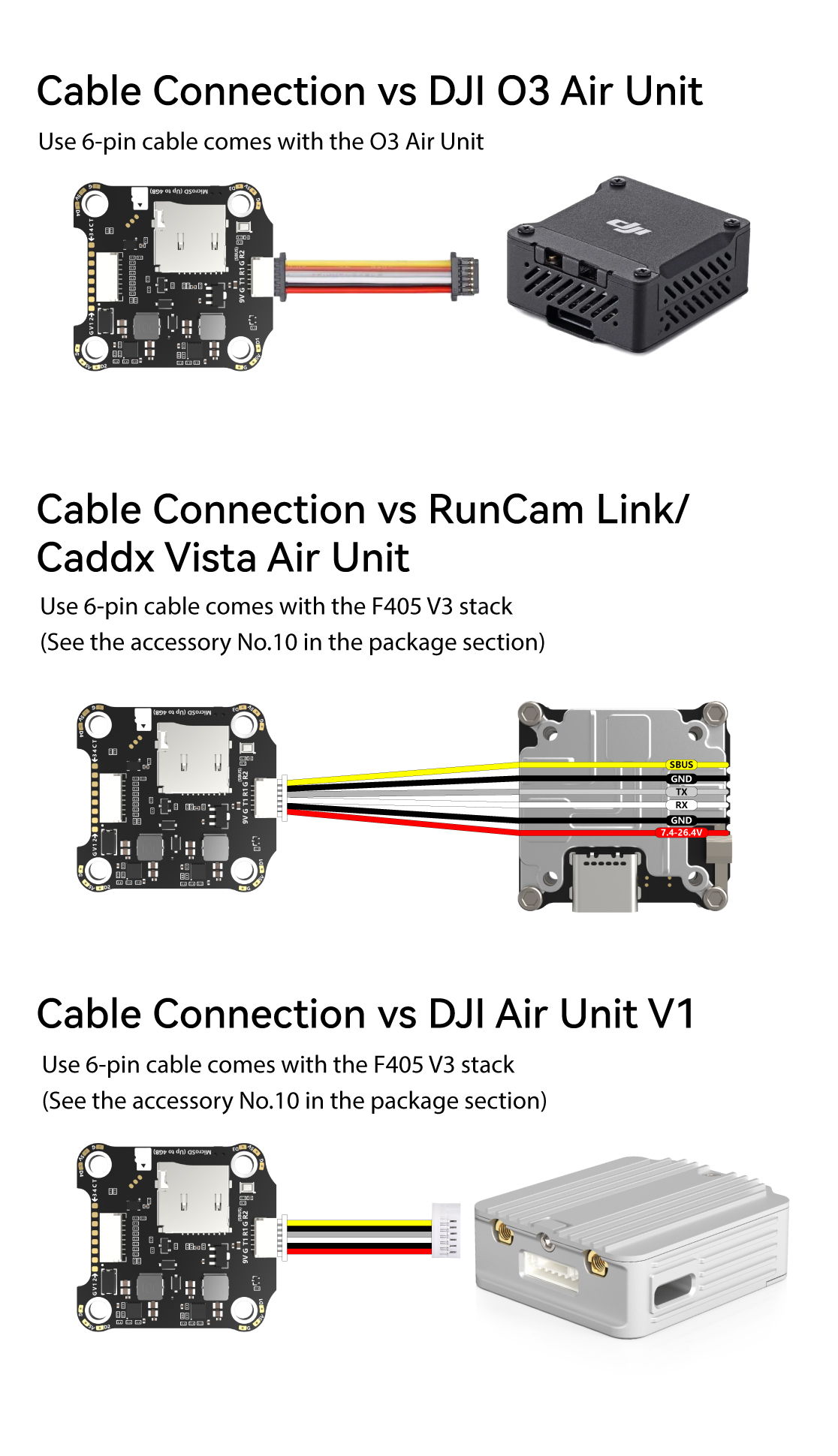

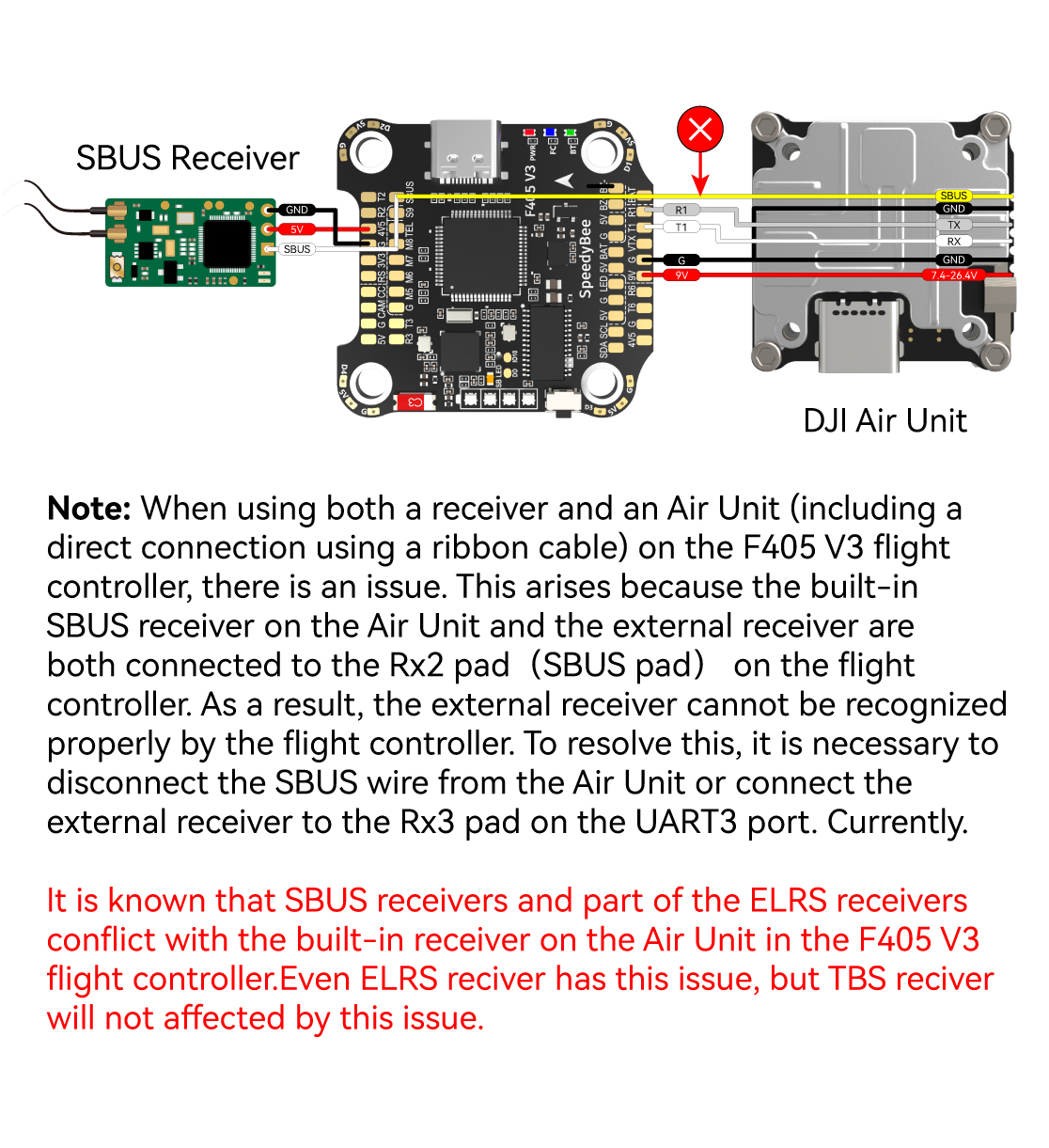

|DJI Air Unit Connection Way||Two ways supported: 6-pin connector or direct soldering.|
|6-pin DJI Air Unit Plug||Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.|
|Blackbox MicroSD Card Slot||*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC), so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the card MUST be formatted with the FAT16 or FAT32 (recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose ‘Overwrite format’ then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.|
|BetaFlight Camera Control Pad||Yes(CC pad on the front side)|
|Current Sensor Input||Supported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0.|
|Power Input||3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)|
|5V Output||9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 2A.|
|9V Output||2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 2A.|
|3.3V Output||Supported. Designed for 3.3V-input receivers. Up to 500mA current load.|
|4.5V Output||Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.|
|ESC Signal||M1 – M4 on bottom side and M5-M8 on front side.|
|UART||6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6|
|ESC Telemetry||UART R5(UART5)|
|I2C||Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.|
|Traditional Betaflight LED Pad||Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.|
|Buzzer||BZ+ and BZ- pad used for 5V Buzzer|
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
|RSSI Input||Supported. Named as RS on the front side.|
|Smart Port / F.Port||Not supported|
|Supported Flight Controller Firmware||BetaFlight(Default), INAV (INAV firmware can only use Multishot (recommended) and OneShot125. Please note that DShot is not supported.)|
|Firmware Target Name||SPEEDYBEEF405V3|
|Mounting||30.5 x 30.5mm( 4mm hole diameter)|
|Dimension||41.6(L) x 39.4(W) x 7.8(H)mm|

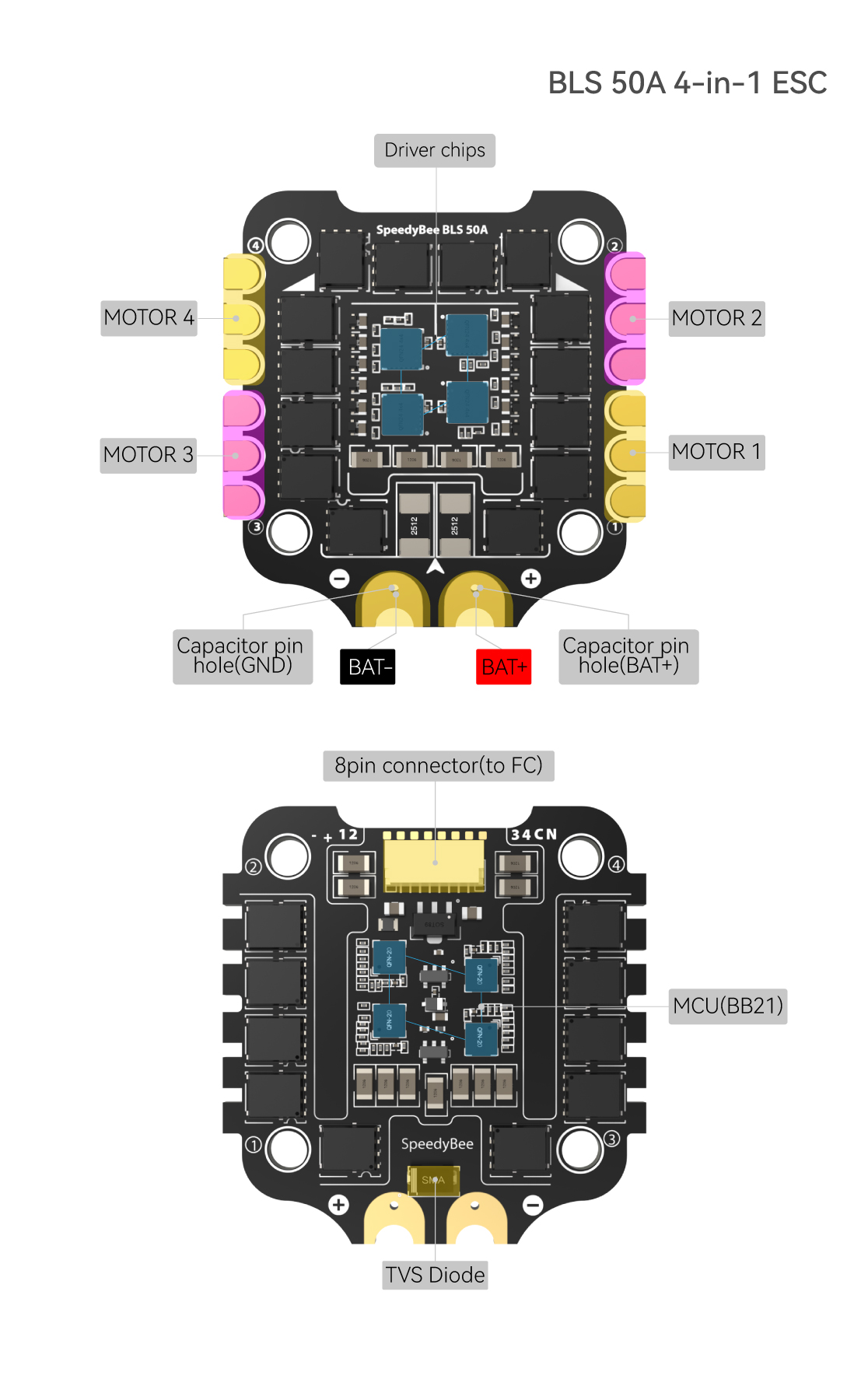

|Product Name||SpeedyBee BLS 50A 30×30 4-in-1 ESC|
|Wireless Configuration||Full Configuration Supported in the SpeedyBee app|
|PC Configurator Download Link||https://esc-configurator.com/|
|Continuous Current||50A * 4|
|TVS Protective diode||Yes|
|External Capacitor||1000uF Low ESR Capacitor(In the package)|
|Power Input||3-6S LiPo|
|Current Sensor||Support (Scale=386 Offset=0)|
|ESC Telemetry||Not supported|
|Mounting||30.5 x 30.5mm( 4mm hole diameter)|
|Dimension||45.6(L) * 44(W) * 6.1mm(H)|
