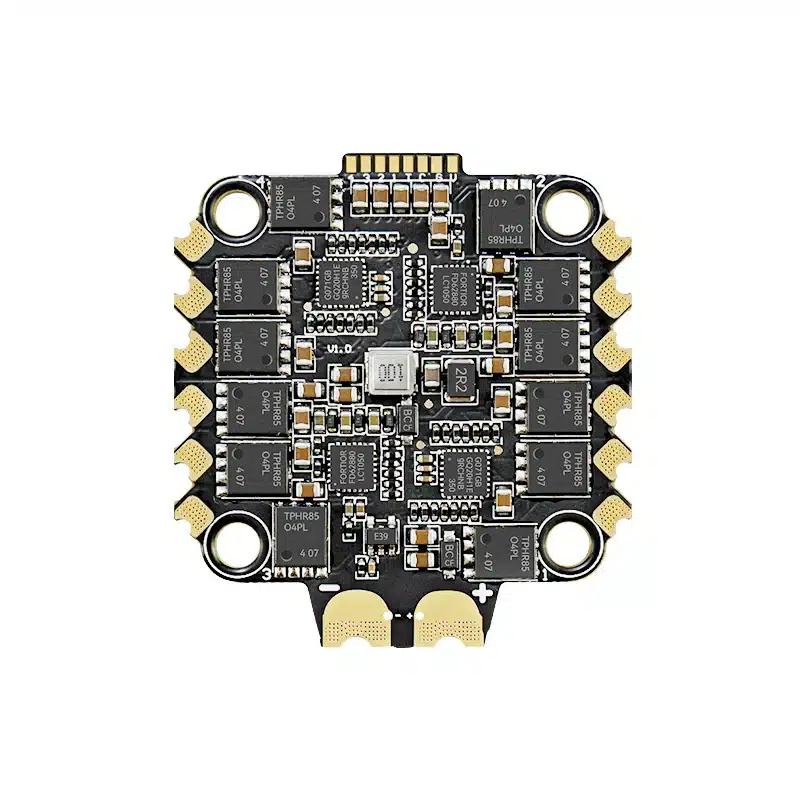

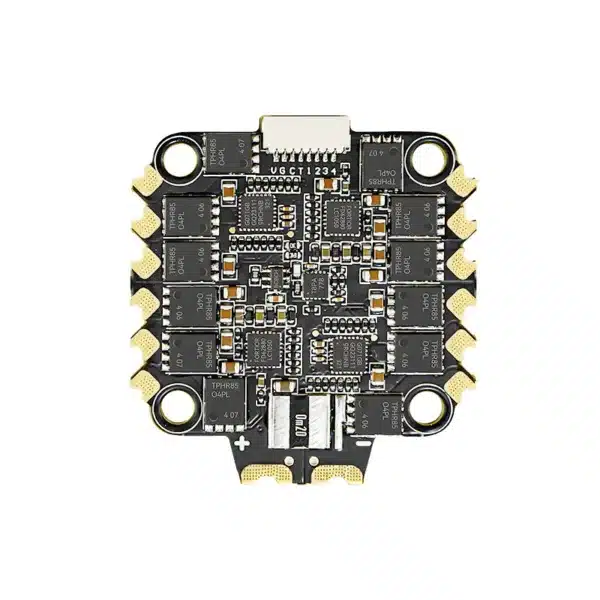

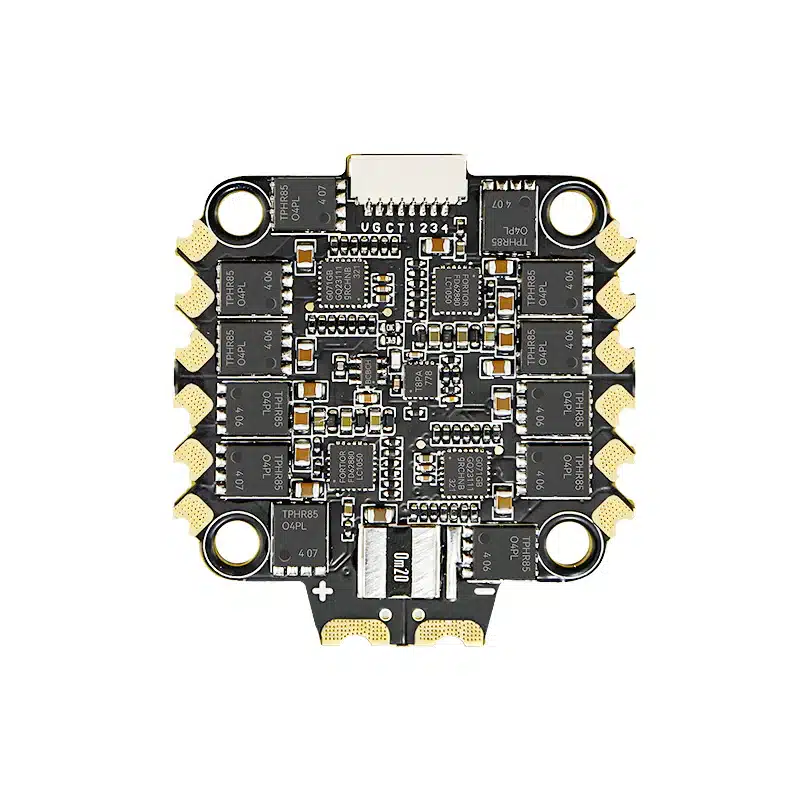

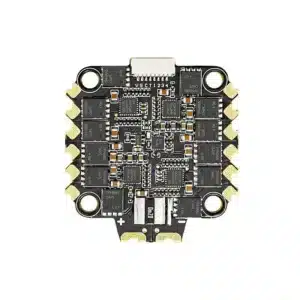

Sequre E70 G2 2-8S ESC (AM32)

he SEQURE E70 G2 4-in-1 ESC is engineered for high-power FPV builds that demand efficiency, speed, and precision. Designed around the STM32G071 processor and compatible with both BLHeli_32 and AM32 firmware, this ESC delivers ultra-smooth performance and real-time telemetry support across a wide 2–8S input range. With 70A continuous current per channel and a 150A burst rating, it’s built to handle aggressive flights and heavy loads.

The E70 G2 features an onboard galvanometer for accurate current measurement, high-efficiency MOSFETs, a multilayer PCB with thick copper for superior heat dissipation, and a compact layout with 30.5×30.5mm mounting spacing. The oblique-angle motor solder pads make wiring neater and easier, reducing build complexity while improving safety. With support for DShot600, Oneshot, Multishot, and PWM protocols, it’s ideal for freestyle, cinematic, and racing drones needing high responsiveness and robust power delivery.

Specifications:

• Brand: SEQURE

• Model: E70 G2

• Type: 4-in-1 ESC

• Processor: STM32G071

• Firmware: BLHeli_32 / AM32

• PWM Frequency: 16KHz–128KHz

• Input Voltage: 2–8S LiPo

• Continuous Current: 70A

• Peak Current: 150A

• Supported Protocols: DShot600/300/150, Oneshot, Multishot, PWM

• Telemetry: Yes (motor speed, temp, current, etc.)

• Galvanometer: Yes

• BEC: No

• Mounting Hole Spacing: 30.5 x 30.5mm (Φ4mm / M3)

• Product Size: 45.5 x 42.5 x 6mm

• Product Weight: 17.5g

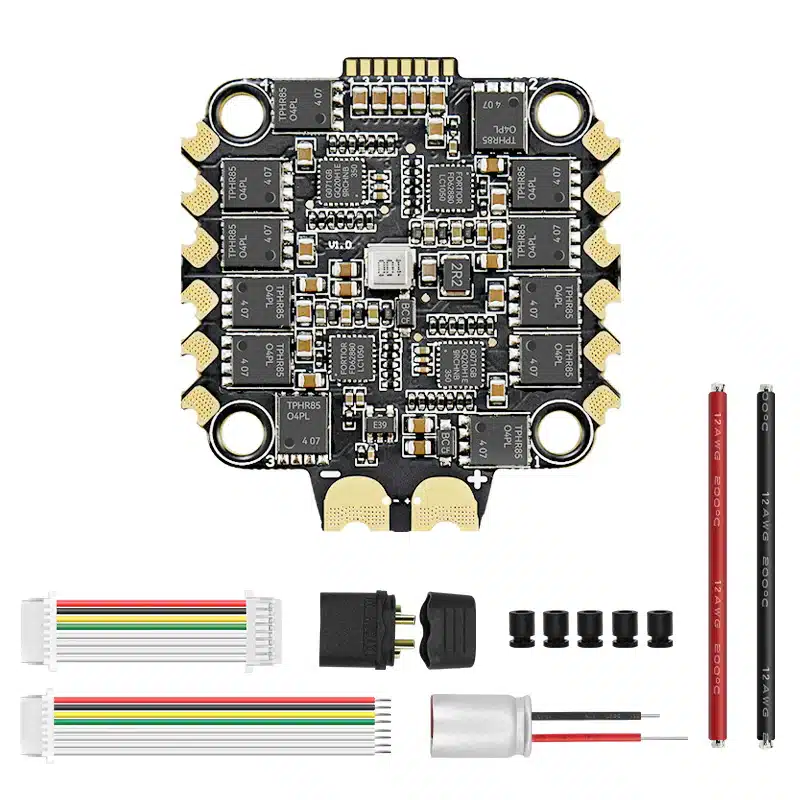

Package Includes:

• 1x SEQURE E70 G2 4-in-1 ESC

• 1x 30AWG 40mm SH1.0-8P Reverse Cable

• 1x 30AWG 60mm SH1.0-8P Single-Head Cable

• 2x 12AWG 100mm Power Cables (Black/Red)

• 1x XT60H-M Black Male Connector

• 1x 35V 680μF Solid Capacitor

• 5x M3x8mm Shock Absorbing Washers (Black)
