Flycolor Raptor BLS-Pro 30A 2-4s Brushless ESC
See all of our Flycolor products and all of our ESCs!
This is a Multi-Rotor Brushless ESC Electronic Speed Controller, designed for RC Quadcopters. It has excellent quality and performance, can totally meet your needs of you, and bring you a lot of flying fun. Take it with you right now.
Features:
● EFM8BB21F16G MCU, pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.
● Dedicated high-frequency driver, makes the start more smooth. ESC’s maximum speed is 500k eRPM.
● BLHeli-S firmware is designed for superior performance in multirotors and uses hardware-generated motor pwm for smooth throttle response and silent operation.
● Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
● Supports higher KV motor and more power load, more suitable for violent flight of the racing drone.
● The code supports regular 1-2ms pulse width PWM input, as well as Oneshot and Multishot. The input signal is automatically detected by the ESC upon power-up.
● Supports Dshot150, Dshot300 and Dshot600. Dshot is a digital signal, anti-interference ability is stronger and does not need throttle calibration.
● The silicone twisted pair of the throttle signal cable increase the service life, effectively reduces the crosstalk caused by signal transmission, and makes flight more stable.
Specifications:
Brand: Flycolor
Model: Raptor BLS-Pro 30A
Lipo cells: 2-4s
Con. current: 30A
Brust current(10s): 40A
Firmware: BLHeil-S
BEC: NO
Weight: 6.2g

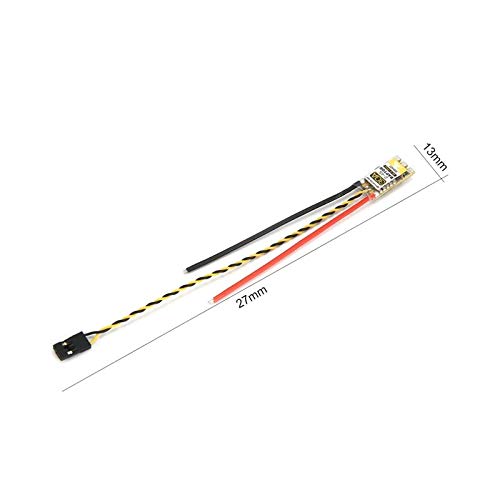

Size: About 26.5 * 13 * 5mm
Typical application: 170-330 multirotors
