Diatone MAMBA MK4 F722 MINI WING Flight Controller – 20mm/M2

Check out all of our Diatone Products!

Specifications

MCU: 216MHz STM32F722
GYRO: ICM-42688-P
INAV Target：MAMBA F722_WING
OSD: Yes
Blackbox: 16M Flash Memory

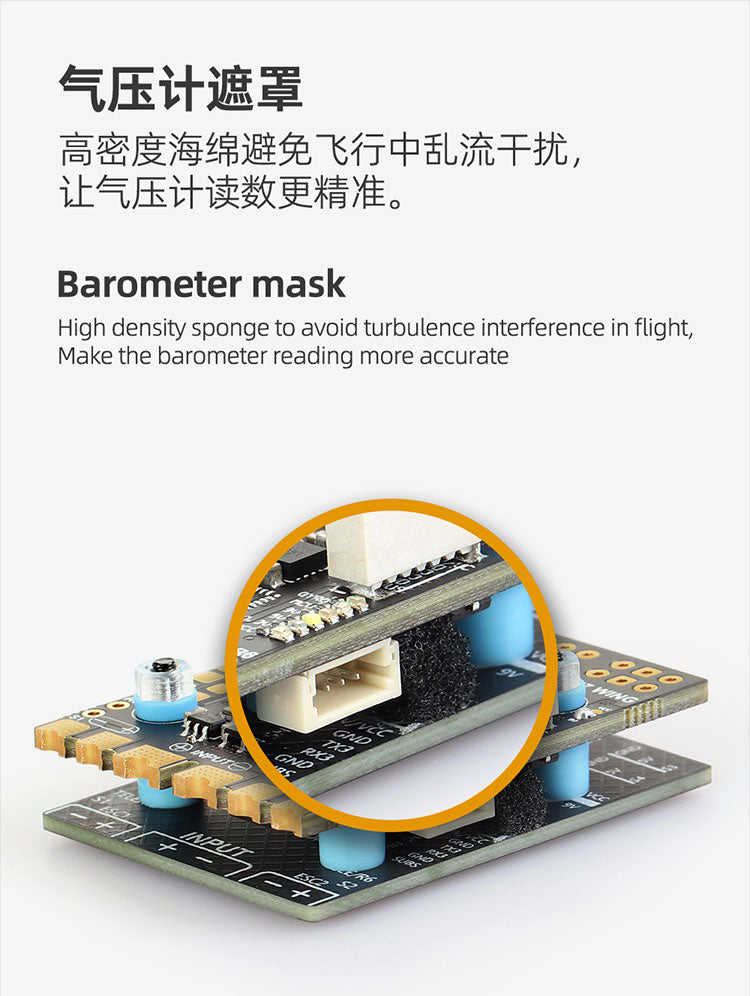

Barometer: SPL06
Uarts: 8 Set
I2C: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller:INAV LED

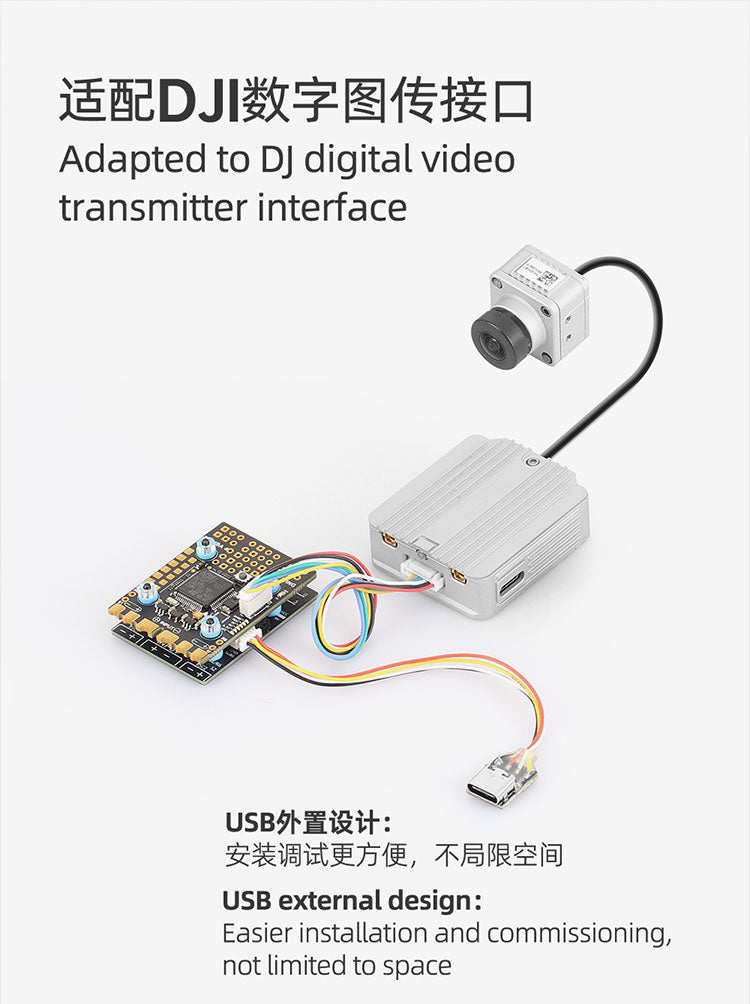

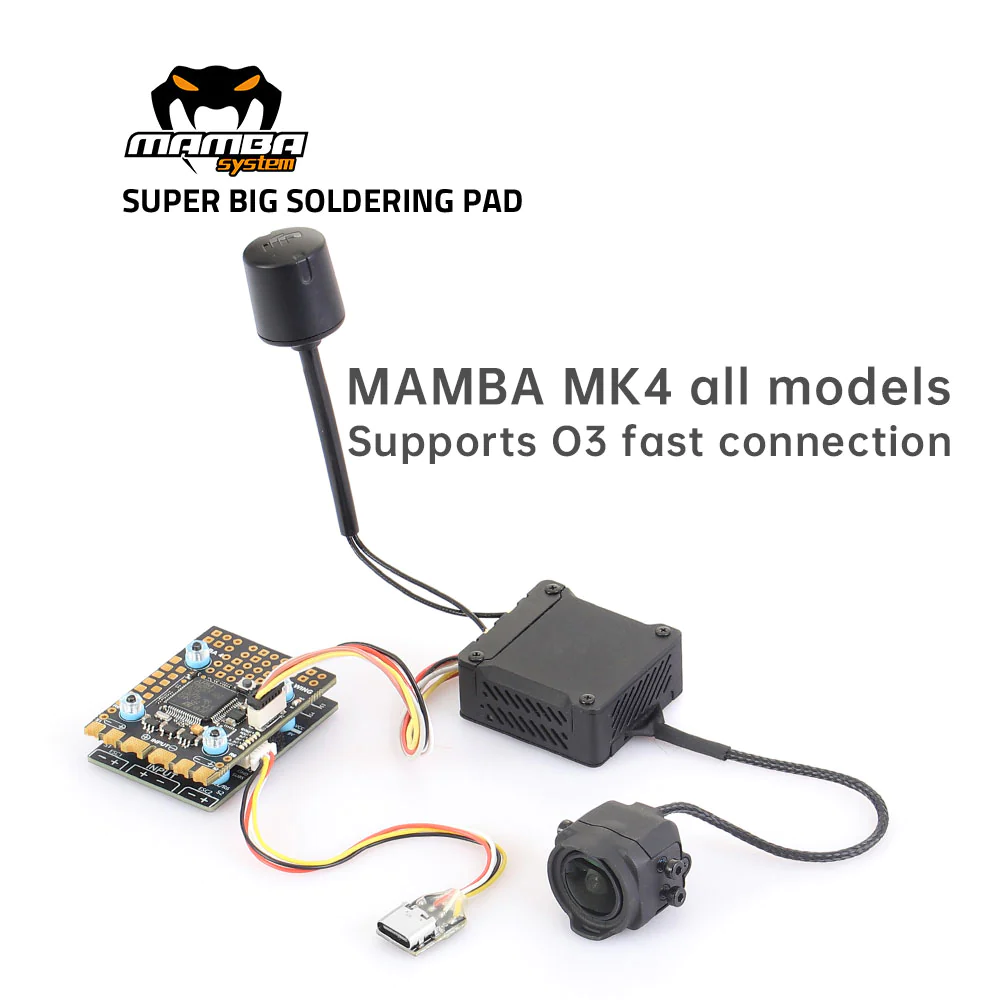

AIR UNIT Port: Yes

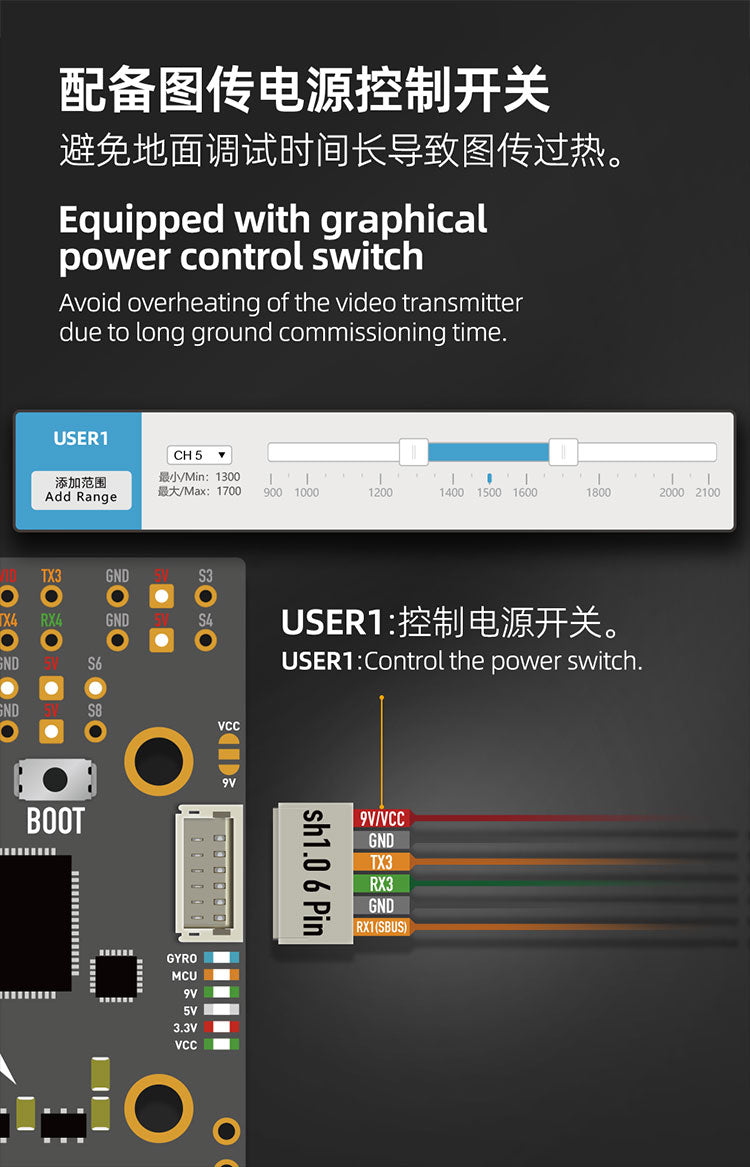

VTX Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
Continue current: 40A
Peak current: 50A
INAV Current Meter Scale：225
BEC:3.3V 0.5A& 5V 3A& 9V 2A
Input: 3~6S Lipo (12.6~25.2V)

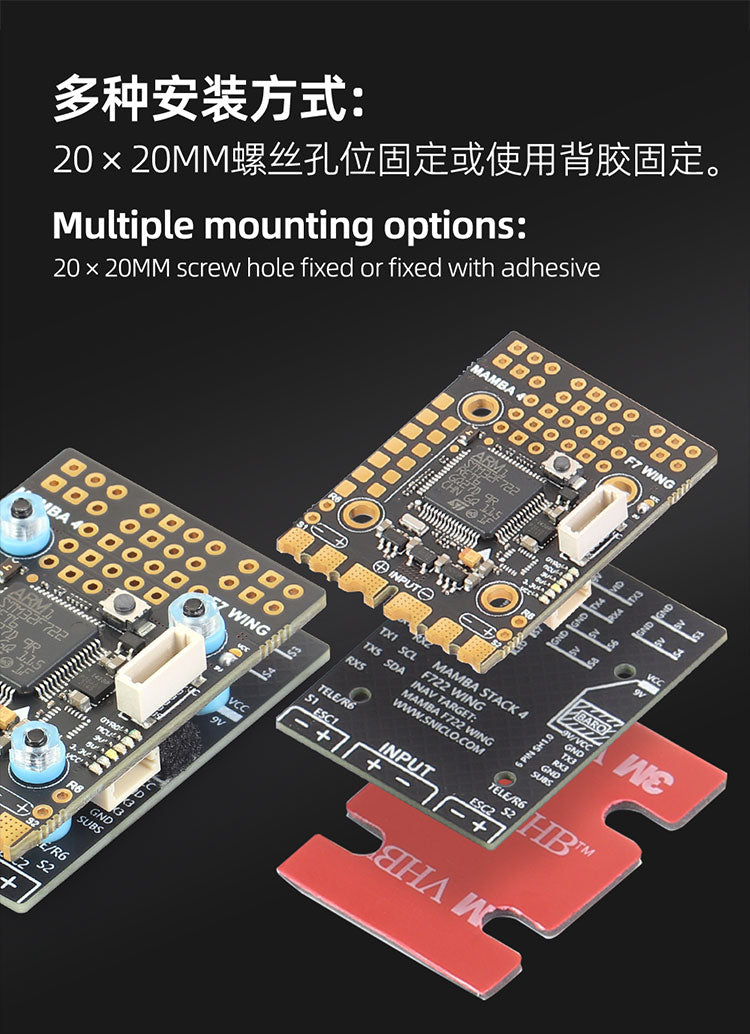

Mounting size: 20mm,M2

Supply :
High-Frequency 470uF/35V ×1
AIR UNIT 6P sh1.0cable ×1
Type-C USB to 4P sh1.0 cable×1

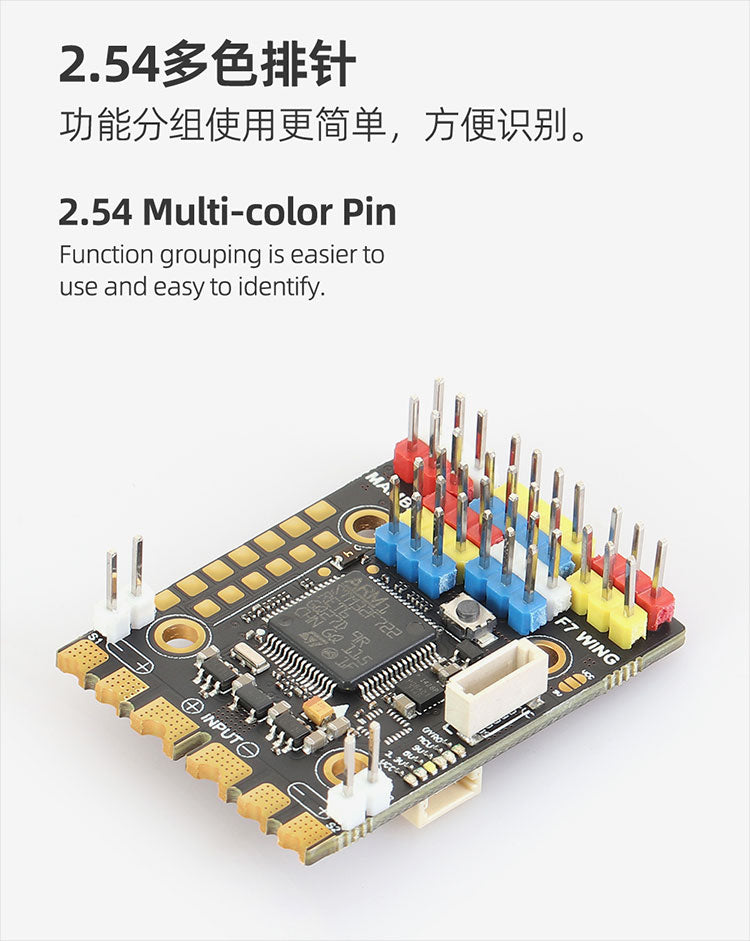

2.54 Pin ×40
