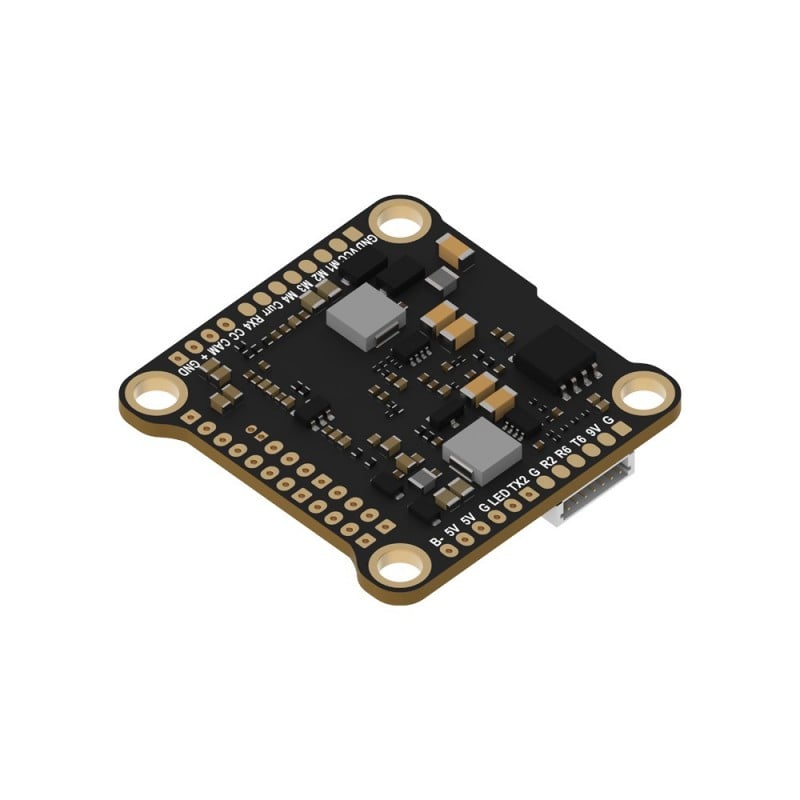

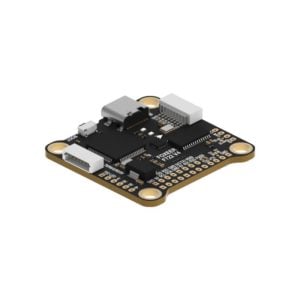

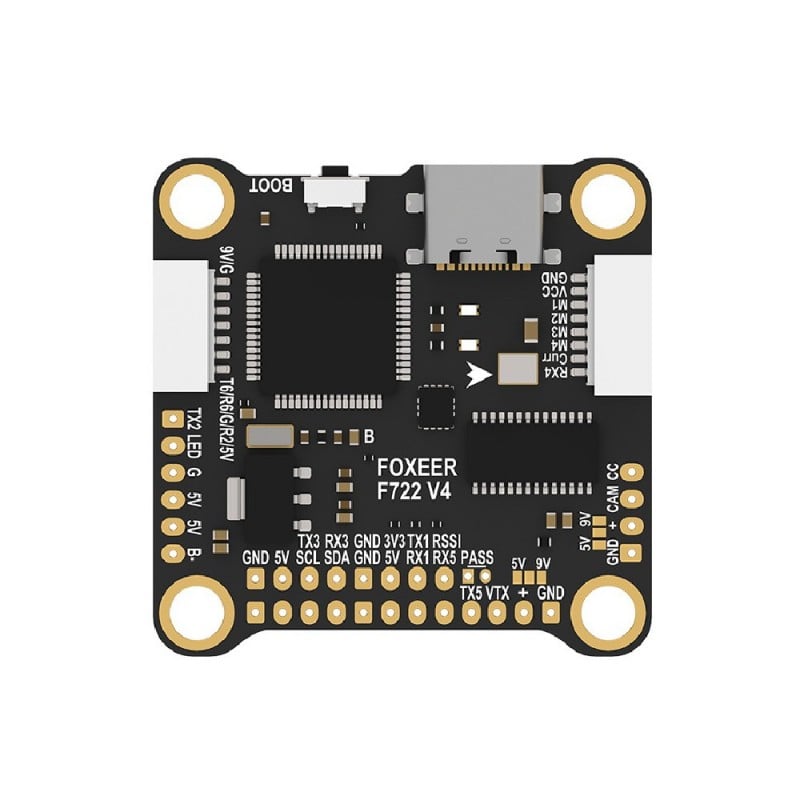

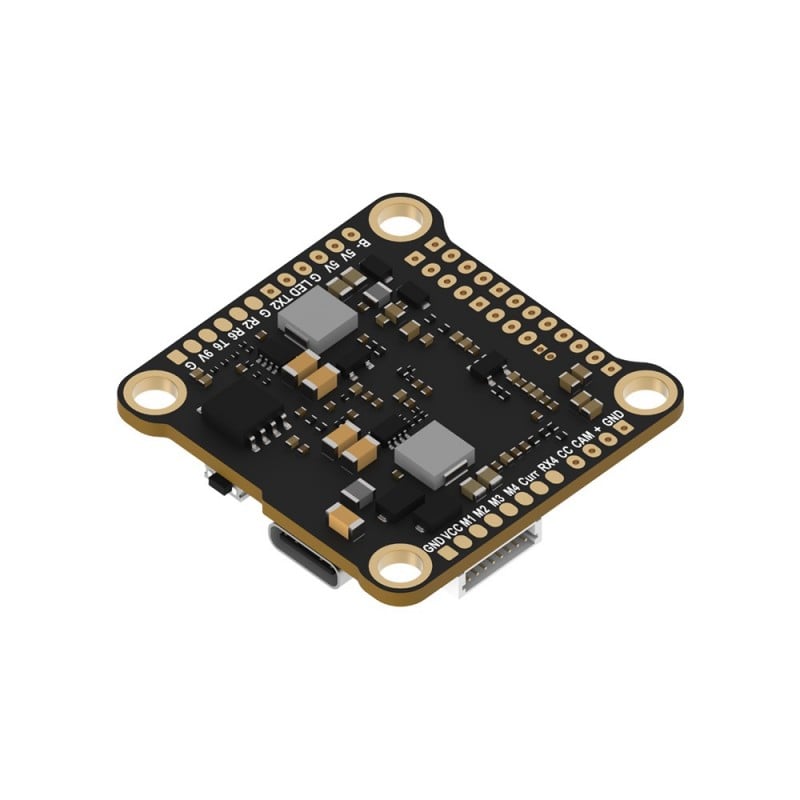

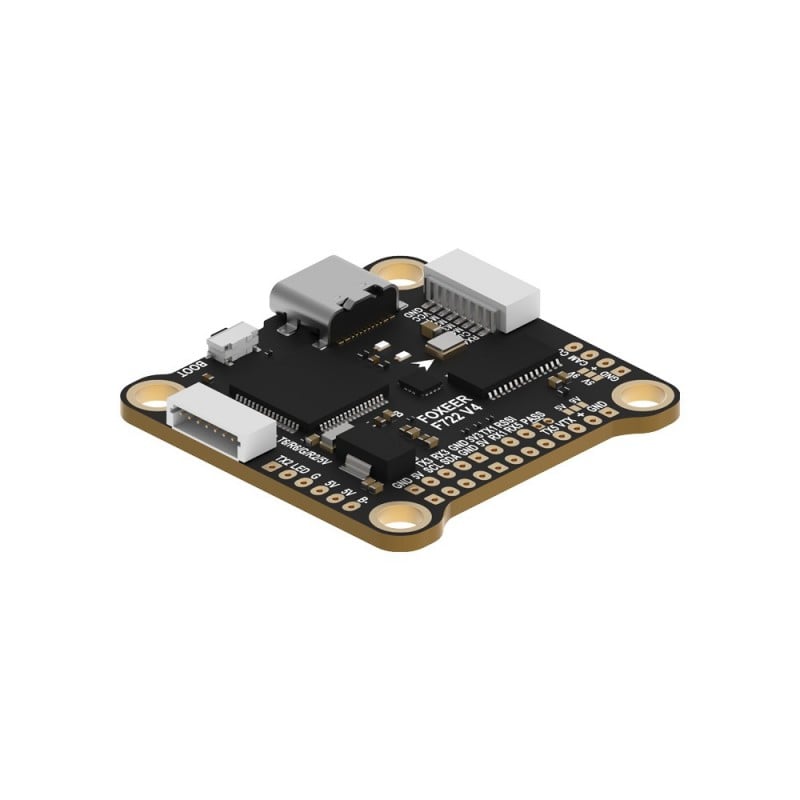

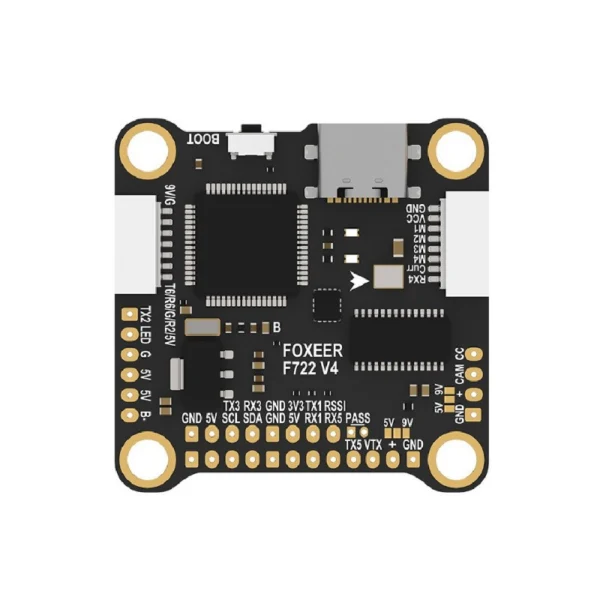

Foxeer F722 V4 Flight Controller
Specifications:
| Model | F722 V4 |
| CPU | STM32F722RET6 |
| Power Supply | 3~6S Lipo (11V~30V) |
| BEC Output | DC5V/3A; DC9V/3A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 6 Set |
| ESC Telemetry | RX4 |
| Buzzer | YES |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| X8 Supported | Need CLI |
| Firmware | BF:FOXEERF722V4; Inav: FOXEERF722V4 & FOXEERF722V4 X8 |
| Size | 37X37mm |
| Mounting Hole | 30.5X30.5mm,Φ4mm |
| Weight(g) | 8g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*FC, 4*Rubbers Columns |
