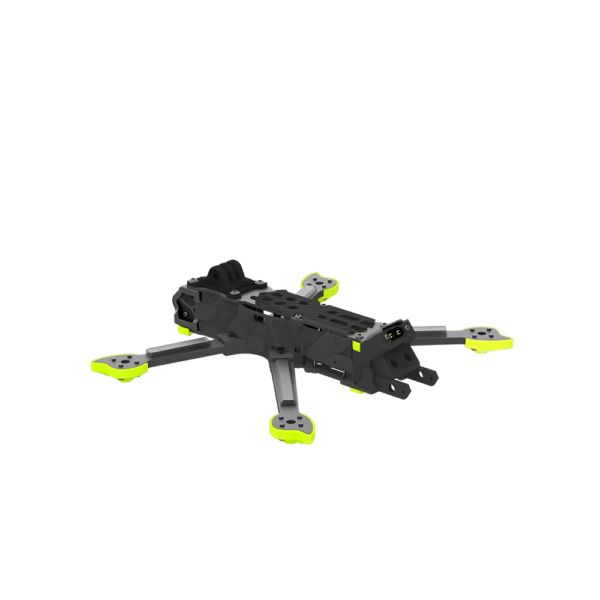

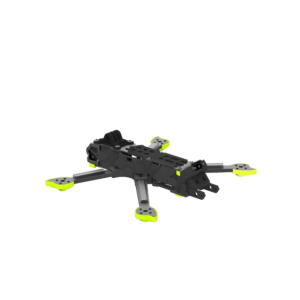

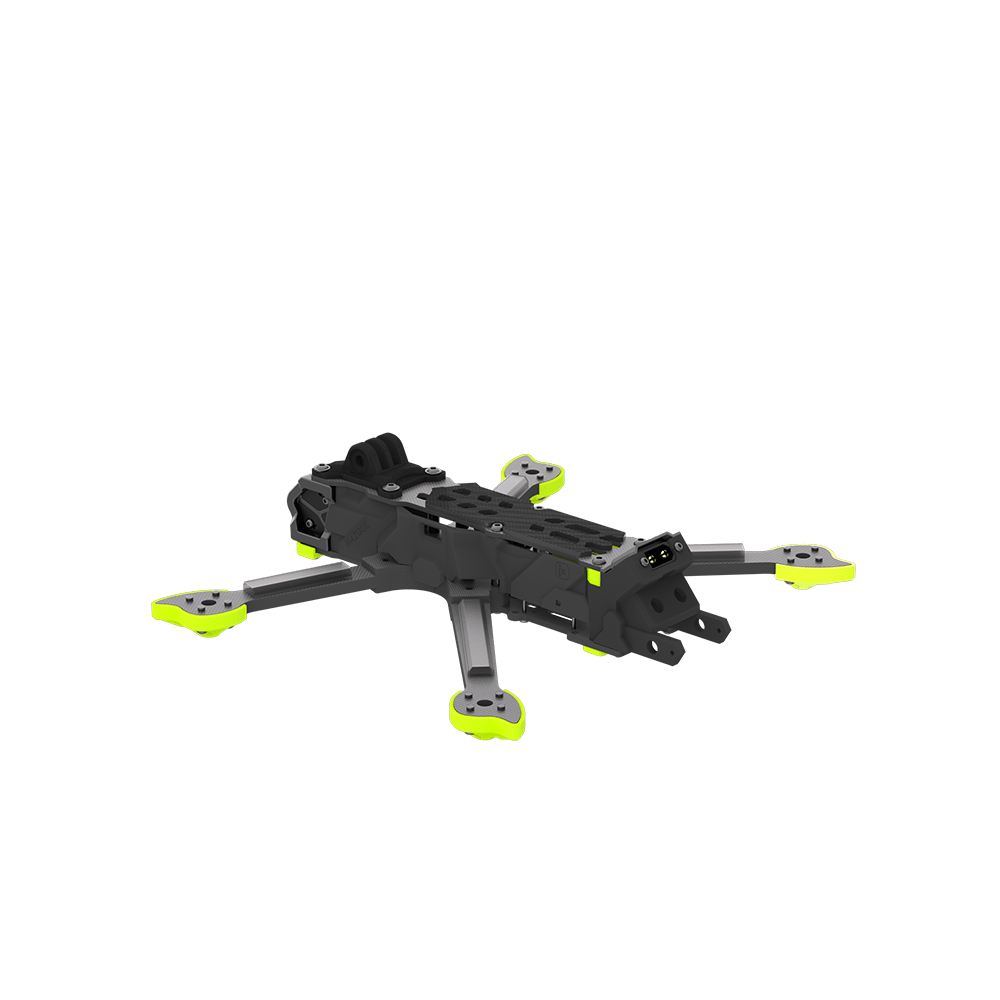

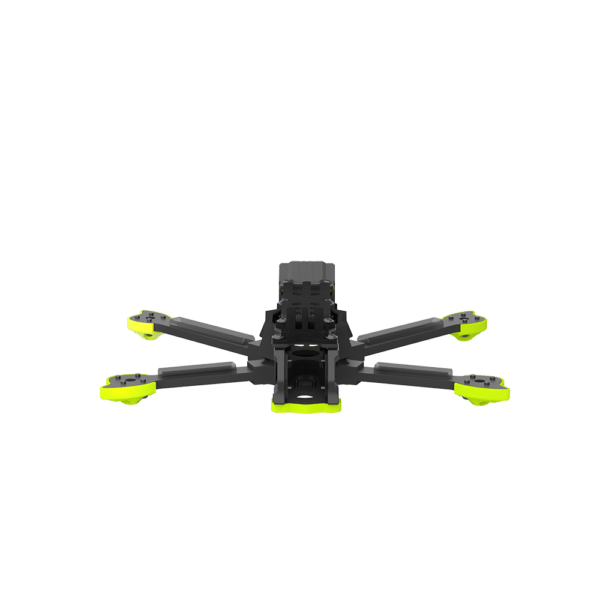

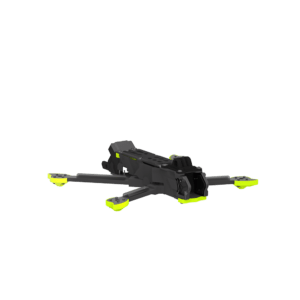

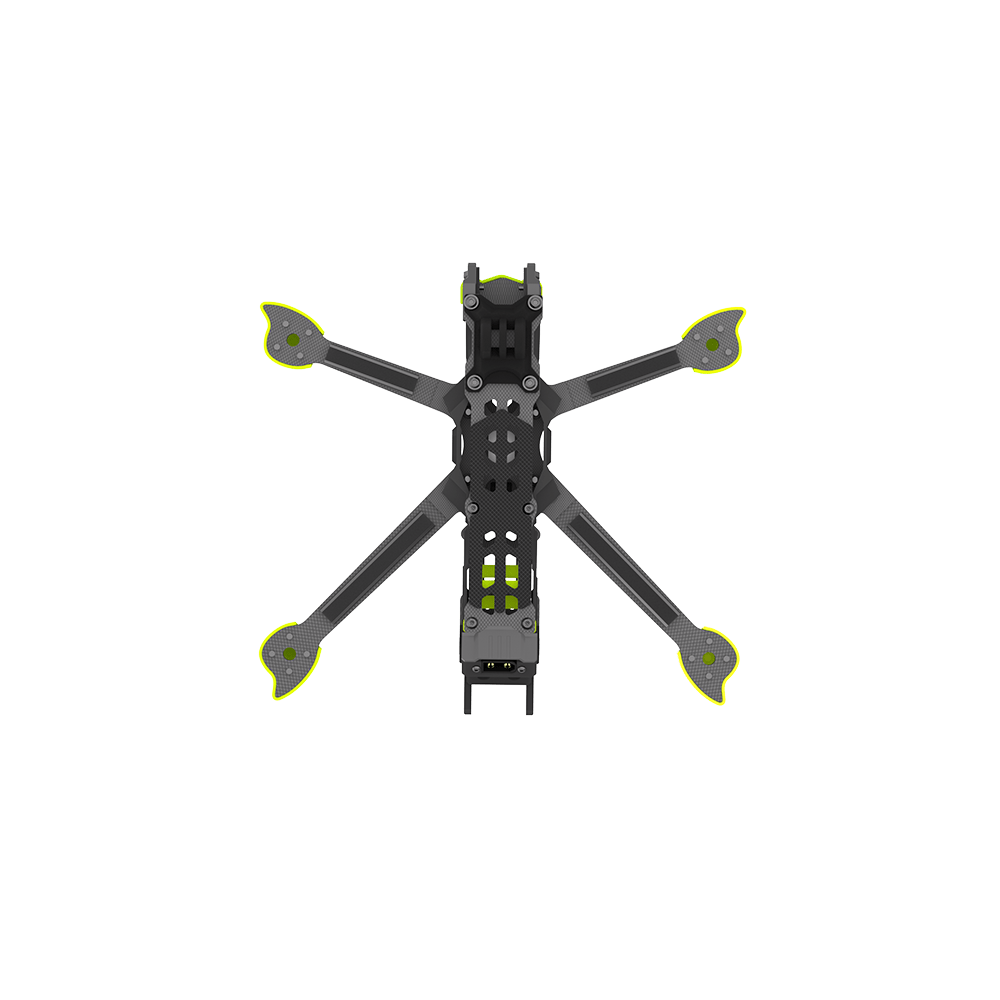

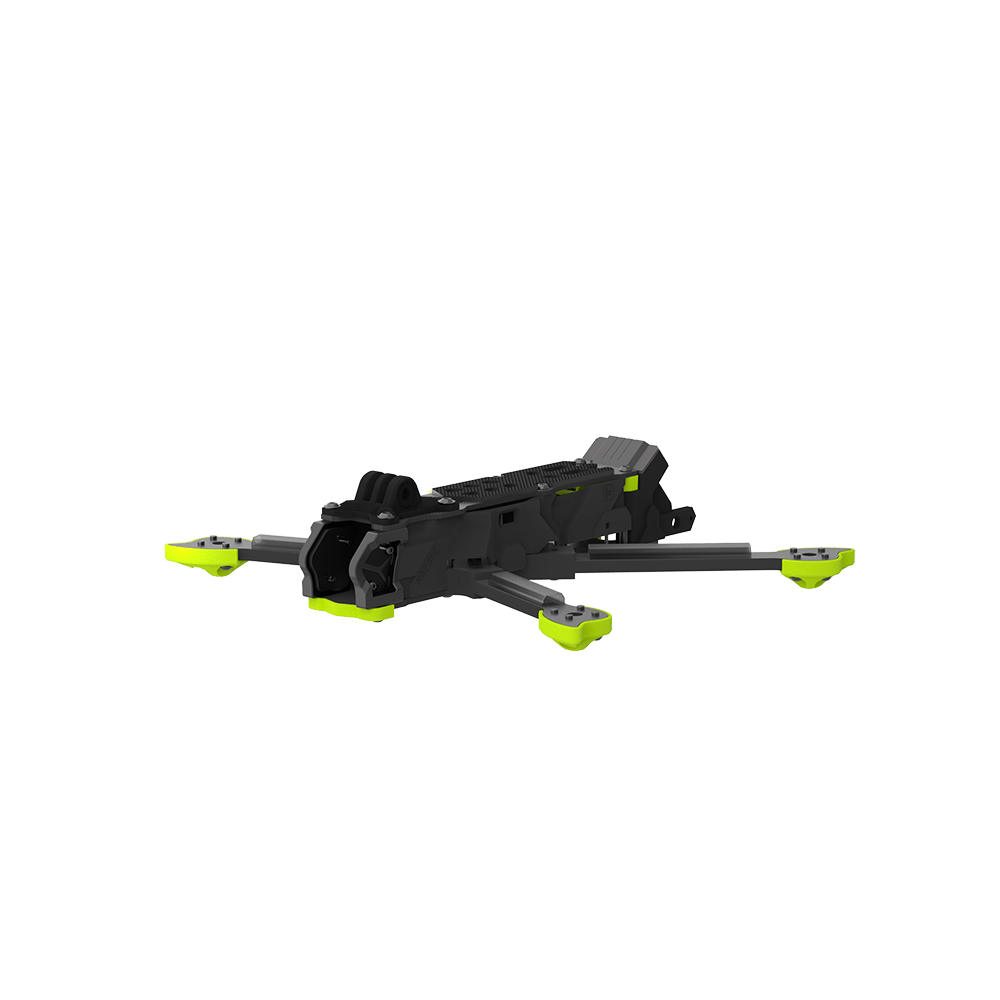

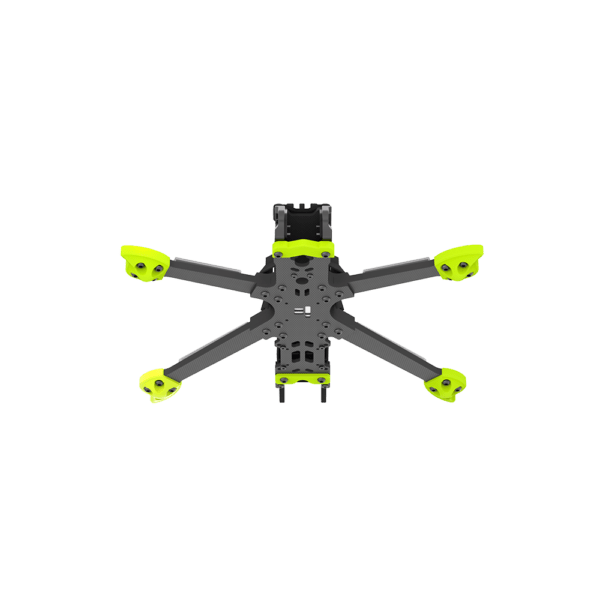

iFlight Nazgul DC5 V1.1 O4 Pro Frame Kit

Nazgul DC5 V1.1 O4 Pro Frame Kit

Check Out Our Other iFlight Products!

Build a powerful and modern cinematic drone with the iFlight Nazgul DC5 V1.1 O4 Pro Frame Kit. This high-value 5-inch freestyle frame is designed for pilots seeking an optimal balance between performance and cost, now updated to perfectly accommodate the flagship DJI O4 Air Unit Pro. Constructed from exceptionally rigid carbon fiber to minimize resonance, it ensures stable flight characteristics and a flawless, “no props in view” recording experience.

Optimized for the DJI O4 Pro Air Unit. This V1.1 revision has been specifically upgraded to provide a seamless fit for the latest DJI O4 Air Unit Pro. The kit includes a new, purpose-built camera mount and redesigned silicone side panels to securely house and protect the O4 camera and VTX module. This thoughtful integration ensures you can leverage the full potential of the high-definition, low-latency O4 system. The frame also remains fully compatible with the older DJI O3 Air Unit.

Cinematic Deadcat Design The Nazgul DC5 features a “DC” or Deadcat geometry, which pushes the front arms further back and out of the camera’s sight. This guarantees a completely clear, unobstructed view for your FPV and HD cameras, making it the ideal choice for capturing immersive footage without distracting propellers in the shot.

Key Features:

• Upgraded for DJI O4 Pro: Includes a new camera mount and silicone side panels for a perfect fit with the DJI O4 Air Unit Pro.
• Deadcat Geometry: Ensures a “no props in view” experience for clean, professional-looking cinematic and freestyle footage.
• Durable 5mm Arms: Provides excellent strength and crash resistance for aggressive flying.
• Versatile Component Mounting: Accommodates $30.5\text{x}30.5\text{mm}$ and $20\text{x}20\text{mm}$ stacks, as well as a wide range of VTX mounting patterns.
• Premium 3K Carbon Fiber: Offers a strong and rigid airframe for responsive flight characteristics.
• Complete Kit: Includes a full set of TPU parts, including a GoPro mount, and all necessary hardware.

Specifications

• Product Name: Nazgul DC5 V1.1 O4 Frame Kit
• Geometry: DC (DeadCat)
• Wheelbase: $240\text{mm}$
• Frame Dimension: $193\times 144\times 34\text{mm}$
• Arm Thickness: $5\text{mm}$
• Bottom Plate Thickness: $2.5\text{mm}$
• Upper Plate Thickness: $3\text{mm}$
• Max Flight Stack Height: $22\text{mm}$
• FC Mounting: $20\text{x}20\text{mm / }30.5\text{x}30.5\text{mm}$
• Motor Mounting: $16\text{x}16\text{mm}$
• VTX Mounting: $30.5\text{x}30.5\text{mm / }25.5\text{x}25.5\text{mm / }20\text{x}20\text{mm}$
• Weight: $239\text{g}\pm 5\text{g}$

Packing List

• 1 x Nazgul DC5 V1.1 O4 Frame Kit
• 1 x TPU set (Including GoPro TPU Base Mount)
• 1 x Screw Bag
• 2 x Anti-slip Battery Pads
• 4 x Motor Wire Shield Tubes
• 2 x Battery Straps
