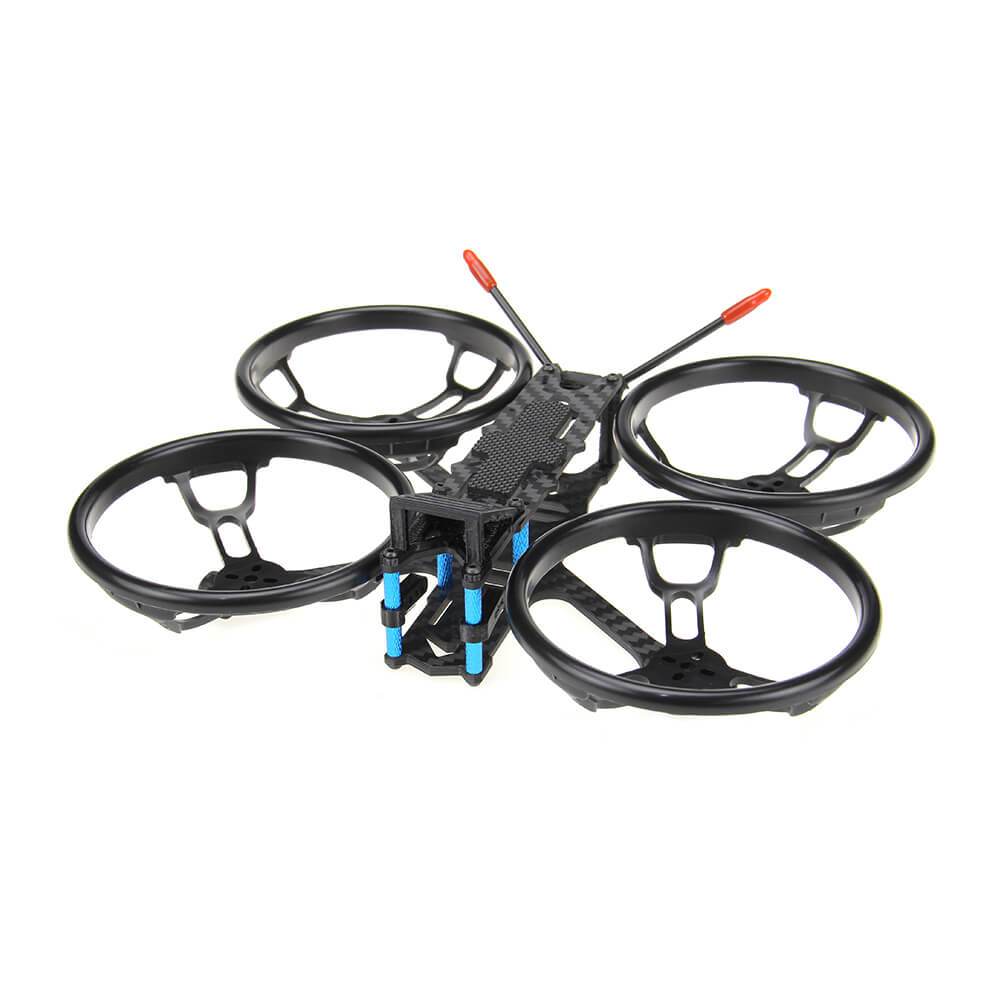

HGLRC Sector150 Freestyle Frame Kit with 3″ Propeller Guard
HGLRC Sector150 Freestyle Frame Kit
Material:3K Carbon Fiber
Model:Sector150
Wheelbase:150mm

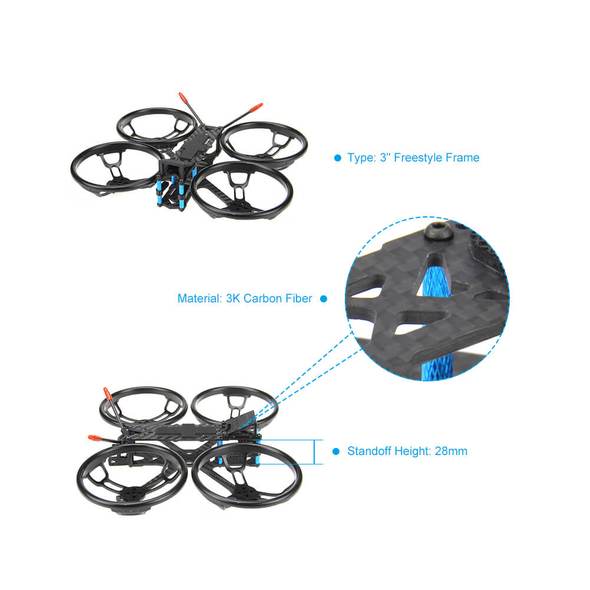

Type:3 Inch Freestyle Frame
Bottom Plate Thickness:3mm
Standoff Height:28mm

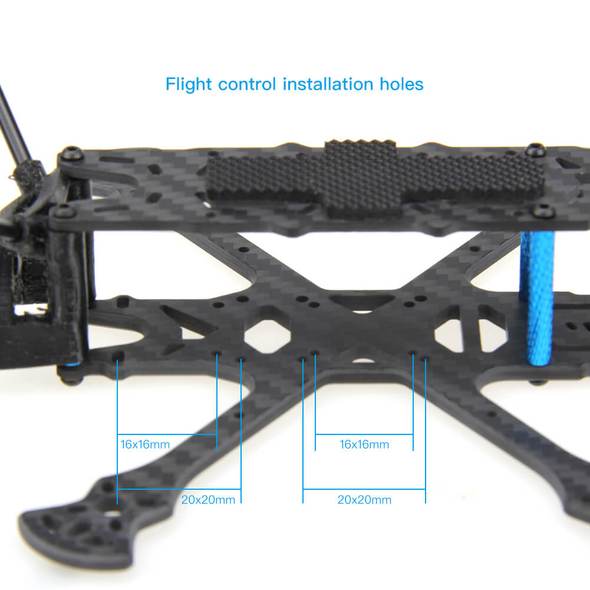

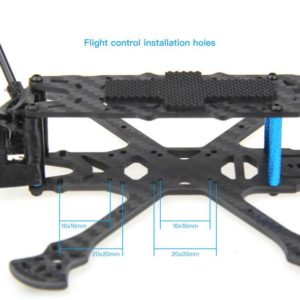

Flight Control Installation Holes:16X16/20X20mm

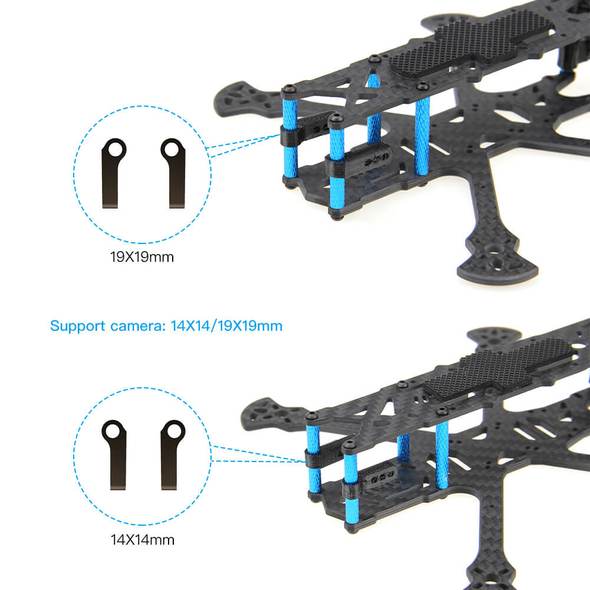

Support Camera:14X14/19X19mm

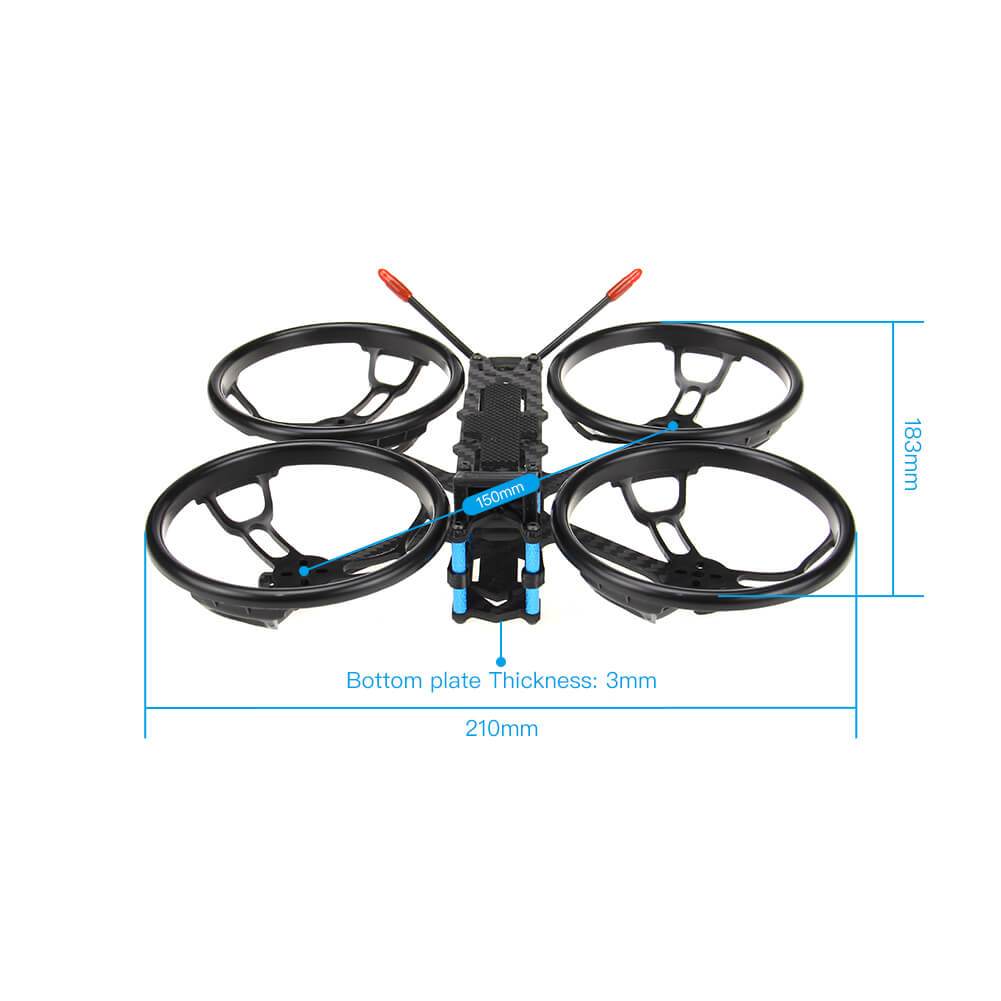

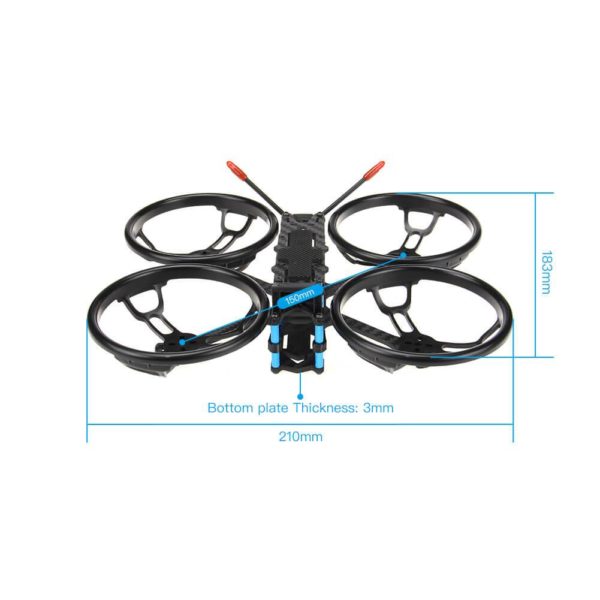

Overall Size:210*183mm

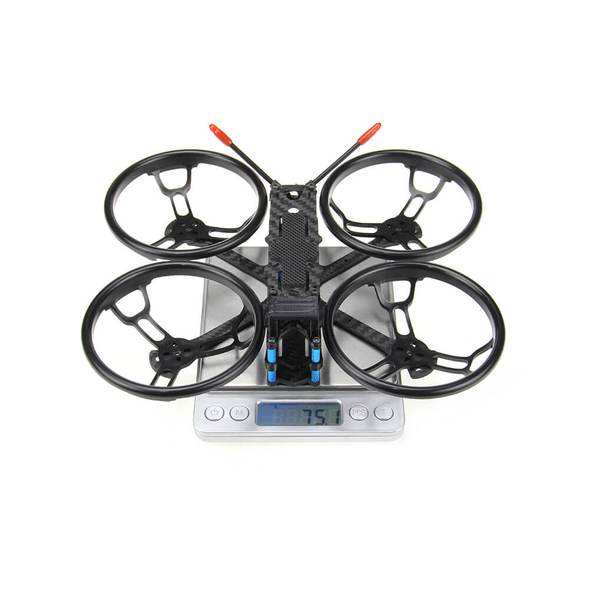

Weight:79g
Features:
TPU Gopro Mount
TPU Sector AIR UNIT
TPU Sector SMA Mount

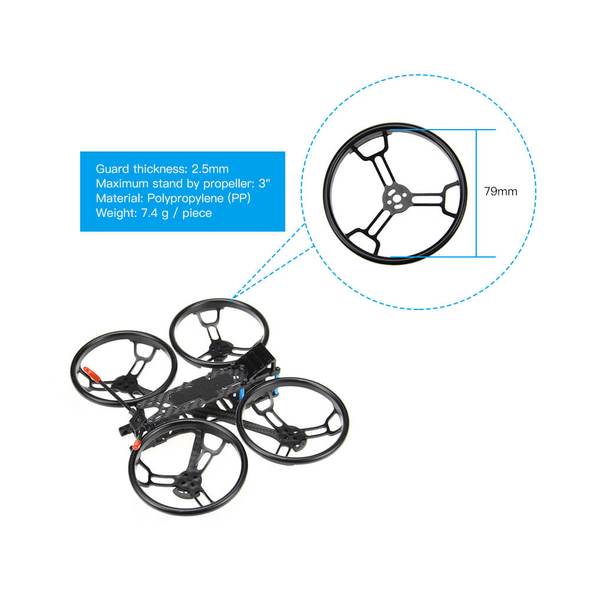

Propeller Protective Guard
TPU Sector Camera Mount
Camera mounting size support:14X14/19x19mm
Flight control installation size support:16X16/20X20mm

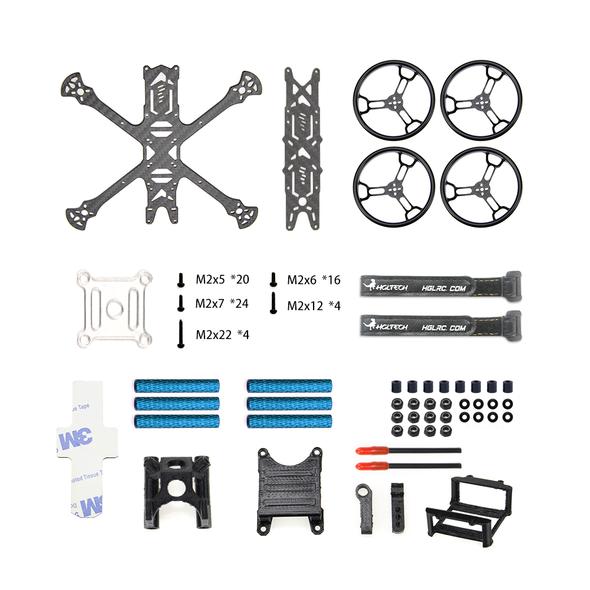

Hardware:
4 x 3 Inch Propeller Protective Guard
1 x 2mm Top Plate
1 x 3mm Bottom Plate
6 x M2*28mm Blue Aluminum Column
4 x Round head screw M2*22
4 x Round head screw M2*12
24 x Round head screw M2*7
15 x Round head screw M2*6
20 x Round head screw M2*5
8 x Damping rubber column M2X6
8 x M2 damping O-ring
12 x M2 black Relax nut
1 x Acrylic sheet 16X16
2 x Battery cable tie
1 x Battery Anti-slip tape
2 x TPU Sector Camera Mount
1 x TPU Sector SMA
1 x TPU Gopro Mount
1 x TPU Sector AIR UNIT
Recommended Parts: ( Not Included )
Flight Controller: Kiss/F4/F7 FC
Motors: 1408/1306/1104/1105/1106
ESCs: 28A-35A
Camera: 14×14/19x19mm size
Propeller: 3 Inch
Battery: 3S/4S(300mAh ~ 650mAh)
