Home » Store » Quadcopter Frames » HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit

HD

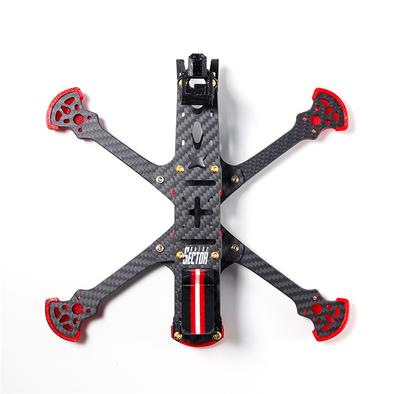

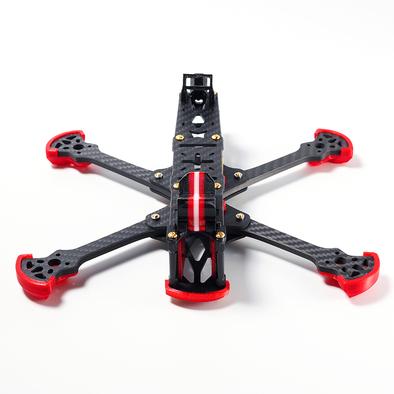

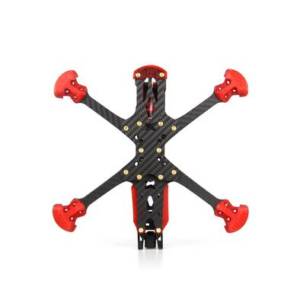

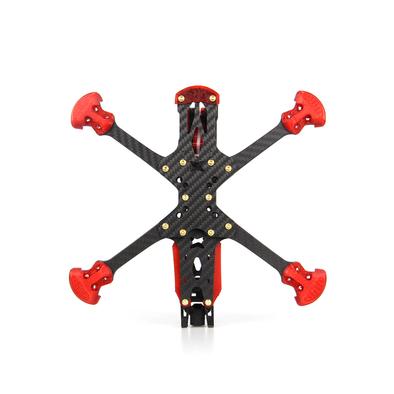

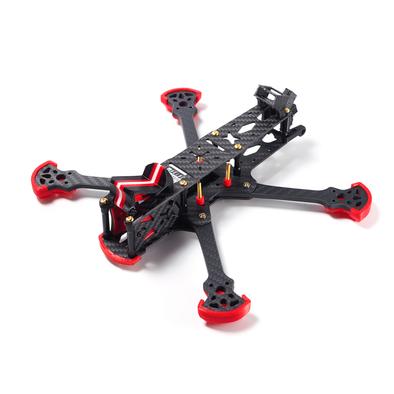

HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 1
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 2
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 3
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 4
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 5
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 6
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 7
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 8
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 9
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 10
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 11
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 12
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 13
HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 14

HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit

$55.99

The newest version of the amazing Sector frame. Brand new from HGLRC!

In Stock

Categories: Quadcopter Frames, 5" Quad Frames, DJI/HD FPV
Product categories
  • 3D Printed Quad Parts
  • Accessories
    • Battery Accessories
    • Build Accessories
    • Cables and Connectors
    • Drone Accessories
    • Goggle Accessories
    • Racing Gear
    • Radio Accessories
  • Antennas
    • 2.4G Antennas
    • 5.8G Antennas
    • Long Range Antennas
  • Batteries
    • Micro Quad Batteries
    • Mini Quad Batteries
    • X Class Batteries
  • Battery Chargers
  • DJI/HD FPV
  • Electronics
    • Electronic Speed Controllers (ESC)
    • Flight Controllers
    • LED Lighting
    • PDBs
  • FPV Drone Bundles
  • FPV Equipment
    • Action Cameras
    • FPV Cameras
    • FPV Monitors
    • Video Goggles
    • Video Receivers
    • Video Transmitters
  • Merch
  • Motors
  • Propellers
    • 10" Propellers
    • 12" Propellers
    • 13" Propellers
    • 2" Propellers
    • 3" Propellers
    • 4" Propellers
    • 5" Propellers
    • 6" Propellers
    • 7" Propellers
    • Micro Props
  • Quadcopter Frames
    • 3" Quad Frames
    • 4" Quad Frames
    • 5" Quad Frames
    • 6" Quad Frames
    • 7" Quad Frames
    • Micro FPV Frames
    • Spare Parts
  • Radios
    • Long Range FPV Equipment
    • Radio Controllers
    • Radio Receivers
  • Ready to Fly Drones
    • Bind-N-Fly
    • Plug-N-Play Quads
  • Toothpick FPV
  • Uncategorized
  • Whoop Drones
    • Ready to Fly
    • Whoop Drone Parts
  • X-Class FPV
  • Description
  • Additional information
  • Reviews (0)

HGLRC Sector 5 V3 HD Freestyle 3K Carbon Fiber Frame Kit 15

HGLRC Sector V3 HD 5in Freestyle Frame Kit

The newest version 3 of the amazing Sector frame made for DJI. Brand new from HGLRC!

HGLRC Sector 5 V3 Freestyle frame 5 Inch for FPV Racing Drone Compatible with 5.8G VTX and DJI Air Unit

-No Props in view

No more props in view with the V3. Enjoy the clear view of flying!

-Adjustable camera mount angle

Adjust the angle of the camera mount from 25°, 30°, 35° to 40° to suit your needs.

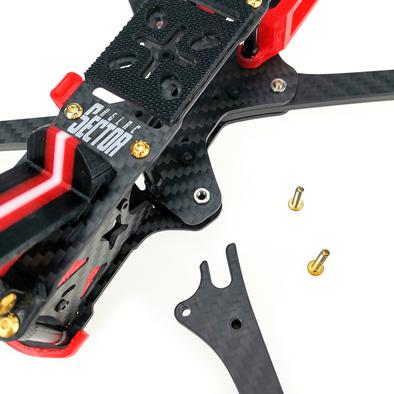

-Capacitor slot to hide the capacitor for a neater look

Cannot find the capacitor in the drone? it is “hidden” somewhere 🙂

-A complete range of TPU parts

All the STL files of the TPU parts used in this drone will be available for free! You can always print spare parts by yourself if you have a 3D printer. Check the files here

Note: the GoPro 7 mount is not included in the package.

Brand Name:HGLRC
Model:Sector 5 V3 Frame Kit
Material:3K Carbon Fiber
Top plate thickness:2mm
Bottom plocte thickness:2mm
Middle plate thickness2mm
Camera side panel thickness:2mm
Arm Thickness:5mm
Top and middle plate spacing:25mm
Installation holes:20×20/30.5×30.5mm
Support camera:19×19/22x22mm

Sector 5 V3 Freestyle Frame 5 inch

Type:5″ frame
Wheelbase:218mm
Support for propellers:up to 5.2 inches
Overall size:172.5 * 136.7mm

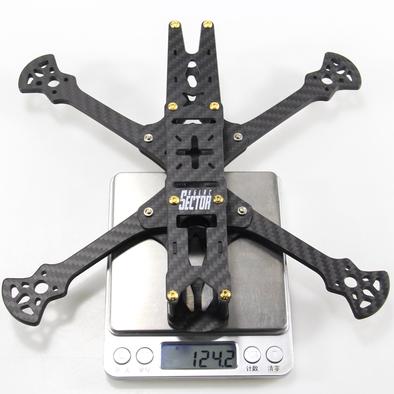

Weight:124.2g (excluding TPU)

Features:

Flight control installation damping system

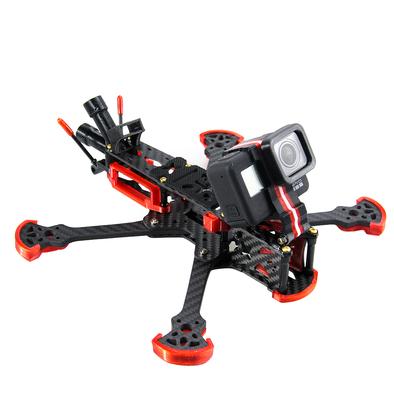

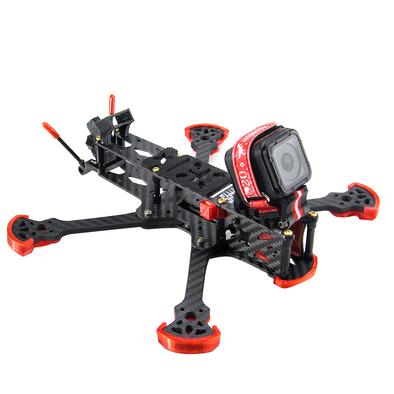

Gopro Universal Mount
Gopro fixied bracket
Gopro Mount
Gopro lens protector
Motor protector Mount
T shaped antenna Mount
GPS Mount
SMA antenna Mount
DJI ANT antenna Mount
Base plate protector Mount
DJI Air Unit Mount
DJI FPV camera lens protector
Power cord fixed Mount
Capacitor mounting slot

Package Includes:

1x 2mm top plate
1x 2mm bottom plate
1x 2mm middle plate
4x 5mm arm
2x 2mm side plate
2x M3*32mm black aluminum column
6x M3*25mm black aluminum column
3x M3*23mm black aluminum column
5x round head screw M3*25
4x round head screw M3*16
4x round head screw M3*12
12x round head screw M3*8
2x round head screw M3*6
1x round head screw M2*30
4x round head screw M2*25
4x round head screw M2*12
2x round head screw M2*6
2x round head screw M2*4
4x M2*5 black nylon column
6x M3 Self-tightening nut
10x M2 Self-tightening nut
4x antenna protection tube
12x M3*6.6 shock absorber ball
8x M2*6 shock absorber ball
2x Battery cable tie 20x200mm
2x Battery cable tie 20x250mm
1x Battery Anti-slip tape
1x Gopro Universal Mount
1x Gopro lens protector
1x Motor protector Mount
1x T shaped antenna Mount
1x GPS Mount
1x SMA antenna Mount
1x Base plate protector
1x DJI Air Unit Mount
1x DJI FPV camera lens protector
1x DJI ANT antenna Mount
1x Power cord fixed Mount
1x 20 to 30 mounting adapter

Recommended Parts:( Not Included )

Flight Controller:Kiss/F4/F7 FC
Motor:FD2207/FD2306/FD2408
ESC:35A-65A
Camera:19×19/22x22mm size
Propeller:Sector 5 – 5 ~ 5.5 Inch
Battery:4S 1500mAh ~ 6S 1600mAh



Weight 0.34375 lbs
Dimensions 8 × 5.5 × 1.5 in
