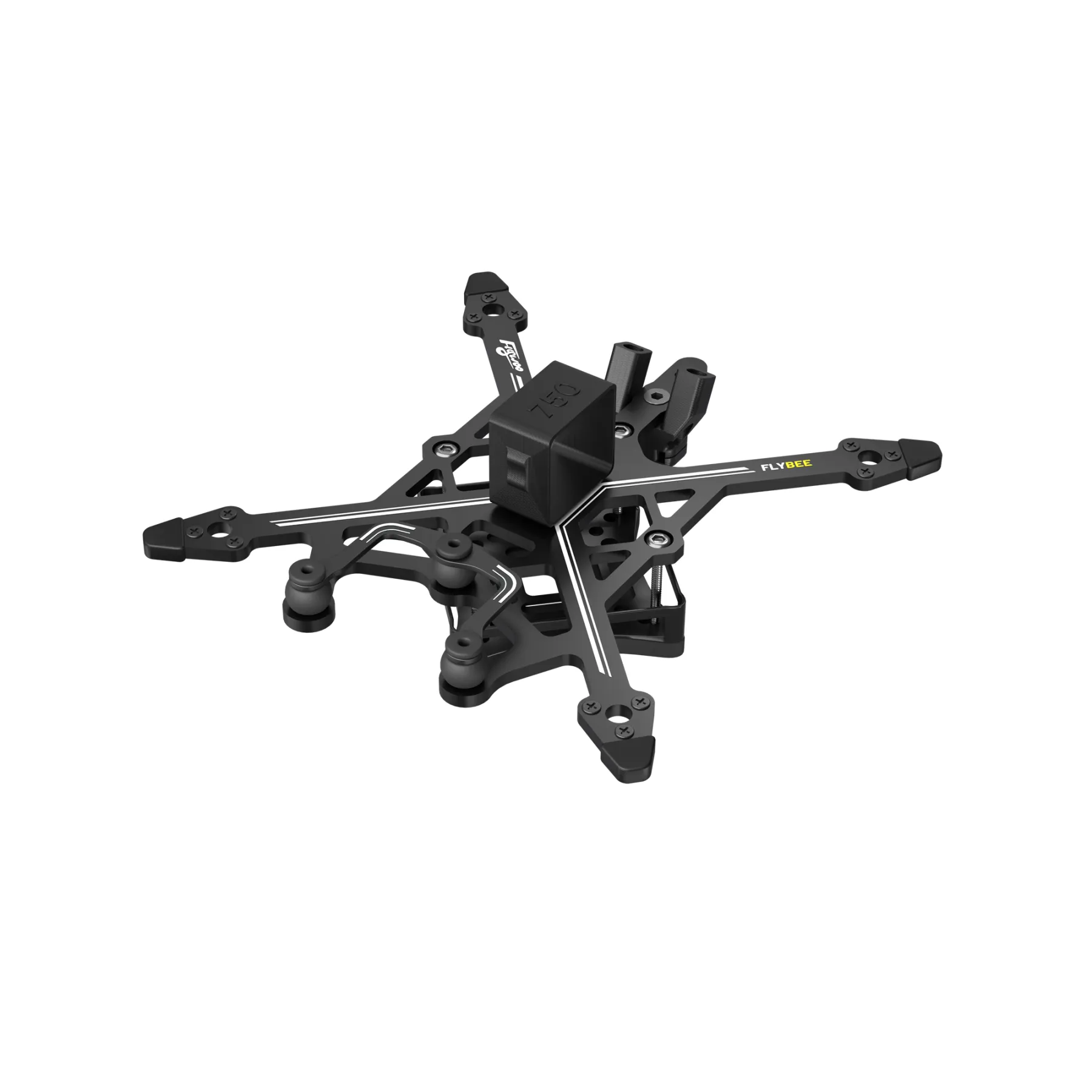

Flywoo Flybee 20 Frame Kit for O3 Lite / O4
Check out all of our Flywoo products!
Build the ultimate ultralight cinematic FPV drone with the Flywoo Flybee 20 Frame Kit. This precision-built 2-inch frame is meticulously designed to be a featherlight yet stable platform for the latest DJI O3 Lite and O4 digital FPV systems. It’s the perfect foundation for pilots who want to capture breathtaking, stabilized HD footage with a drone that is incredibly small, quiet, and agile.
Optimized for DJI O3 & O4 Digital FPV
The Flybee 20 is purpose-built to house and protect modern compact digital FPV systems. It features an 18mm camera bracket and includes a custom O4 camera shell for a perfect fit. The 1mm CNC gimbal platform helps to dampen vibrations, ensuring your footage is smooth and free of jello, allowing the high-quality DJI video system to perform at its best.
Ultralight Design for Agile Flight

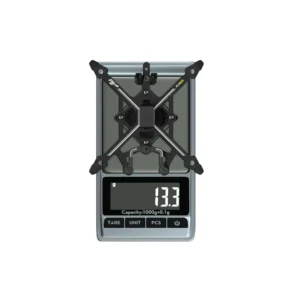

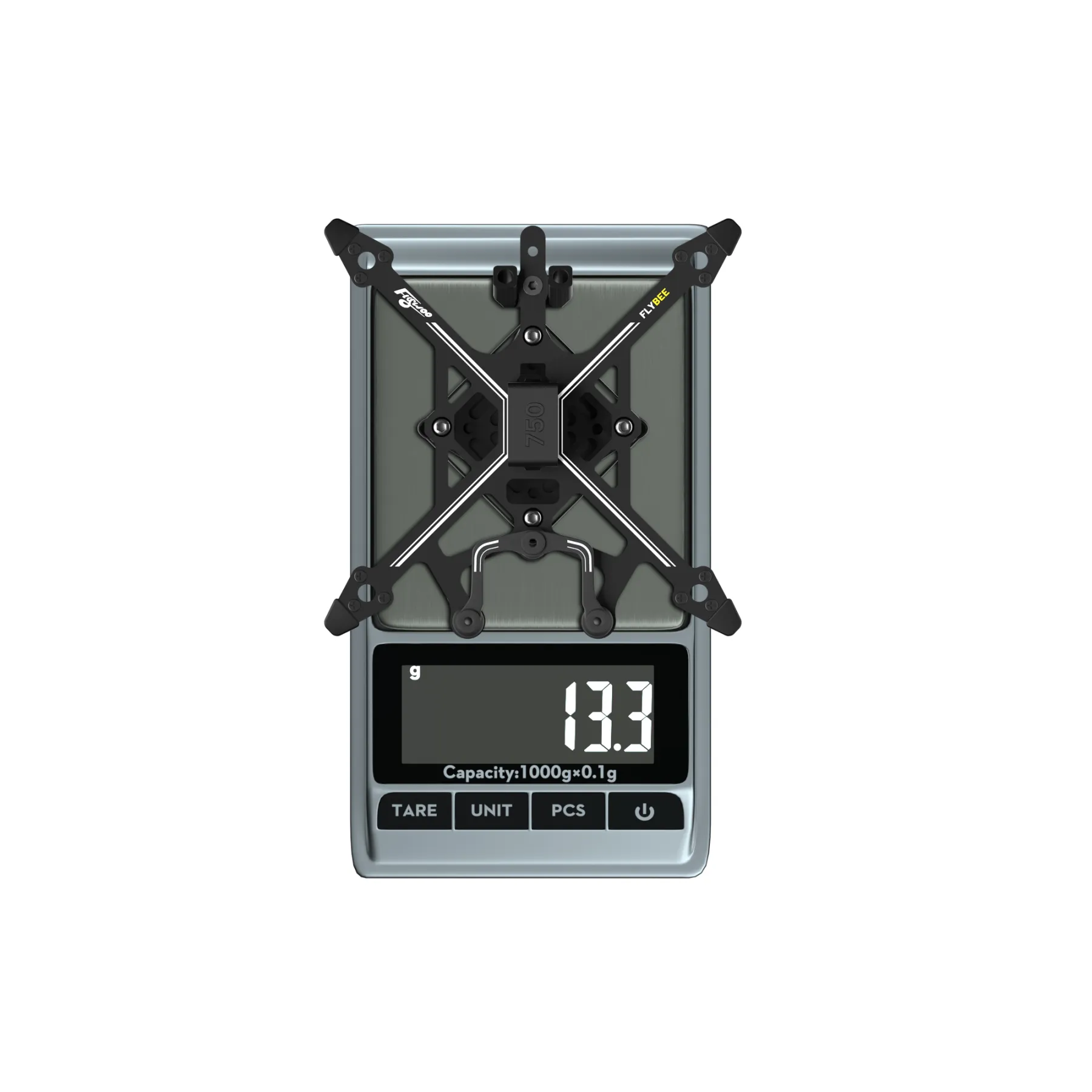

Engineered for minimal weight, this frame allows you to build a powerful 2-inch FPV drone that is exceptionally nimble. Its lightweight nature makes it perfect for navigating tight indoor spaces, flying discreetly in parks, or capturing dynamic shots that are impossible with a larger FPV drone. This is a core drone part for any serious micro cinematic build.
A Complete & Builder-Friendly Kit
This is one of the most complete micro FPV drone frame kits on the market. Flywoo includes a comprehensive set of high-quality TPU parts to simplify your build, including three different battery mounts (for 550mAh, 750mAh, and 1000mAh 2S batteries), motor protectors, and a 5.8G antenna mount. This saves you the time and hassle of printing your own parts.
Specifications
- Brand: Flywoo
- Model: Flybee 20
- Prop Size: 2 inch
- Main Board Thickness: 2mm
- CNC Gimbal Thickness: 1mm
- FC/VTX/ESC Mounting: 25.5 x 25.5mm
- Motor Mounting: 6.6mm pattern
- Camera Mounting: 18mm
What’s in the Box?
- 1x Top Plate
- 1x Main Plate (Not explicitly listed, but is part of the kit)
- 1x 5.8G Antenna
- 1x TPU Battery Mount for 2S 550mAh
- 1x TPU Battery Mount for 2S 750mAh
- 1x TPU Battery Mount for 2S 1000mAh
- 1x O4 Camera Shell
- 1x 18mm Camera Bracket
- 4x TPU Motor Protectors
- 2x Bottom Sponge Pads
- 1x Hardware & Screw Set
