Manta 5 SE DC Frame

Please Check Out Our Other AxisFlying Products!

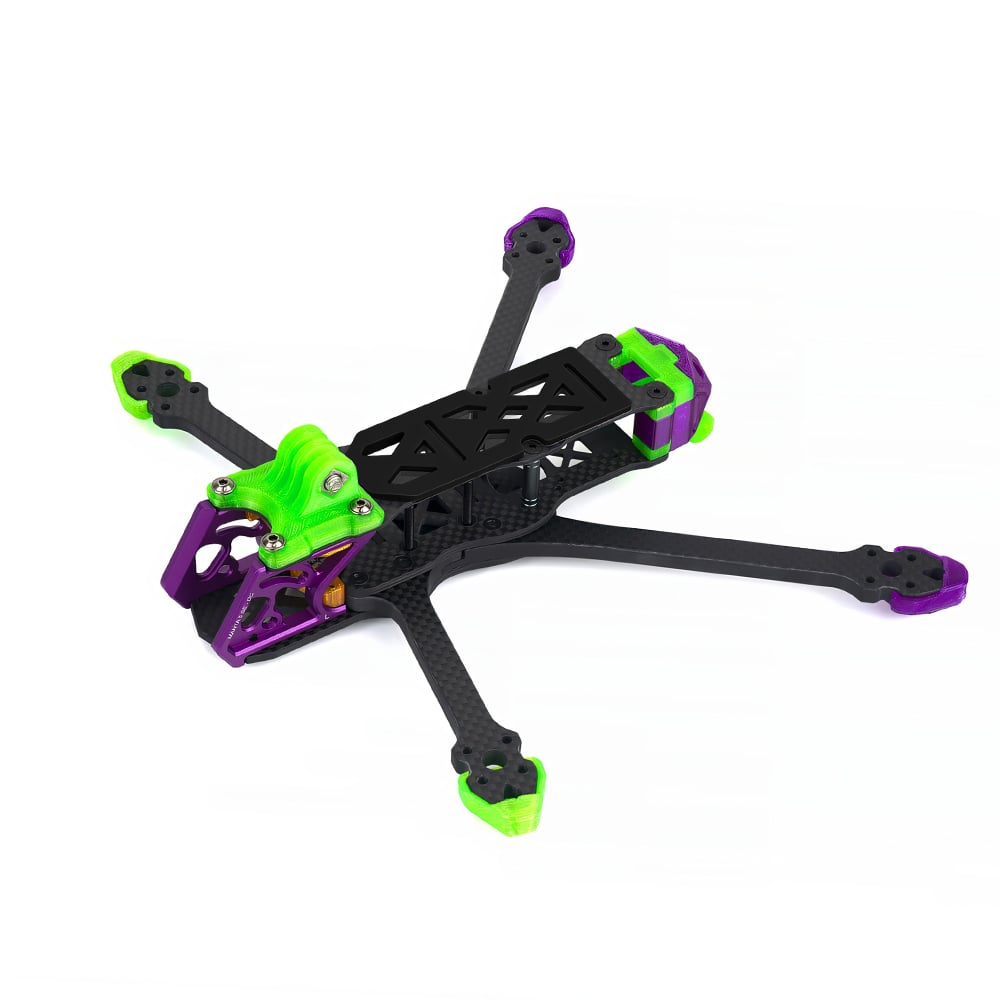

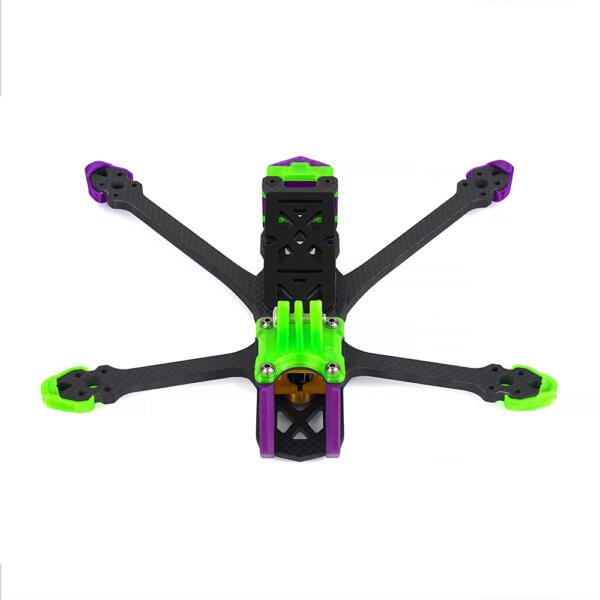

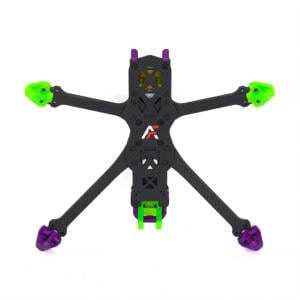

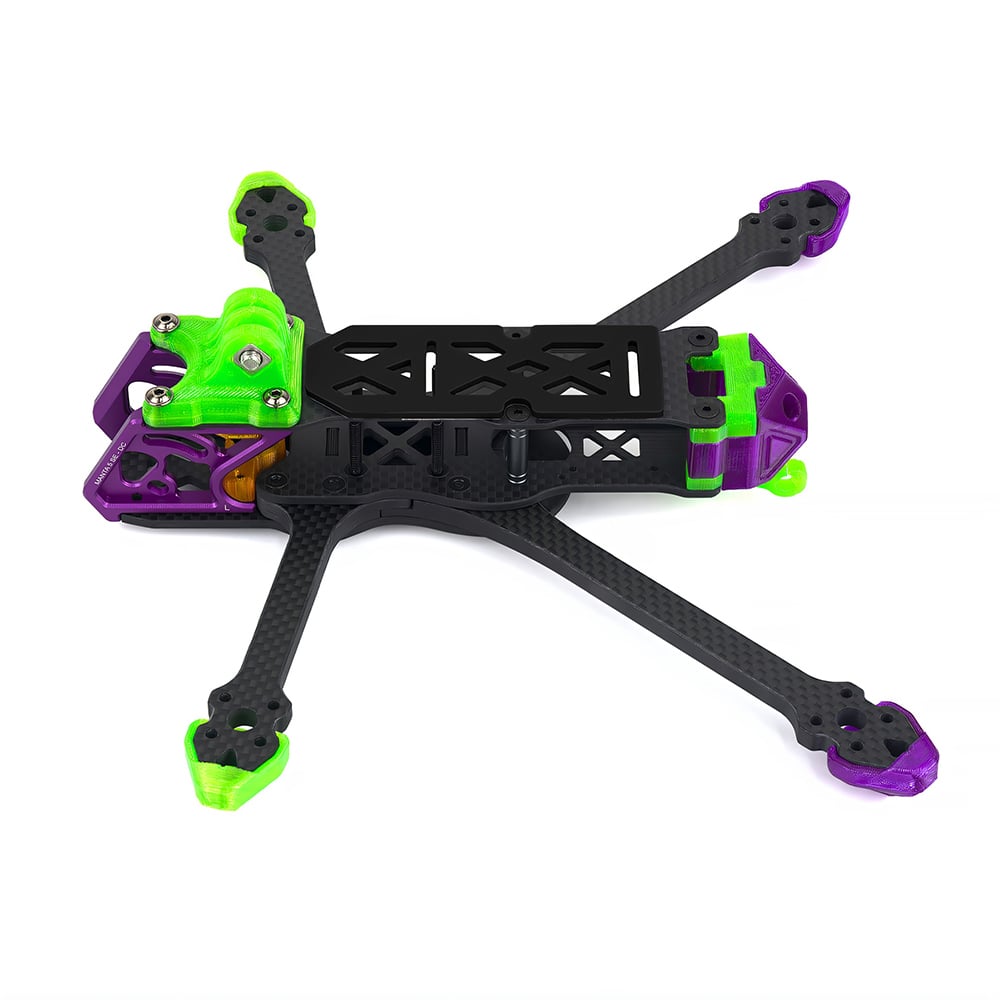

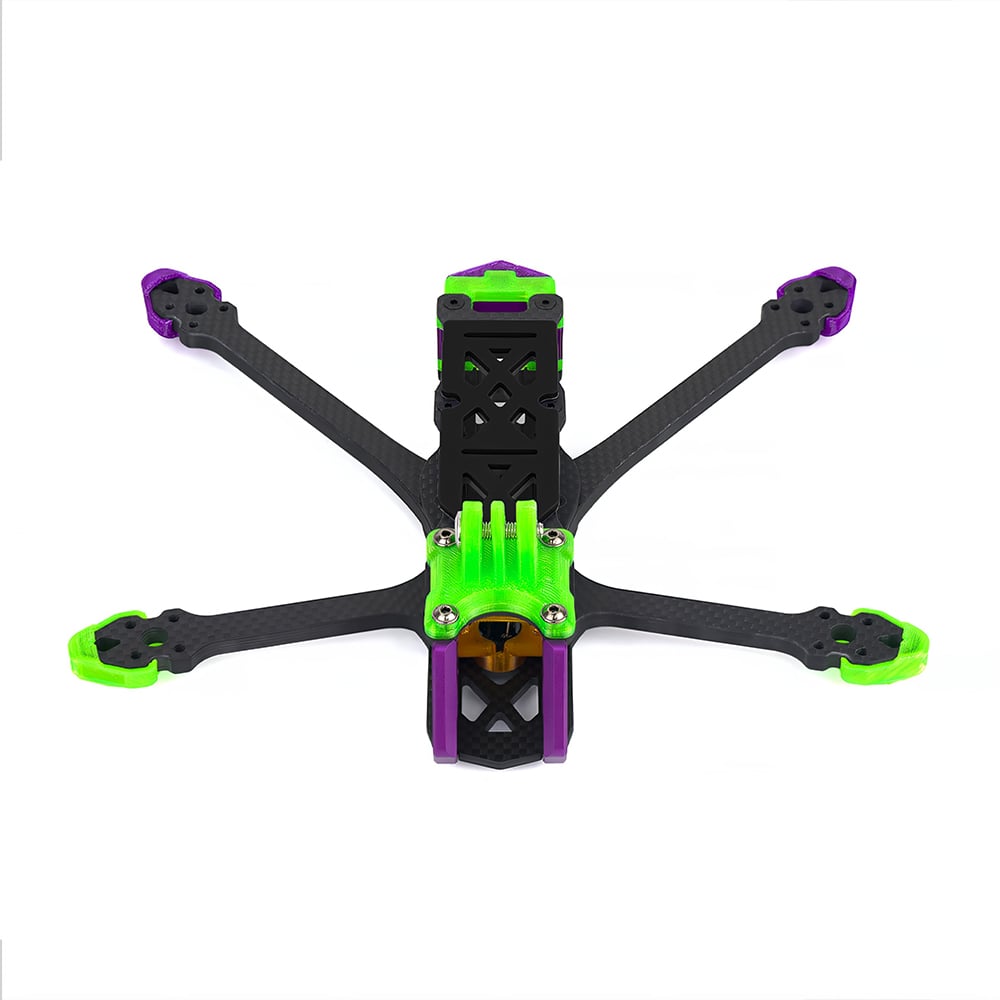

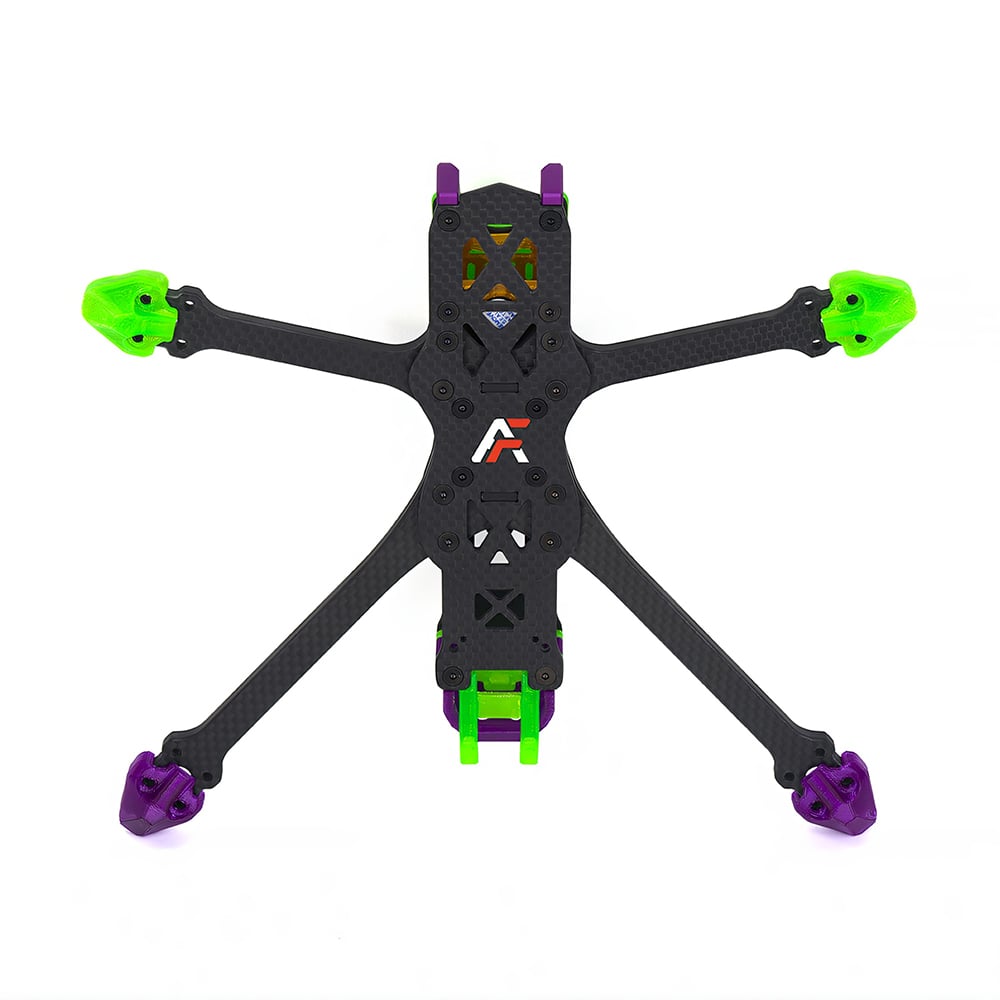

The AxisFlying Manta 5 SE DC Frame Kit is a lightweight yet durable frame designed for serious pilots who demand strength, balance, and precision. Built from high-quality T700 carbon fiber with reinforced aluminum alloy parts, it combines rigidity and vibration reduction for smoother flights. With a versatile design supporting a huge range of components and optimized for the DJI O4 Pro system, the Manta 5 SE is both beginner-friendly and competition-ready.

Cinematic Deadcat Design The “DC” (Deadcat) geometry pushes the front arms further back, guaranteeing that your propellers are kept completely out of the view of your high-definition camera. This is essential for capturing clean, immersive footage with the flagship DJI O4 Pro, ensuring a professional, distraction-free result.

Unmatched Component Versatility This frame is a builder’s dream. It offers an incredible range of mounting options to accommodate nearly any component you choose. It supports both $20\text{x}20\text{mm}$ and $30.5\text{x}30.5\text{mm}$ flight stacks, VTXs, and cameras in $19\text{mm}$, $20\text{mm}$, and $22\text{mm}$ sizes. This flexibility makes it one of the most adaptable 5-inch frames on the market.

Key Features:

• Deadcat Geometry: Provides a “no props in view” experience for clean, professional-looking cinematic footage.
• Durable Construction: Features robust 6mm T700 carbon fiber arms and reinforced CNC aluminum parts for maximum strength.
• Incredibly Versatile Mounting: Supports a huge range of FCs, VTXs, cameras, and motors, making it compatible with almost any build.
• Optimized for DJI O4 Pro: Purpose-built to house and protect the latest DJI O4 Air Unit Pro system.
• Easy Assembly: A clear and logical layout makes the building process straightforward.

Specifications

• Product Name: Manta 5 SE DC Frame Kit
• Wheelbase: $226\text{mm}$
• Arm Thickness: $6\text{mm}$
• Top Plate Thickness: $3\text{mm}$
• Bottom Plate Thickness: $3\text{mm}$
• Carbon Material: T700
• Weight: $179\text{g}$ (including printed parts)
• FC Mounting: $20\text{mm}\times 20\text{mm}$ / $30.5\text{mm}\times 30.5\text{mm}$
• VTX Mounting: $20\text{mm}\times 20\text{mm}$ / $25\text{mm}\times 25\text{mm}$

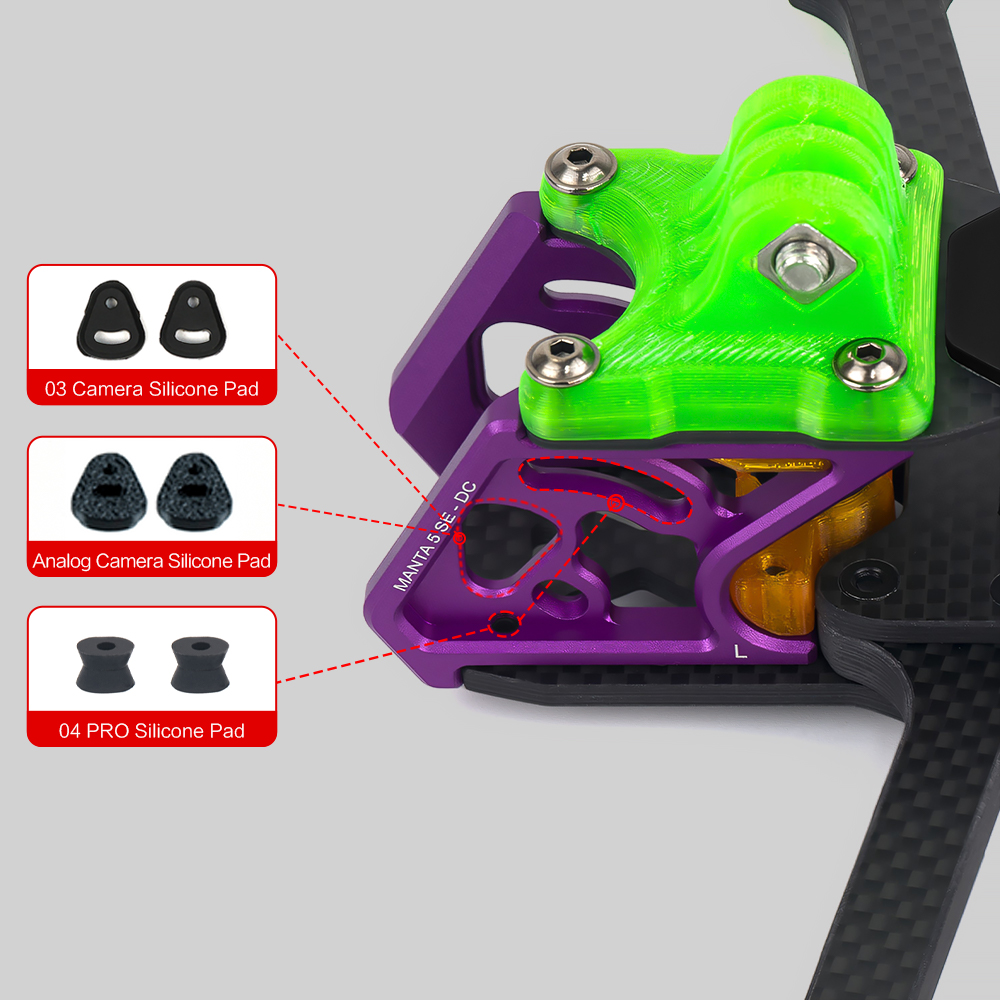

• Camera Mounting: $19\text{mm}/20\text{mm}/22\text{mm}$
• Motor Mounting: $16\text{mm}/19\text{mm}$

Includes

• 1x AxisFlying Manta 5 SE DC Frame Kit
• 1x Set of TPU 3D Printed Parts
• 2x Battery Straps
• 1x Hardware Kit
• 1x Battery Pad
