GEPRC LX5 Leopard Frame – 5″ Frame
This is the GEP-LX, also called ‘Leopard’, There are three kinds of specifications respectively. 4inch(wheelbase 195mm), 5inch(wheelbase 220mm), 6inch(wheelbase 255mm). The fuselage has a low center of gravity design.
The machine use 3k ultra-light carbon plate + Aviation aluminum # 7075 body. To strengthen the four arm, we also design a fixed four arm of the aluminum alloy parts, it is not easy to make the machine arm shift.
In order to perfect fit more lens, we presented two schemes of board. The optimum foxeer HS1190 models of cameras and 1 or 2 generation Runcam Swift models of cameras. We also equipped with A piece of PDB, take BEC output 5 v 3 A and 12V 0.5A.The frame all adopt the YFS screws, 12.9 magnitude
Specifications：
Name：GEP-LX5 Leopard
Weight：114g
Wheelbase：220mm
Props Size: 5inch
Size：195*195mm
Arms board:4mm
Side board:2mm
Other board:1.5mm
Recommended：
Flight Controller：F3 /F4/Naze32/ CC3D
Motors： 2204/2205/2206/2305/2306
ESC：20A-30A
Propeller：5inch
Battery: 3S 1300mAh ~ 4S 1500mAh
Features：
1. Aviation aluminum # 7075 high-precision CNC fuselage, very strong resistance to blast
2. 3K high strength carbon board to ensure that the frame is strong

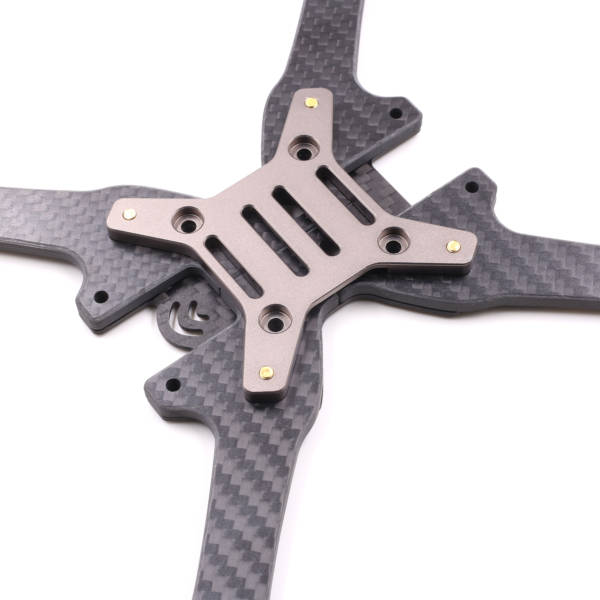

3. An aluminum alloy structure, binding the four machine arm will not shift
4. “True X” Structure. Suitable for competition and Freestyle fancy flying
5. Reasonable gopro, runcam position, convenient video
6. 13.5 mm wide, 4 mm thick arm design, small wind resistance coefficient
7. 5 inch wheelbase 220 mm, 4 “wheelbase 195 mm, 6 inch wheelbase 255 mm, have wider air through
8. The YFS screws, 12.9 level of hardness

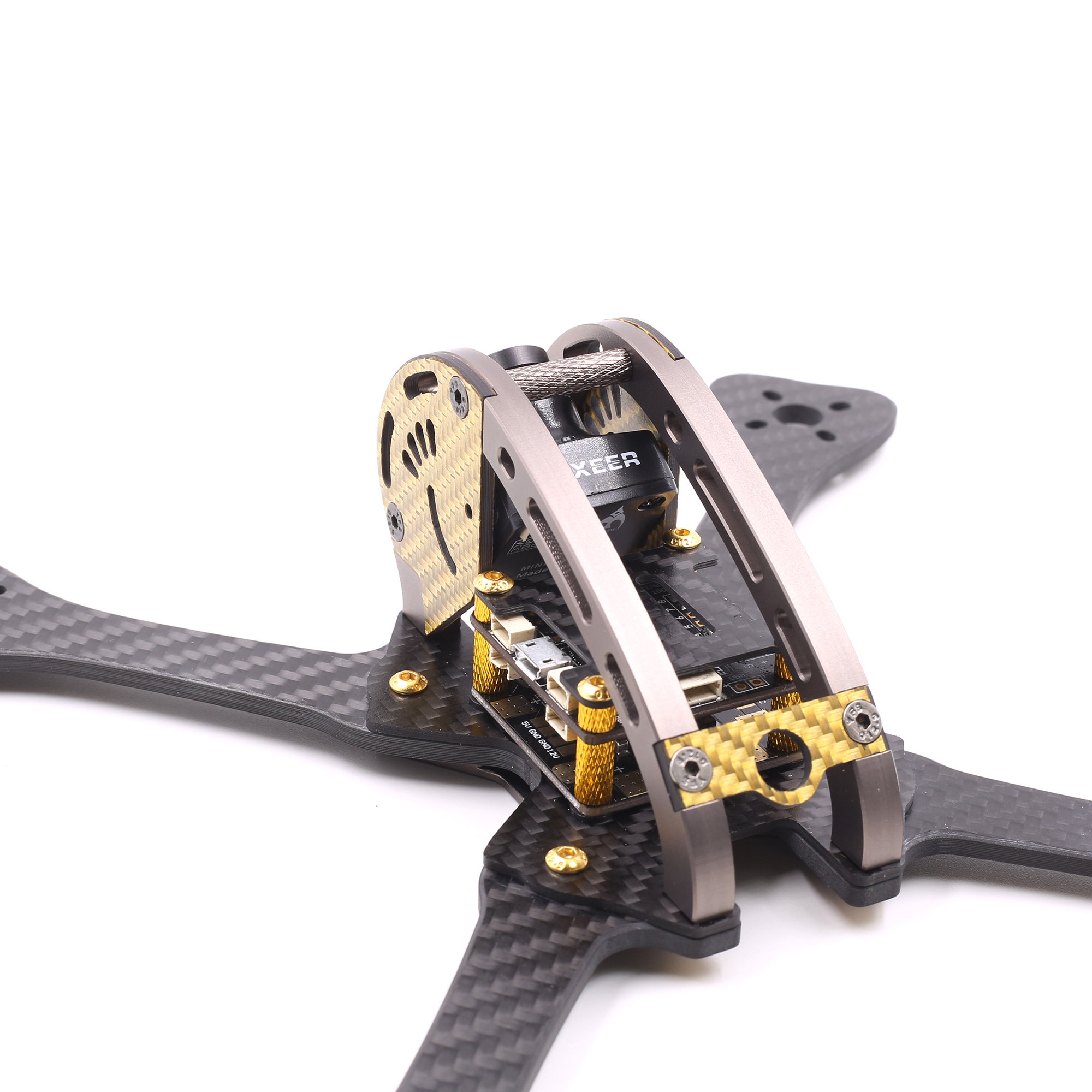

9. Two sets of cameras side panel, support HS1190 HS1170, Swift, ovf lens, etc
10. The motor position widened, home is not easy to hit the motor
11. The camera is adjustable, 0 to 60 degrees
With the kits: a pie
