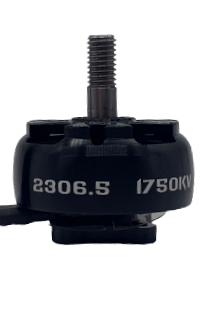

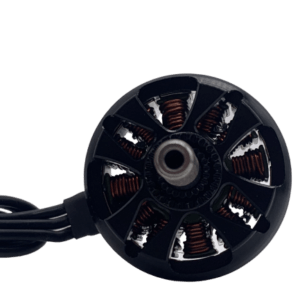

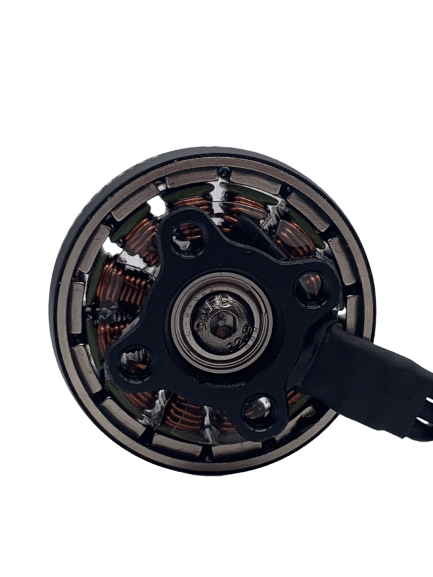

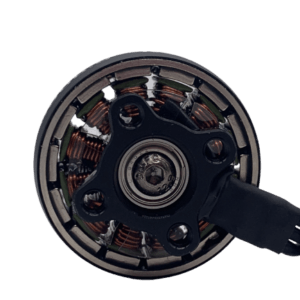

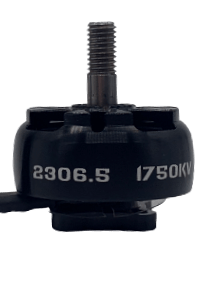

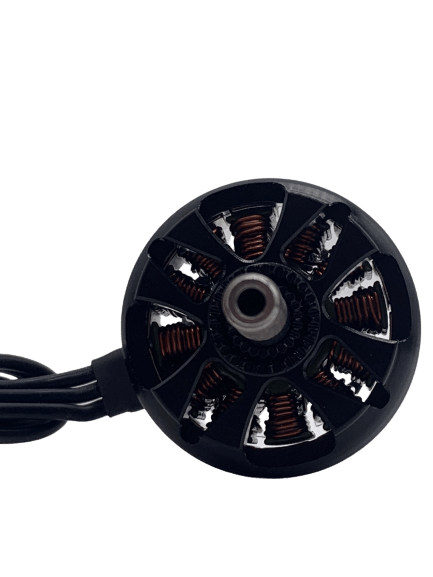

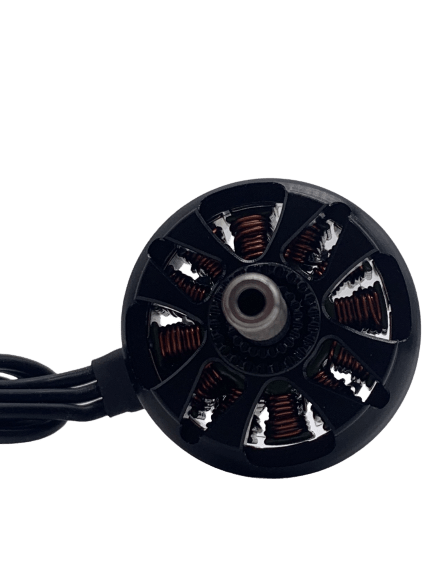

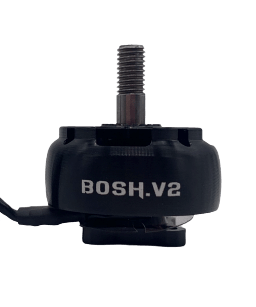

Bosh V2.3 Unibell FPV Drone Motor 2306.5 Matte Black (Pick your KV)
Other Bosh FPV Racing Products
Introducing the brand new Bosh v2.3 FPV Freestyle Motors, where innovation meets performance! Our unique thick spoke design is set on a unibell configuration and comes with exciting upgrades including a 4mm shaft diameter, NSK693 bearings, and plastic protection for motor mounting screws. Enjoy the power and agility of a 2306.5 bell that works for everyone! With Bosh v2.3, we’ve considered every angle, making it the go-to motor that’s powerful, light, agile, and weighs just 34g!
SPECIFICATIONS
- KV: 1600Kv, 1700Kv, 1750Kv (Pick your favorite, or try them all!)
- Configuration: 12N14P
- Shaft Diameter: 4.0mm
- No. Of Cells: 6s
- Prop Shaft: M5
- Motor Wires: 20AWG (Thicker and better) 145mm length
- Prop Size: 4 – 7 Inch
- Weight: 34g
- Motor Size: 2306.5
- Magnets: N50H Arc
- Stator: 0.2mm Silicone Steel Sheet
INCLUDES
1 x Bosh V2.1 Motor in 1600Kv, 1700Kv, 1750Kv (Pick your Kv)
1 x M5 Nylock Propeller Nut
4 x M3 x 2.5mm Full Head Cap Head Mounting Screws
