Xing 2207 2450Kv (2-6s) FPV Racing Motor
See all of our iFlight products! Also, see all of our 2450kv motors!
Experience the legendary performance of the original iFlight XING 2207 motor, designed in collaboration with renowned FPV pilot Patrick Xing. This motor set the standard for power, thrust, and quality in the 5-inch class, providing the most incredible power in the lightest weight package. It’s the premium choice for pilots building a top-tier freestyle or racing FPV drone who demand uncompromising performance on a 4S power system.
Engineered by Pilots, for Pilots
The iFlight XING series combines high-quality motor production technology with expert technical knowledge. The result is a top-of-the-line motor featuring a unique elliptical body, a powerful stator with high-temperature N52H magnets, and a very small magnet-to-stator air gap. This meticulous design provides an incredibly responsive and powerful flight experience that gives pilots a direct, connected feel to their quad.
Premium Materials & Unmatched Durability
Built to be pushed to the limit, the XING 2207 features a high-strength 4mm titanium alloy shaft, a CNC high-precision machined 7075 aluminum bell, and 220°C heat-resistant copper wire windings. A standout feature is the crush-resistant damping bearing, which effectively eliminates vibration and protects the bearing assembly from impacts, leading to a smoother flight and longer motor life. Thoughtful details like a non-slip prop grip surface and large heat dissipation holes make this a true performance workhorse.
Key Features:
- High-Performance 2450KV: Perfectly tuned for aggressive 4S flying, delivering explosive power and high RPM for competitive racing and extreme freestyle.
- 4mm Titanium Alloy Shaft: Provides exceptional strength and durability against crashes while being significantly lighter than steel.
- Premium Internals: Features N52H magnets, a Japanese Kawasaki 1200 Iron Core, and solid copper wire windings for efficient, reliable power delivery under extreme load.
- Advanced Cooling Design: Large, multi-heat dissipation holes help the motor run cooler, maintaining peak performance throughout your flight.
- Crush-Resistant Damping Bearing: A unique bearing design effectively eliminates vibration and protects the bearing from impacts.
- Non-Slip Prop Grip: A textured surface on the bell ensures your propeller stays locked in place, preventing prop slip during high-RPM punch-outs.
Specifications
- KV: 2450KV
- Input Voltage: 2-6S LiPo (Optimized for 4S)
- Configuration: 12N14P
- Stator Core: Japanese Kawasaki 1200 Iron Core
- Magnets: N52H High-temperature curved magnets
- Shaft: 4mm Titanium Alloy
- Mounting Pattern: 16x16mm (M3)

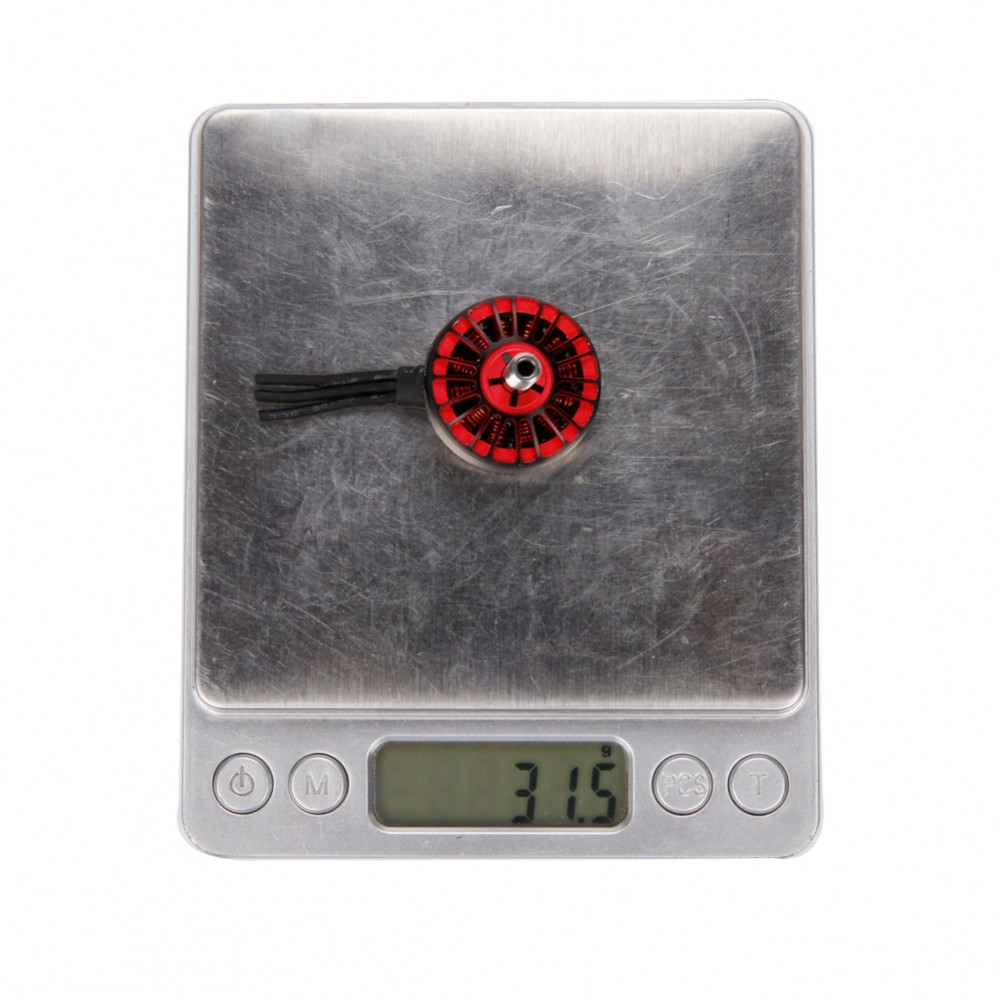

- Weight: 34.6g (with wires)
Package included:
- 1x XING 2207 2450Kv Racing Motor
- 1x Motor Hardware Set (Screws and Prop Nut)
