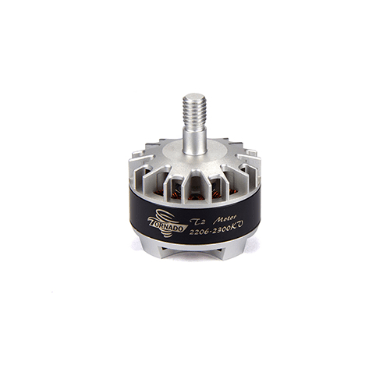

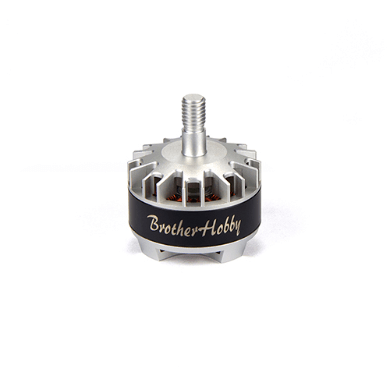

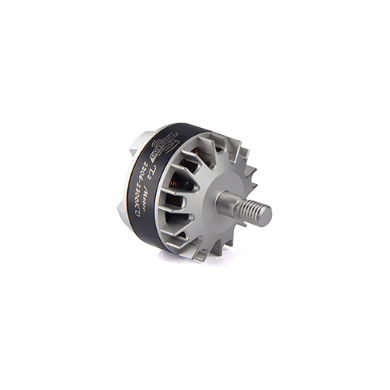

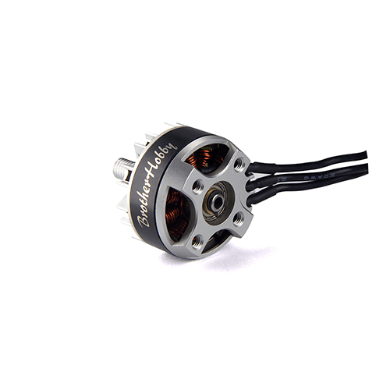

Brotherhobby Tornado T2 2206 Motor
See all of our Brotherhobby products, and all of our 1800kv and 2450kv motors!
Power your 5-inch FPV drone with the legendary performance and smoothness of the Brotherhobby Tornado T2 2206 motor. Renowned for its premium components and exceptional build quality, the Tornado T2 is a top-tier choice for pilots building a freestyle or racing FPV drone kit. With a wide variety of KV options available, you can perfectly match the motor to your preferred battery voltage and flying style.
Built with Premium Components
The Tornado T2 is engineered for performance and longevity. It features high-quality Japanese NSK bearings for incredibly smooth operation, powerful N52H arc magnets for instant torque, and a stator made from 0.15mm Nippon Steel silicon steel for maximum efficiency. These high-end drone parts are housed in a durable 7075 aluminum bell and base, ensuring this motor can handle the demands of aggressive FPV flight.
Choose Your Perfect KV
Selecting the right KV is crucial for tuning your FPV drone’s performance. The Tornado T2 is available in several options to match your build:
- 2600KV: Ideal for competitive 4S racers seeking the highest possible RPM and top-end speed.
- 2450KV: A powerful and popular choice for aggressive 4S freestyle and racing. Also performs well on 5S with proper throttle management.
- 2300KV: A classic all-arounder for 4S, offering a perfect balance of responsive power and smooth control for freestyle flying.
- 1800KV: The efficiency choice, perfect for 5S builds, spinning larger 6-inch props, or achieving a super smooth, 6S-like feel.

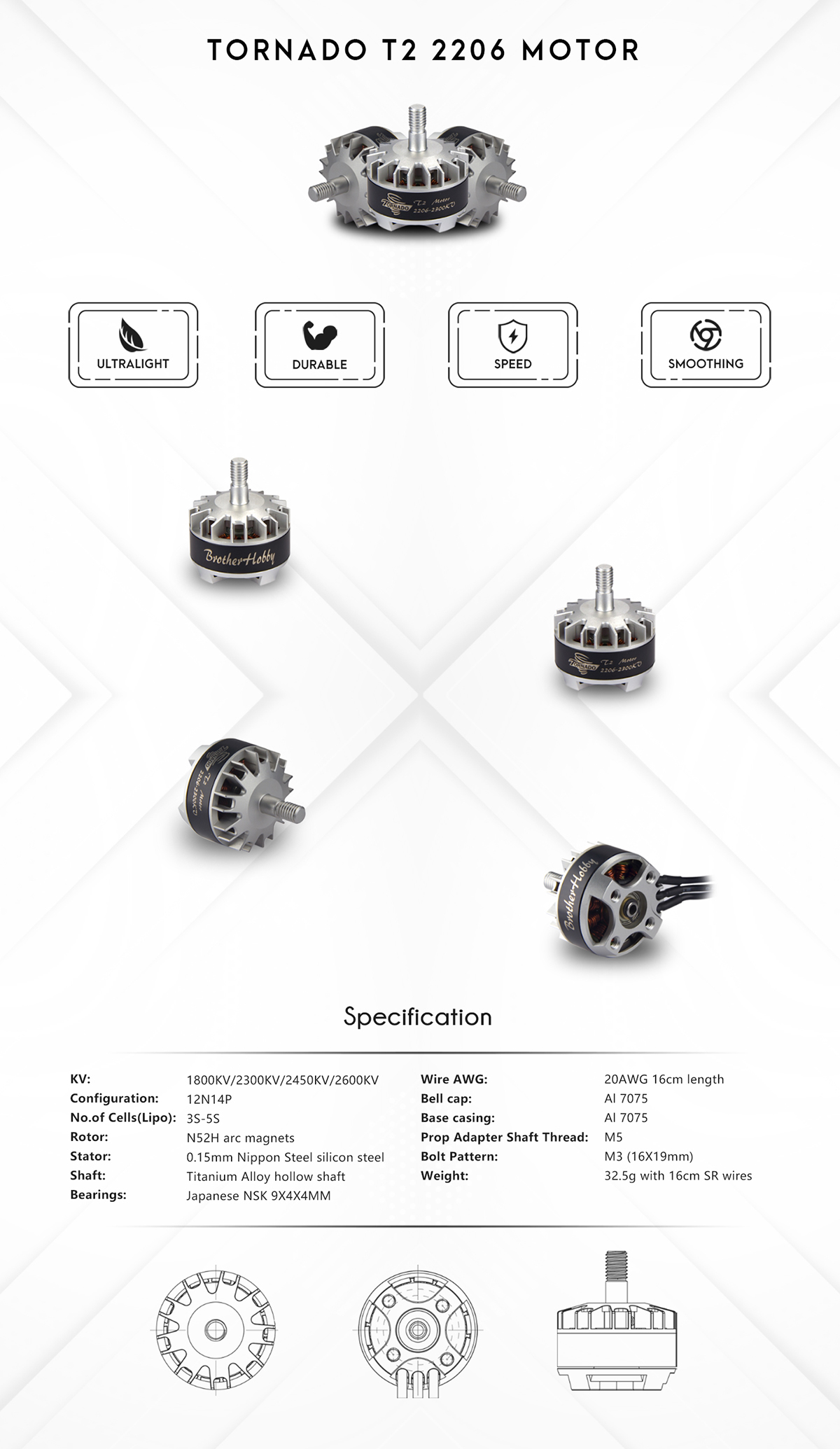

Specifications
- Brand: Brotherhobby
- Model: Tornado T2
- Stator Size: 2206
- KV Options: 1800KV / 2300KV / 2450KV / 2600KV
- Input Voltage (Lipo): 3S – 5S
- Bearings: Japanese NSK 9x4x4mm
- Magnets: N52H Arc Magnets
- Stator Material: 0.15mm Nippon Steel
- Wire: 20AWG, 16cm Length
- Mounting Pattern: M3 (16x19mm)
- Weight: 32.5g
What’s in the Box?
- 1x Brotherhobby Tornado T2 2206 Motor (in selected KV)
- 4x M3 Motor Screws
- 1x Propeller Lock Nut
