T-Motor F4 + F45A V2.0 4-in-1 Stack
See all of our T-Motor products and all of our Stacks!

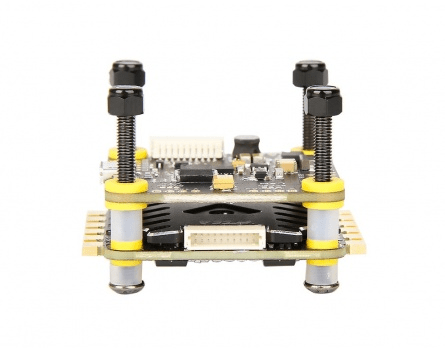

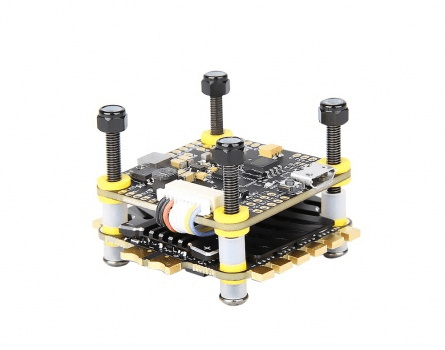

The F4 Flight Controller from T-Motor, which is expertly crafted, when paired with the F45A V2 3-6s BLHeli32 4-in-1 ESC, will provide you with superior performance. You can achieve a solderless installation and an extremely low stack height by utilizing the provided 10-pin cable.

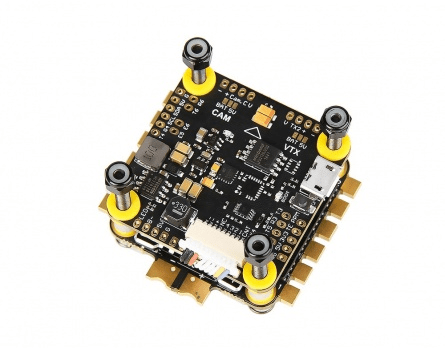

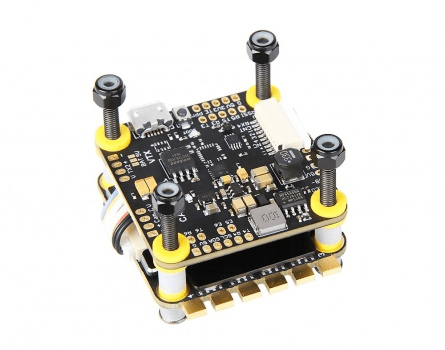

About the F4 Flight Controller
The T-Motor F4 Flight Controller includes an LC filter that effectively eliminates interference to your VTX and other equipment. Additionally, it is equipped with a 5V/2A BEC, which enables you to connect receivers, cameras, and other 5v compatible gear. The F4 also boasts 6 UARTs, providing ample connectivity options. Moreover, users have the flexibility to choose between two gyros – the ICM20602, which offers high refresh rates, and the MPU6000.
Description
- Input Voltage: 2-8S (8.4-33.6V)
- MCU: STM32F405RGT6
- IMU: ICM20602
- OSD: Included
- Blackbox: Onboard flash memory of 16MB
- UARTs: 6
- ESC Connections: 6
- Firmware: BetaFlight, targeted for T-MOTOR F4
- BEC: 5V 2A
- LC Filter: Yes
- Current Sensor: ESC telemetry or current ADC
- Buzzer: Pads provided
- Barometer: None
- Dimensions: 37x37x7mm
- Mounting Pattern: 30.5×30.5mm
- Weight: 7g
About the F45A ESC
T-Motor has introduced a 4-in-1 ESC variant of their renowned F45A ESC, known as the F45A 4-in-1 ESC. It delivers an impressive 45A output through an industrial-grade PCB layout that features top-of-the-line components such as a 32-bit main control chip, BLHeli_32 firmware, and 6s compatibility.
To ensure optimal performance, the F45A 4-in-1 ESC is equipped with a heatsink that helps dissipate heat from sensitive electronic components.

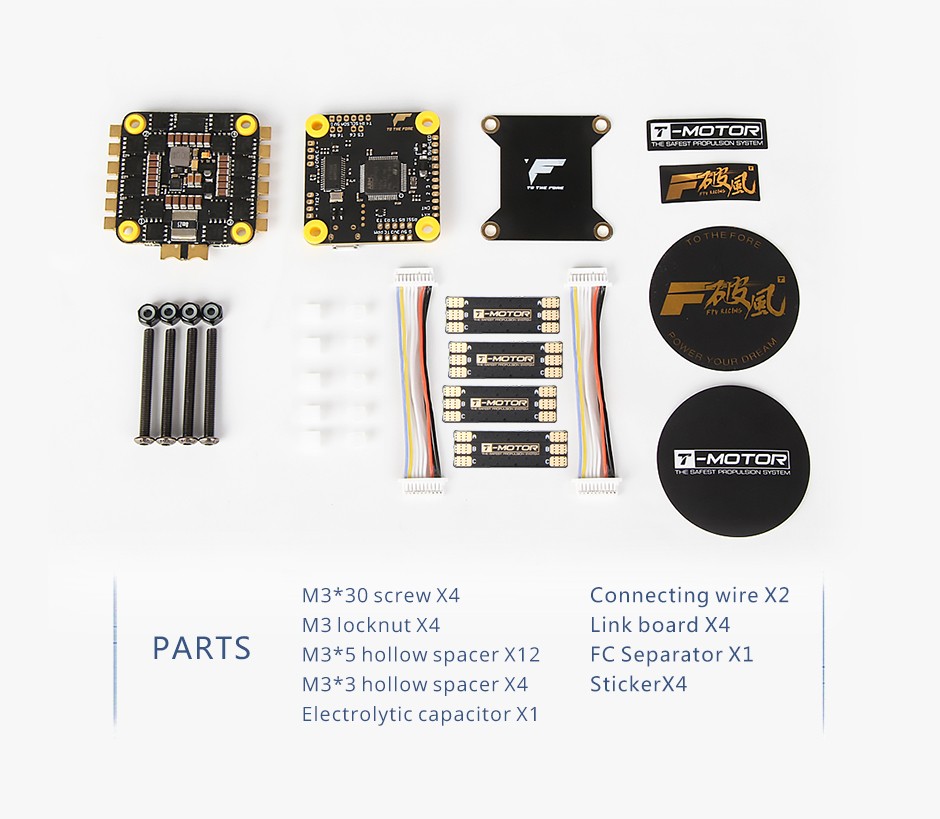

In addition, this ESC includes 4 motor wire PCBs that can be mounted onto your quad arms to safeguard your motor wires from damage caused by prop strikes or other types of harm. This thoughtful addition is a nice touch.
Description
32-bit Main Control Chip: The 32-bit STM32F051 main control chip offers faster computing speeds and supports multiple functions, which is a significant improvement over traditional 8-bit MCUs.
Rapid Response Time: Enjoy zero lag operation with quick and precise throttle signal reception that provides prompt and accurate response.
Original BLHeli_32 Firmware: The original BLHeli_32 firmware is equipped with powerful performance and diverse functions, enabling ESC parameter configuration and firmware updates to increase the ESC’s reliability and efficiency.
- Model Number: F45A 6S 4IN1 32bit
- Continuous Current: 4*45A
- Peak Current (10 seconds): 4*53A
- LiPo Compatibility: 3-6S
- Weight: 18g
- Size: 49 x 40 x 6.9mm
