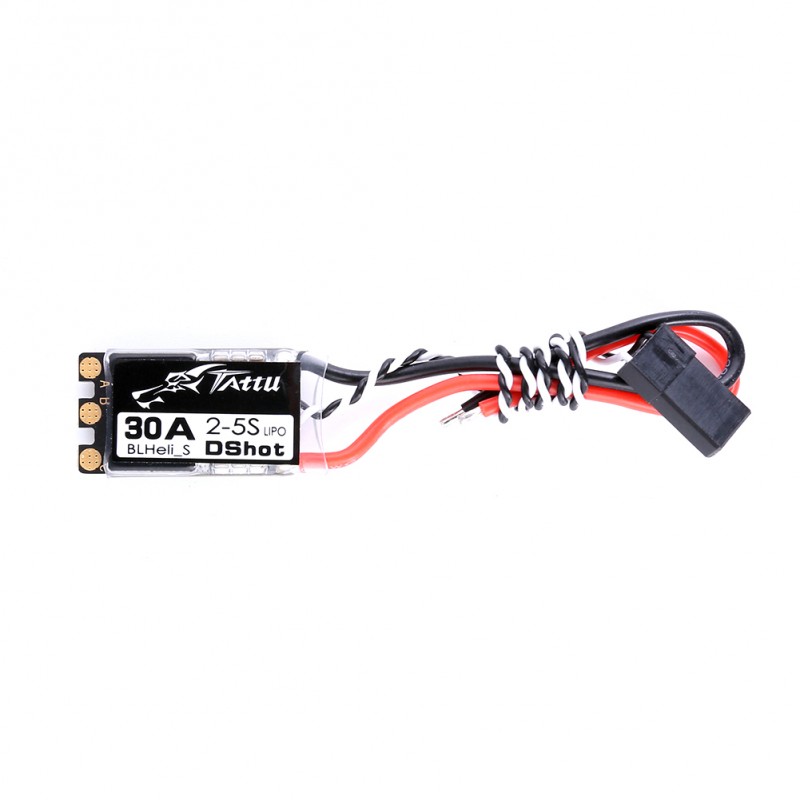

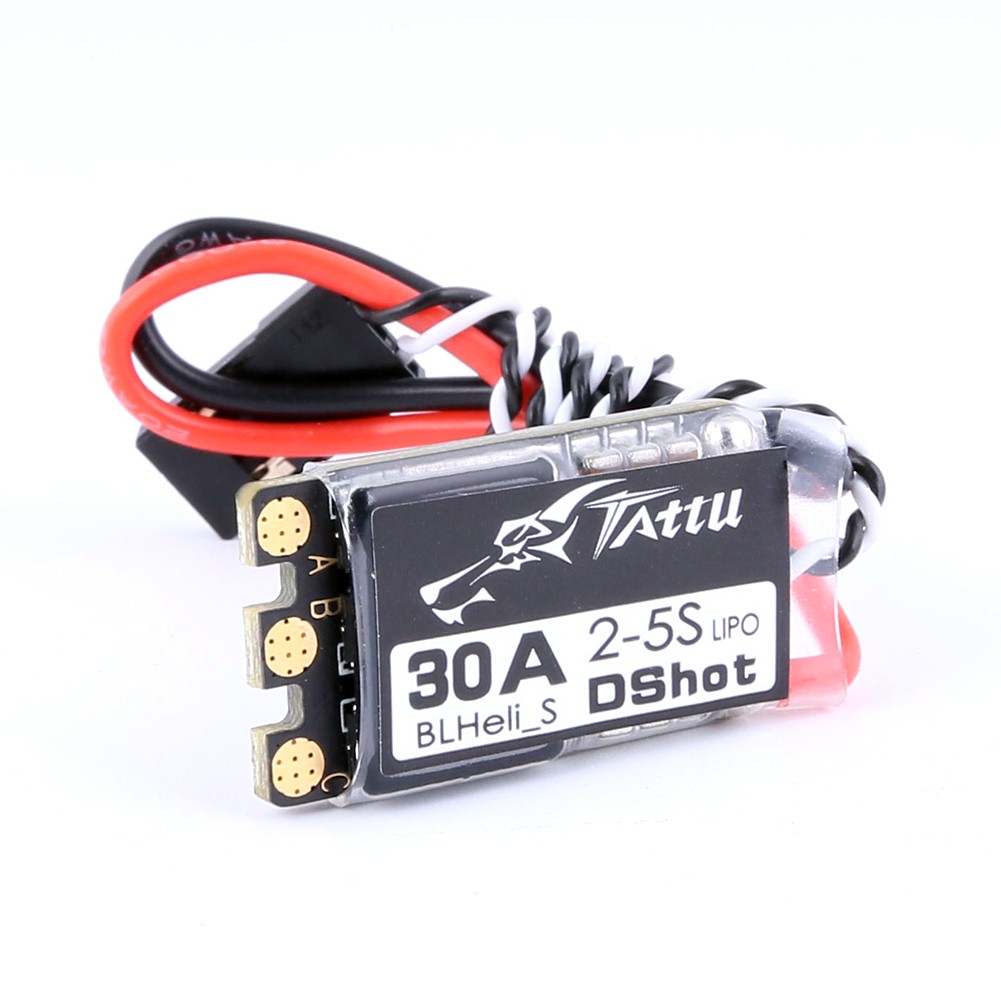

Tattu 30A BLHeli_S ESC (2-5S, w/Dshot, No BEC)

TATTU 30A BLHeli_S ESC (2-5S, w/Dshot, No BEC)

See all of our other Tattu Products!

This Tattu 30A 2-5S ESC is designed for superior performance for FPV Racing. It supports regular 1-2ms pulse width input, as well as Oneshot125(125-250us), Oneshot42 (41.7-83.3us), Multshot(5-25us), Dshot150, Dshot 300 and even Dshot600, all automatically detected by the ESC.

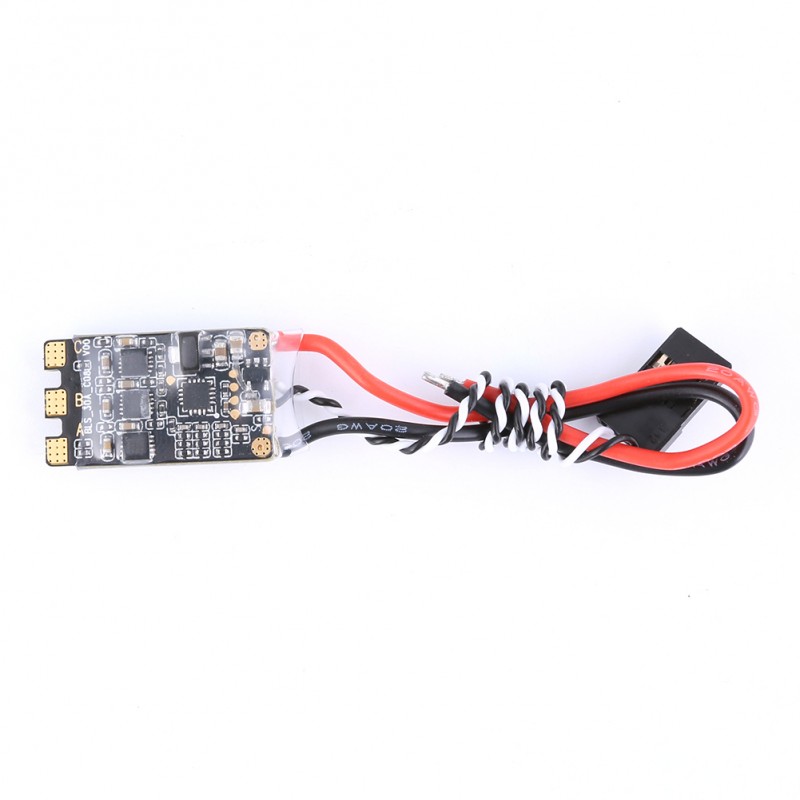

Features a high-quality N-FET, half-bridge drive, and PCB specialized for cooling, only flashed with BLHeli_S firmware.

Pre-flashed with the settings below:

Specifications:

• Firmware:  BLHeli_S V16.6   A-H-20
• Max continuous load: 30 amps
• Burst Current: 40A / 10sec
• Lipo Cells: 2 to 5 cells
• MCU:  SILABS  EFM8BB2 48MHz
• BEC:  No
• Weight: 3.6g (only board) 6.5g (total with wires and heat sink)

Dimensions:

• PCB size: 26mm L*14.5mm W
• ESC height: 6mm
• Signal wire: 150mm
• Power wires: 100mm
