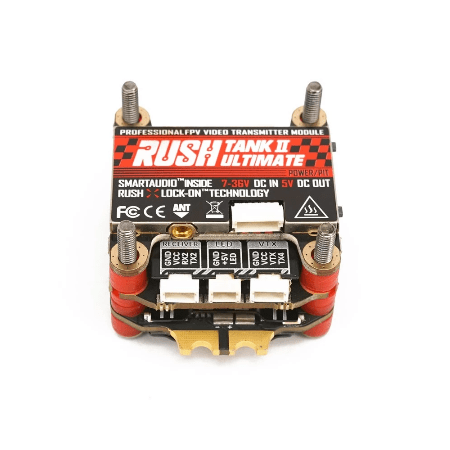

RUSHFPV RUSH BLADE F722 FC & 50A 30×30 Sport Edition & RUSH Tank II VTX Stack
The RUSH BLADE F722 Stack for analog by RUSHFPV features the RUSH TANK II 5.8GHz VTX, RUSH BLADE F722 Flight Controller, RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC (Sports Edition), handles up to 6S input voltage and pushes your FPV racing to the max.
Specifications

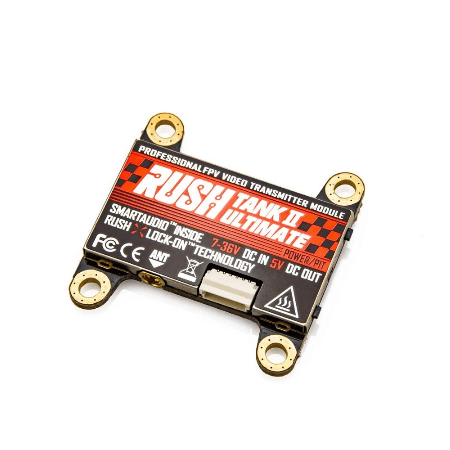

RUSHFPV RUSH TANK II 5.8GHz VTX w/ Smart Audio
- Item Name: Rush Tank II
- Input Voltage: 7-36V DC
- Output Voltage: 5V 1A
- 12V Input Current: 40mA@Pitmode, 95mA@25mW, 185mA@200mW, 250mA@500mW, 380mA@800mW
- Channels: 48CH RaceBand / LowRace
- Power: PIT/25/200/500/800 mW
- Audio: Support audio input
- Dimensions: 36*36*4.5 mm
- Weight: 6.8g(including cable)

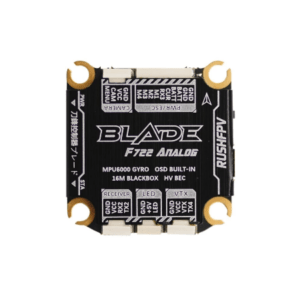

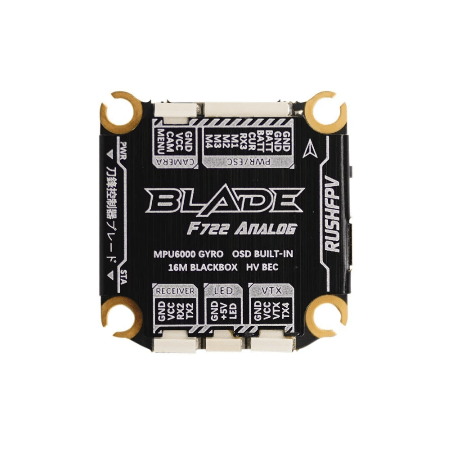

RUSHFPV RUSH BLADE F722 Flight Controller For Analog
- MCU: 216MHz
- GYRO: MPU6000
- OSD: Onboard OSD
- Input Voltage:3-8S
- BEC: 5V/5A
- Mounting Holes: 30.5mm x 30.5mm
- Firmware: betaflight_4.2.0_RUSHFC_8f2d21460

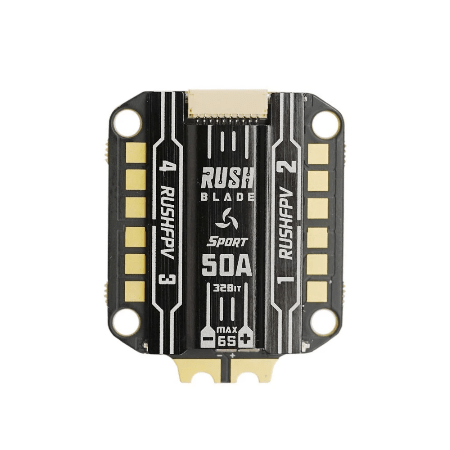

RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC – Sport Edition
- Rated Current: 50A
- Peak Current:60A
- Input Voltage:3-6SLipo
- MCU:F051 48MHz
- PWM FREQ:48K
- LED Color: Blue
- Weight:16.2g
- Dimension:45*36.5*7.5mm
- BL32 FW: RUSH_BLADE_SPORT
The RUSH PFB is small in size and can be installed at the tail of the ESC as a supplementary device for the filter. It is equipped with two 35V 330uF high-speed solid capacitors, and the parallel ESR is very low 5 m0 (TEST FREQ @10KHz)! It has a good filtering effect on high-frequency interference generated by ESC.
There are 3 high-power TVS diodes on board, which can cut voltage peaks at ns speeds, and absorb high-voltage surges caused by collisions of the propeller during a crash in time to protect the field-effect tube and other components from the surge. We recommend installing it in a high-power 6S brushless system.
Includes
- 1 x RUSHFPV RUSH TANK II 5.8GHz VTX w/ Smart Audio
- 1 x RUSHFPV RUSH BLADE F722 Flight Controller For Analog
- 1 x RUSHFPV RUSH BLADE 50A 3-6S BLHeli_32 4-in-1 ESC – Sport Edition
