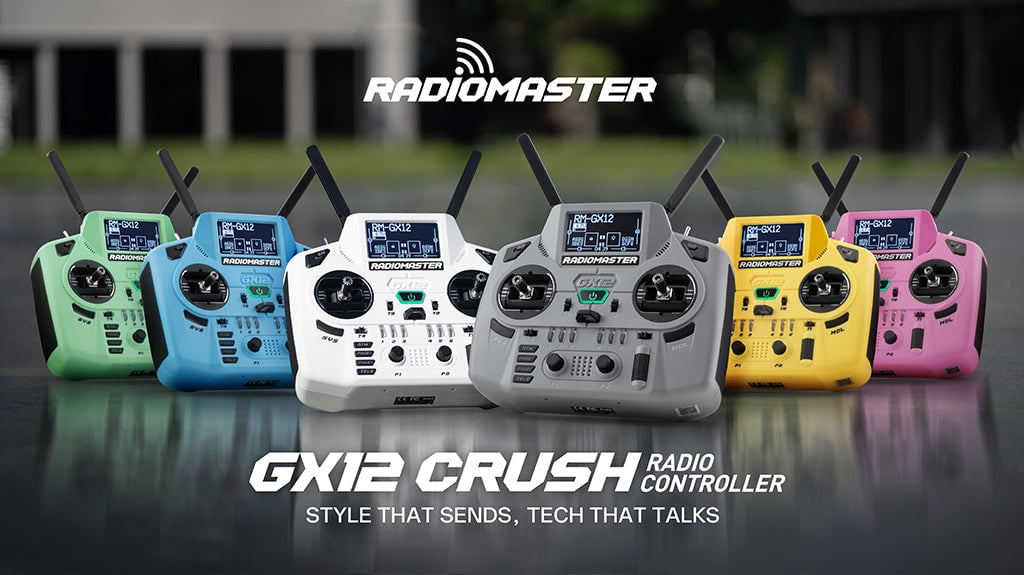

Introducing the GX12 Crush Edition – the same game-changing dual-band performance of the GX12, now with a bold new look. Built on the revolutionary Gemini-XROSSBAND ExpressLRS platform, the GX12 Crush delivers simultaneous dual-band transmission on 2.4GHz and 900MHz for unrivaled signal reliability. With premium CNC aluminum 1000Hz GX01 gimbals, folding dual-band antennas, modular switch panels, and a host of other pro-level features, this radio is made for the most demanding pilots.

Gemini Xrossband ELRS: Unrivaled Reliability Experience the pinnacle of radio link technology with ExpressLRS Gemini Xrossband (Gem-X). This system features dual 1-watt transmitters that operate simultaneously on both 2.4GHz and 900MHz, providing unmatched range and signal redundancy. The integrated, foldable dual-band antennas keep the design sleek and portable.

GX01 1000Hz CNC Gimbals Feel the difference with precision-engineered, fully CNC-machined aluminum gimbals. The GX01 gimbals feature 3D Digital Hall sensors and a blistering $1000\text{Hz}$ update rate with EdgeTX sync for superior control and durability. The sticks are foldable for convenient storage and transport, and travel is adjustable on both axes for a perfectly customized feel.

Pro-Level Features & Customization The GX12 Crush is packed with features for the serious pilot. It includes 512MB of integrated high-speed flash storage, eliminating the need for an SD card. The switch panels are modular and removable, and the kit comes with replacements to suit your preference. A programmable 6-position switch and customizable RGB indicators provide ultimate control, all housed in a rugged case with a hydrophobic PCB nano-coating for all-weather reliability.

Key Features:

• Dual-Band Gemini Xrossband ELRS: Simultaneous 2.4GHz and 900MHz transmission for the ultimate in range and signal reliability.
• GX01 1000Hz CNC Hall Gimbals: Premium, fully aluminum gimbals with 3D Hall sensors and a 1000Hz update rate for unparalleled precision.
• Customizable RGB Lighting: Programmable RGB indicators on key switches provide instant visual feedback.
• 512MB Integrated Flash: High-speed onboard storage for models, scripts, and sounds—no SD card needed.
• Removable Switch Panels: Customize your switch layout with included replacement panels.
• All-Weather Durability: Features thicker plastics and a hydrophobic PCB nano-coating to withstand demanding environments.

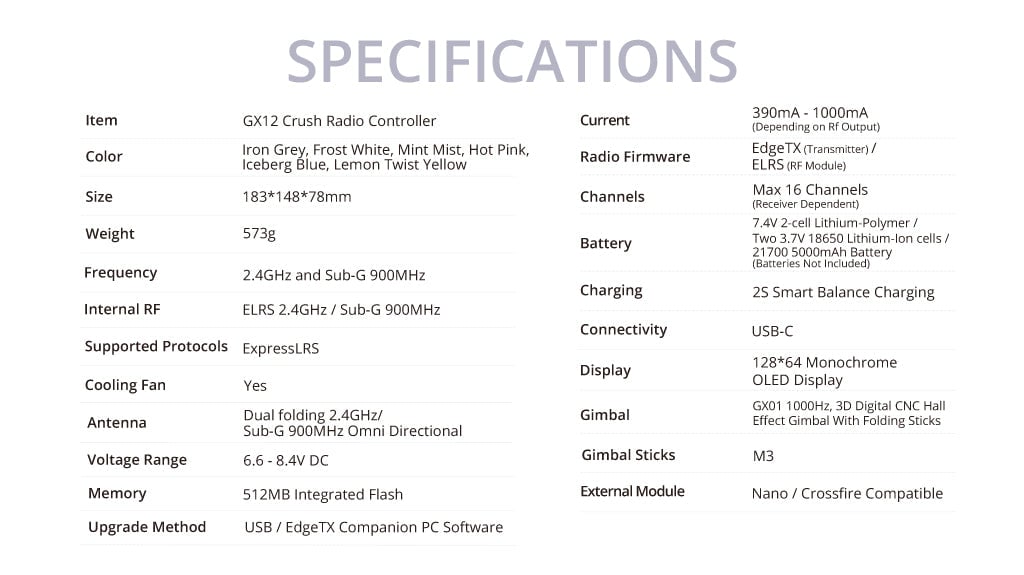

Specifications

• Item: GX12 Crush Radio Controller

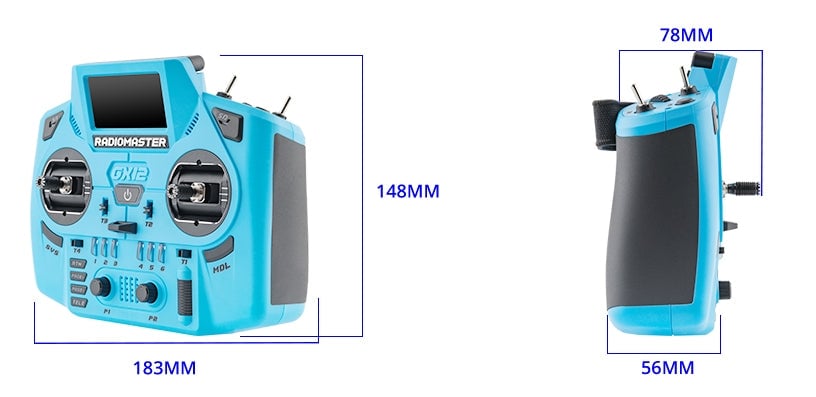

• Size: $183\times 148\times 78\text{mm}$
• Weight: $573\text{g}$
• Frequency: 2.4GHz and Sub-G 900MHz (Simultaneous)
• Internal RF: ExpressLRS Gemini-XROSSBAND
• Radio Firmware: EdgeTX
• Display: 128*64 Monochrome OLED
• Gimbals: GX01 1000Hz 3D Digital CNC Hall Gimbals
• Gimbal Sticks: M3 Thread
• Memory: 512MB Integrated Flash
• Battery: Supports 7.4V 2S LiPo, two 3.7V 18650 Li-Ion cells, or a 21700 5000mAh pack (batteries not included)
• Module Bay: Nano / Crossfire compatible
• Available Colors: Iron Grey, Frost White

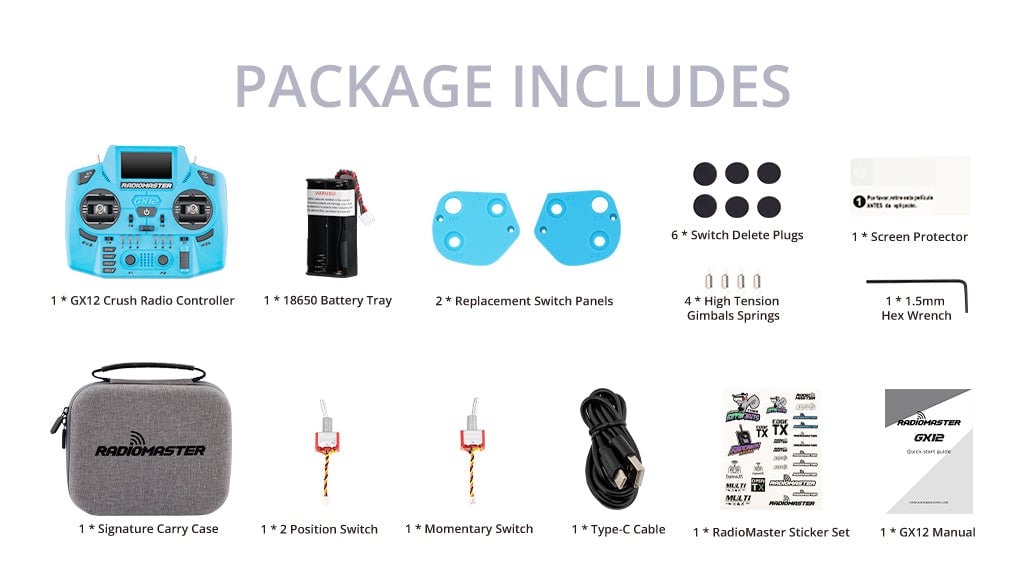

Package Includes

• 1 * GX12 Crush Radio Controller
• 1 * Signature Carry Case
• 1 * 18650 Battery Tray
• 2 * Replacement Switch Panels
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 * 1.5mm Hex Wrench
• 4 * High Tension Gimbals Springs
• 6 * Switch Delete Plugs
• 1 * 2-Position Switch
• 1 * Momentary Switch
• 1 * Sticker Set
• 1 * User Manual
