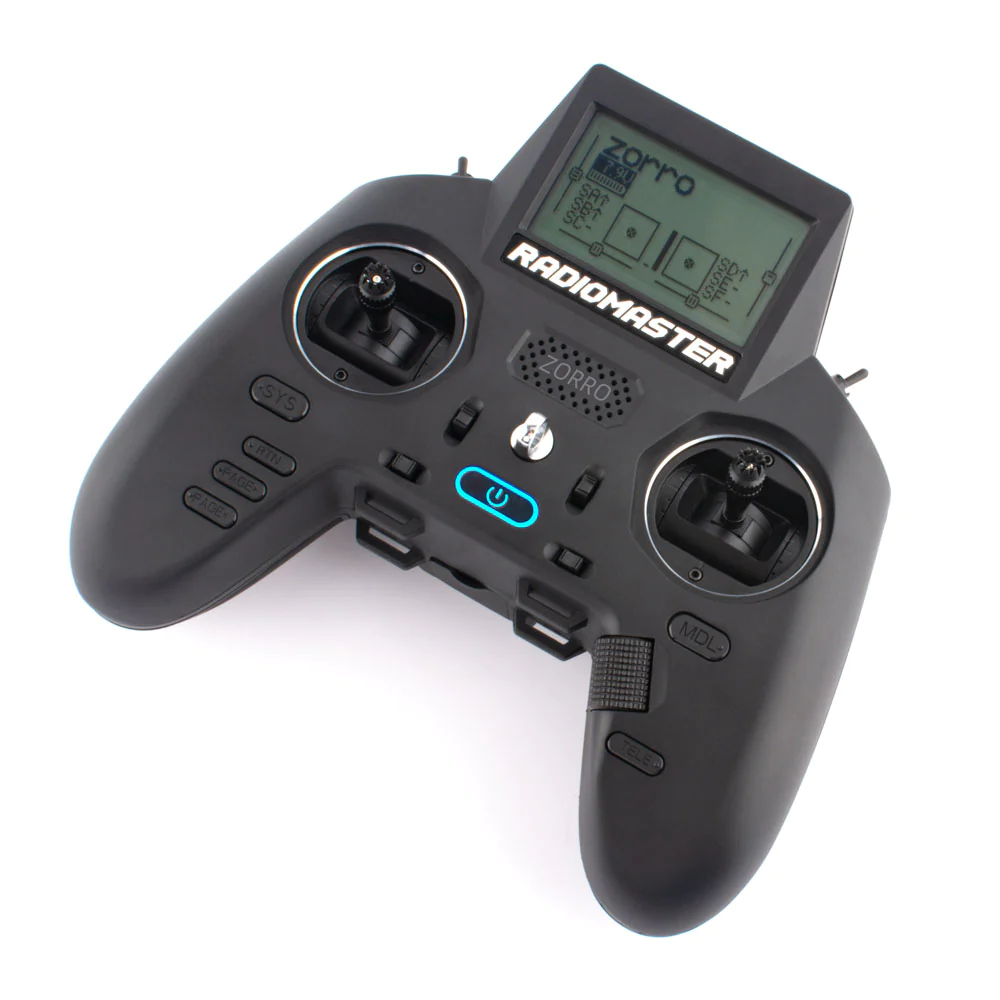

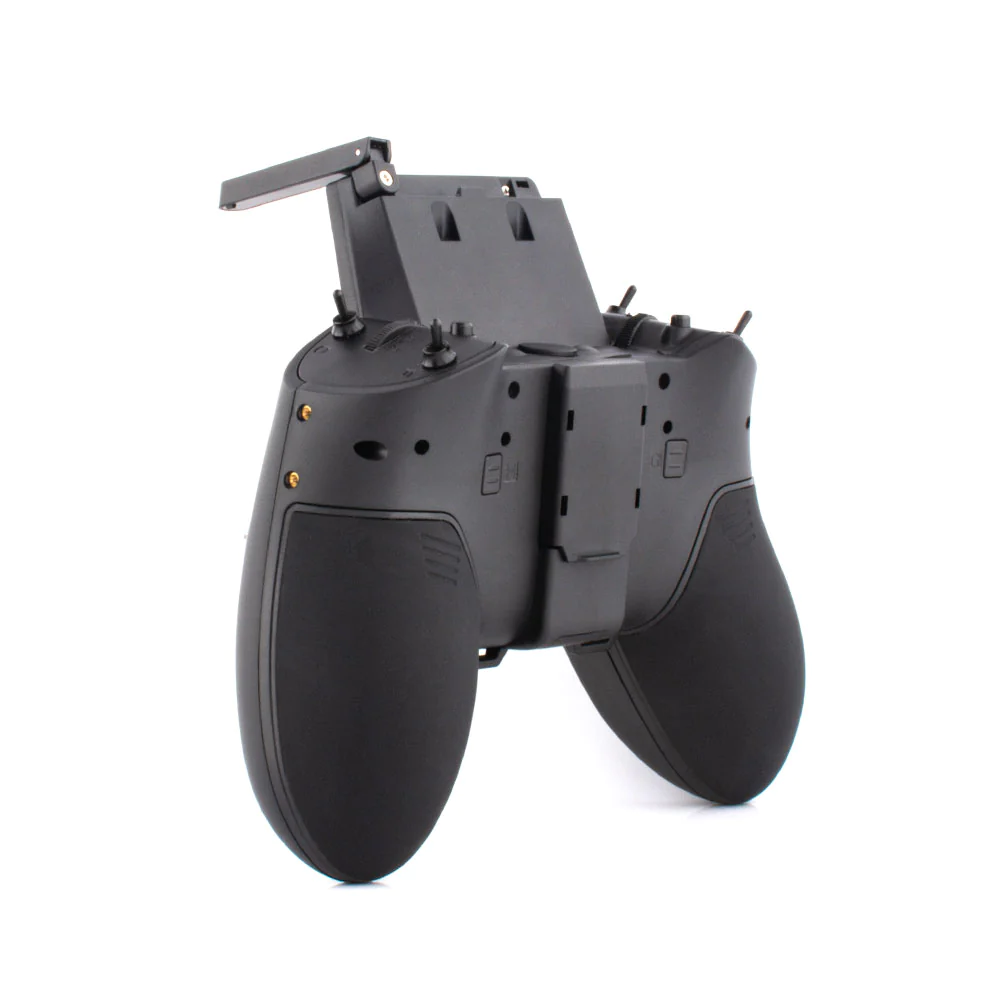

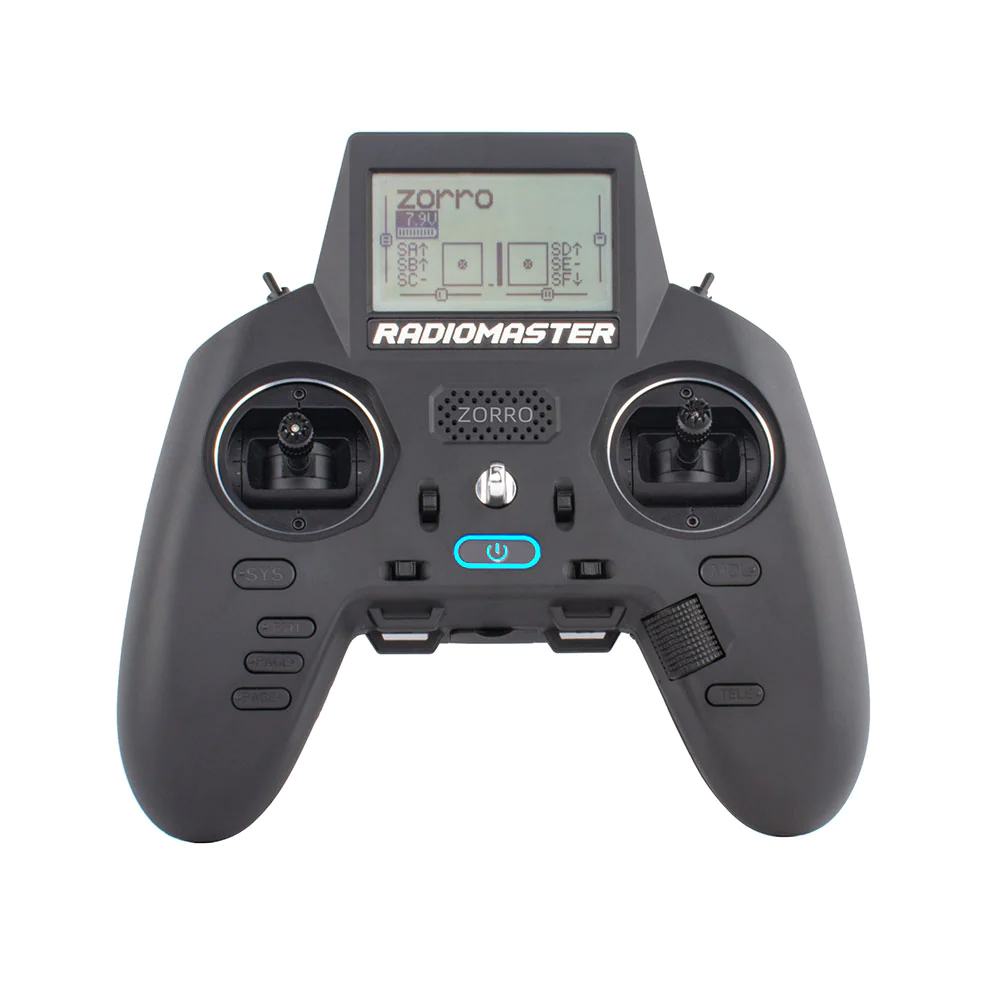

RadioMaster RC Zorro Radio Controller (M2)
Check out all of our RadioMaster products, and all of our Radio Controllers!
Batteries are not included, so make sure to pickup this Radiomaster 18350 battery**
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specification
| Versions | CC2500 | 4in1 | ELRSÂ | ELRS Starter Set | CC2500 + TBS Nano Crossfire Combo | |
| Physical Dimensions |
170*159*108mm |
|||||
| Weight |
350 grams |
|||||
| Operating Frequency |
2.400GHz-2.480GHz |
|||||
| Internal RF Options | CC2500 multi-protocol | 4-in-1 multi-protocol | ELRS | CC2500 multi-protocol | ||
| Supported Protocols | Module dependent | Module dependent | ELRS | Module dependent | ||
| RF Power | CC2500: 20dBm max. | 4-in-1: 20dBm max. | Up to 250mw ( CE & FCC Versions will be available) | CC2500: 20dBm max. | ||
| Antenna Gain |
Folding 2db |
|||||
| Operational Current |
160mA@8.4V |
|||||
| Operational Voltage |
6.6-8.4v DC |
|||||
| Control Distance | > 2km @ 20dbm | > 2km @ 20dbm | Receiver and Power Output dependant | > 2km @ 20dbm | ||
| Operating system |
OpenTX / EdgeTX Compatible |
|||||
| Control channels |
Maximum 16 (Rx dependent) |
|||||
| Display |
128*64 Monochrome LCD |
|||||
| Battery |
2 x 18350 (Not included) |
|||||
| Charging |
Built in USB-C Charging |
|||||
| Gimbal |
Hall-effect |
|||||
| Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
|||||
| Firmware Upgrade Method |
Via USB or SD card |
|||||
Unfortunately, Free Shipping is not allowed with Radiomaster RC Products
