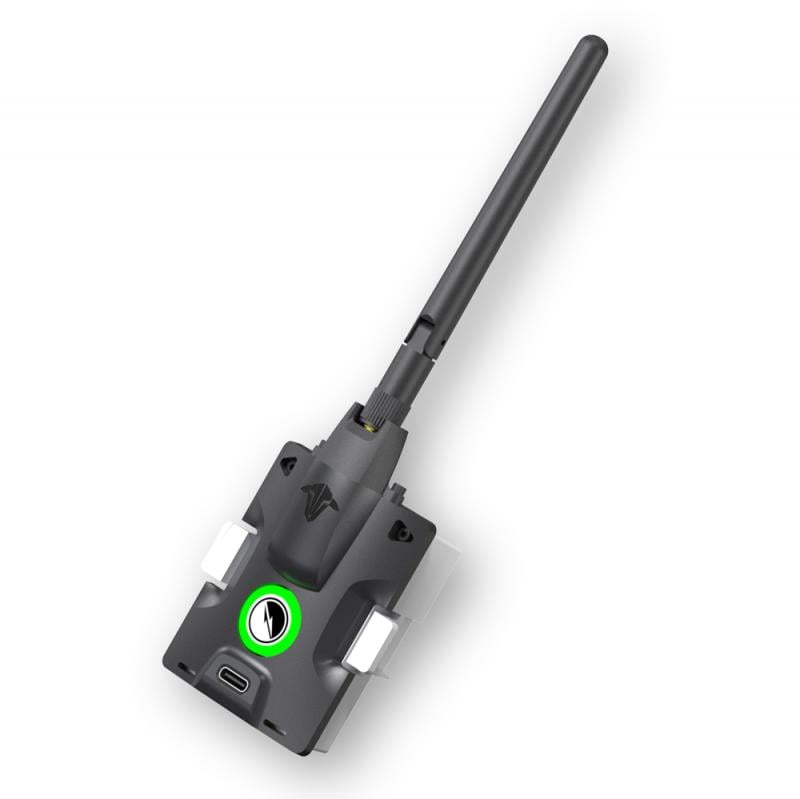

TBS Tracer Micro TX
Experience the next evolution in FPV control links with the TBS Tracer Micro TX. Team BlackSheep has taken the legendary robustness of their Crossfire engine, shrunk it down, and massively sped it up for the 2.4GHz band. The result is a radio system that provides a near-instantaneous, “locked-in” feel that is perfect for FPV racing and high-performance freestyle, all without sacrificing range.
The Tracer is built for speed. With a blistering 250Hz refresh rate and an incredibly low 3ms end-to-end latency, it creates one of the fastest radio and telemetry links available today. This near-zero delay between your stick inputs and the drone’s response provides a massive competitive advantage and the precision needed for the most complex maneuvers. You’ll feel more connected to your quad than ever before.
This system shatters expectations for 2.4GHz range. By combining next-generation technology with the robust Crossfire radio engine, the Tracer is capable of achieving a range of over 15 miles (25km). This gives you the best of both worlds: the convenience of smaller 2.4GHz antennas and the peace of mind of a rock-solid, long-range link. The Micro TX module uses the standard “JR” form factor, making it a simple plug-and-play upgrade for a wide variety of popular transmitters like the RadioMaster TX16S and FrSky Taranis.
KEY FEATURES
- 250Hz Refresh Rate: The fastest available radio and telemetry link for a near-instant connection.
- 3ms End-to-End Latency: Provides an incredibly responsive and “locked-in” flight feel, ideal for racing.
- Next-Gen 2.4GHz Technology: Combines the speed of 2.4GHz with the robustness of the Crossfire engine.
- Extreme Long Range: Capable of 15+ miles / 25+ km, far exceeding conventional 2.4GHz systems.
- “JR” Module Form Factor: Plug-and-play compatibility with a wide range of popular transmitters.
SPECIFICATIONS
- Latency & Refresh Rate: 3ms, 250Hz
- Output Power: 25mW / 100mW
- Frequency Bands: 2.4GHz ISM
- Input Voltage: 5V – 13V
- Connector: USB-C
- Power Consumption: 1.1W (@10mW) – 2W (@100mW)
- Dimensions: 65 x 48 x 22 mm (JR module size)
- Radio Compatibility: JR module bay (OpenTX V2.1+)
INCLUDES
- 1x TBS Tracer Micro TX Module
- 1x TBS Tracer TX Antenna
