FrSky Ultra Mini Redundancy Receiver – R-XSR with ACCST
Check Out The New ACCESS Version Here. Take a look at all of our FrSky Products!

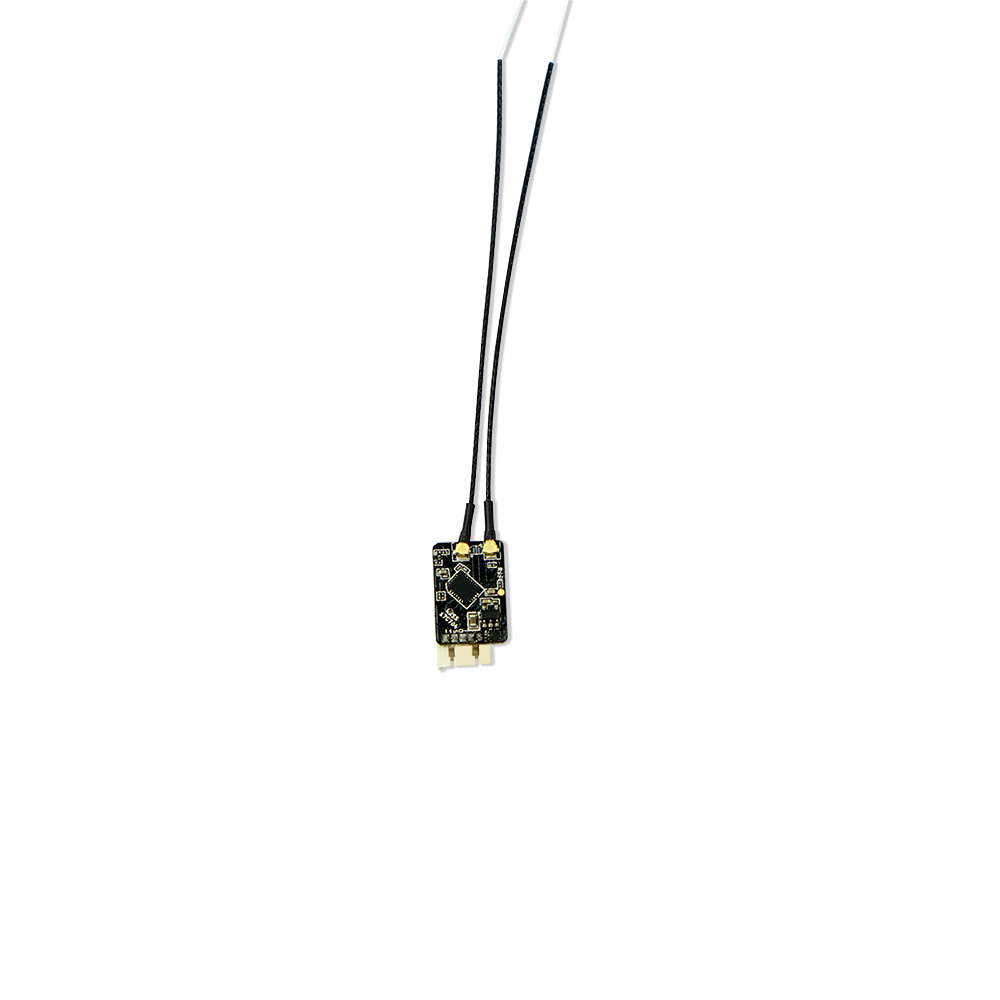

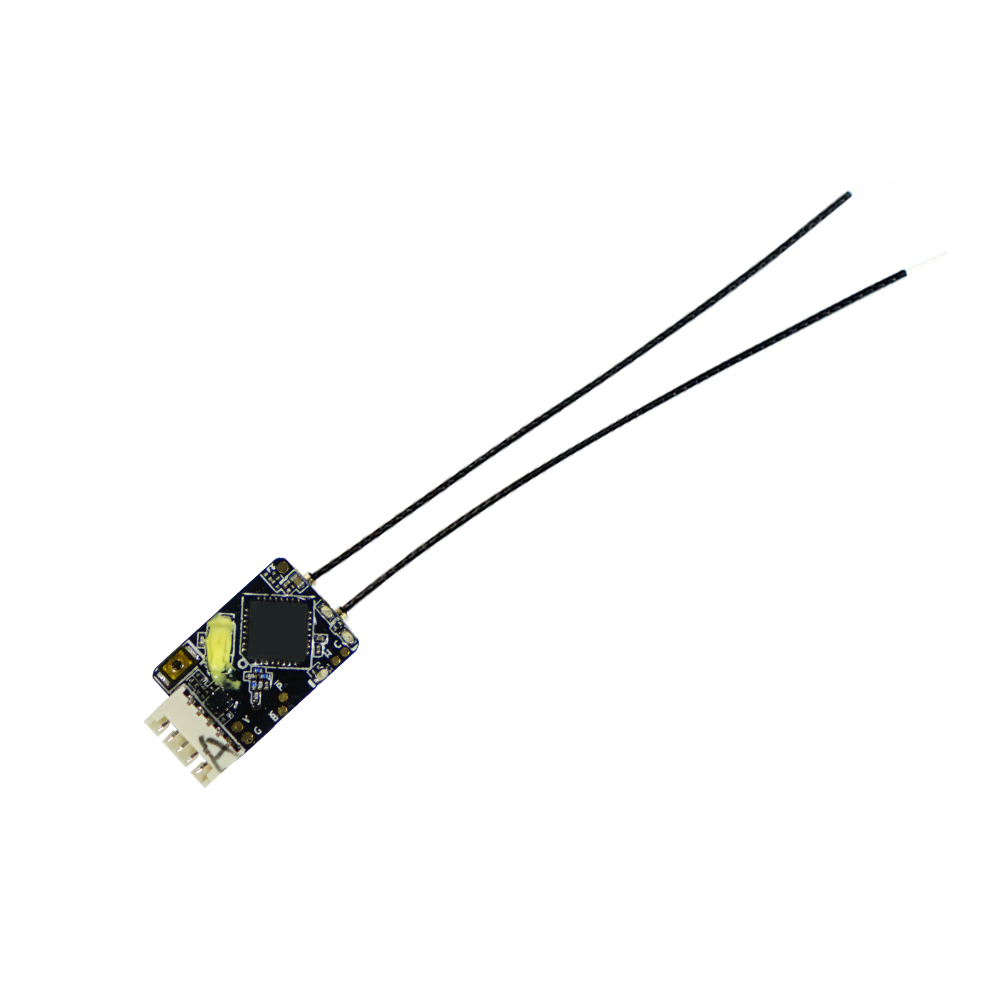

FrSky ultra mini receiver R-XSR is the evolution of the FrSky full-range XSR receiver. The R-XSR is a standalone receiver with all the functions of XSR, in addition, it’s almost 1/3 size and 1/3 weight of the XSR receiver. Moreover, the redundancy function integrated into this tiny receiver ensures security and the IPEX connector makes it more convenient for you to replace antennas.
SPECIFICATION
- Dimension: 16*11*5.4mm (L*W*H)
- Weight: 1.5g
- Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
- Operating Voltage Range: 3.0~10V
- Operating Current:70mA@5V
- Firmware Upgradable
- Compatibility: FrSky X Series modules and radios in D16 mode
FEATURES
- Ultra mini size and lightweight
- Support telemetry and Smart Port enabled
- Full range
- Switchable SBUS/ CPPM signal output
- Supports redundancy function
- IPEX connector, replaceable antennas
