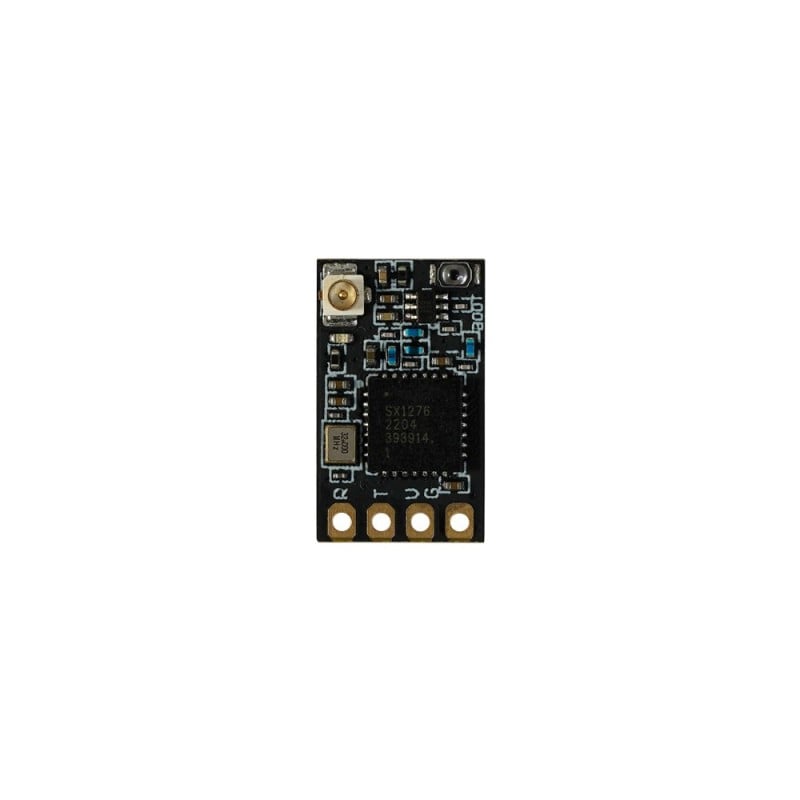

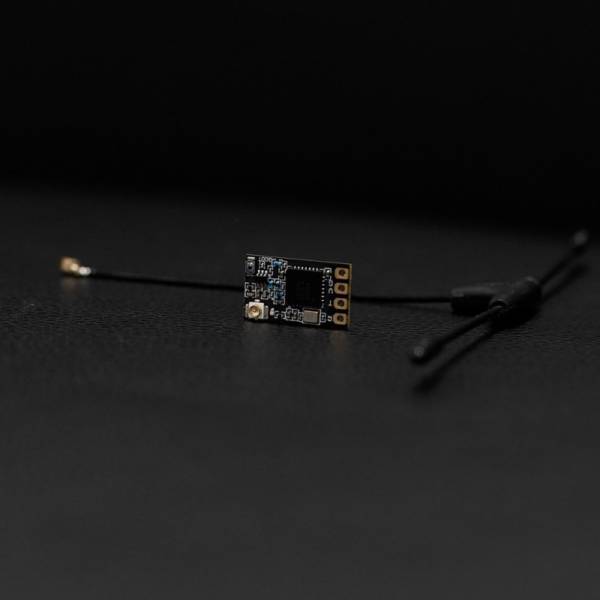

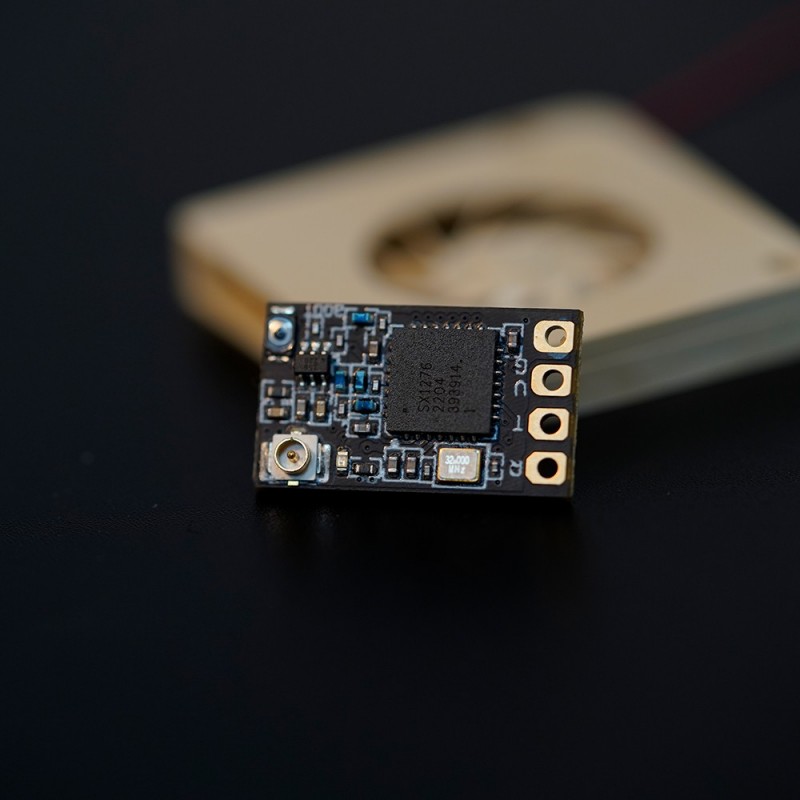

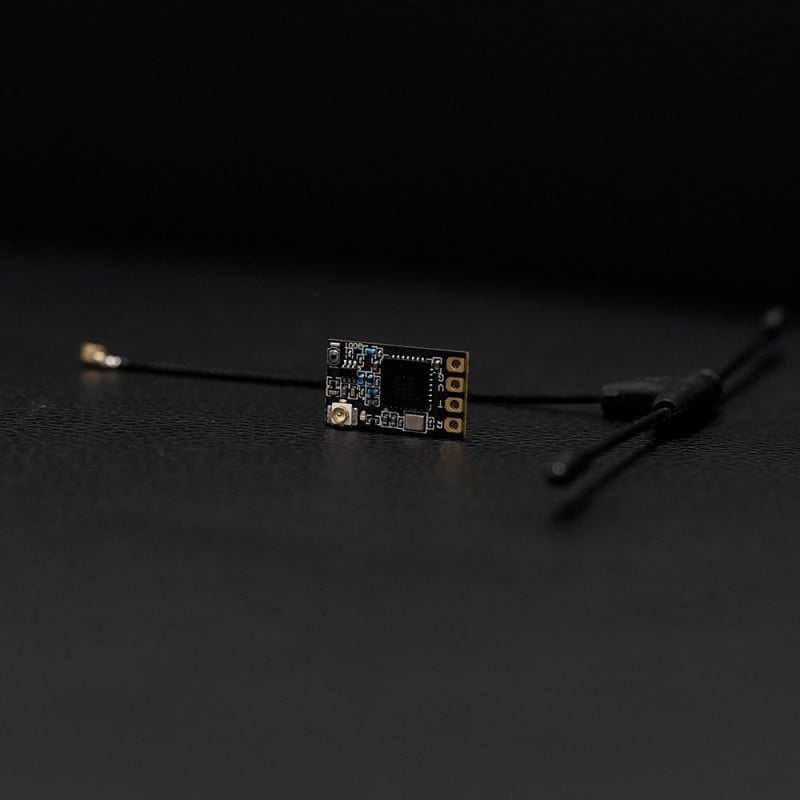

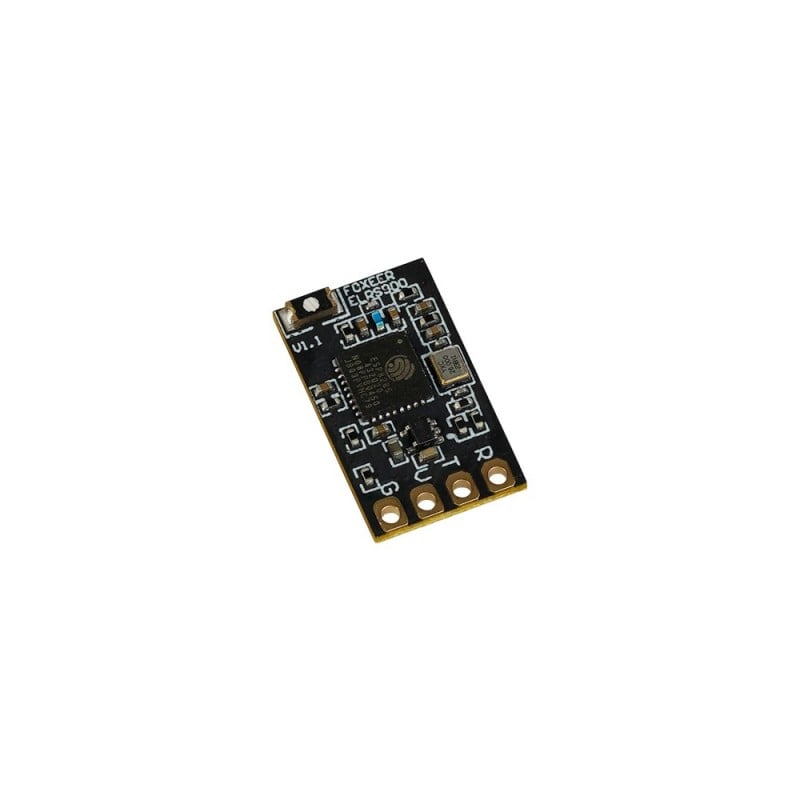

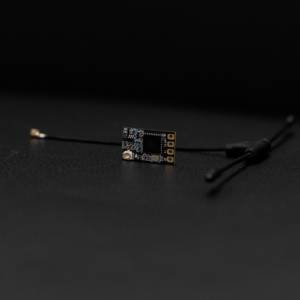

 Foxeer ELRS 915/868MHz Receiver
Maximize your drone’s potential with the advanced Foxeer ELRS Receiver designed for 915/868MHz frequencies. Built with a state-of-the-art ESP8285+SX1276 processor, it ensures a seamless connection for your drone adventures.
With a max telemetry RF power of 50mW and V3.2.0 firmware pre-installed, this receiver offers top-tier performance right out of the box. The compact design, weighing just 1g without the antenna, ensures minimal impact on your drone’s flight dynamics. Plus, its Ufl antenna connector and blue LED indicator make setup and operation a breeze.
Specifications
| Processor | ESP8285+SX1276 |
| Work Frequency | 915/868MHz |
| Flash Frequency | 25~200Hz |
| Telemetry RF Power | 50mW Max |
| FW Version | V3.2.0 pre-installed |
| FW Target | Foxeer 900 RX |
| Bus Interface | CRSF |
| Indicator | Blue LED |
| Antenna Connector | Ufl |
| Input | 4~5.5V |
| Weight | 1g without antenna |
| Size | 11*18.5mm |
| Package Includes | 1 x Rx, 1 x Antenna, 1 x Heat Shrink Tube, 1 x Cable, 1 x 4pin Header |
