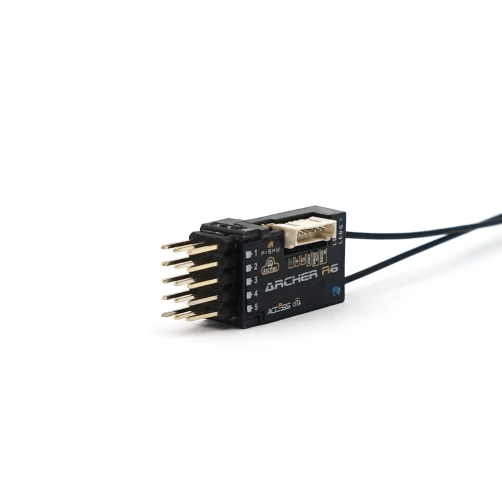

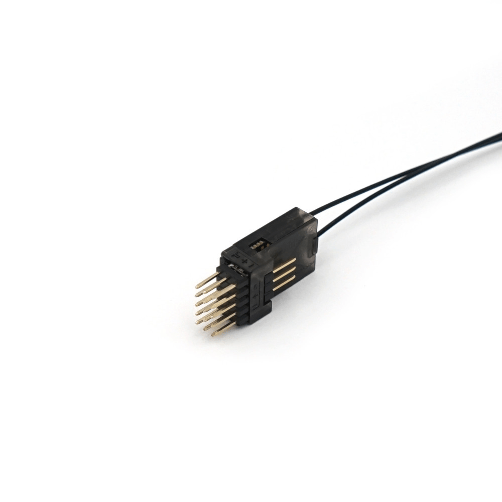

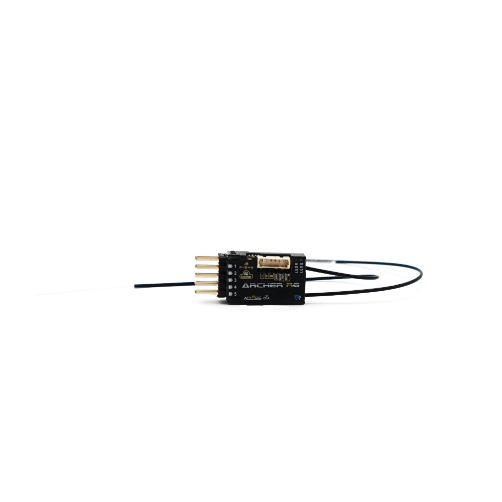

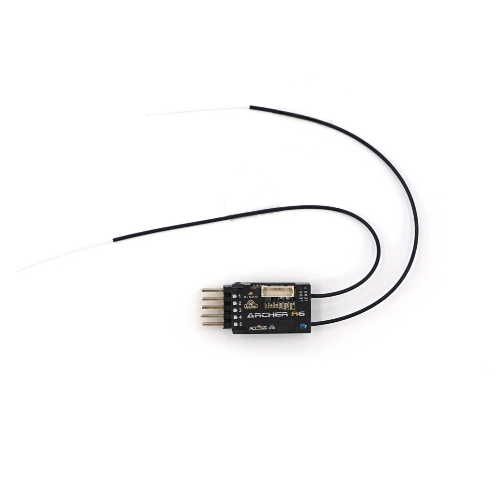

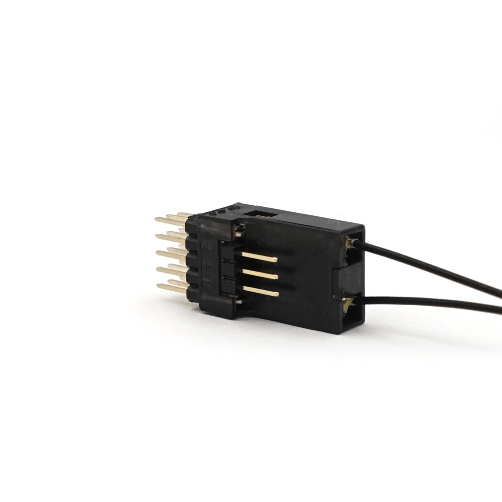

FrSky 2.4GHz ACCESS Archer R6 Receiver
Check out all of our FrSky Products!
Introducing the Archer R6, a compact receiver with 6 high-precision PWM channel outputs and dual detachable antennas for optimal signal reception and range. It also serves as a redundancy receiver and is hyper-matched with the ACCESS protocol, offering wireless firmware upgrades, increased range, and advanced telemetry functions like configurable power and switching. Experience superior connectivity and unlock the true potential of your setup with the Archer R6.
FEATURES
- ACCESS protocol with Over The Air (OTA)
- Tiny and lightweight
- Supports signal redundancy (SBUS In)
- Full control range with telemetry
- S.Port / F.Port
- External battery/device voltage detection
SPECIFICATIONS
- Dimension: 33*15*9.7mm (L*W*H)
- Weight: 3.5g
- 16/24 Configurable SBUS Channels
- 6 High-precision PWM Channels
- Operating Voltage Range: 3.5 -10V
- Operating Current: 55mA@5V
- Control Range: Full range* with telemetry
(*Full Range: ＞2km, the range may vary based on local conditions.) - Voltage Measurement Range via AIN2 (External device): 0-3.3V
- Compatibility: All FrSky ACCESS transmitters
