Matek XT60 PCB with Voltage Filter – TVS Diode (5 Pack)
This simple PCB allows easier mounting of your XT60 connector and capacitor. It also comes with 2 TVS diodes pre-installed. The TVS diode can absorb huge voltage surges while the low ESR capacitor takes care of voltage ripple. The board is capable of working with up to 6S voltage which is a known to have very high voltage spikes capable of damaging your electronics and battery. Protects your components and pick up a pack today!

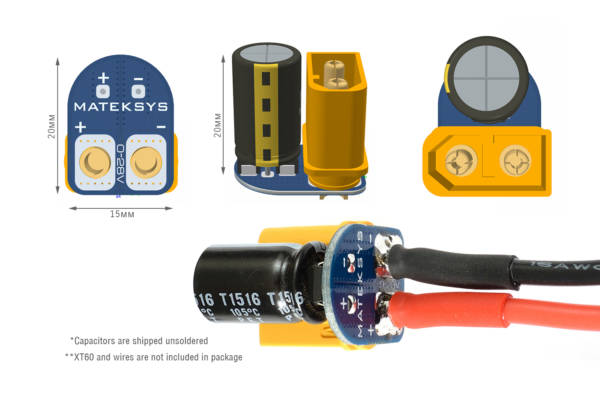

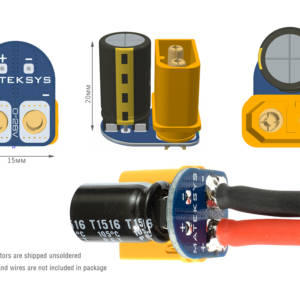

- 2x high-power TVS diodes and 1x 470uF low ESR capacitor on board
- TVS can absorb huge voltage surge at the moment of plugging battery to protect the connected components.
- Low ESR capacitor will reduce the voltage spikes and ripple caused by ESC.
- Maximum Operating Voltage: 28V (6S LiPo)

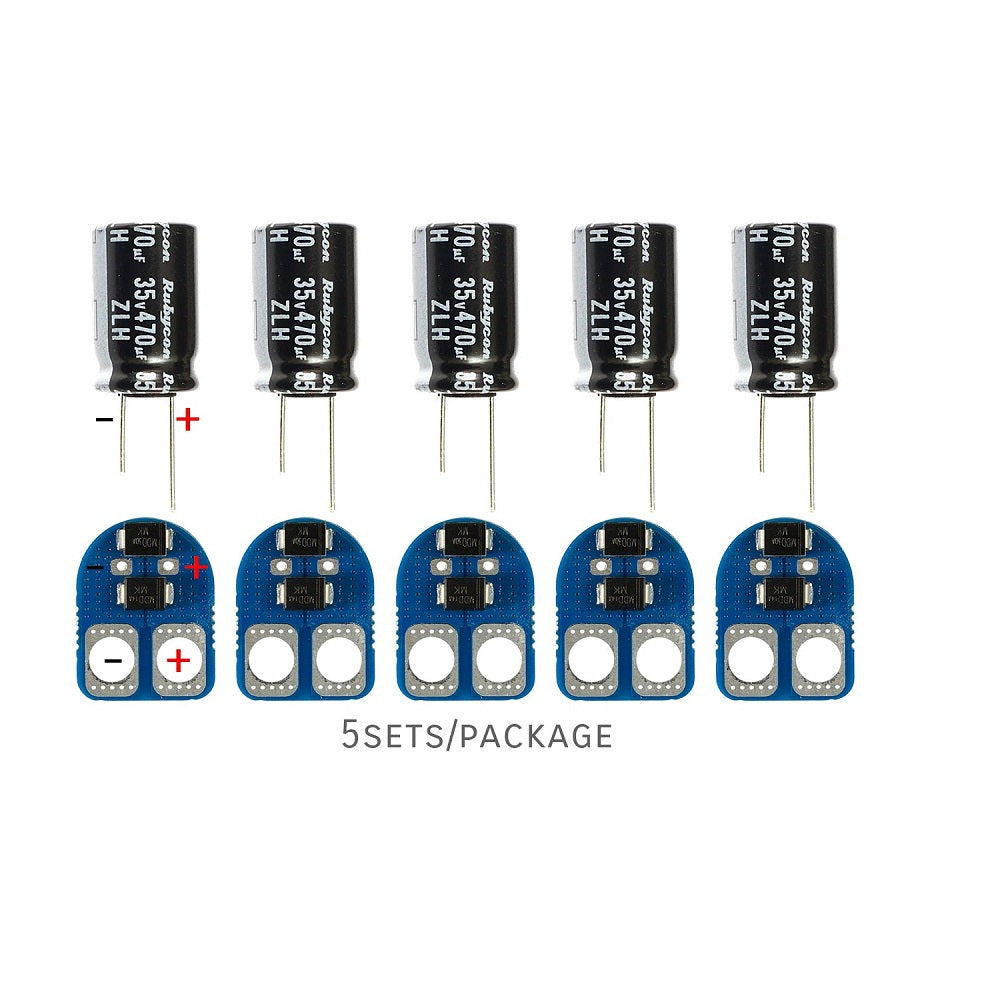

- Packing: 5x PCB w/TVS, 5x 470uF Rubycon ZLH series electrolytic capacitor.
-
WHAT IS A TVS DIODE AND HOW DOES IT WORK?
- The Transient Voltage Suppression diode (TVS) is a component that is commonly used for transient protection. (Not to be confused with zener diode or schottky diode.) It consists of a p-n semiconductor junction that becomes conductive during a transient voltage spike. In normal circumstances, it appears as an open circuit despite a small leakage current.
- When the voltage on the transient voltage suppressor rises across its threshold voltage(Breakdown Voltage), the avalanche effect of the semiconductor causes the p-n junction to become a low-impedance path that channels away the excessive current. The response time of the TVS diode is extremely fast, often expressed in picoseconds.
- The placement of the TVS diode is also important. It is a good practice to place TVS diodes as close to the power source as possible.
PACKAGE INCLUDES:
- 5 x XT60 PCB’s w/ TVS Diodes
- 5 x 470uF Rubycon ZLH series electrolytic capacitor
