Lumenier Mini 4Power + Plus Pro PDB (2-8S, 5v / 9v Reg, 184A Current)

Lumenier Mini 4Power + Plus Pro PDB (2-8S, 5v/9v Reg, 184A Curr.)

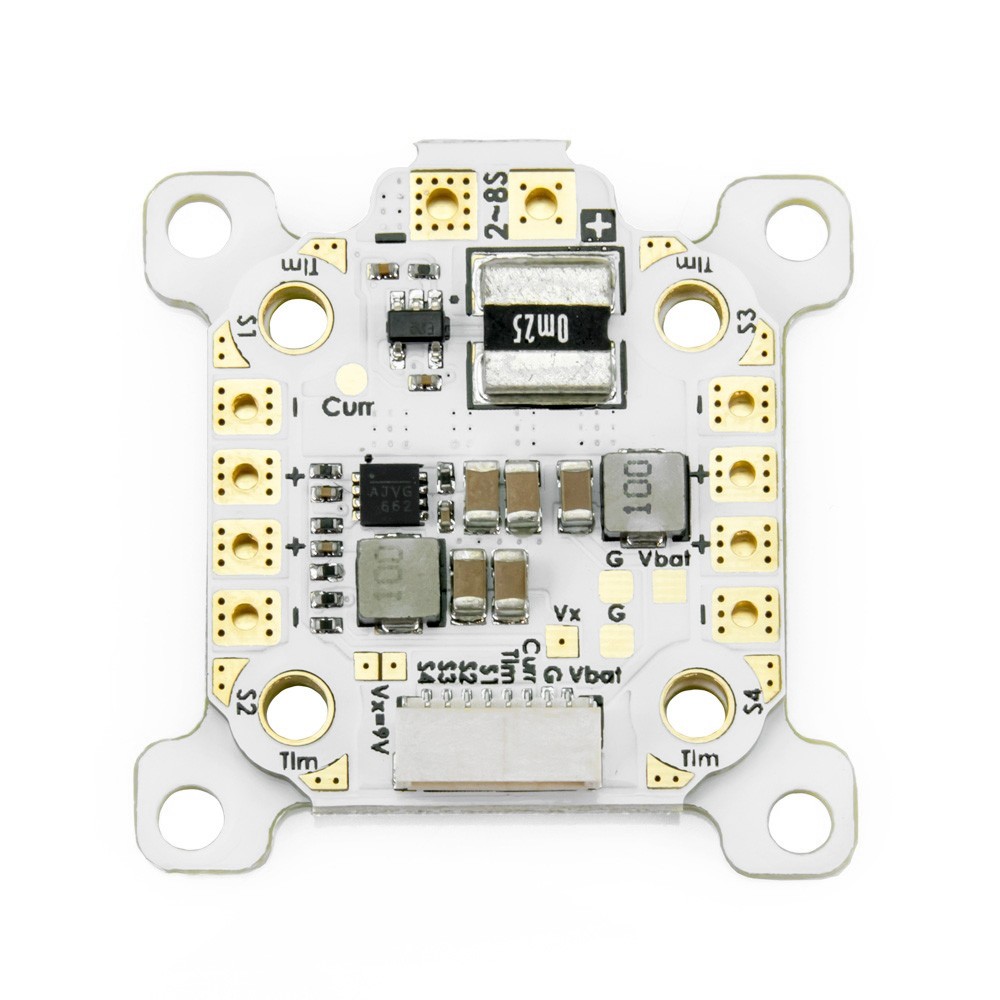

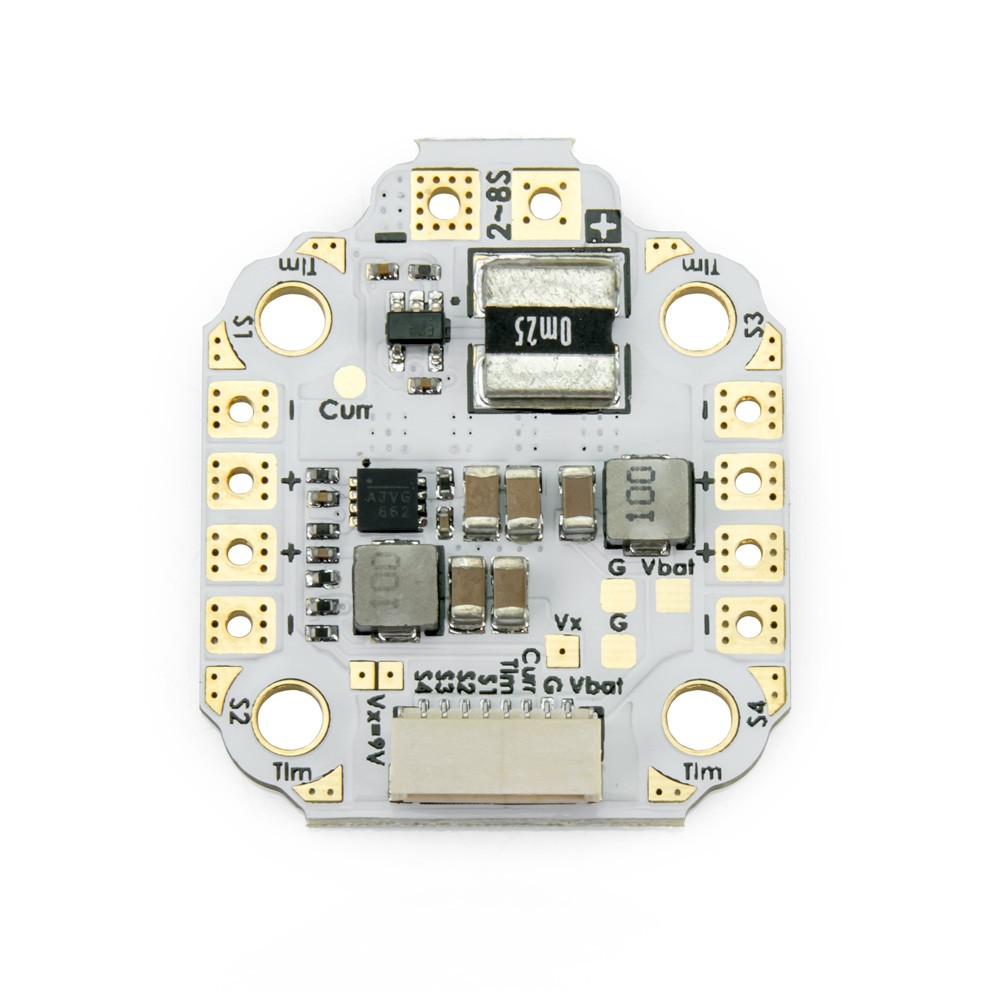

The Lumenier Mini 4Power + Plus Pro PDB is a feature-rich power distribution board designed for mini quadcopters. The board uses a native 20x20mm mounting hole pattern as well as a 30.5×30.5mm adapter board to fit different configurations. This PDB features an easy to solder layout keeping builds clean and simple. The Mini 4Power + Plus Pro has all your power needs in one place with a selectable onboard 5v or 9v 2A BEC as well as a 184A capable current sensor.

The 4Power + Plus Pro now supports a wider range of input voltage (2-8S LiPo) giving you more freedom in your builds than ever!

Updated with the times, the 4Power + Plus Pro has an 8-pin harness for plug n’ play functionality with the Lumenier F7 Ultimate Flight Controller, (and other similar flight controllers) making setup that much easier. Another new feature on the + Plus Pro is the ability to get telemetry (BLHeli_32 features) and signal from your motors to pass through to the FC via the 8 pin connector.

The voltage regulator can supply up to 2A of current, allowing them to easily power your VTX, camera, FC, and some LEDs.

Features

• Input voltage range (2-8S operation)
• PDB: 4x30A (Max.4x46A)
• Regulated 5V (1.5A, 2A Max) and 10V (2A, 2A Max) outputs
• Current Sensor ~184A (Output Voltage Scaling is 179)

Specifications

• 2oz copper, 4-layers &1.6mm PCB.
• 1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 1x BEC 8V outputs.
• Current Sensor, Gnd pads, Video Transmitter Signal & Gnd pads
• Dimensions: 30×28(+8 with XT30)x4mm, Weight: 4.5g
• Mounting holes 20mm square spacing, Φ3mm

PDB (ESC outputs)

• Continuous current:  46A max per output

BEC 5V Outputs

• Designed for RC Receivers, Flight controllers, OSD, and Servos.
• DC/DC synchronous buck regulator.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 1.5 Amps (Max.2A 10s/minute)
• Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
• Short-circuit tolerant (5 seconds/minute)

BEC 9V Output

• Linear regulator, very low noise. LC Filter is needless.
• Designed for Video TX or FPV camera.
• Stable power output even on low voltage 3s (below 12v)
• Voltage: 8.0V +/- 0.3VDC (4~5S operation)
• Continuous current: 1.5A@16V IN (2A Max)
• Short-circuit tolerant (2 seconds/minute)

Current Sensor

• ~184A

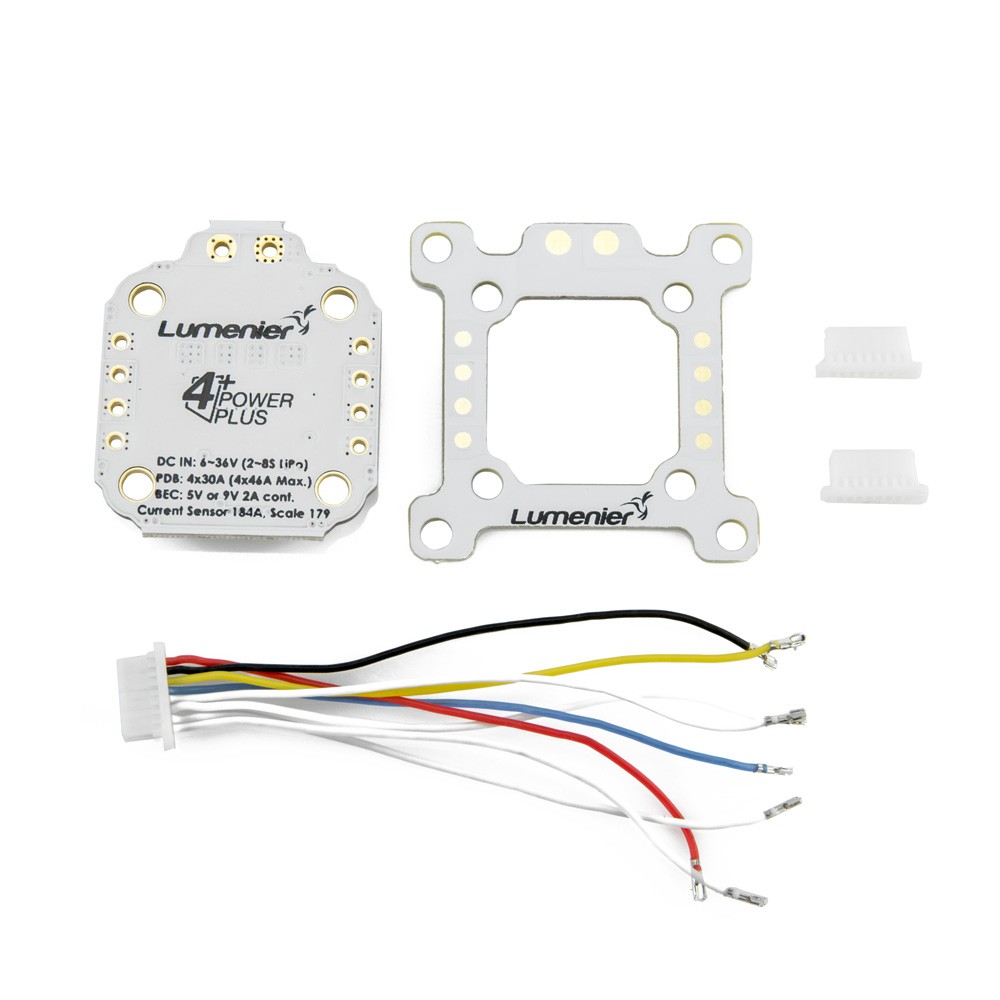

Includes

• 1x Lumenier Mini 4Power + Plus Pro PDB
• 1x 30.5×30.5 Mounting Adapter
• 1x 8-pin to bare wire cable
