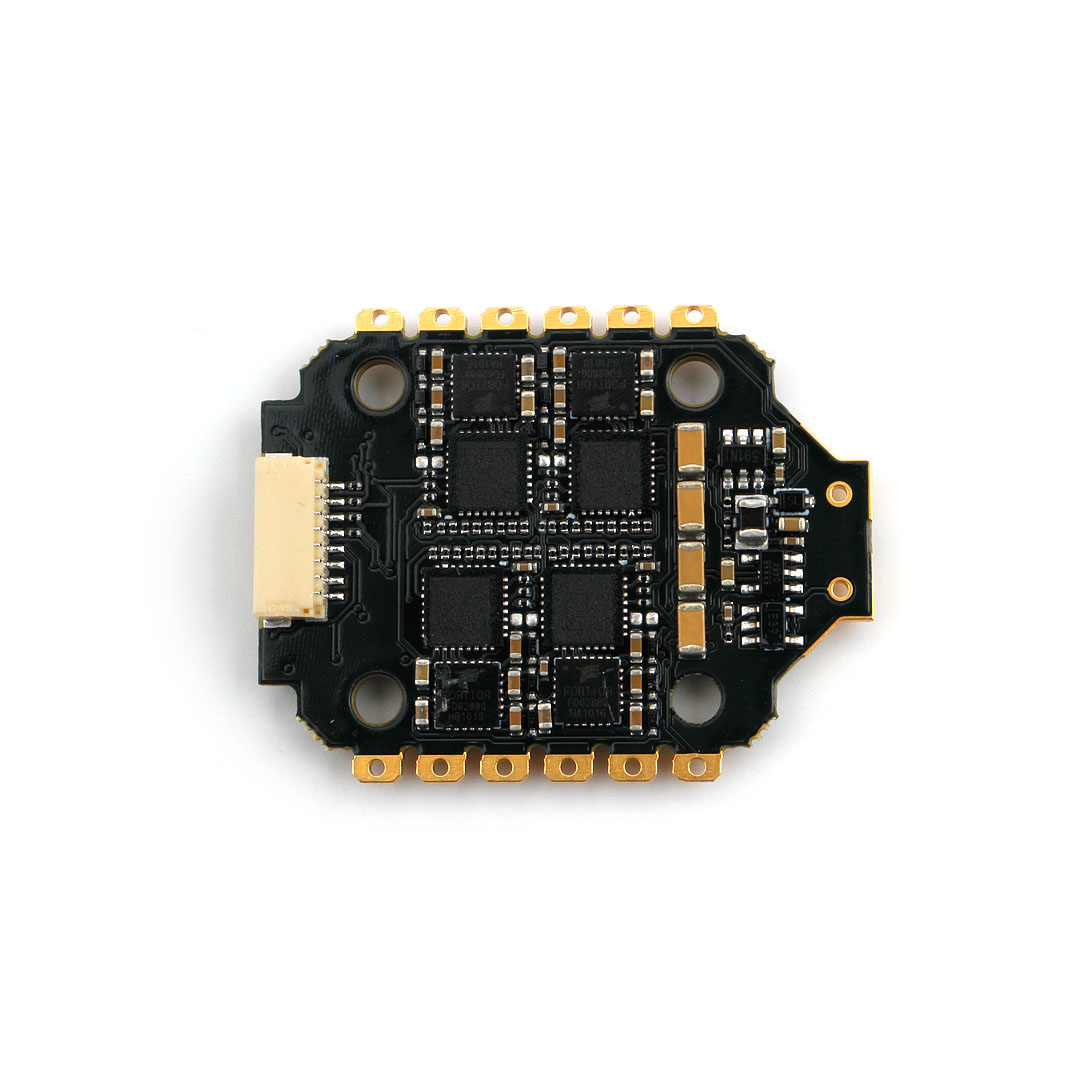

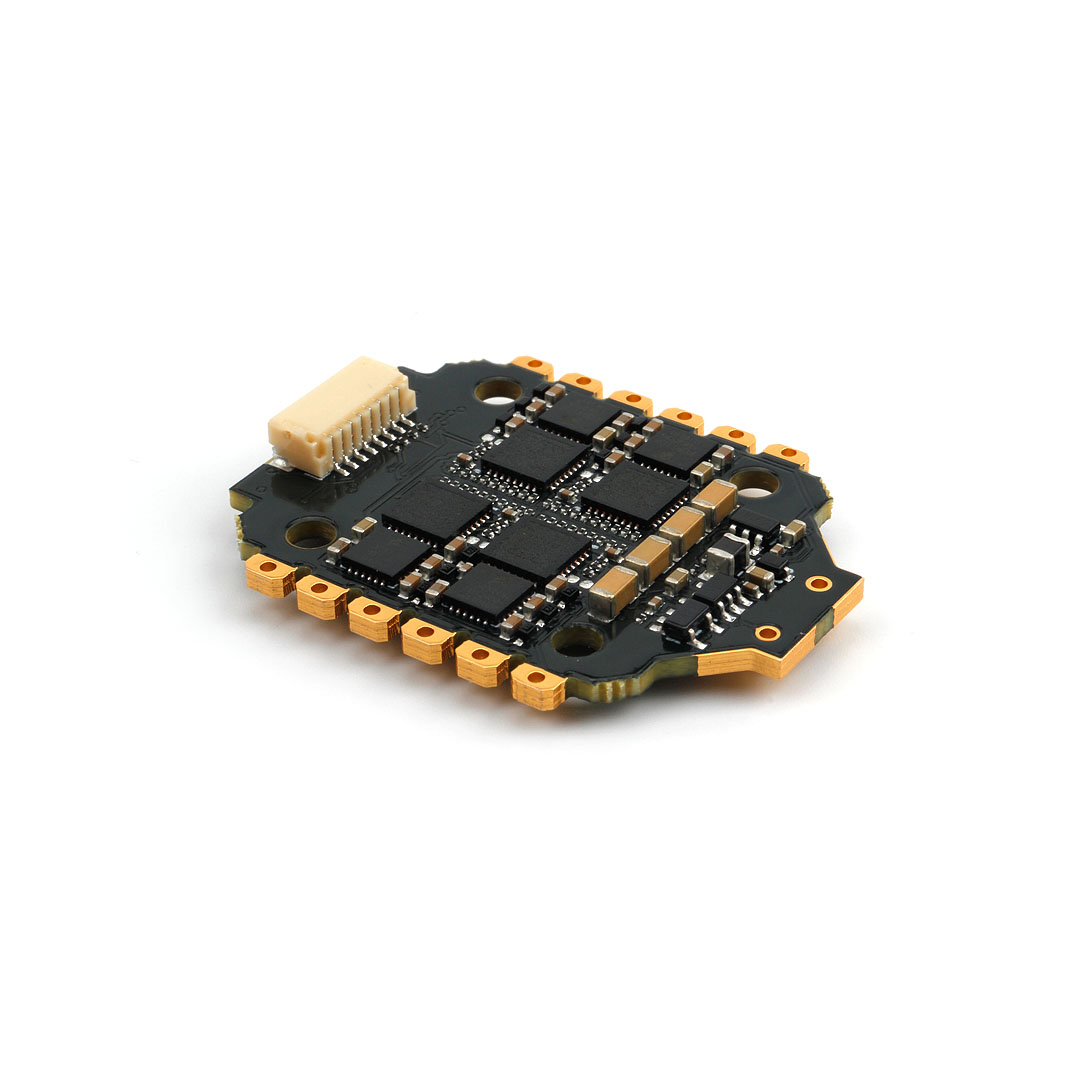

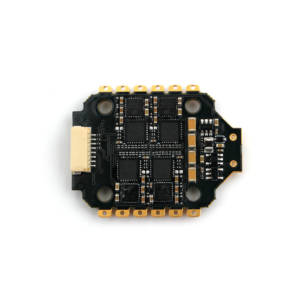

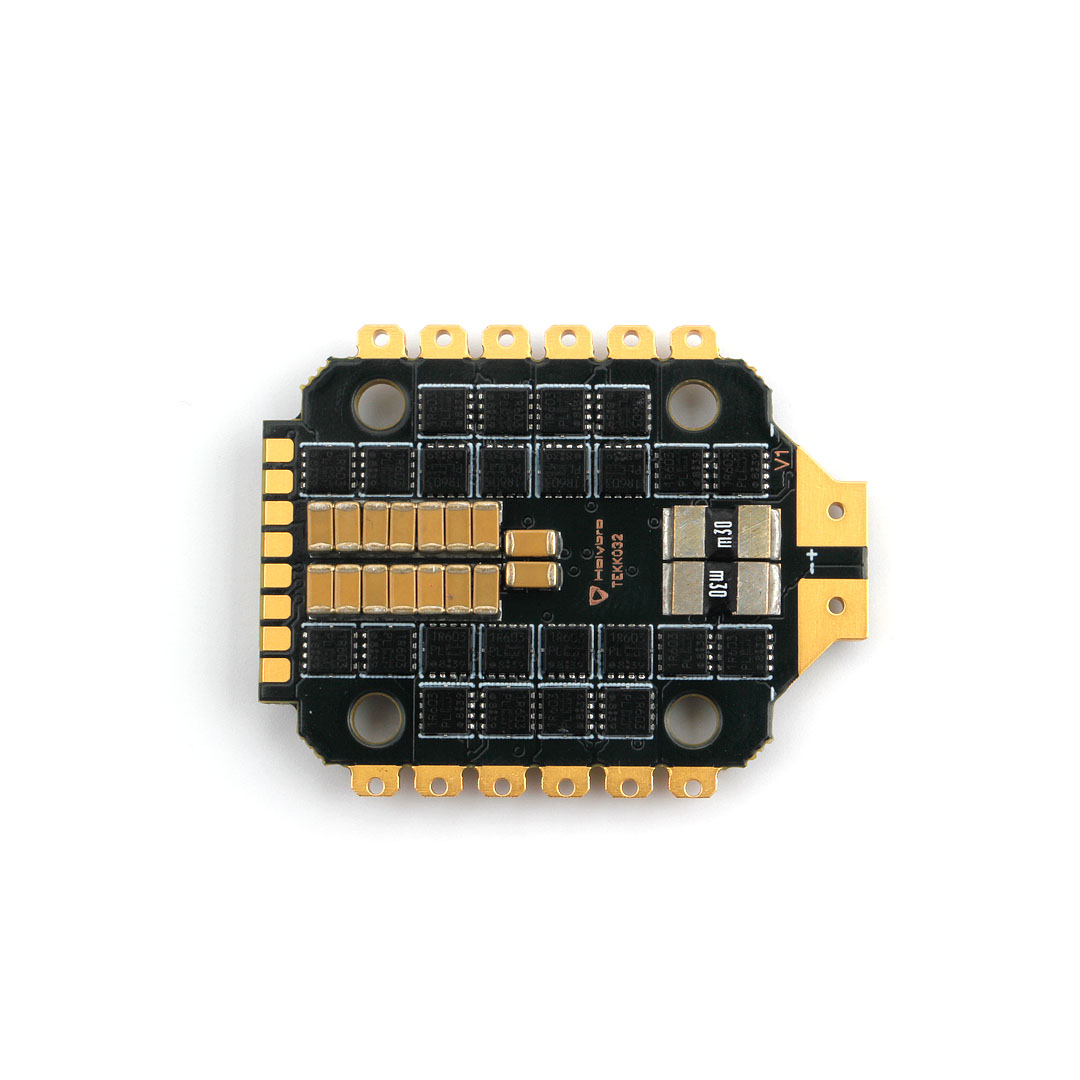

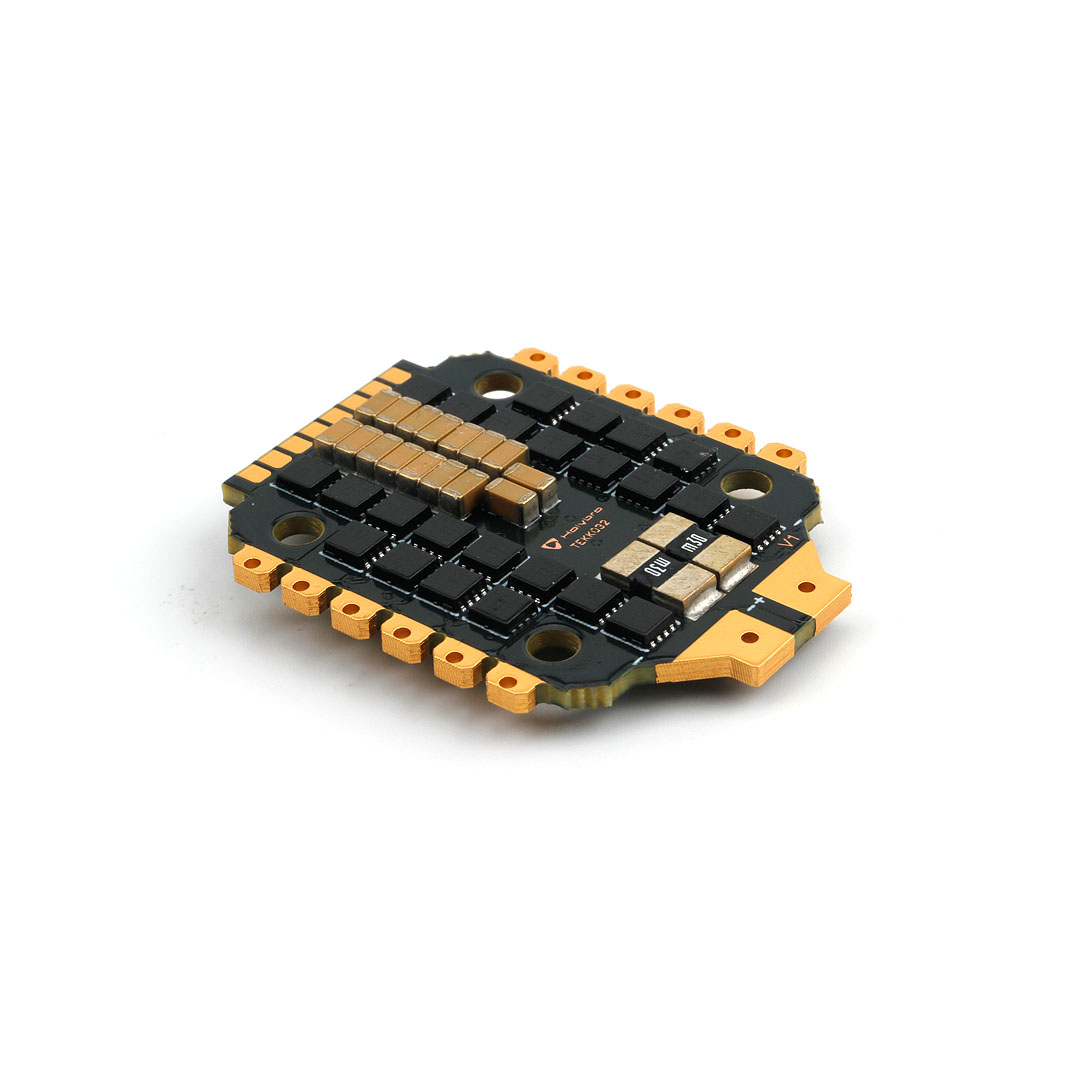

Holybro Tekko32 F4 4in1 Mini 45A ESC

Check out our entire Holybro line of products.

SPEC:

• F4 MCU with BLHELI32 firmware
• Maximum PWM output up to 96K (default 48K)
• The amperage meter scale ratio has been adjusted to 168.
• PWM input, TLM supported
• Voltage output (VBAT)
• NO output BEC
• Supports Oneshot / Multishot / Dshot PWM
• Supports damped light
• Supports 3-6S lipo input
• cap needed for 6s (1000uf 35v for 6s usage.)
• Mounting holes: 20x20mm(M3)
• Size:30 x 39 mm

PIN MAP:

Package includes:
